The Leviton Berk-Tek SST Cat 6A UTP Riser Cable is engineered to be the highest-performing unshielded twisted pair solution on the market11. Designed specifically for high-bandwidth, mission-critical environments, this cable offers unmatched network performance assurance. It features a specially designed isolation wrap that provides superior heat management and noise-cancelling capabilities, ensuring signal integrity even in demanding setups33. Whether utilized for medical imaging, financial trading platforms, or ultra-high-definition 4K video, this American-made cable delivers reliability where it matters most.
Product Specifications
Category: Cat 6A UTP
Conductor: 23 AWG Bare Copper
Insulation: FEP/Polyolefin with a nominal diameter of 0.047 inches
Cable Diameter: Nominal 0.275 inches (6.99 mm)
Fire Rating: CMR (Riser Rated), UL Listed as CMR-LP (0.5A)
Temperature Rating: Operating temperature range of -20°C to +60°C (-4°F to +140°F) with a listed cable temperature of +75°C
Standards Compliance: Verified to ANSI/TIA 568.2-D, IEEE 802.3 PoE Types 1-4, and RoHS Compliant
Features and Applications
The SST Cat 6A cable stands out with premier performance margins, offering a best-in-class 10 dB Alien Crosstalk (AXT) margin and 4 dB ACRF margin1212. It is fully capable of supporting network operations in adverse real-world conditions13.+2
Power over Ethernet (PoE): Features a Limited Power (LP) 0.5A rating, allowing for worry-free support of 100 W PoE even in large bundles of up to 480 cables1414.
High-Speed Support: Ideal for Wi-Fi 5, 6, and 7 access points and supports 1 GbE with PoE Type 1 up to 155 meters when used with the ATLAS-X1 SST system151515.
Signal Isolation: The proprietary isolation wrap optimises the cable for noise cancellation, eliminating the need for grounding usually associated with shielded cables while maintaining high performance.
Uses:
This cable is specifically classified for indoor riser applications. It is the optimal choice for installations requiring high data throughput and substantial power delivery, such as:
-
Next-generation Wi-Fi access points.
-
Data-intensive medical and financial networks.
-
Digital signage and high-definition video streaming.
-
Smart building integrations using Cisco UPOE and UPOE+ (90 watts max) or Power over HDBaseT (95 watts max)
Construction

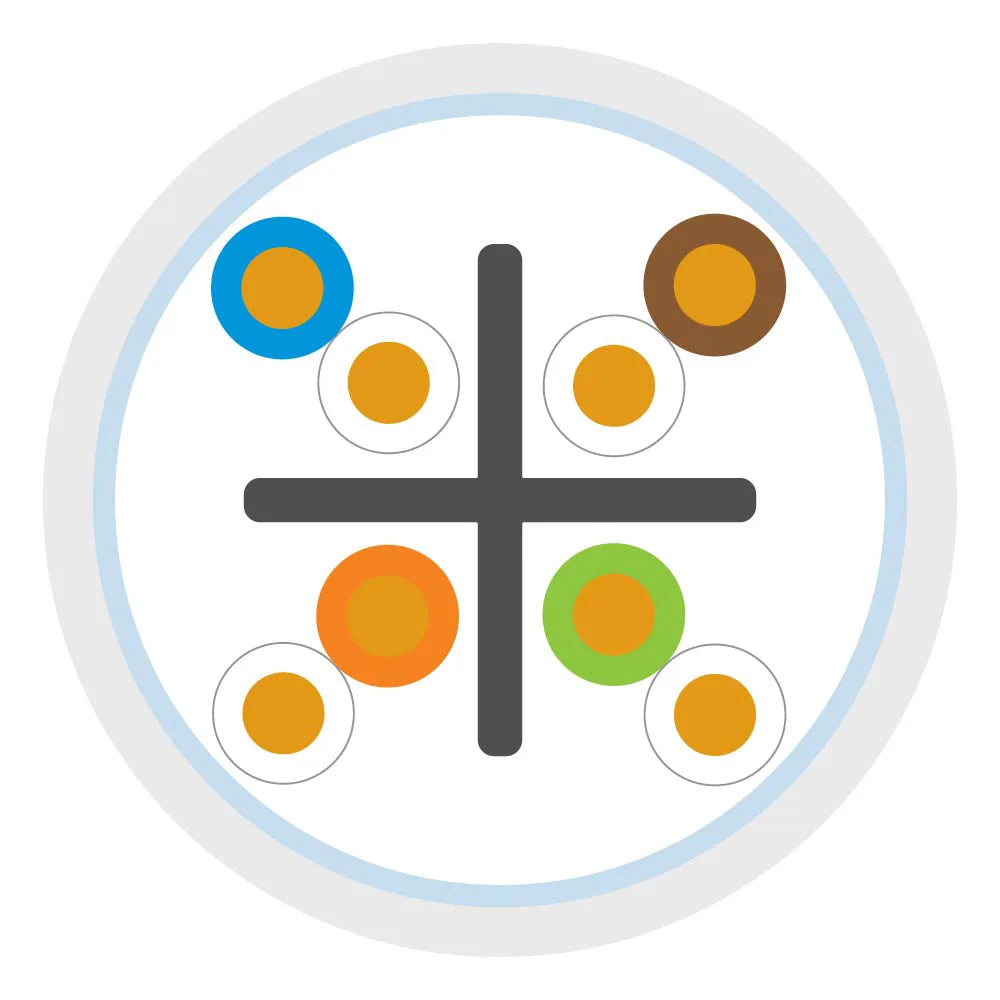

The cable is constructed with four pairs of 23 AWG bare copper wires arranged to minimise crosstalk. The core is wrapped in a specialised isolation barrier that manages heat buildup caused by high-power PoE applications2323. The outer jacket is CMR-rated, making it suitable for vertical runs in non-plenum spaces2424. The packaging is environmentally conscious, utilizing 100% recyclable materials.
