Description

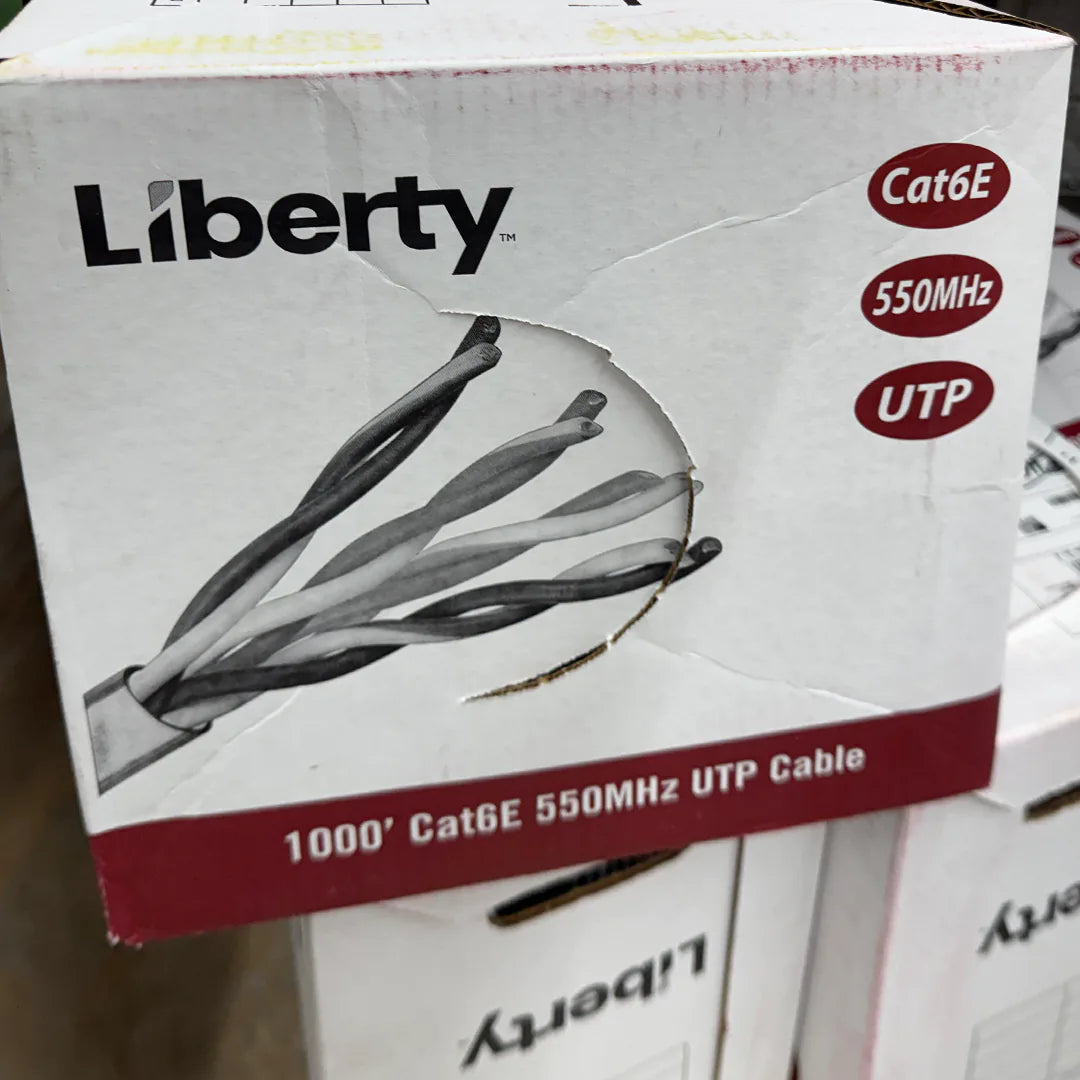

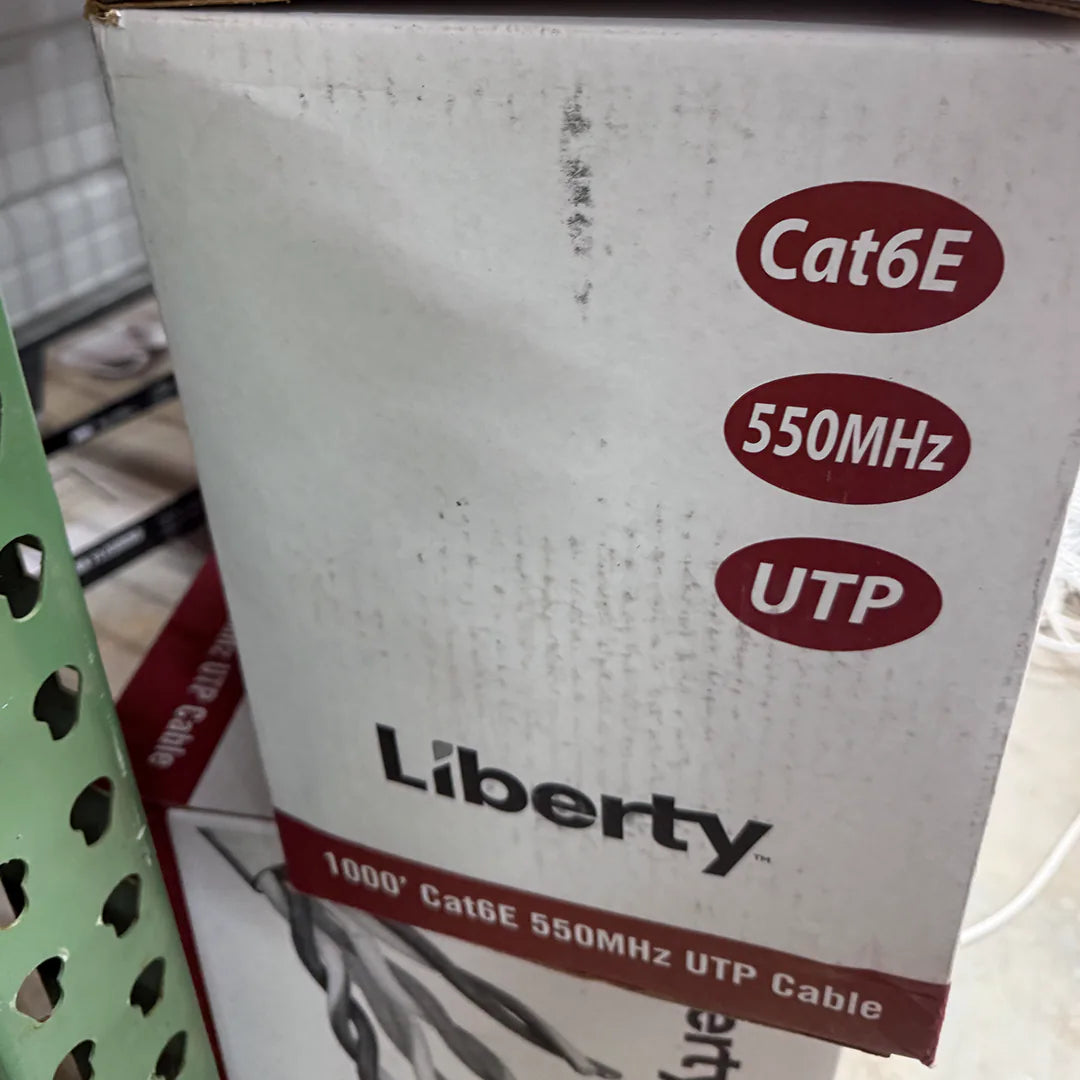

Cat6e Plenum L6EPWH1BX 23AWG 550MHz White 1000ft Solid Copper Made In USA ETL Certified Ethernet Cable.
Built for high-performance plenum installs, this Cat6e plenum cable delivers clean signal integrity and easy, code-compliant runs in commercial or residential buildings. With solid 23AWG oxygen‑free copper, FEP insulation, and a low-smoke plenum (CMP) jacket, this 1000 ft white UTP cable supports Gigabit networking with swept performance to 550 MHz, excellent crosstalk control, and dependable long-term reliability.
Product Specifications
- Category/Type: Cat 6 UTP, plenum-rated (CMP)

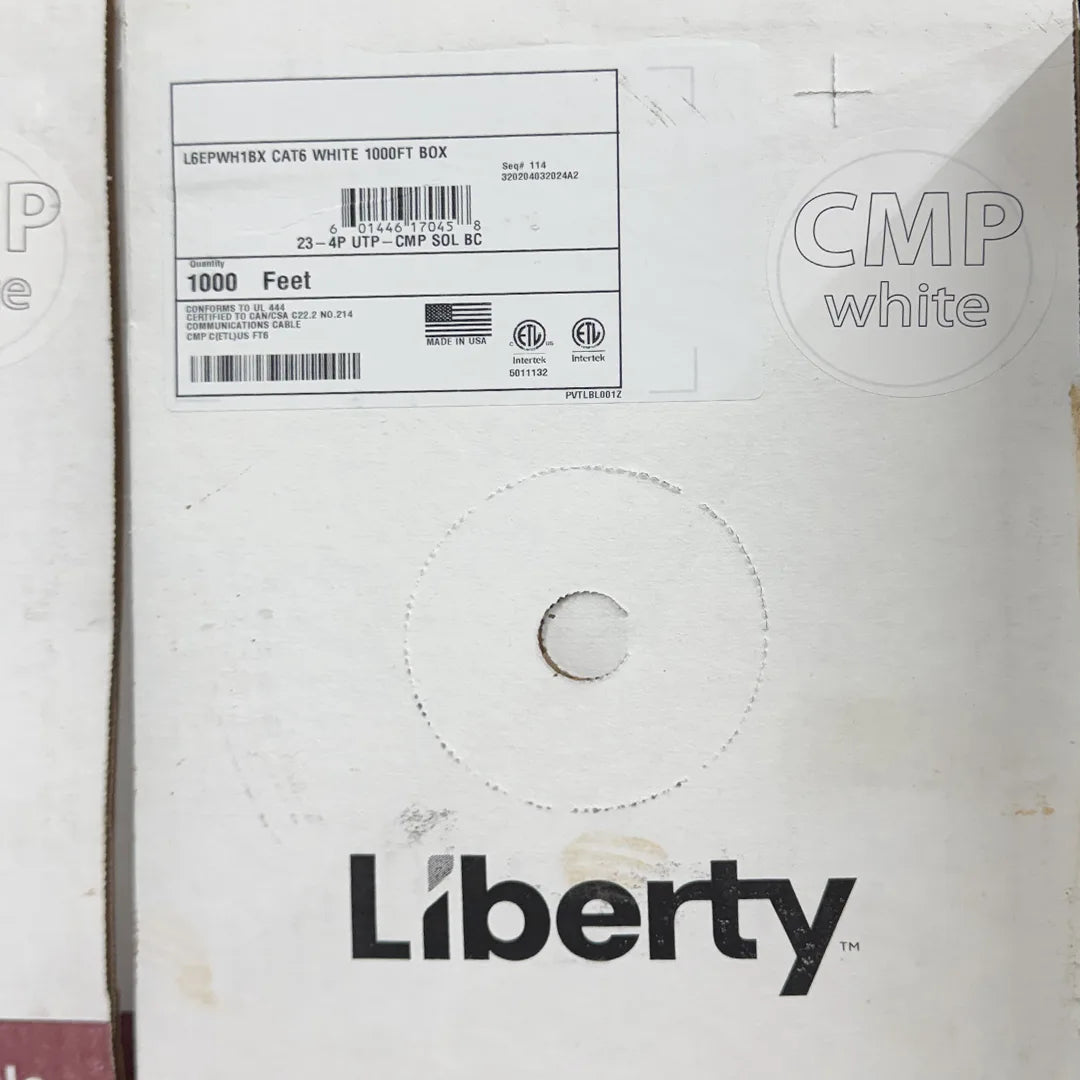

- Part: L6EPWH1BX (L6EP CC L XX series; color WH, length 1000 ft, pull box)
- Conductor: 23 AWG solid oxygen‑free copper, 4 pairs (8 conductors)
- Insulation: FEP (perfluoroethylene propylene)
- Jacket: Low Smoke PVC (LSPVC), CMP per UL 444
- Overall Diameter: 0.215 in (5.46 mm)
- Jacket Thickness: 0.019 in (0.48 mm)
- Velocity of Propagation: 73%
- Electrical: 100 Ω ± 15 Ω; DC resistance < 6.66 Ω/100 m; DC unbalance ≤ 2.5%; Capacitance 4.6 nF/100 m; Max skew 45 ns/100 m
- Temperature: Install 32°F to 140°F (0°C to 60°C); Operate −4°F to 140°F (−20°C to 60°C)
- Pull Tension: 25 lbs (111 N)
- Performance: Swept to 550 MHz; compliant to ANSI/TIA‑568 Category 6, ISO/IEC 11801 Class E
- Compliance: NEC Article 800; UL 444 Type CMP; EU RoHS II 2015/863/EU
Features and Applications
- Features:
- Solid OFC conductors for stable, low-loss transmission
- FEP insulation and LSPVC plenum jacket for code-compliant air-handling spaces
- Tight Cat6 performance with swept testing to 550 MHz
- Reliable crosstalk and return loss margins for Gigabit links
- Available in a pull box for smooth handling and deployment
- Applications:
- Gigabit Ethernet, VoIP, IP cameras, access points, and building automation
- High-density patching and horizontal runs in plenum spaces
- Audio/video distribution and backbone links within Cat6 parameters
Uses
- Ideal for new construction and upgrades in offices, schools, healthcare, and MDU environments where plenum rating is required.
- Suitable for device drops, IDF-to-workstation runs, and ceiling plenum pathways supporting network endpoints.
Construction
- Pairing: Four color-identified pairs (Blue/White, Orange/White, Green/White, Brown/White) with co-extruded stripes
- Geometry: 4-pair twisted assembly for balance and noise rejection
- Insulation/Jacket: FEP pair insulation; LSPVC CMP outer jacket designed for low smoke in air plenums
- Separator Tape: Included per design to maintain pair geometry (per diagram)
- No Rip Cord: Jacket designed for manageable terminations without a rip cord
Power your plenum runs with stable Cat6 performance, clean installation, and proven compliance—perfect for Gigabit networks and modern building systems.
Additional Info & Specs
| Color | White |
|---|---|
| Product Type | Ethernet Cable |
| Condition | New |
| Brand | Liberty |
| Package | Pull Box |
| Category | 6e |
| Spaces | CMP |
| Gauge | 23 AWG |
| Jacket | Plenum-Rated |
| Insulation Material | FEP |
| No. of Pairs | 4 Twisted |
| Shielding | Unshielded |
| Conductor | Solid |
| Conductor Material | Bare Copper |
| Certification Standards | ETL, RoHS, TIA |
