40 products

The Superior Essex 6A-272-4B 10Gain Category 6A Plenum cable is engineered to deliver high-performance 10 Gigabit Ethernet connectivity on a convenient 1,000-foot continuous reel for demanding commercial, institutional, and data center installations. Constructed with four unshielded twisted pairs of 23 AWG solid annealed bare copper conductors insulated with premium fluorinated ethylene propylene (FEP), this plenum-rated cable ensures superior electrical performance and low signal attenuation. A robust cross-web inner separator isolates individual conductor pairs, while an innovative proprietary core wrap provides unmatched alien crosstalk (AXT) suppression and electromagnetic immunity without requiring metallic shields or grounding connections. Encased in a flame-retardant, low-smoke polyvinyl chloride (LSPVC) jacket rated CMP per NEC Article 800 and NFPA 262, it is fully certified for air-handling plenum spaces. Verified by UL to ANSI/TIA-568.2-E and tested up to 650 MHz with guaranteed 1 dB AXT margin, the 6A-272-4B supports 10GBASE-T, PoE++ (IEEE 802.3bt Types 1-4 up to 100W), and HDBaseT across full 100-meter channel distances.

In stock 6 Products

$574.99
The Superior Essex 6A-246-4B 10Gain Category 6A Plenum cable delivers uncompromising 10 Gigabit Ethernet network transmission for enterprise backbones, data centers, government facilities, commercial office suites, and advanced smart building infrastructures. Engineered with four balanced pairs of 23 AWG solid annealed bare copper conductors and fluorinated ethylene propylene (FEP) thermoplastic insulation, this premium network cable ensures superior electrical integrity and signal fidelity across broad operating frequencies. An innovative cross-web inner separator physically isolates each conductor pair, while an advanced proprietary core wrap guarantees exceptional alien crosstalk (AXT) suppression and electromagnetic interference mitigation without requiring grounding or metallic foil shields. Rated CMP per NEC Article 800 and NFPA 262, the low-smoke polyvinyl chloride (LSPVC) jacket is fully certified for plenum air-handling spaces. Tested to 650 MHz with guaranteed 1 dB AXT margin, the 6A-246-4B supports 10GBASE-T, Power over Ethernet (PoE up to 100W IEEE 802.3bt Types 1-4), ATM, and HDBaseT across full channel lengths.

In stock 13 Products

$574.99 $700.00
$599.99 $700.00

In stock 19 Products

The General Cable GenSPEED 10,000 Category 6A Plenum (CMP) cable (part number 7131826) is a premier enterprise-grade networking cable engineered for 10GBASE-T transmission performance and superior signal isolation. Manufactured with 23 AWG solid bare annealed copper conductors, fluoropolymer insulation, and an innovative T-Top cross-web separator, this cable locks pairs into a systematic internal orientation to maximize electrical balance. It features General Cable's signature AirEs jacket technology, delivering exceptional flexibility and cable-to-cable pair separation for consistent alien crosstalk suppression (PSANEXT and PSAACRF). Certified CMP (NFPA 262) for plenum air spaces and tested to 500 MHz, it supports high-bandwidth data center backbones, IEEE 802.3bt PoE/PoE+, and building automation. Supplied on a 1,000-foot orange spool with TRU-Mark descending footage markings, this high-performance cable is proudly made in the USA.

In stock 19 Products

$599.99 $700.00
The Berk-Tek 10143424 LANmark-10G FTP Plenum Category 6A cable is an enterprise-grade 23 AWG solid bare copper Ethernet solution engineered for high-bandwidth horizontal premise network infrastructure. Featuring an overall polyester/aluminum foil shield (F/UTP design) with a stranded tinned copper drain wire, this cable delivers superior alien crosstalk (PSANEXT) suppression and outstanding EMI/RFI noise isolation while maintaining a compact 0.275-inch outer diameter for simplified termination and lower installation costs. Manufactured in the USA and certified to NFPA 262 (CMP) and UL CMP-LP (0.7A), it supports continuous high-temperature operation up to 105°C and provides full compliance with IEEE 802.3bt Type 4 PoE++ (up to 100W). Certified to ANSI/TIA-568.2-D Category 6A with transmission performance guaranteed to 500 MHz and sweep tested to 750 MHz, this 1000-foot blue reel Ethernet cable is optimized for 10GBASE-T enterprise networks, data centers, healthcare facilities, and high-density PoE installations.
GenSPEED 71518XX Cat6A Plenum 23AWG UTP 1000ft solid copper Ethernet cable. UL listed, 750 MHz rated, low-smoke flame-retardant plenum jacket for high-performance 10Gbps structured cabling.
Panduit TX6A Category 6A plenum U/UTP cable with 23 AWG solid copper conductors, 4-pair construction, CMP flame-retardant jacket, and 1000ft (305m) reel. Certified to ANSI/TIA-568.2-E Cat 6A and ISO 11801 Class EA for 10GBASE-T networks.

In stock 36 Products

$589.99 $900.00
Hubbell NEXTSPEED Cat6A Plenum (CMP) 1000ft reel — 23AWG solid bare copper, reduced-diameter 0.260" jacket, 10GBASE-T certified to 100m. UL/c(UL) listed, LP listed for high-power PoE, HDBaseT certified. Available in Blue, White, and Gray.
Superior Essex 6B-246-EB Cat6A Plenum 10Gain XP+ UTP 23AWG Solid Annealed Copper 1000ft Black Ethernet Cable. UL Listed CMP, 650MHz tested, guaranteed 15dB AXT margin. Ideal for 10GBASE-T, PoE++ enterprise networks.
The Superior Essex 6A-246-2B is a premium 23 AWG solid annealed copper Cat6A plenum (CMP) unshielded twisted pair cable engineered for 10GBASE-T Ethernet networks. Built with a proprietary core wrap and cross-web separator, this cable delivers guaranteed 1 dB AXT margin and is tested to 650 MHz. UL Listed and verified, it meets ANSI/TIA-568.2-E compliance for enterprise, datacenter, LAN, and residential installations. The flame retardant LSPVC jacket is rated CMP (plenum) with low-smoke characteristics, making it suitable for air-handling spaces per NEC (NFPA 70) Article 800. Each of the 4 pairs features FEP thermoplastic insulation with ColorTip circuit identification system for easy conductor matching even in low-light environments. The cable includes a proprietary core wrap that assures excellent alien crosstalk (AXT) performance without the need for grounding or bonding. Applications include 10BASE-T through 10GBASE-T Ethernet, Power over Ethernet (PoE) IEEE 802.3bt Type 1 to 4, ATM and token ring, HDBaseT Class A and B, and backward compatibility to legacy protocols. Made in the USA. RoHS and REACH compliant.
$1,234.99 $3,000.00

In stock 7 Products

The Belden 10GX63F is a Category 6A Enhanced Plenum horizontal cable built for high-performance enterprise networks where both 10 Gigabit Ethernet and high-wattage PoE are in play. Running on four bonded pairs of 23 AWG solid bare copper conductors insulated with FEP and enclosed in a 100% bi-laminate foil shield, it delivers F/UTP shielding in a 0.310-inch nominal diameter package rated to 625MHz. The Flam arrest CMP-rated outer jacket passes UL 910 and NFPA 262, qualifying it for air-handling plenum spaces without conduit. It's TIA-568.2-D Cat6A and ISO/IEC 11801-1 compliant, IEEE 802.3bt rated through Type 4 for PoE++, and listed for 10GBASE-T, Wi-Fi 6, HDBaseT, and surveillance applications. Belden's patented X-Spline® center member and dual ripcords make field termination cleaner. Available on 1,000ft reels in six colors — black, blue, gray, red, white, and yellow.

In stock 7 Products

$1,234.99 $3,000.00
The Cat6A Plenum Wavenet 6A04FPBL2 is a 1000-foot reel of shielded solid bare copper Ethernet cable built for high-performance 10G networks running at frequencies up to 750MHz. It uses 23AWG conductors across four twisted pairs with an aluminum-foil shield wrapped around them, which helps block electromagnetic interference in electrically noisy environments like industrial floors or data centers. A cross-shaped separator sits between the pairs to keep crosstalk under control and maintain clean, stable signal paths over long runs. FEP insulation on each conductor handles heat well, while the flame-retardant PVC jacket carries a plenum CMP and FT6 rating, so you can run it safely through air-handling spaces like drop ceilings and raised floors. It is ETL and C(ETL)US certified to TIA-568-C.2 standards and fully RoHS compliant. The full 1000-foot box weighs 49 pounds and includes a ripcord for easier termination. You can get it in blue or white jacket colors, making cable identification simple across multiple network runs.

In stock 10 Products

$589.99 $598.99
The Cat6A Plenum Wavenet 6A04UPXX2 is a 1000-foot solid bare copper Ethernet cable built for 10-Gigabit networks running at up to 750MHz. It uses 23AWG conductors across four unshielded twisted pairs, separated by a cross-shaped divider that keeps crosstalk low and signal quality high. The plenum-rated (CMP/FT6) flame-retardant PVC jacket makes it safe for air-handling spaces like drop ceilings and raised floors, which is where most commercial runs end up anyway. FEP insulation on each conductor handles heat well and maintains strong dielectric performance. It's ETL and C(ETL)US certified to TIA-568-C.2 standards and fully RoHS compliant.
$509.99 $649.99

In stock 1 Products

The Berk-Tek LANmark-10G2 (part number 10137694) is a Cat6A plenum-rated UTP cable in green, built with 23 AWG solid bare copper conductors insulated in FEP and wrapped in a flame-retardant PVC jacket. What sets it apart is the factory performance guarantee — every reel passes testing with margins of 2 dB for NEXT/PSNEXT and 4 dB for ACRF/PSACRF beyond the Cat6A standard before it ships. It's characterized to 750 MHz, giving you 250 MHz of headroom over the minimum requirement, and supports everything from 10GBASE-T down to legacy 10BASE-T. The patented round design keeps the outer diameter at 0.300 inches while minimizing alien crosstalk, which makes a real difference in dense cable bundles. It comes on a 1000-foot reel, is ETL listed and RoHS compliant, and handles voice, video, and data simultaneously across converged networks. Made in the USA by Berk-Tek.

In stock 1 Products

$509.99 $649.99
The Berk-Tek RDT is a Cat6A plenum Ethernet cable with a reduced diameter of just 0.230" — noticeably slimmer than the typical 0.260" Cat6A cable — making it a smart pick for high-density commercial installations where conduit space and cable tray capacity are tight. It's built with 23 AWG bare copper conductors, no cross filler, and Berk-Tek's Precision Twist Technology to maintain consistent signal performance across the full cable length. The isolation wrap handles heat buildup in bundled PoE runs, and alien crosstalk performance exceeds Cat6A requirements by an 8 dB margin — independently verified by ETL as part of the Leviton Verified Performance Program. It supports 10GBASE-T, 2.5G/5G Ethernet, and full IEEE 802.3bt PoE++ (Types 1–4).
The Remee 6UB234UTP is a Category 6A augmented plenum Ethernet cable rated to 500 MHz — well above the standard Cat6A minimum — making it a dependable choice for 10 Gigabit network installations in commercial buildings, schools, hospitals, and data-heavy environments. It's built with 23 AWG solid bare copper conductors insulated in FEP, assembled around a central pair separator, and finished with a low-smoke, flame-retardant PVC jacket that carries a full CMP plenum rating and FT6 flame classification. The cable is C(ETL)US Listed, meaning its Category 6A performance has been independently verified — not just self-certified. Beyond standard Ethernet, it also supports ATM, RS-422, AES/EBU digital audio, and NTSC/PAL video applications. With a 40.8 lbf maximum pull tension and a 1.250-inch minimum bend radius, it's built to handle the physical demands of real cable pulls. Manufactured in the USA and clearly surface-printed for easy compliance verification on the job.
$549.99 $700.00

In stock 1 Products

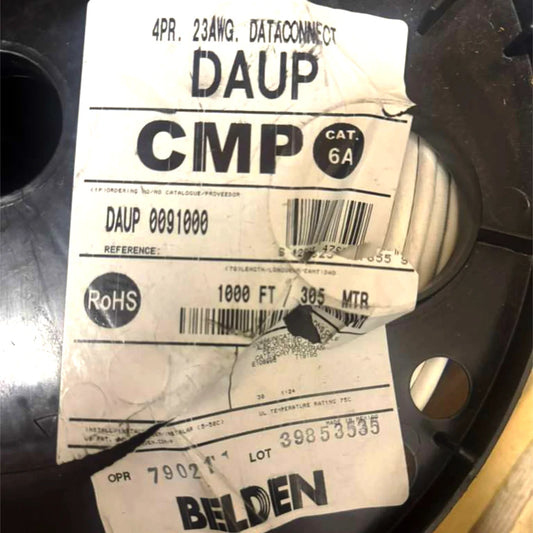

The Belden DAUP is a Cat6A plenum-rated Ethernet cable built for real 10 Gigabit performance in commercial and enterprise environments. It uses 23 AWG solid bare copper conductors insulated with FEP, keeping signal loss low and electrical characteristics stable across long horizontal runs. The Flamarrest CMP-rated jacket meets NFPA 262 and UL 910 plenum fire standards, making it fully approved for use in air-handling ceiling spaces where fire codes are strict and non-negotiable. Belden's patented X-Spine® center member keeps all four pairs evenly spaced throughout the cable, while EquiBlock Barrier Technology cuts down alien crosstalk in dense, bundled cable runs. Full IEEE 802.3bt PoE++ support covers Type 1 through Type 4, so you can power IP cameras, wireless access points, and VoIP phones right through the cable. Each 1,000ft reel includes descending footage and meter markings printed on the jacket, making it easy to track exactly how much cable you've pulled on any job.

In stock 1 Products

$549.99 $700.00
$539.99 $700.00

In stock 4 Products

The BERK-TEK RDT Cat 6A UTP CMP Cable (Part No. 11143780) comes in an orange jacket on a 1000ft reel, built specifically for installers who need both performance and practicality in a single package. At just 0.230 inches in diameter, it fits more cable runs into the same conduit space compared to standard Cat 6A cables, and the 0.92-inch minimum bend radius means tight corners aren't a problem anymore. It supports 10GBASE-T, PoE++ (Types 1–4), 802.11ac wireless, HD video, and IP security — basically anything a modern enterprise network demand. ETL-verified performance guarantees 8 dB of margin above Cat 6A requirements for alien crosstalk protection. No cross filler, Leviton FLX-1 technology, and Precision Twist Technology combine to keep pulls smooth and signal quality consistent across every foot of the run. The plenum CMP jacket is UL Listed at CMP-LP (0.7A) and rated to 105°C. Made in the USA and fully RoHS compliant.

In stock 4 Products

$539.99 $700.00

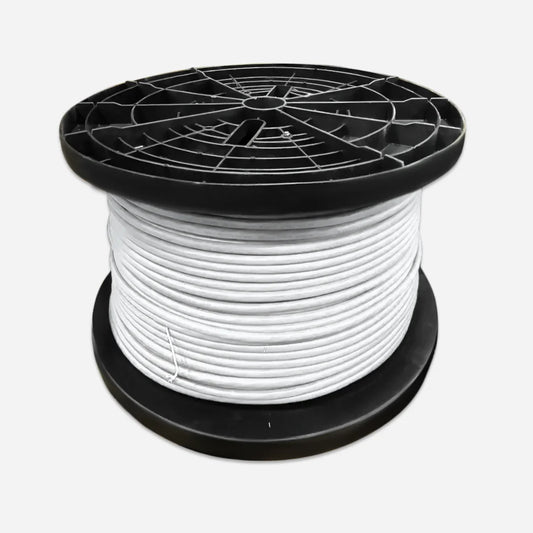

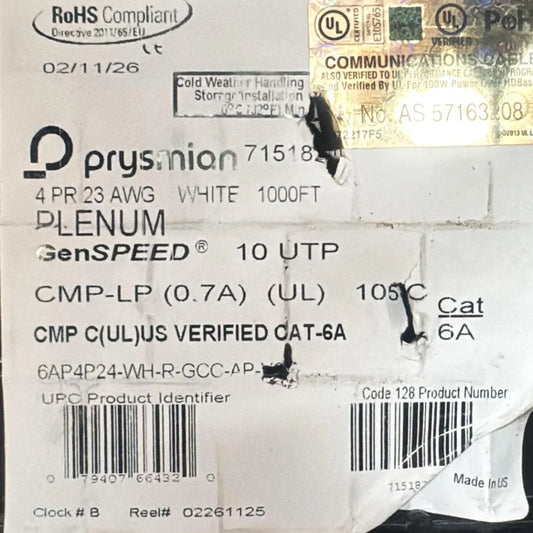

The Prysmian GenSPEED 10 UTP Gen5 Cat6A Plenum Cable (Part No. 7151820) is a white, 1000ft spool of 23 AWG solid bare copper Ethernet cable built specifically for high-density indoor installations. At just 0.230 inches in diameter — the smallest in its class — it fits more cables into the same conduit space without sacrificing signal quality. It handles everything from standard Gigabit Ethernet to 10GBASE-T, and supports full PoE, PoE+, and PoE++ including 100W power over HDBaseT. The 105°C CMP plenum-rated jacket keeps things safe in air-handling spaces, even under heavy power loads. With a 1-inch minimum bend radius and UL-verified performance that exceeds TIA 568.2-D by +2 dB on PSANEXT, this cable is built to make installation faster and the network more reliable. TRU-Mark countdown footage markings are printed right on the jacket. Made in the USA and fully RoHS compliant.
The BERK-TEK RDT Cat 6A UTP CMP Cable in Blue (Part No. 11142454) is a 1000ft plenum-rated Ethernet cable built for demanding, high-density network installations. Its slim 0.230-inch outer diameter packs more cables into the same conduit space compared to standard Cat 6A options, without sacrificing signal quality. Built on 23 AWG bare copper with four twisted pairs, it comfortably handles 10GBASE-T speeds alongside 2.5G and 5G applications and fully supports PoE Types 1 through 4. Leviton's FLX-1 technology and the cross-filler-free design make it noticeably easier to bend, pull, and route — even through tight runs. ETL-verified performance exceeds the ANSI/TIA-568.2-D Category 6A standard, with an 8 dB margin on alien crosstalk measurements that gives you extra headroom in dense installations. The CMP fire rating covers it for plenum air spaces, and it ships in a TEKPAK Box for snag-free pulls. Made in the USA and RoHS compliant.
The Panduit TX6A plenum-rated cable brings 10GBASE-T Ethernet performance to demanding network installations with its slim 0.230-inch diameter design. Built with 23 AWG solid copper conductors and FEP insulation, this Category 6A certified cable exceeds ANSI/TIA and ISO standards while supporting all PoE standards including IEEE 802.3bt. The metallic barrier tape construction minimizes alien crosstalk and allows dense installations in existing pathways. With an extended operating temperature range up to 221°F, it handles high-density cabinet environments running advanced PoE applications. The 1000-foot reel includes descending length markings for efficient installations, and the headroom warranty provides margins above industry benchmarks for long-term reliability in data centers, server virtualization, and backbone aggregation projects.

Reliable Cat6a Plenum Cables at Discounted Cables

When you need reliable, high-performance network infrastructure, Cat6a plenum cables from Discounted Cables deliver the speed, safety, and compliance your project demands. Our selection includes Cat6a plenum cable, Cat6a plenum shielded, and 1000ft options from trusted brands such as Belden, CommScope, BERK-TEK, GenSpeed, Wavenet, and Panduit. Every cable suits installation in plenum spaces and is available tax-free across the USA.

Why Choose Cat6a Plenum Cable?

Cat6a plenum cable stands out for its ability to support 10 Gigabit Ethernet over 100 meters, which makes it the preferred choice for modern networks. The plenum-rated (CMP) jacket meets the strictest fire safety standards, required by the National Electrical Code (NEC) for air-handling spaces like those above ceilings or below raised floors. You get peace of mind that your installation meets code and protects building occupants.

Keep in mind that CMP is a jacket rating, not a speed rating. The "Cat6a" part tells you the cable carries 10 Gbps, while the "plenum" part tells you where you can legally install it. Every CMP cable must pass the NFPA 262 flame and smoke test, so you need both ratings when a 10G route passes through an air-handling space.

Key Features:

●     23 AWG solid bare copper conductors for maximum conductivity

●     Frequency rating up to 500 MHz (some models up to 750 MHz)

●     Supports 10GBASE-T and is backward compatible with lower speeds

●     Supports PoE, PoE+, and PoE++ (IEEE 802.3bt) up to 90W per port

●     Tighter pair twists and internal separators to limit alien crosstalk in dense bundles

●     Available in shielded (Cat6A shielded plenum cable) and unshielded versions

●     Plenum-rated jacket (CMP) for fire safety and low smoke emission



CMP vs CMR: Where Do You Need Cat6A Plenum?

A plenum is any building space that moves environmental air for the HVAC system, such as a return-air ceiling or a raised floor. If your cable route passes through one, the NEC calls for CMP cable. Riser (CMR) cable offers the same Cat6a data performance, but its jacket releases more smoke in a fire, so it fails inspection in plenum spaces.

However, the rule works in one direction only. You can install CMP anywhere CMR or CM cable is allowed, but never the reverse. For this reason, many contractors standardize on Cat6a plenum Ethernet cable for mixed-space projects, which removes the need to sort reels and track pathways. Before you order, confirm whether your ceiling acts as an air return and check with your local inspector.

Bulk Cat6a Plenum and 1000ft Spools

For large-scale projects, you can order bulk Cat6a plenum in 1000ft spools. This format reduces waste and installation time, which makes it ideal for contractors, data centers, and commercial buildings. A single box or reel of Cat6a plenum bulk Ethernet cable gives you enough length for multiple drops without splices, so you maintain signal integrity across every run.

Plan each run within the 100-meter (328-foot) channel limit: a 90-meter permanent link plus up to 10 meters of patch cords. As a result, one 1000ft spool typically covers several full-length horizontal runs with room to spare.

Cat6a Plenum for PoE++ and Wi-Fi 7 Networks

Modern ceilings carry more than data. Wi-Fi 7 access points, PTZ security cameras, and PoE lighting all draw power through the same cable, often up to 90W under IEEE 802.3bt. Cat6a plenum cable handles this load well because its 23 AWG conductors carry more copper, which lowers resistance and heat buildup.

This matters above a ceiling, where warm air and large bundles raise cable temperature. In addition, Wi-Fi 7 access points need 2.5G to 10G backhaul, so Cat6a gives you headroom today and through your next equipment refresh.

Shielded Cat6a Plenum Cable for Demanding Environments

If your installation faces high electromagnetic interference (EMI), select Cat6a plenum shielded cables. These Cat6a cables include an overall foil or braid shield, which protects your network from external noise and keeps data transmission stable at high speeds. Cat6a shielded plenum cable is the go-to solution for hospitals, industrial sites, and areas with heavy electrical equipment.

That said, a shielded system works only when you pair the cable with shielded RJ45 connectors, jacks, and patch panels, and bond it to ground at the rack. For standard offices with low EMI, unshielded (UTP) Cat6a plenum usually does the job at a lower cost and with faster terminations.

Top Cat6A Plenum Brands We Carry

You can choose from manufacturers that contractors and IT teams already specify on commercial projects:

●     Belden: A long-standing name in enterprise cabling, Belden offers Cat6A plenum cable in both unshielded and shielded designs for high-density networks.

●     CommScope: CommScope Cat6a plenum cable gives you proven 10G performance and fits neatly into complete structured cabling systems.

●     BERK-TEK: BERK-TEK builds its Cat6a plenum cable with 23 AWG solid bare copper, and many of its cables are made in the USA.

●     Panduit: Panduit designs its Cat6a plenum cable to limit alien crosstalk, which makes it a strong fit for crowded pathways and busy telecom rooms.

●     GenSpeed: GenSpeed Cat6a plenum cable offers dependable, certified performance for contractors who handle large commercial jobs.

●     Wavenet: Wavenet supplies value-focused Cat6a plenum cable with solid copper conductors, which suits budget-conscious bulk orders.

For genuine brand-name cable and tax-free orders, shop with Discounted Cables, the Ethernet cable supplier USA contractors and IT teams turn to.

Frequently Asked Questions

What is Cat6a plenum cable?

Cat6a plenum cable is a Category 6A Ethernet cable with a CMP-rated jacket. It supports 10 Gbps speeds up to 100 meters and passes strict NFPA 262 flame and smoke tests, so you can install it in air-handling spaces above ceilings and below raised floors.

Is plenum cable required by code?

Yes, when the cable runs through a plenum. The National Electrical Code requires CMP-rated cable in spaces that circulate environmental air for HVAC systems. However, a ceiling that does not act as an air return may allow CMR, so confirm with your local inspector.

What is the difference between CMP and CMR Cat6a cable?

Both deliver the same Cat6a data performance. The difference lies in the jacket. CMP jackets produce less smoke and resist flame spread in plenum spaces, while CMR suits vertical risers between floors. You can use CMP in place of CMR, but not the reverse.

Can I use Cat6a plenum cable in a riser or inside walls?

Yes. CMP sits at the top of the NEC cable hierarchy, so you can install Cat6a plenum cable in risers, walls, and general-purpose spaces. Many contractors buy one plenum spool for an entire project to simplify ordering and avoid inspection issues.

Should I choose shielded or unshielded Cat6a plenum cable?

Choose unshielded (UTP) for standard offices with low interference, since it costs less and terminates faster. Pick shielded (F/UTP) for hospitals, factories, and dense PoE++ bundles near heavy electrical equipment. Shielded cable also needs shielded connectors and proper grounding.

Does Cat6a plenum cable support PoE++?

Yes. Cat6a plenum cable supports PoE, PoE+, and PoE++ under IEEE 802.3bt, up to 90W per port. Its 23 AWG copper conductors have lower resistance and heat, which suits Wi-Fi 7 access points, PTZ cameras, and PoE lighting in warm ceiling spaces.

How far can Cat6a plenum cable run?

Cat6a plenum cable supports 10GBASE-T over a 100-meter (328-foot) channel. Standards split this into a 90-meter permanent link plus up to 10 meters of patch cords. For longer runs, add a switch in between or move to fiber.

Why is Cat6a plenum cable more expensive than riser cable?

Plenum cable uses premium low-smoke materials, such as FEP insulation, to pass the tougher NFPA 262 test. These compounds cost more than the PVC used in riser cable. However, the price gap is small compared to the cost of a failed inspection and rework.

How do I know if a cable is truly plenum-rated?

Check the jacket print. A genuine Cat6a plenum cable shows "CMP" along with a UL or ETL listing mark. Also, avoid copper-clad aluminum (CCA). Real Cat6a uses solid bare copper, and CCA cable does not meet TIA Category 6A standards.
