Cat7 CM S/FTP 23AWG 600MHz Blue 250 ft Ethernet Cable Roll

Cat7 CM S/FTP 23AWG 1000MHz Blue Ethernet Cable – 250 ft

Engineered for modern high-density networks, this Cat7 S/FTP bulk cable delivers rock-solid 10G performance with enterprise-grade shielding and pure copper conductors. With certified 600 MHz bandwidth, it excels in 10 GbE access, 25G backbone interconnects, UHD media workflows, and high-power PoE++ devices—while the low-smoke, zero-halogen jacket supports stricter building and safety standards. The 250 ft installer-friendly pull roll makes clean, tangle-free horizontal runs from patch panels to work areas effortless.

Product Specifications

• Category / Type: Cat7 S/FTP (Shielded Foiled Twisted Pair)
• Bandwidth: 600 MHz certified
• Data Rate Support: 10GBASE-T up to 100 m; backward-compatible with 5G/2.5G/1G
• Conductors: 23 AWG solid bare copper (4 pairs), 99.99% OFC
• Shielding: Individual Al-Mylar foil per pair + 85% tinned-copper overall braid
• Impedance: 100 Ω ± 10 Ω
• Jacket: LSZH, Blue; RoHS & REACH compliant
• Outer Diameter: 7.9 mm ± 0.2 mm
• Operating Temperature: -20 °C to +60 °C
• Length: 250 ft (76.2 m)
• Termination Compatibility: GG-45®, TERA®, and legacy RJ-45 hardware

Key Features

• Up to 600 MHz headroom: 4× Cat6 bandwidth for superior signal integrity and future-ready links.
• Quad-layer shielding: Per-pair foil plus overall braid crushes EMI/RFI—ideal for noisy, mission-critical environments.
• Solid copper core: 23 AWG oxygen-free conductors minimize attenuation and latency for error-free throughput.
• Universal termination: Supports modern connectors while remaining compatible with existing RJ-45 infrastructure.
• LSZH safety: Halogen-free jacket reduces toxic smoke—aligns with global fire and building codes.
• Installer-centric packaging: 250 ft pull roll provides smooth, snag-free payout for clean runs and faster installs.

Applications

• Enterprise access layers and wiring closets with 10G to the desk
• 25G aggregation/backbone jumpers (short to medium interconnects)
• Data centers, server rooms, and SAN/NAS connectivity
• Broadcast and post-production suites handling UHD/4K/8K video signals
• High-density PoE/PoE+ / PoE++ deployments (APs, cameras, VoIP, signage)
• Healthcare, education, and commercial buildings requiring LSZH cabling

Uses

• Horizontal cabling from patch panels to consolidation points or outlets
• High-throughput workstations, render farms, and editing bays
• Low-noise, long-run Ethernet links where interference must be suppressed
• Upgrades that retain RJ-45 endpoints without a full connector overhaul

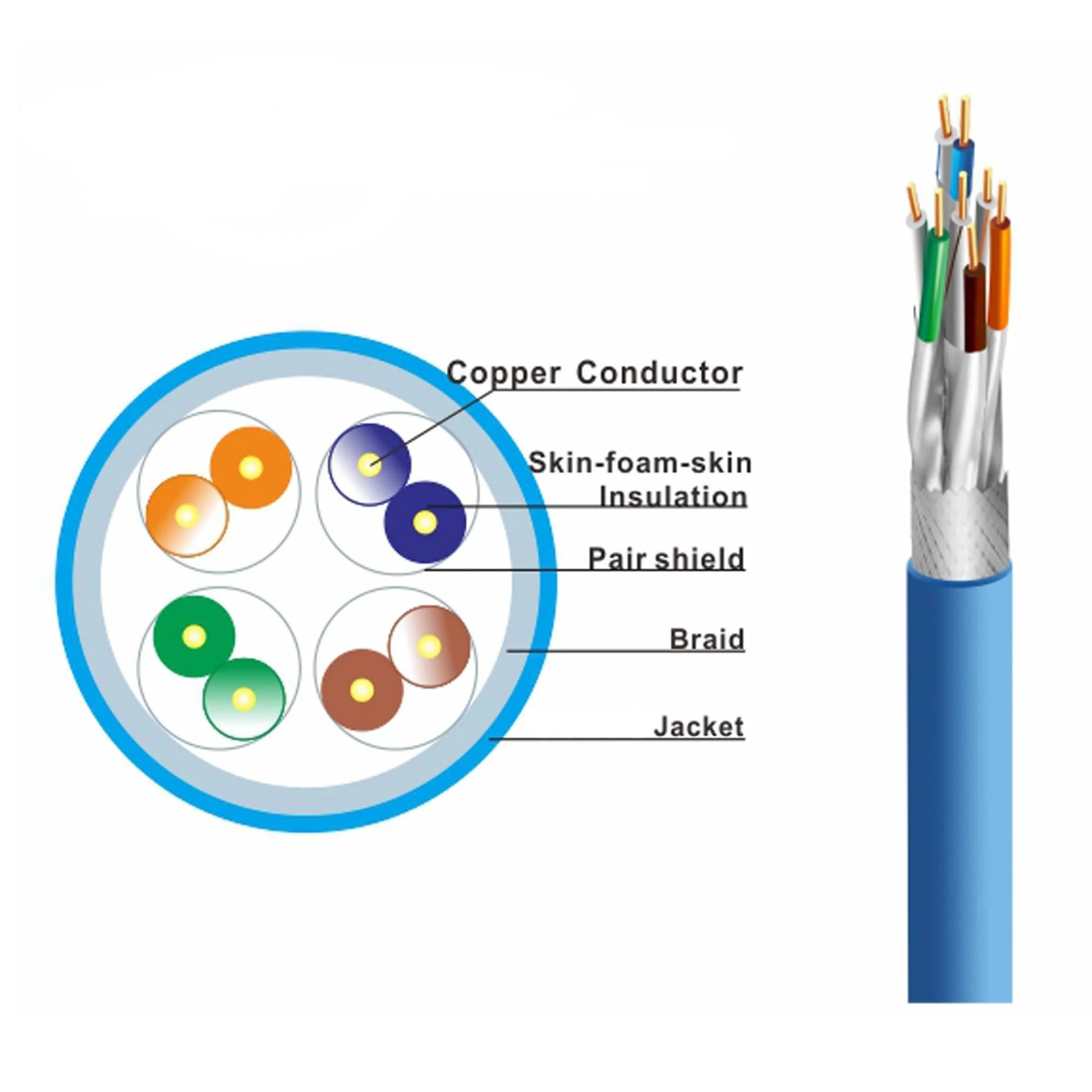

Construction

• Conductor: 4 twisted pairs of 23 AWG solid bare copper (OFC 99.99%)
• Pair Shielding: Al-Mylar foil wrapped per pair to isolate crosstalk
• Overall Shield: 85% coverage tinned-copper braid for comprehensive EMI/RFI rejection
• Insulation and Separator: Precision geometry to maintain 100 Ω impedance
• Outer Jacket: Blue LSZH compound meeting RoHS and REACH compliance

Performance Benefits

• 10 GbE stability to 100 m with certified 1 GHz bandwidth
• Lower bit error rates thanks to robust shielding and copper purity
• Reduced alien crosstalk for dense bundle installations
• Safer egress conditions in case of fire with low-smoke, halogen-free jacket

Installation Notes

• Delivered on a 250 ft pull roll for tidy, kink-resistant runs
• Suitable for termination to GG-45®, TERA®, or legacy RJ-45 keystones and jacks
• Maintain bend radius and pair twist to preserve performance spec
• Ideal for patch panels, racks, and wall outlets in structured cabling systems

Choose this Cat7 bulk roll when you need dependable 10G performance, superior shielding, and LSZH safety in a convenient installer-ready format—all while staying compatible with your existing RJ-45 ecosystem.
