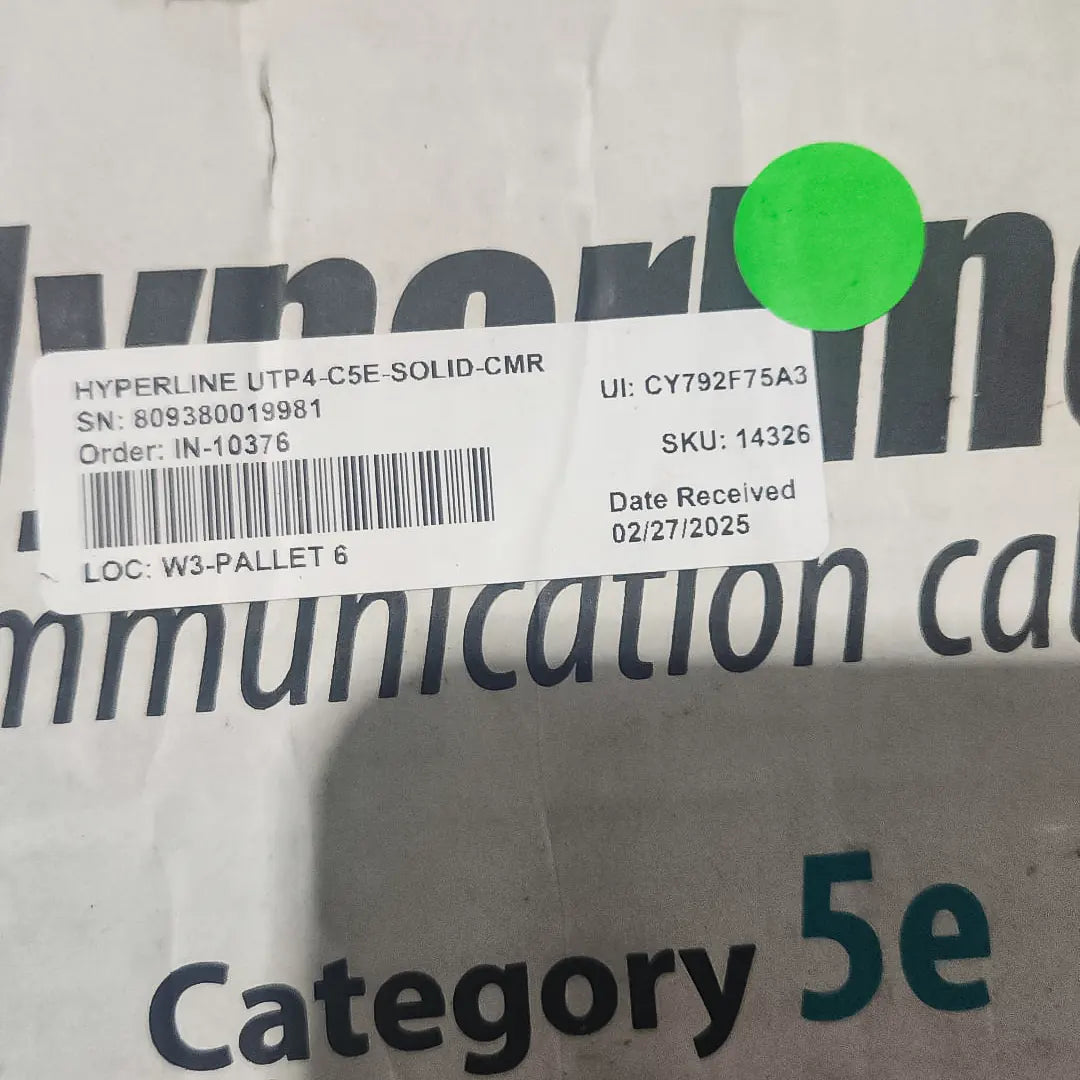

Hyperline CAT5E Riser 1000ft UTP 24AWG Blue Ethernet Cable

Hyperline CAT5E Riser 1000ft UTP 24AWG Blue Ethernet Cable. Upgrade your network with reliable, standards-compliant performance. This Hyperline Cat5e riser cable is engineered for clean pulls and consistent signal integrity across voice, data, video, and security installations. With solid bare copper conductors, high-density insulation, and a CMR-rated jacket, this 1000 ft blue UTP cable is built to meet or exceed TIA specifications while making installation fast, safe, and hassle-free.

Product Specifications

• Category: Cat 5e, U/UTP 4 pair
• Length: 305 m / 1000 ft pull box
• Conductor: 24 AWG solid bare copper (8 conductors)
• Insulation: High-density polyolefin (PO); color-coded pairs
• Jacket: CMR (riser) flame-retardant PVC or PE, 5.0 ± 0.2 mm OD; 0.50 ± 0.05 mm thickness
• Color: Blue (also available in multiple colors)
• Rip Cord: Polyester multi-yarn for easy jacket removal
• Sweep Frequency: Verified to 100 MHz (enhanced sweep up to 350 MHz)
• NVP (Nominal Velocity of Propagation): 69%
• Temperature/Voltage Rating: 75°C / 300 V
• Marking: Quick Count footage marking system in feet
• Listings/Verification: c(UL)us Listed CMR, ETL Verified
• Compliance: ANSI/TIA‑568‑C.2, ISO/IEC 11801, IEC 61156‑5, UL 1666 (CMR), RoHS2, LVD

Key Features

• Solid copper performance: Low DC resistance (≤ 9.38 Ω/100 m) and excellent balance (≤ 5%) for stable links
• Clean installation: Rip cord for fast jacket stripping; smooth pulls with no kinks
• Trusted quality: Manufactured to high standards and third‑party verified (UL, ETL)
• High safety rating: CMR jacket meets UL 1666 flame test for vertical riser spaces
• Clear distance tracking: Quick Count footage marks for efficient runs and less waste
• Enhanced bandwidth headroom: Sweep tested up to 350 MHz (informational), verified to 100 MHz

Applications

• Data networking: IEEE 802.3u 100BASE‑T and legacy Ethernet
• Voice and telephony
• Video distribution and CCTV
• Building security and access control
• PoE and PoE+: IEEE 802.3af/at for compatible devices

Uses

• Vertical riser runs between floors in commercial and residential buildings
• Horizontal runs in non-plenum spaces where CMR is required
• Deployments for switches, patch panels, keystones, IP cameras, VoIP phones, and access points (within Cat5e and PoE/PoE+ constraints)

Construction

• Pairs: Four color-coded twisted pairs (Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown), left-hand lay
• Insulation: Polyolefin for stable electrical characteristics and pair separation
• Filler/Assembly: Polyolefin filler; left-hand assembly for consistent geometry
• Outer Jacket: Flame-retardant PVC (or PE variant per spec) providing mechanical protection and fire performance
• Internal Rip Cord: Enables clean, tool‑assisted jacket removal without nicking conductors

Environmental and Handling

• Temperature Range:
  • Storage/Shipping: −20°C to 75°C
  • Installation: 0°C to 60°C
  • Operation: −20°C to 60°C
• Minimum Bend Radius: ≥ 4× overall diameter
• Maximum Pulling Tension: ≤ 110 N
• Mechanical/Electrical Integrity:
  • Spark Test: 2.5 kV DC
  • Dielectric Strength: 1.5 kV AC for 2 s
  • Insulation Resistance: ≥ 5000 MΩ•m
  • Mutual Capacitance: ≤ 5.6 nF/100 m
  • Capacitance Unbalance (pair-to-ground): ≤ 330 pF/100 m
  • AC Leakage Through Jacket: ≤ 10 mA (1.5 kV AC)
  • Cold Bend: −20°C for 4 hours
