BERK-TEK | 11142454 RDT CAT6A Plenum 1000ft Blue 23 AWG UTP Ethernet Cable

The BERK-TEK RDT Cat6A UTP CMP Cable (Part No. 11142454) is a blue, 1000ft plenum-rated Ethernet cable engineered for high-density commercial and enterprise network environments. Its reduced outer diameter of just 0.230 inches noticeably slimmer than the 0.260-inch average for Cat 6A cables makes it a standout choice where pathway space is at a premium. Manufactured in the USA and independently verified by ETL (Intertek) through Leviton's Verified Performance Program, this cable delivers real-world performance that matches what's on the label, giving installers and network engineers one less thing to worry about on the job site.

Product Specifications

• Conductor: 23 AWG Bare Copper
• Cable Outer Diameter: 0.230 in. (5.84 mm)
• Insulated Conductor Diameter: 0.043 in. (1.09 mm)
• Cable Weight: 30 lb./kft (46.13 kg/km)
• Number of Pairs: 4
• Length per Reel: 1000 ft (305 m)
• Max. Installation Tension: 25 lb. (110 N)
• Min. Bend Radius: 0.92 in. (23.37 mm)
• Nominal Velocity of Propagation: 67%
• DC Resistance: Max. 9.38 Ω/100 m at 20°C
• DC Resistance Unbalance: Max. 4%
• Mutual Capacitance: Nom. 5.1 nF/100 m at 1kHz
• Capacitance Unbalance (pair to ground): Max. 330 pF/100 m at 1kHz
• Delay Skew: 45 ns/100 m max
• Installation Temperature: +5°C to +50°C (+41°F to +122°F)
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Storage Temperature: -20°C to +60°C (-4°F to +140°F)
• Listed Cable Temperature: +105°C (+221°F)
• Country of Origin: USA

Features and Applications

The slim design isn't just about fitting into tighter spaces — it directly improves tray-fill ratios and gives installers more routing flexibility in crowded conduit runs. Leviton's proprietary FLX-1 technology contributes to a tighter bend radius and smoother pulls, while Precision Twist Technology enhances transmission quality for 2.5G, 5G, and 10G network speeds in real-world deployments. The cross-filler-free construction reduces bend resistance, cuts down job site waste, and speeds up installation, which adds up to a more sustainable and cost-effective project overall.

The cable's isolation wrap manages heat effectively and minimizes signal interference — a genuine advantage in buildings running heavy PoE loads across hundreds of ports simultaneously. Performance exceeds the ANSI/TIA-568.2-D Category 6A standard by 8 dB on both PSANEXT and PSAACRF measurements, meaning it doesn't just meet the standard, it surpasses it. The Patented Profile Technology rounds out a well-thought-out design that prioritizes both installer experience and long-term network reliability.

Uses

This cable is built for:

• Enterprise and commercial LAN infrastructure
• High-density patch rooms, server rooms, and data centers
• 802.11ac wireless access point backhaul connections
• HD video surveillance and IP security camera systems
• PoE-powered devices supporting Types 1, 2, 3, and 4 (IEEE 802.3bt)
• 10GBASE-T (10 Gb/s), 2.5/5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T applications

Construction

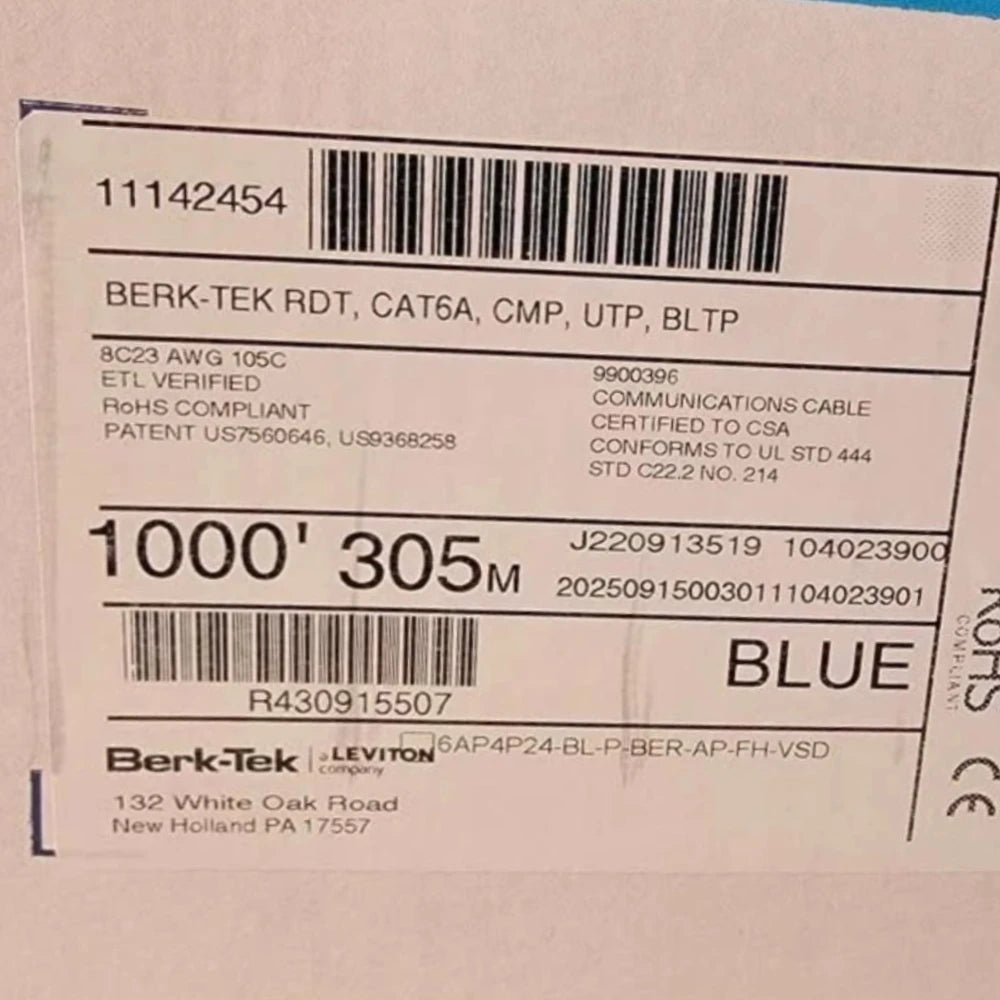

Each conductor is 23 AWG bare copper, individually insulated with thermoplastic. Two conductors are twisted together to form a pair, and four pairs are bundled together to form the cable core. An isolation wrap surrounds the entire core before a flame-retardant polymer alloy jacket is applied. There is no cross filler — a deliberate design choice that improves flexibility and reduces material waste. The finished jacket is CMP-rated and UL Listed as CMP-LP (0.7A), making this cable fully compliant with NFPA 70 for use in plenum air-handling spaces.

Color coding: Pair 1 (White/Blue), Pair 2 (White/Orange), Pair 3 (White/Green), Pair 4 (White/Brown).

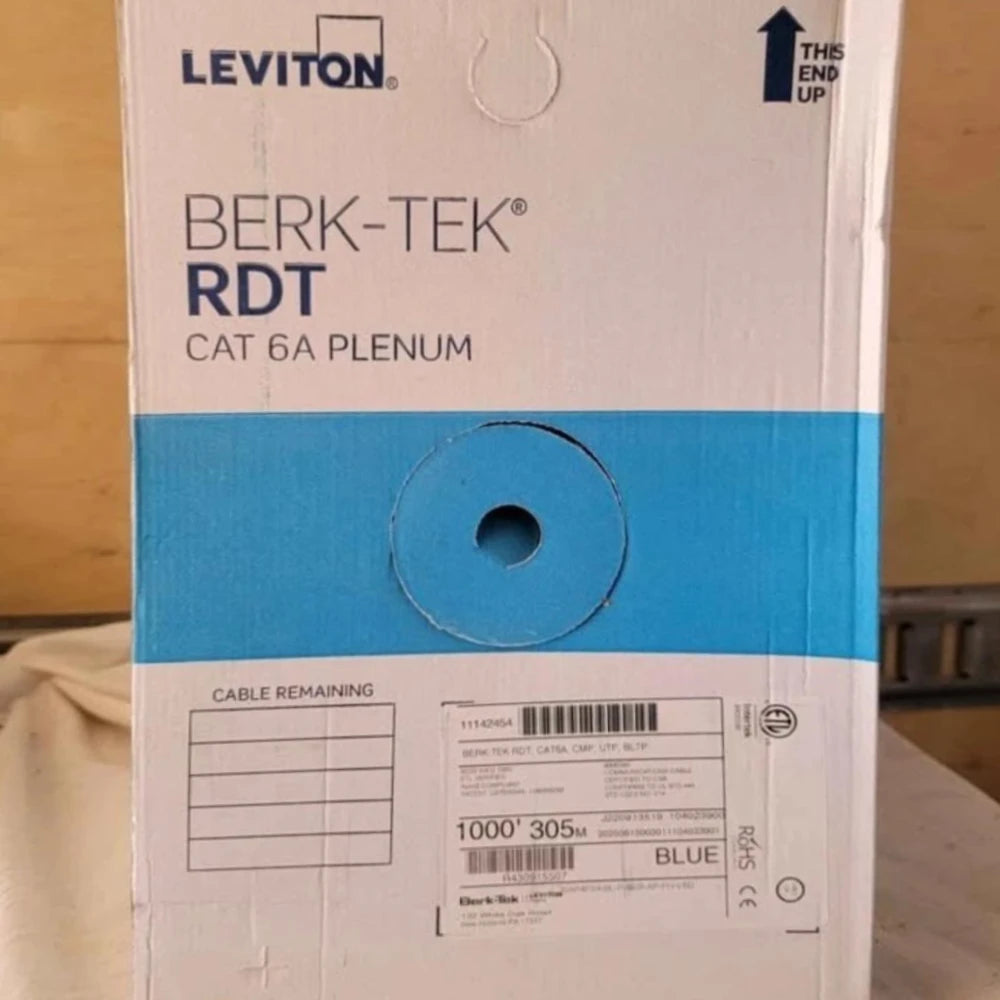

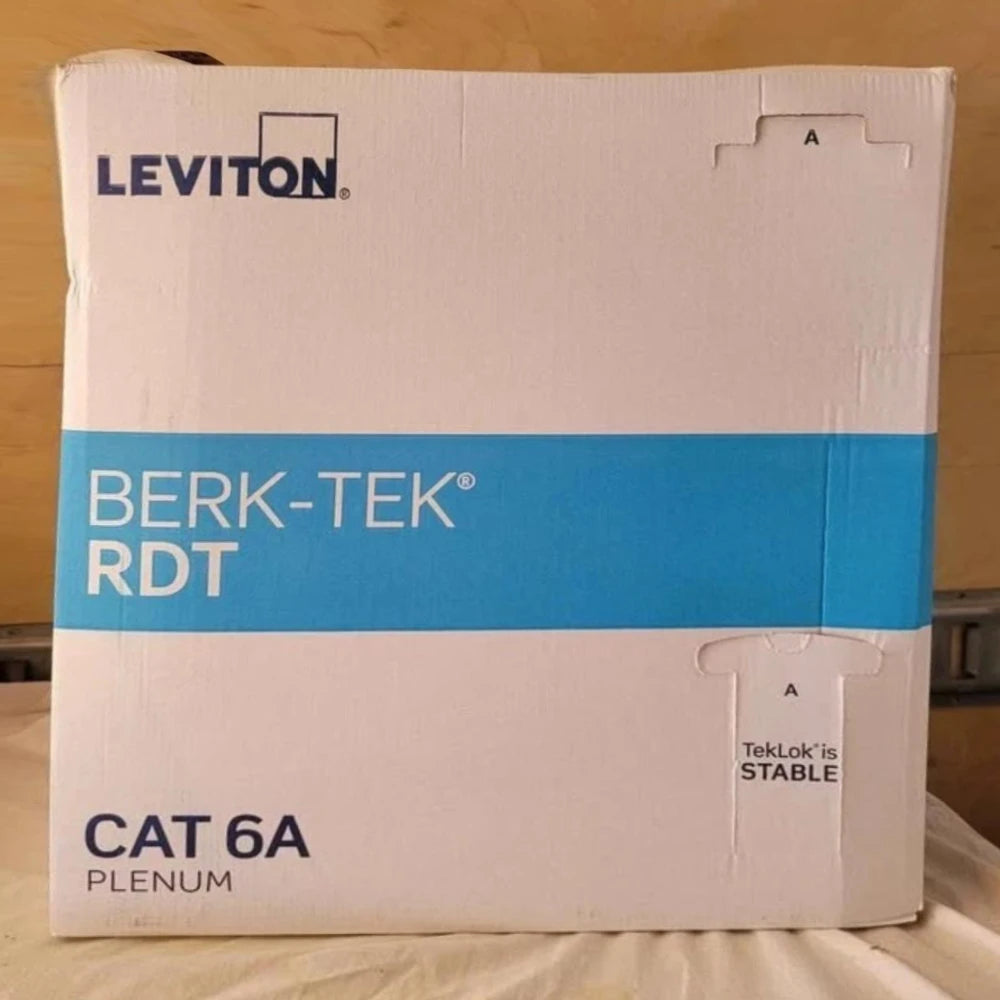

This cable ships in Leviton's TEKPAK Boxes, designed for cleaner, tangle-free pulls that keep job sites moving efficiently. It is fully RoHS compliant and carries a UL CMP-LP (0.7A) listing. The smaller outer diameter also translates to lower shipping weight per reel and reduced warehouse footprint, cutting greenhouse gas emissions during transportation compared to standard Cat 6A cables — a small but real environmental win for large-scale deployments.
