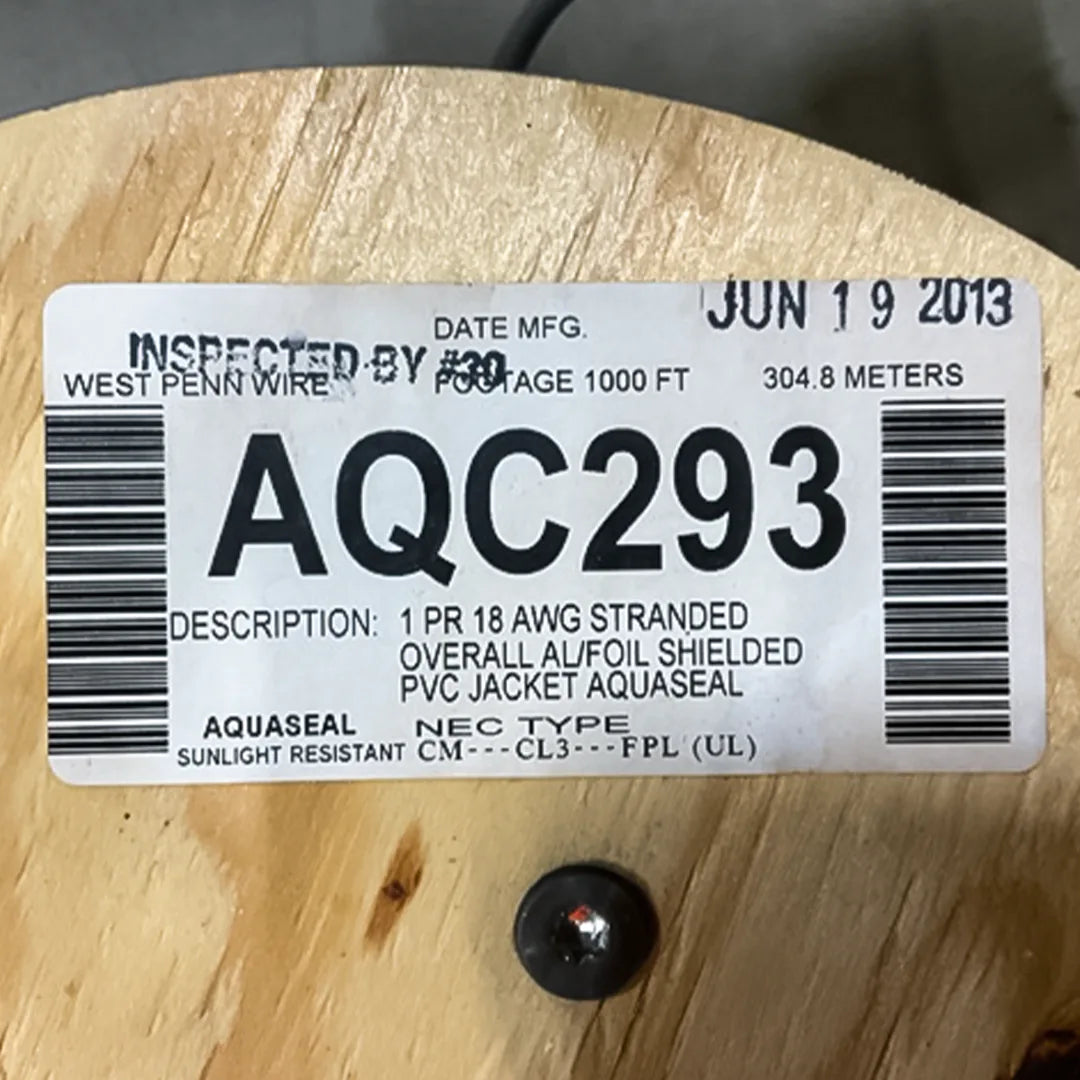

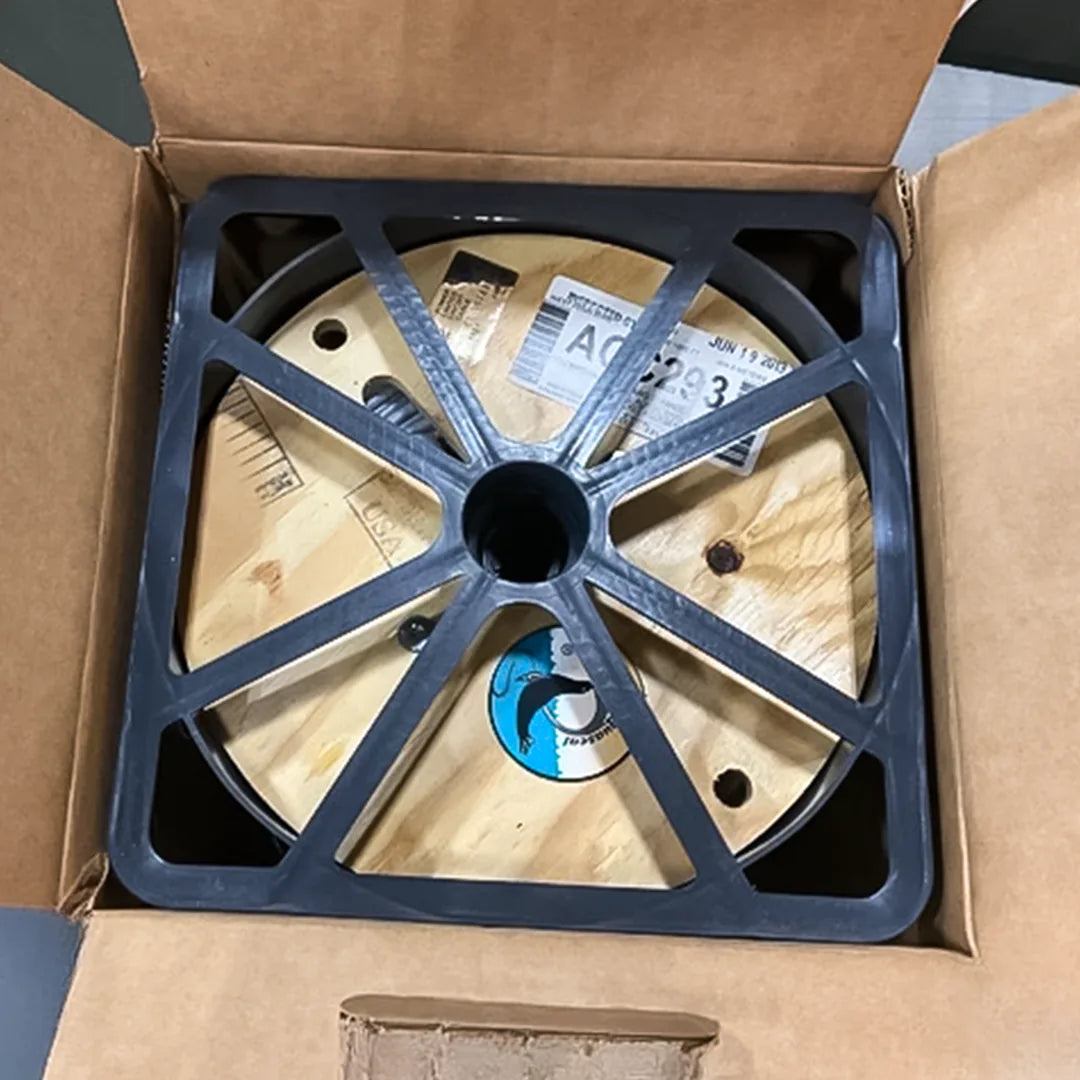

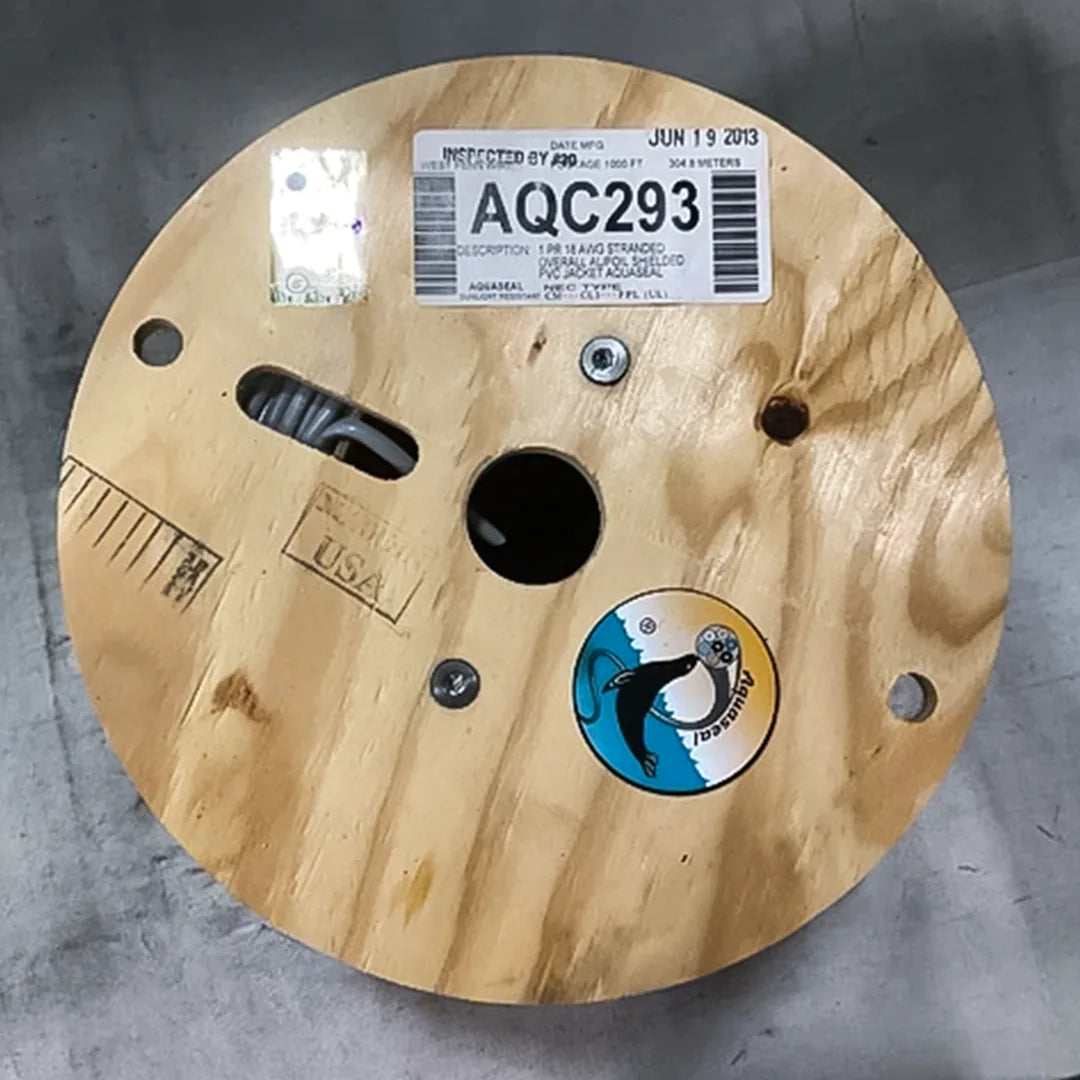

West Penn Wire AQC293 18/2 Foil Shielded 1000ft Audio Cable with Aquaseal Water Blocking

The West Penn Wire AQC293 is a premium 2-conductor 18 AWG shielded cable engineered for professional audio, control, and alarm applications in both indoor and outdoor environments. Featuring Aquaseal water-blocking technology and 100% aluminum foil shielding, this versatile cable delivers superior signal integrity while protecting against moisture intrusion. The UV-resistant PVC jacket ensures long-lasting durability in harsh outdoor conditions, making it ideal for installations requiring reliable performance across diverse environments. With CM and CL3 ratings, this cable meets stringent safety standards for commercial and residential applications. The 7x26 stranded bare copper conductors provide excellent flexibility and conductivity, while the tinned copper drain wire ensures optimal grounding performance.

Product Specifications:

• Conductor: 2 x 18 AWG, 7x26 stranded bare copper
• Nominal DC Resistance: 6.2 Ohm/1000 ft
• Insulation: PVC, 0.01" thickness
• Color Code: Black and Red
• Shielding: 100% Aluminum Foil with 24 AWG tinned copper drain wire
• Water Protection: Aquaseal water-blocking tape
• Jacket: UV-resistant PVC, 0.025" thickness
• Cable Diameter: 0.257"
• Operating Temperature: -20°C to 90°C
• UL Voltage Rating: 300V
• Cable Weight: 30 lbs per 1000 ft

Key Features:

• Aquaseal water-blocking technology prevents moisture penetration
• 100% aluminum foil shield provides excellent EMI/RFI protection
• UV-resistant jacket for superior outdoor performance
• Flexible 7x26 stranded construction for easy installation
• RoHS compliant for environmental safety
• Passes TIA-455-82 water penetration test
• Pull tension rated at 57 lbs
• Minimum bend radius: 2.313"

Applications & Uses:

• Professional audio installations
• Security and alarm systems
• Control system wiring
• Indoor/outdoor sound distribution
• Intercom systems
• Background music systems
• Commercial audio applications
• Residential entertainment systems

Construction Details:
The cable features dual 18 AWG conductors with 7-strand configuration for enhanced flexibility. Each conductor is insulated with durable PVC material and color-coded for easy identification. An overall aluminum foil shield with tinned copper drain wire provides comprehensive protection against electromagnetic interference. The Aquaseal water-blocking tape adds an extra layer of moisture protection, while the UV-resistant outer jacket ensures reliable performance in direct sunlight and outdoor conditions.

Electrical Characteristics:

• Nominal Capacitance Between Conductors: 39 pF/ft
• Nominal Capacitance Conductor to Shield: 70 pF/ft
• UL Flammability Rating: UL1685

Certifications & Compliance:

• NEC/UL Rating: CM, CL3
• RoHS Compliant
• UL Listed

Compatible Accessories:

• 3-Pin XLR Male (CN-NC3MX)
• 3-Pin XLR Female (CN-NC3FX)
• 3.5mm Stereo Mini (CN-NYS231)

Related Products:

• Plenum Version: 25293B
• Non-Plenum Standard: 293
• Direct Burial Version: AQ293

This professional-grade cable from West Penn Wire combines reliability, durability, and performance for demanding audio and control applications where moisture resistance and signal integrity are critical.
