CommScope 6504+ Media6 CAT6 Plenum 1000ft UTP Blue Ethernet Cable

CommScope 6504+ Media6 CAT6 Plenum 1000ft UTP Ethernet Cable

Deliver reliable, high‑speed connectivity for enterprise and commercial networks with the CommScope 6504+ Media6 CAT6 plenum-rated cable. Designed for consistent 1 GbE performance with robust crosstalk suppression and low insertion loss, this blue U/UTP cable is engineered for permanent installations in air-handling spaces. Its solid bare copper conductors, FEP/polyolefin insulation, and FEP tape separator provide excellent electrical performance, stable return loss, and long-term durability—ideal for structured cabling in offices, campuses, healthcare, education, and more.

Product Specifications

• Part number: 8773614/10 | 6504+ BLUE CPK
• Category: CAT6 (Media 6) U/UTP, 4 pairs (8 conductors)
• Conductor: Solid bare copper (singles)
• Insulation: FEP and Polyolefin
• Separator: FEP tape separator (quad-separator)
• Jacket: PVC, plenum-rated (blue)

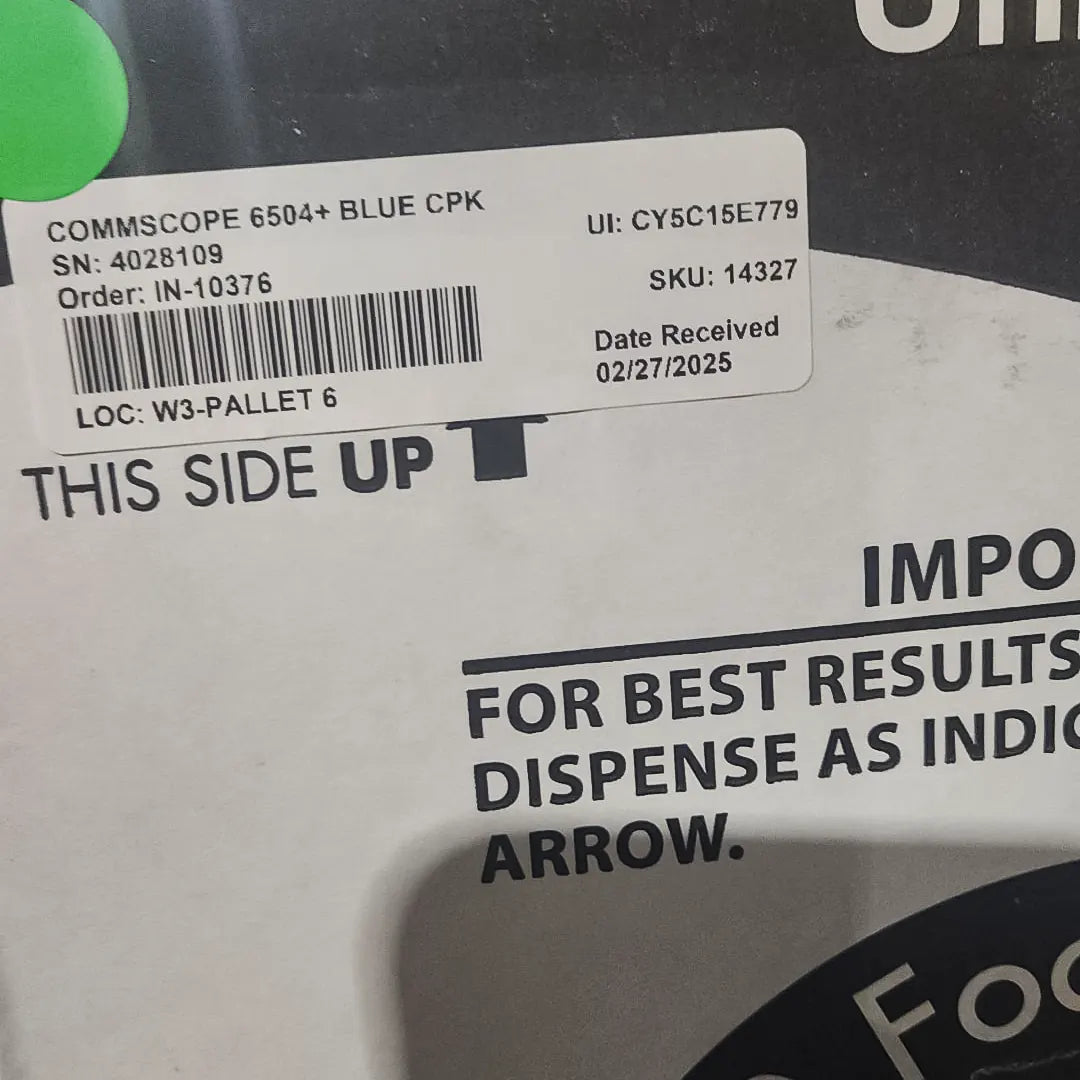

• Length: 1000 ft (305 m) CommPak pull box
• Diameter over jacket: 0.215 in (5.461 mm)
• Jacket thickness: 0.019 in (0.483 mm)
• Cable weight: 28 lb/kft
• Max pulling tension: 25 lb (11 kg)
• Compliance: RoHS 2011/65/EU compliant; manufactured under ISO 9001:2008 QMS

Key Features

• Consistent CAT6 performance: Engineered for stable insertion loss, return loss, and ACR/PSACR across the frequency range up to 250 MHz and beyond per CommScope reference.
• Crosstalk control: Quad FEP tape separator helps maintain pair geometry for superior NEXT/PSNEXT and ACRF/PSACRF margins.
• Solid copper conductors: Reliable signal integrity and lower DC resistance for permanent link installations.
• Plenum-rated jacket: PVC plenum construction suited for use in air-handling spaces where code requires CMP-type cabling.
• Easy deployment: 1000 ft CommPak pull box for smooth payout and reduced twists during pulls.
• Quality and compliance: Built under ISO 9001:2008 and RoHS compliant for safer, standards-aligned installations.

Applications

• Horizontal cabling for enterprise networks and MDU/MDO builds
• VoIP phones, wireless access points, and PoE/PoE+ endpoints
• Workstation drops, conference rooms, and campus backbones (access layer)
• Education, healthcare, hospitality, government, and commercial office spaces
• Data, voice, and video over IP up to Category 6 application limits

Typical Uses

• 10/100/1000BASE‑T Ethernet runs up to 100 meters
• IP cameras and building automation sensors (when within CAT6/PoE constraints)
• Unified communications, desktop connectivity, and small switch uplinks
• HD video streaming and collaboration tools on enterprise LANs

Construction Details

• Pair count: 4 balanced twisted pairs (8 total solid conductors)
• Insulation system: FEP + Polyolefin to optimize dielectric properties and stability
• Separator: Continuous FEP tape separator to minimize pair-to-pair interaction
• Outer jacket: Blue PVC plenum-rated for identification and code compliance

Electrical Performance Reference (selected)

• Defined parameters include IL (Insertion Loss), NEXT/PSNEXT, ACR/PSACR, ACRF/PSACRF, RL (Return Loss), TCL, and ELTCTL across standard CAT6 frequencies (1–250 MHz), with CommScope typical values indicating healthy margins for reliable throughput.

Compliance and Quality

• RoHS 2011/65/EU compliant
• Designed, manufactured, and/or distributed under ISO 9001:2008

Why Choose This Cable

This Media6 CAT6 plenum cable from CommScope delivers the consistency installers and IT managers expect in professional builds—solid copper conductors for dependable links, a robust separator for crosstalk control, and documented electrical performance across the band. With a blue CMP jacket and smooth CommPak pull, it’s a practical choice for code-compliant, high-density structured cabling.
