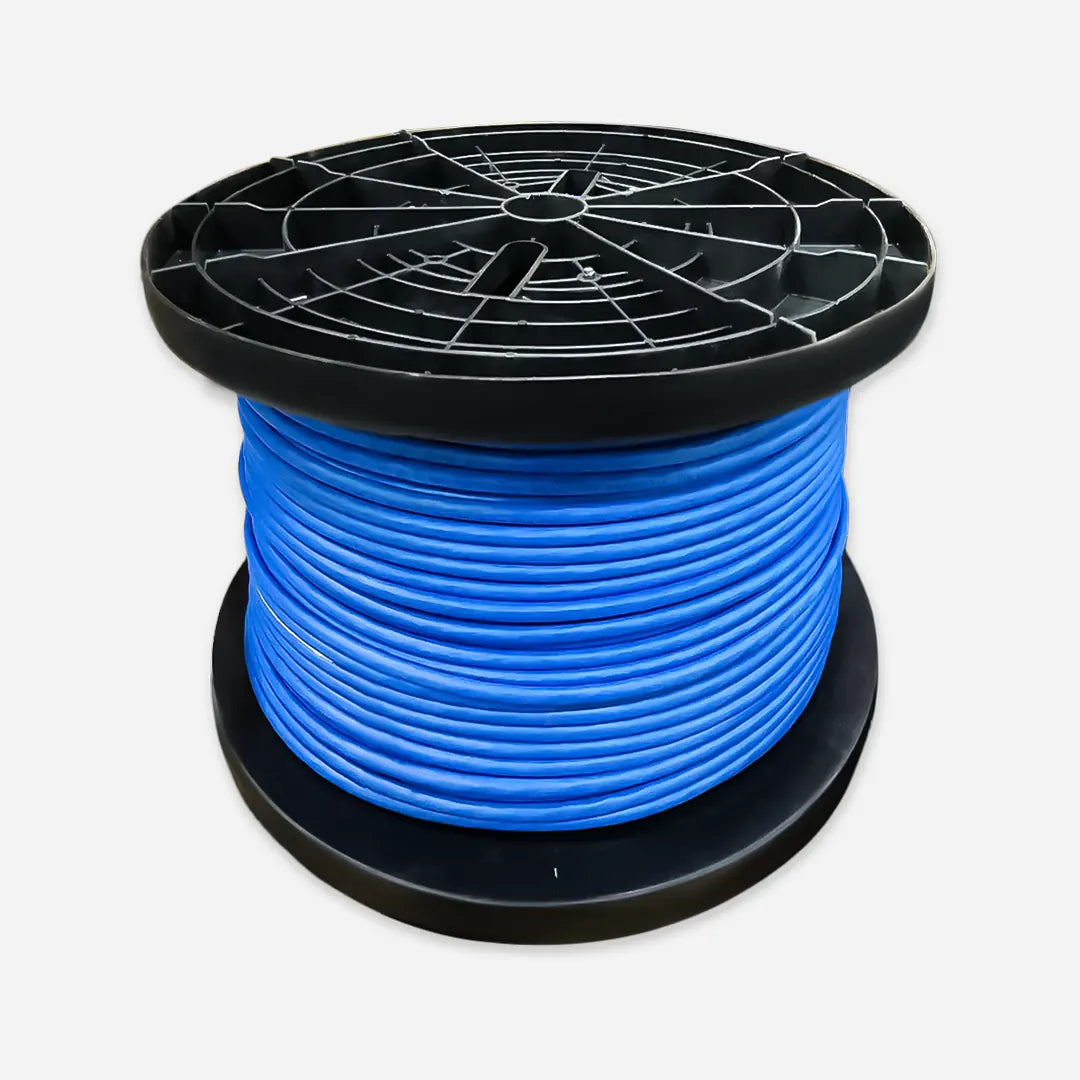

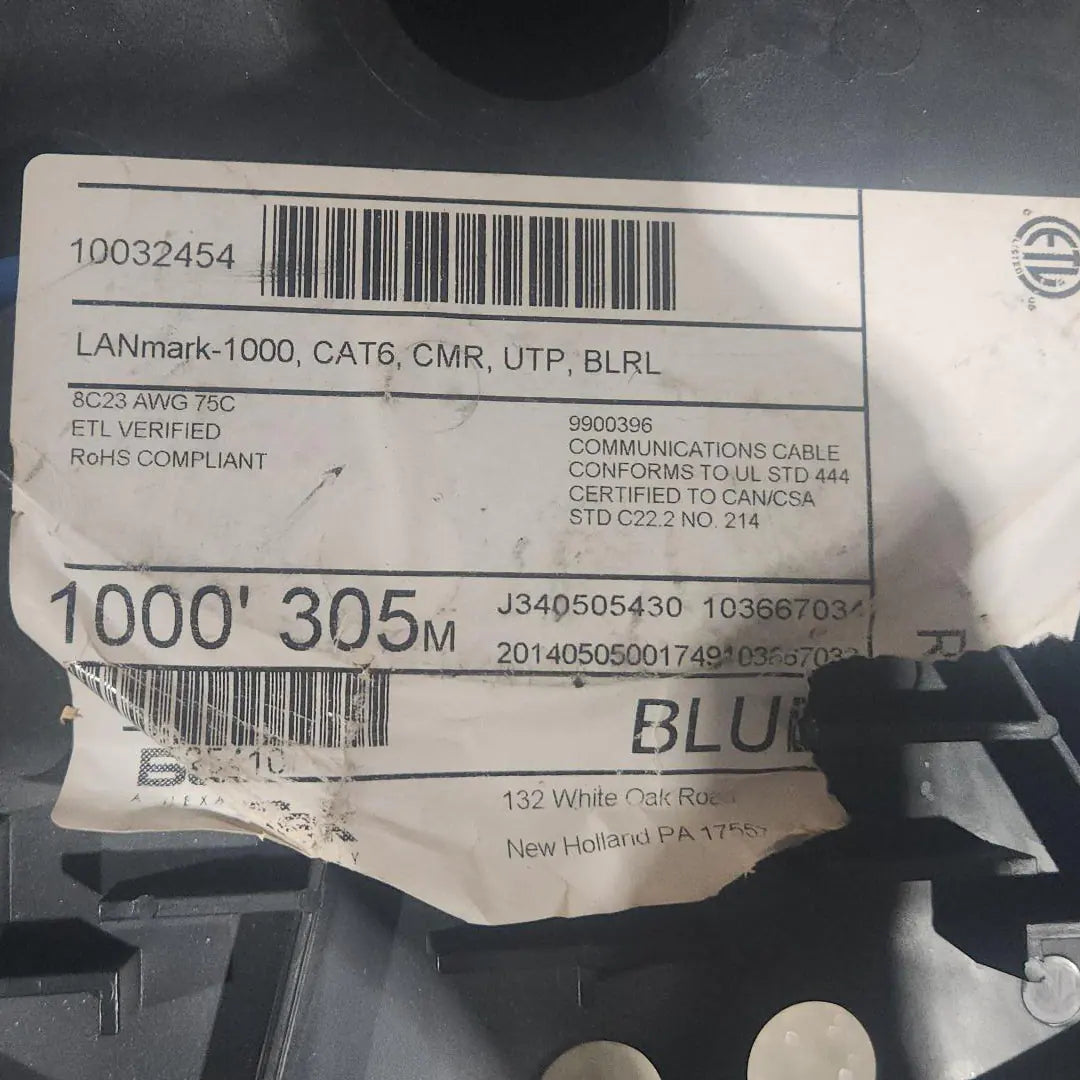

BERK-TEK | 10032454 LANmark-1000 CAT6 Riser 1000ft Blue UTP Ethernet Cable

Experience unparalleled network performance with the BERK-TEK | 10032454 LANmark-1000 CAT6 Riser Cable. This 1000ft blue UTP Ethernet cable is engineered to provide enhanced electrical performance, making it the ideal choice for today's demanding enterprise applications and intelligent building devices. With a significant 5 dB of margin to all TIA crosstalk parameters, the LANmark-1000 ensures a stronger signal and greater resistance to external noise, delivering reliable and high-speed connectivity for your network infrastructure.

Product Specifications

• Conductor: 23 AWG bare copper
• Nominal Cable Diameter: 0.230 in. (5.84 mm)
• DC Resistance: Max. 9.38 Ω/100 m
• Mutual Capacitance: Nom. 5.1 nF/100 m at 1 kHz
• Nominal Velocity of Propagation: 68%
• Delay Skew: 45 ns/100 m max.
• Length: 1000 ft (305 m)
• Number of Pairs: 4

Features and Applications

The LANmark-1000 CAT6 cable is packed with features designed for optimal performance and reliability. It offers full Power Sum performance and is characterized to 550 MHz, which is 300 MHz greater than the industry standard. This cable provides the additional bandwidth required for future applications and is ETL verified to the ANSI/TIA-568.2-D standard. Its documented balance characteristics (LCL, LCTL) improve overall cable performance and reduce emissions, leading to fewer transmission errors. This makes it perfect for high-speed data and power applications, including 2.5/5GBASE-T, 1000BASE-T, and PoE Types 1, 2, 3, and 4.

Uses

This riser-rated cable is designed for use in vertical runs in non-plenum spaces, such as between floors in a building. It is an excellent choice for a variety of networking applications, including connecting computers, printers, servers, and other network devices in a commercial or residential setting. The BERK-TEK 10032454 is also suitable for powering devices over Ethernet, such as IP cameras, VoIP phones, and wireless access points.

Construction

The LANmark-1000 is constructed with 23 AWG bare copper wire insulated with thermoplastic. It consists of four twisted pairs, with each pair formed by two insulated conductors twisted together. These four pairs are laid up with a cross filler to form the basic unit, which is then jacketed with a flame-retardant polymer for added safety and durability.

Standards and Regulations

• ANSI/TIA-568.2-D Cat 6
• ISO/IEC 11801
• UL 444 Riser Rated
• IEEE 802.3bt PoE Types 1, 2, 3, 4 (100 watts max)
• Cisco UPOE, UPOE+ (90 watts max)
• Power over HDBaseT™ PoH (95 watts max)
• RoHS Compliant
