West Penn Wire AQC291H PR 22 AWG Stranded AL/FOIL Shielded Aqua Seal Cable 1000ft

West Penn Wire AQC291 PR 22 AWG Stranded AL/FOIL Shielded Aqua Seal Audio Cable 1000ft

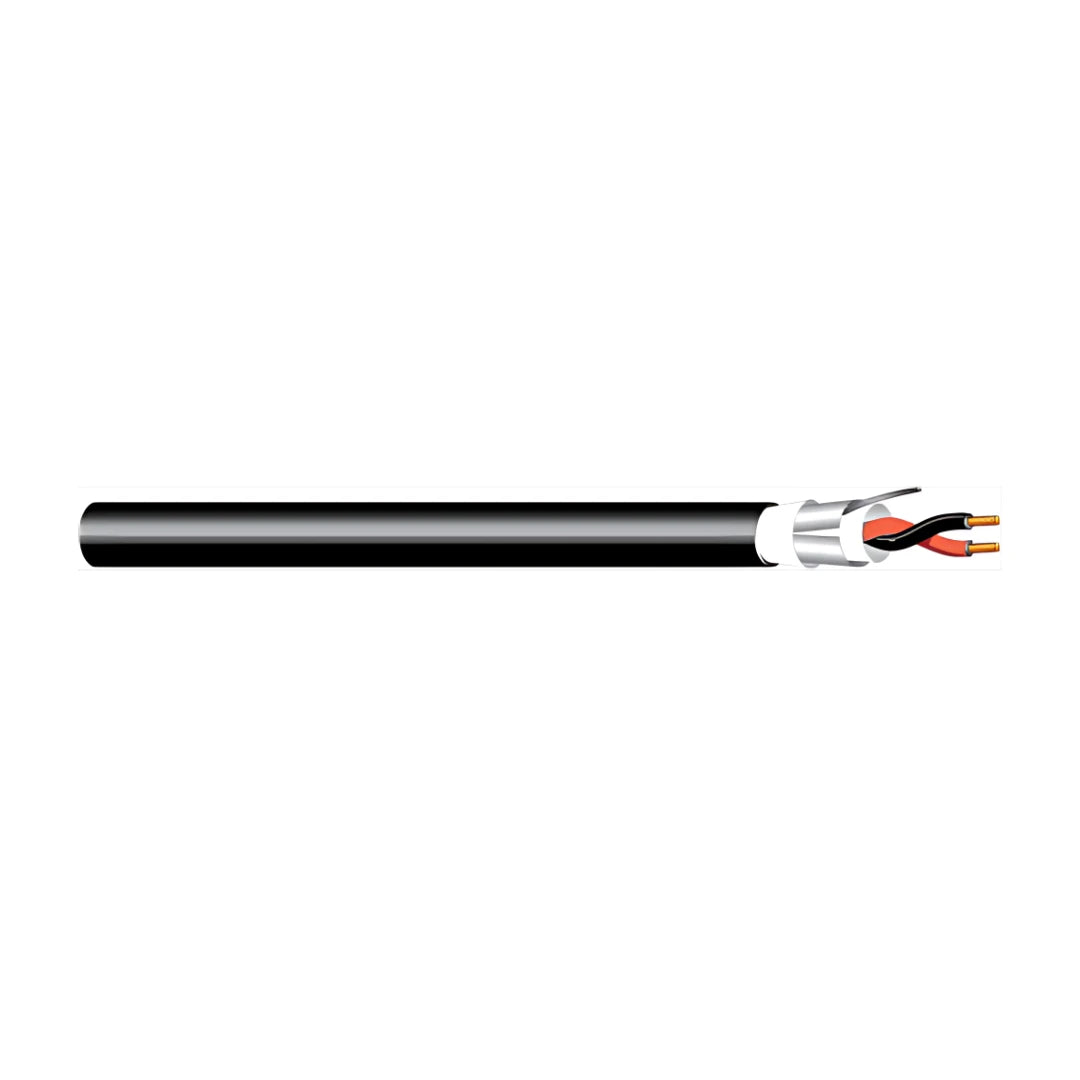

The West Penn Wire AQC291 is a premium 2-conductor shielded audio cable engineered for professional indoor and outdoor applications. This 22 AWG cable features advanced Aquaseal water-blocking technology, 100% aluminum foil shielding, and UV-resistant PVC jacketing, making it ideal for demanding installations where moisture protection and signal integrity are critical. With CM and CL3 UL ratings, this 1000-foot bulk cable delivers reliable performance for audio systems, control networks, alarm circuits, and low-voltage applications in both residential and commercial environments.

Product Specifications

Conductor Configuration:

• 2-conductor design with 22 AWG gauge
• 7x30 stranded bare copper construction
• Nominal DC resistance: 17 Ohm/1000 ft
• 24 AWG tinned copper drain wire

Insulation & Shielding:

• 0.01" PVC insulation (Black/Red color coding)
• 100% aluminum foil overall shield
• Aquaseal water-blocking tape for moisture protection
• 0.025" UV-resistant PVC outer jacket

Cable Dimensions:

• Overall diameter: 0.205 inches
• Cable weight: 21 lbs per 1000 ft
• Minimum bend radius: 1.845 inches
• Maximum pull tension: 33 lbs

Electrical Performance:

• Capacitance (conductor-to-conductor): 54 pF/ft
• Capacitance (conductor-to-shield): 97 pF/ft
• UL voltage rating: 300V
• Operating temperature: -20°C to 90°C

Certifications & Compliance:

• UL ratings: CM, CL3
• UL1685 flammability tested
• RoHS compliant
• TIA455-82 water penetration tested

Key Features & Benefits

Superior Moisture Protection: The integrated Aquaseal water-blocking tape prevents water migration along the cable length, ensuring long-term reliability in outdoor, underground, and high-humidity environments.

Comprehensive EMI/RFI Shielding: 100% aluminum foil shielding with dedicated drain wire provides excellent protection against electromagnetic and radio frequency interference, preserving audio clarity and signal integrity.

Indoor/Outdoor Versatility: UV-resistant PVC jacketing withstands prolonged sun exposure and harsh weather conditions, while CM rating allows safe indoor installation without conduit in most applications.

Professional-Grade Construction: 7x30 stranded copper conductors offer superior flexibility and durability compared to solid wire, resisting fatigue during installation and throughout the cable's service life.

Wide Operating Range: Functions reliably in extreme temperatures from -20°C to 90°C, suitable for installations in uncontrolled environments including attics, crawl spaces, and outdoor runs.

Applications & Uses

This versatile shielded cable excels in numerous professional applications:

• Professional audio systems and PA installations
• Background music and distributed audio networks
• Security and alarm system wiring
• Access control and intercom systems
• Low-voltage control circuits and automation
• Stage and venue permanent installations
• Educational facility audio/visual systems
• Houses of worship sound reinforcement
• Commercial building audio distribution

Construction Details

The AQC291 features a layered construction approach for maximum performance. At its core, two 22 AWG conductors use 7x30 stranding for optimal flexibility while maintaining low resistance. Each conductor receives a 0.01-inch PVC insulation layer with industry-standard color coding. The conductor pair is then wrapped with 100% coverage aluminum foil shielding, accompanied by a 24 AWG tinned copper drain wire for easy termination. Aquaseal water-blocking tape creates a moisture barrier, while the outer UV-resistant PVC jacket provides environmental protection and ensures a nominal outside diameter of just 0.205 inches.

Compatible Connectors

• 3-pin XLR male (CN-NC3MX)
• 3-pin XLR female (CN-NC3FX)
• 3.5mm stereo mini connectors (CN-NYS231)
• Standard barrier strips and terminal blocks
