Description
High-Performance Cat6 Plenum Cable for Commercial Network Infrastructure
The Panduit TX6 Category 6 U/UTP copper cable delivers certified performance that exceeds industry standards, making it the ideal choice for commercial buildings requiring reliable high-speed network connections. This plenum-rated cable ensures safe installation in air-handling spaces while providing exceptional data transmission capabilities for modern networking demands.
Product Specifications
- 23 AWG solid copper conductors with FEP/polyolefin insulation
- Cable diameter: 0.205 inches (5.2mm) nominal
- Cable weight: 25 lbs per 1000 feet (12 kg/305m)
- Installation tension: 25 lbf (110N) maximum
- Operating voltage: 80V maximum
- Nominal velocity of propagation: 70%
Features and Applications
Third-party tested and certified to ANSI/TIA-568-2.D Category 6 standards, this cable supports swept frequencies up to 250MHz with guaranteed channel performance in 4-connector configurations up to 100 meters. The cable has been characterized to 550MHz, providing 300MHz above standard requirements for future-proof installations.
Supports multiple network applications, including Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), and 10GBASE-T over limited distances. Compatible with 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, and Token Ring 4/16 applications.
Construction and Durability
Features twisted pair copper conductors separated by tape divider and covered by low smoke, flame-retardant PVC jacket rated for plenum installation (CMP-LP). The cable meets NFPA 262 and CSA FT-6 flame rating standards, ensuring safety in air-handling spaces.
Extended temperature performance allows operation from -4°F to 221°F (-20°C to 105°C), making it suitable for high-density cabinets and large cable bundles. Installation temperature range spans 32°F to 122°F (0°C to 50°C).
Power over Ethernet Compatibility
Fully compliant with IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt standards for Power over Ethernet applications, supporting PoE, PoE+, and PoE++ devices without performance degradation.
Installation Benefits

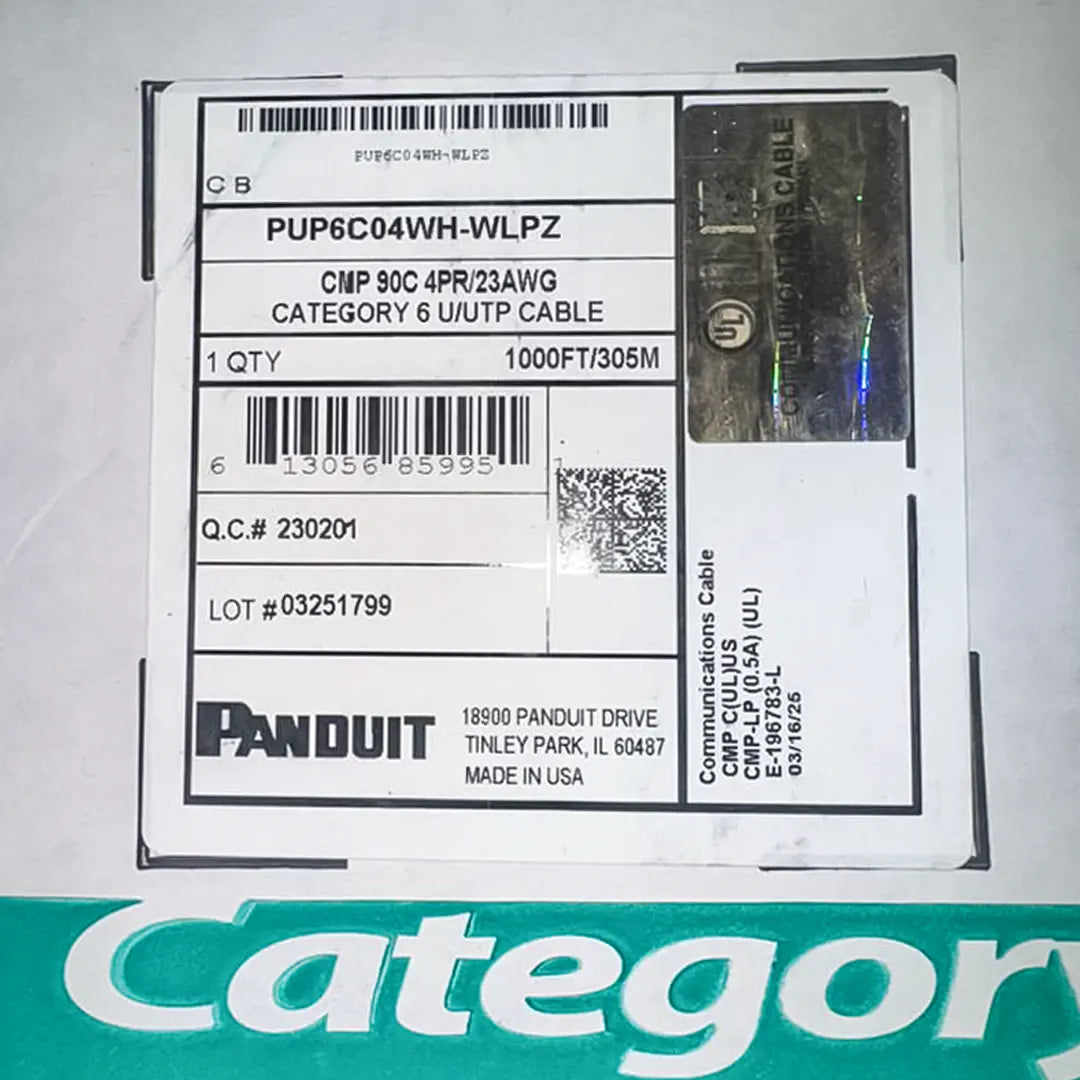

Ships in convenient 1000-foot Reelex packaging that ensures proper performance while enabling quick, tangle-free installation. Descending length markings help identify remaining cable, reducing installation time and minimizing waste. Package tested to ISTA Procedure 1A for shipping reliability.
Additional Info & Specs
| Color | Blue |
|---|---|
| Product Type | Ethernet networking cable |
| Condition | New |
| Brand | Panduit |
| Package | Reelex |
| Category | 6 |
| Spaces | Plenum |
| Gauge | 23 AWG |
| Jacket | Plenum-Rated / FT6 |
| Insulation Material | FEP/polyolefin |
| Frequency | Up to 250MHz |
| No. of Pairs | 4 Twisted |
| Shielding | Unshielded U/UTP |
| Conductor | Solid |
| Conductor Material | Bare Copper |
| Certification Standards | UL Certified, ETL, TIA Compliant, RoHS Compliant |
