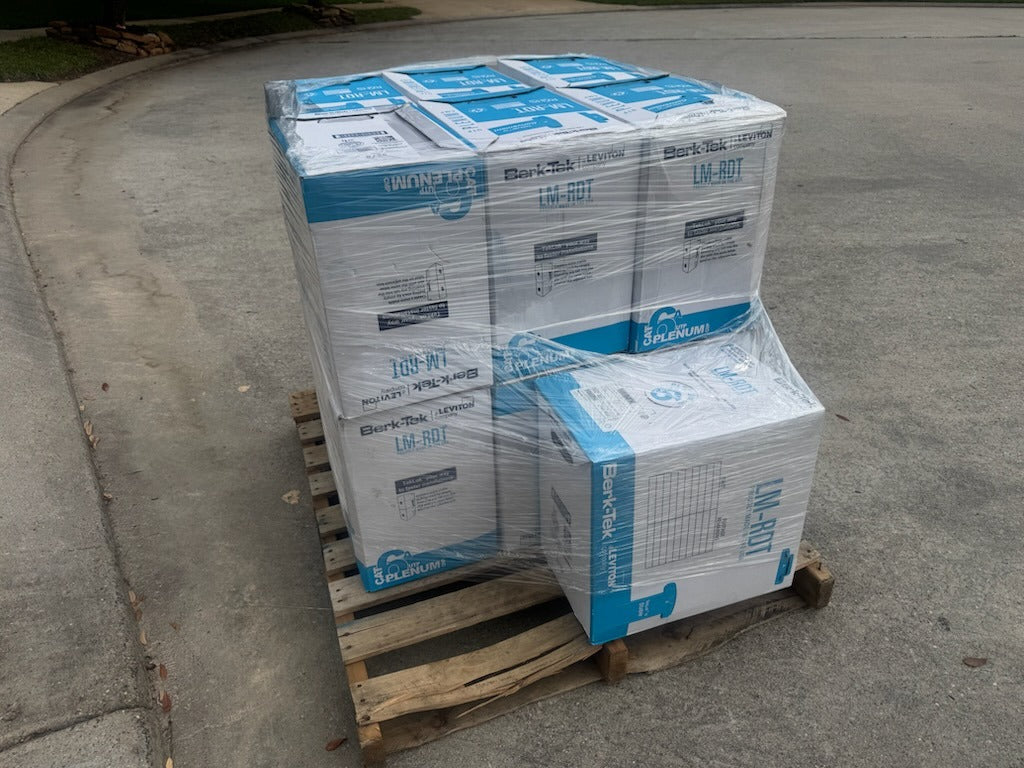

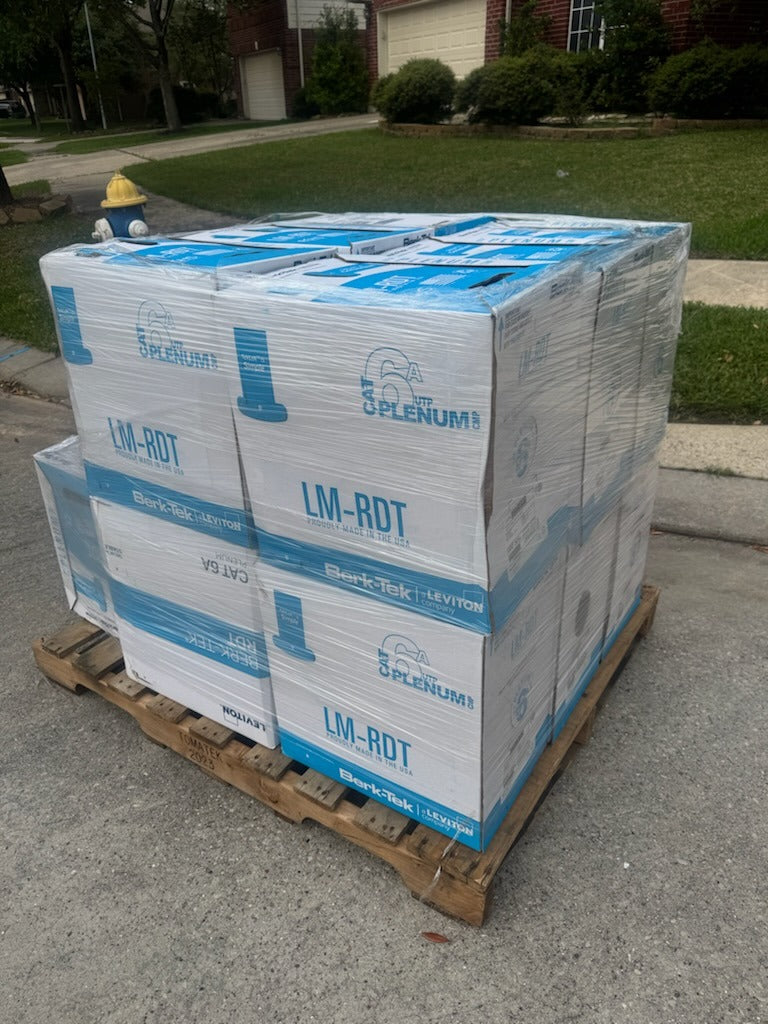

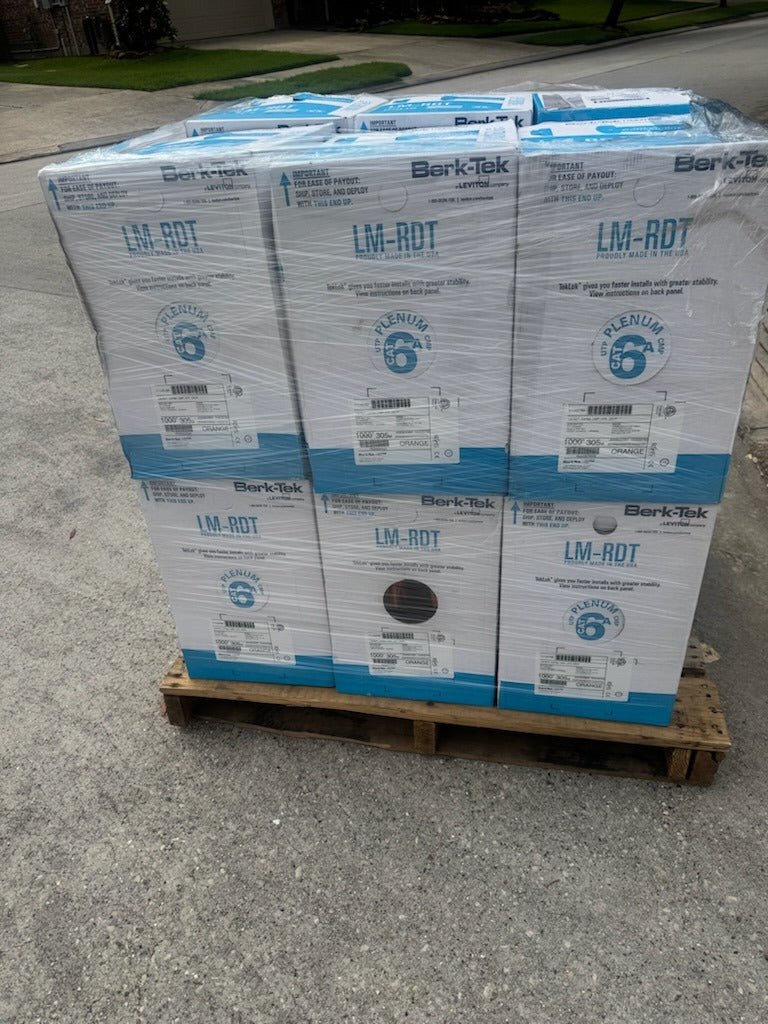

BERK-TEK | RDT 11143780 CAT6A Plenum Orange 1000ft 750MHz REDUCED DIAMETER Ethernet Cable

The BERK-TEK RDT Cat 6A UTP CMP Cable (Part No. 11143780) is a 1000ft plenum-rated Ethernet cable in an orange jacket, designed for high-density commercial and enterprise installations where space, performance, and installation speed all matter. At just 0.230 inches in diameter — compared to the 0.260-inch average for Cat 6A — it opens up more room in conduit and cable trays without any trade-off in signal quality. Manufactured in the USA and sold under the Leviton Network Solutions brand, the RDT line's fifth-generation design eliminates the cross filler found in conventional 6A cables, and its electrical performance is independently verified by ETL (Intertek) as part of Leviton's Verified Performance Program.

Product Specifications

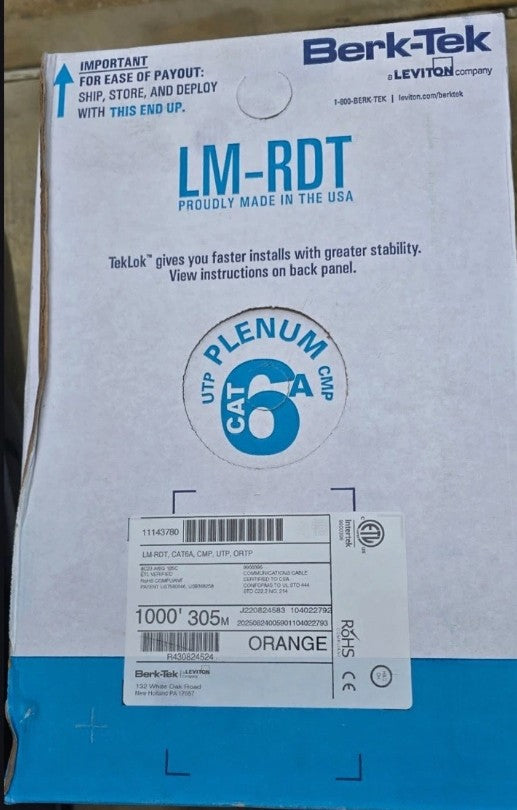

Part Number: 11143780 (Orange, Reel)
Conductor: 23 AWG Solid Bare Copper
Conductor Diameter: 0.023 in. (0.56 mm)
Insulated Conductor Diameter: 0.043 in. (1.09 mm)
Nominal Cable Diameter: 0.230 in. (5.84 mm)
Cable Weight: 30 lb/1000 ft (46.13 kg/km)
Maximum Installation Tension: 25 lb (110 N)
Minimum Bend Radius: 0.92 in. (23.37 mm)
Number of Pairs: 4
Length: 1000 ft (305 m) per Reel
Velocity of Propagation: 67%
DC Resistance: Max. 9.38 Ω/100 m at 20°C
DC Resistance Unbalance: Max. 4%
Mutual Capacitance: Nom. 5.1 nF/100 m at 1 kHz
Capacitance Unbalance: Max. 330 pF/100 m at 1 kHz
Delay Skew: Max. 45 ns/100 m
Installation Temperature: +5°C to +50°C
Operating Temperature: -20°C to +60°C
Listed Cable Temperature: +105°C
Fire Rating: CMP Plenum — UL Listed CMP-LP (0.7A)
Country of Origin: USA

Features and Applications

Dropping from 0.260 to 0.230 inches sounds like a small change — until you're managing 200 runs and suddenly have noticeably more tray space to work with. Eliminating the cross filler also makes a real difference on the job: the bend radius tightens to 0.92 inches, terminations go faster, and there's less waste at the end of each run. Leviton's FLX-1 technology, Precision Twist Technology, and Patented Profile Technology work together to keep performance consistent across every foot of the pull, not just in a lab setting.

ETL-verified testing confirms 8 dB of margin above Cat 6A requirements for both PSANEXT and PSAACRF, and reference performance data is available up to 750 MHz — well beyond the 500 MHz standard threshold. The orange jacket also makes it straightforward to color-code cable types across multi-use installations.

Uses

This cable is engineered to support:

10GBASE-T, 2.5/5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet
PoE, PoE+, and PoE++ (IEEE 802.3bt Types 1–4)
802.11ac wireless access point uplinks
HD video distribution
IP security and surveillance systems
High-density LAN structured cabling in enterprise, institutional, and commercial buildings

Construction

Each 23 AWG bare copper conductor is insulated with thermoplastic. Two conductors are twisted into a pair, four pairs are cabled together into the core, and the entire assembly is wrapped in an isolation layer that handles alien crosstalk suppression without adding bulk. The outer jacket is a flame-retardant polymer alloy, rated for plenum-rated air-handling spaces under NFPA 70 and UL's CMP standard.

Color coding: Pair 1 (White/Blue), Pair 2 (White/Orange), Pair 3 (White/Green), Pair 4 (White/Brown).

Print legend: BERK-TEK RDT UTP 23 AWG CMP 105C C(ETL)US CMP-LP (0.7A) ETL VERIFIED TIA-568.2-D CAT 6A

Additional Information

The orange jacket variant (Part No. 11143780) is a special-order color of Leviton.
