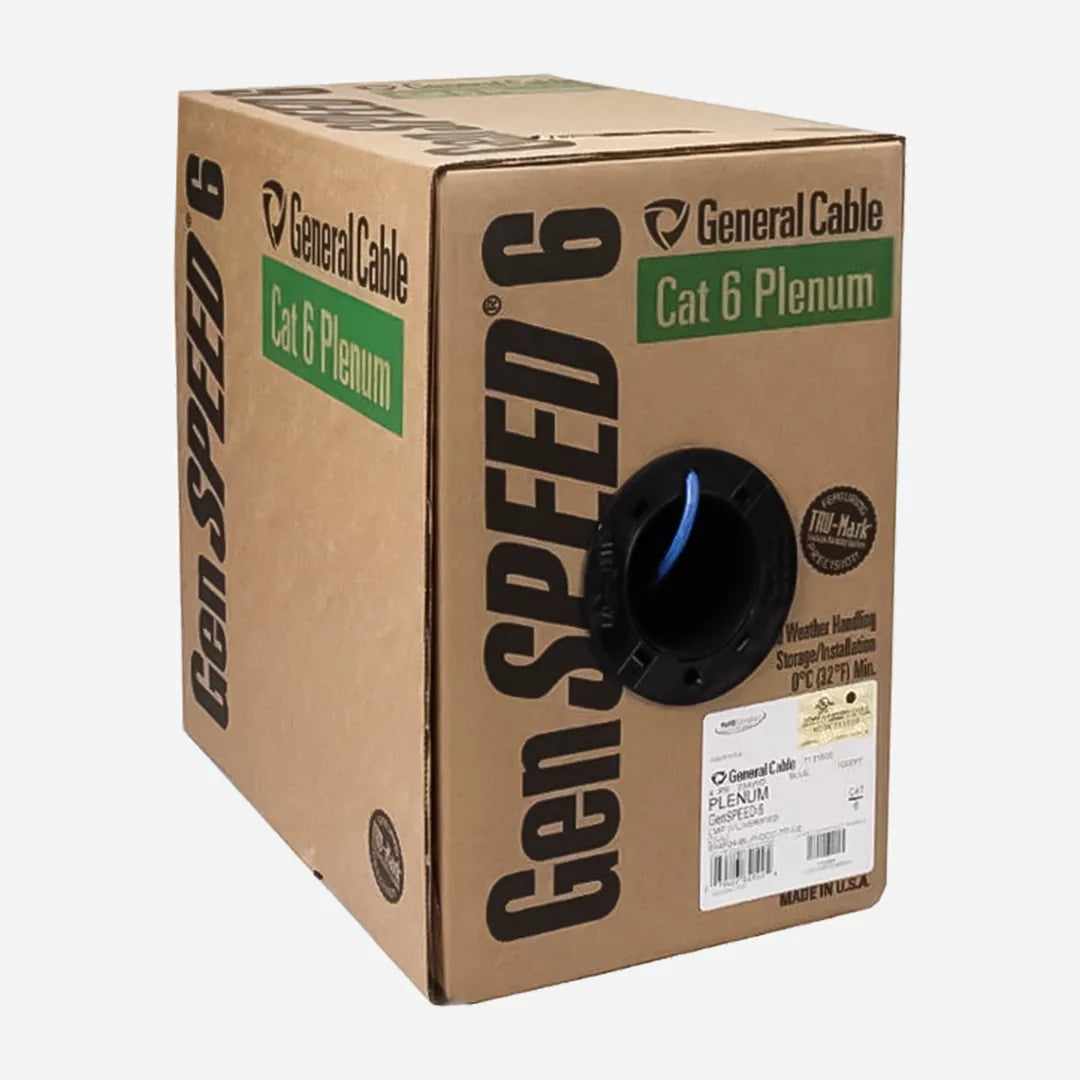

General Cable 7131100 GenSpeed Cat6 Plenum Solid Copper 1000ft UTP Blue Cable

High-Performance networking solution experience unparalleled network performance with the General Cable 7131100 GenSpeed Cat6 Plenum Solid Copper Blue Cable. This advanced Category 6 cable is designed to meet and exceed the demanding requirements of modern data communications. Engineered for consistent electrical performance and third-party verified for guaranteed reliability, this USA-made cable is the ideal choice for high-speed data transmission in commercial and industrial environments.

Product Specifications:

- Part Number: 7131100
- Cable Type: Category 6 (Cat6)
- Length: 1000 feet
- Color: Blue
- Plenum Rated: Yes (CMP)
- Conductor: 23 AWG solid bare annealed copper
- Nominal Cable Diameter: 0.205 inches
- Nominal Cable Weight: 25 lbs/1000 ft
- Temperature Rating: Installation 0 to +60°C, Operation -20 to +75°C
- Minimum Bend Radius: 1.0 inch
- Maximum Pulling Force: 32 lbs

Features and Benefits:

- Unique separator design for consistent electrical performance
- TRU-Mark® print legend with footage markings from 1000' to 0'
- Third-party verified for guaranteed performance
- Made in U.S.A.
- Plenum-rated for use in air handling spaces
- RoHS Compliant (Directive 2011/65/EU)
- Supports Power over Ethernet (PoE, PoE+, and PoE++)

Applications:

- IEEE 802.3: 1000 BASE-T, 100 BASE-TX
- ANSI/TIA 854: 1000 BASE-TX
- CDDI, Token Ring, ATM
- Digital and analog video transmission
- Building automation systems (ANSI/TIA 862 compliant)

Construction:

- Conductors: 23 AWG solid bare annealed copper
- Insulation: FEP, Polyolefin
- Color Code: Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
- Separator: Divider design
- Rip Cord: Applied longitudinally under jacket
- Jacket: Low-Smoke, Flame-Retardant PVC

Compliance and Standards:

- ANSI/TIA 568.2-D
- NEC/CEC Type CMP (NFPA 262) for Plenum
- UL 444
- ISO/IEC 11801 Ed. 2.0 (Class E)
- ICEA S-116-732

Electrical Characteristics:

- Maximum DC Resistance: 9.38 Ohms/100 m @ 20°C
- Nominal Velocity of Propagation: 70% speed of light
- Characteristic Impedance: 100 ± 15 Ohms (1-250 MHz)

The General Cable 7131100 GenSpeed Cat6 Plenum Solid Copper Cable offers superior performance for high-speed data networks. Its plenum-rated construction ensures compliance with building codes for air handling spaces, while the robust design supports various applications from Gigabit Ethernet to advanced Power over Ethernet systems. With its unique separator design and high-quality materials, this cable guarantees consistent electrical performance and reliability for your critical network infrastructure.
