700208101 CommScope Systimax 2071E Cat6 Plenum

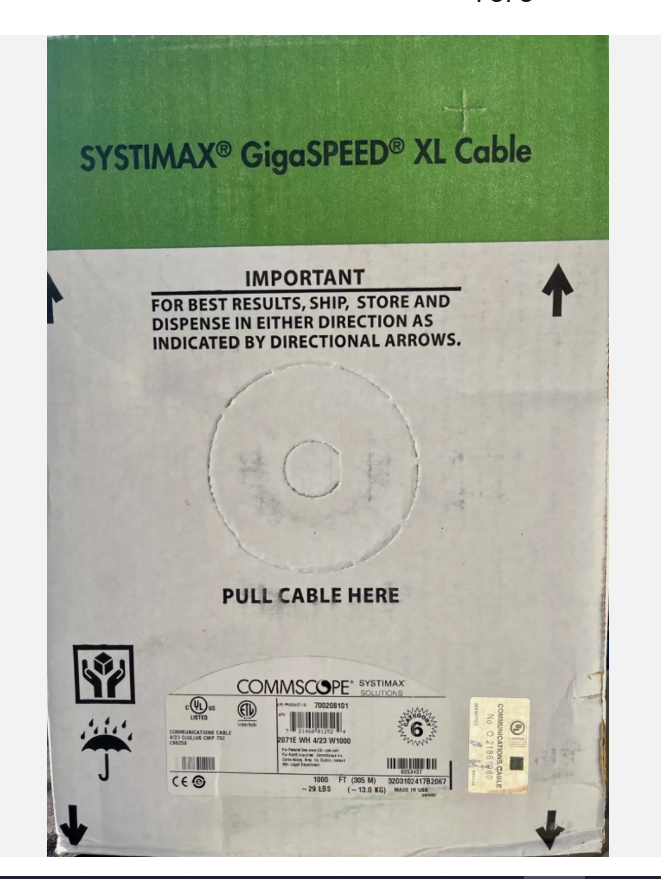

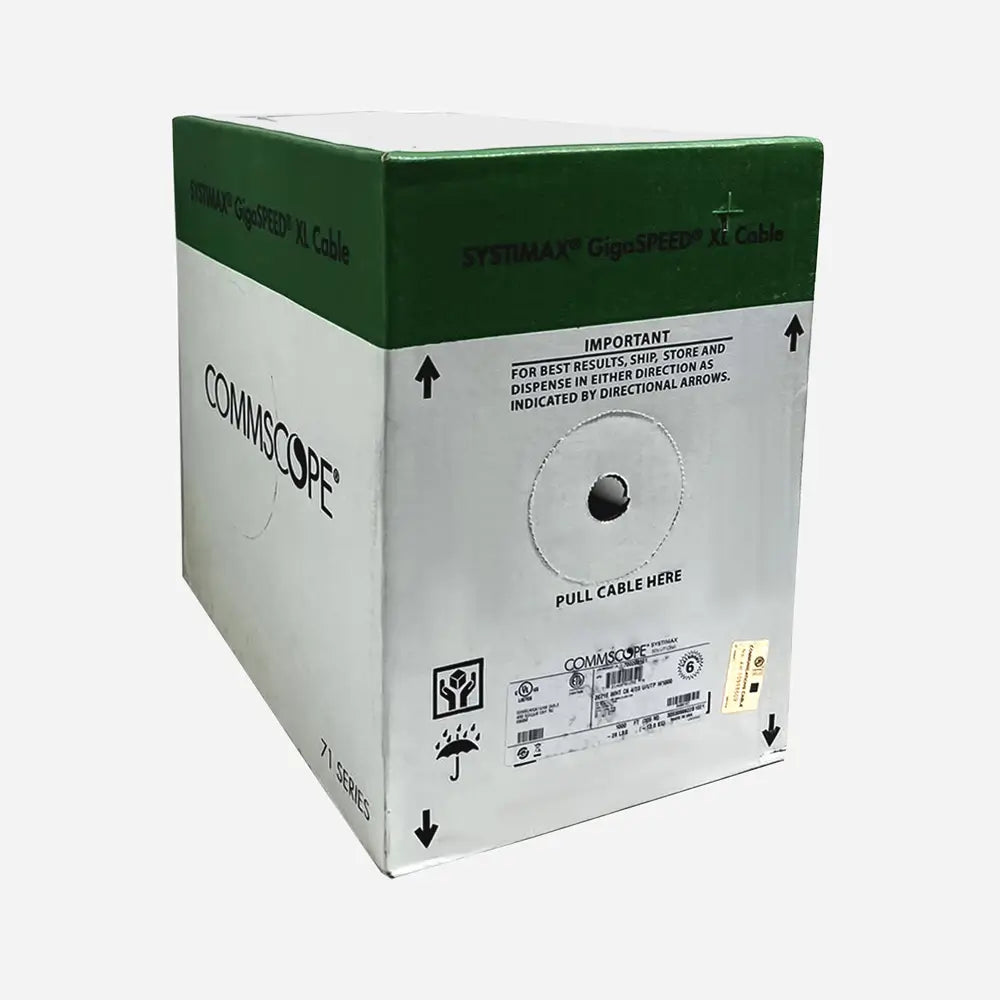

The 1000ft pull box for CommScope Systimax GigaSPEED XL Cat6 plenum cable

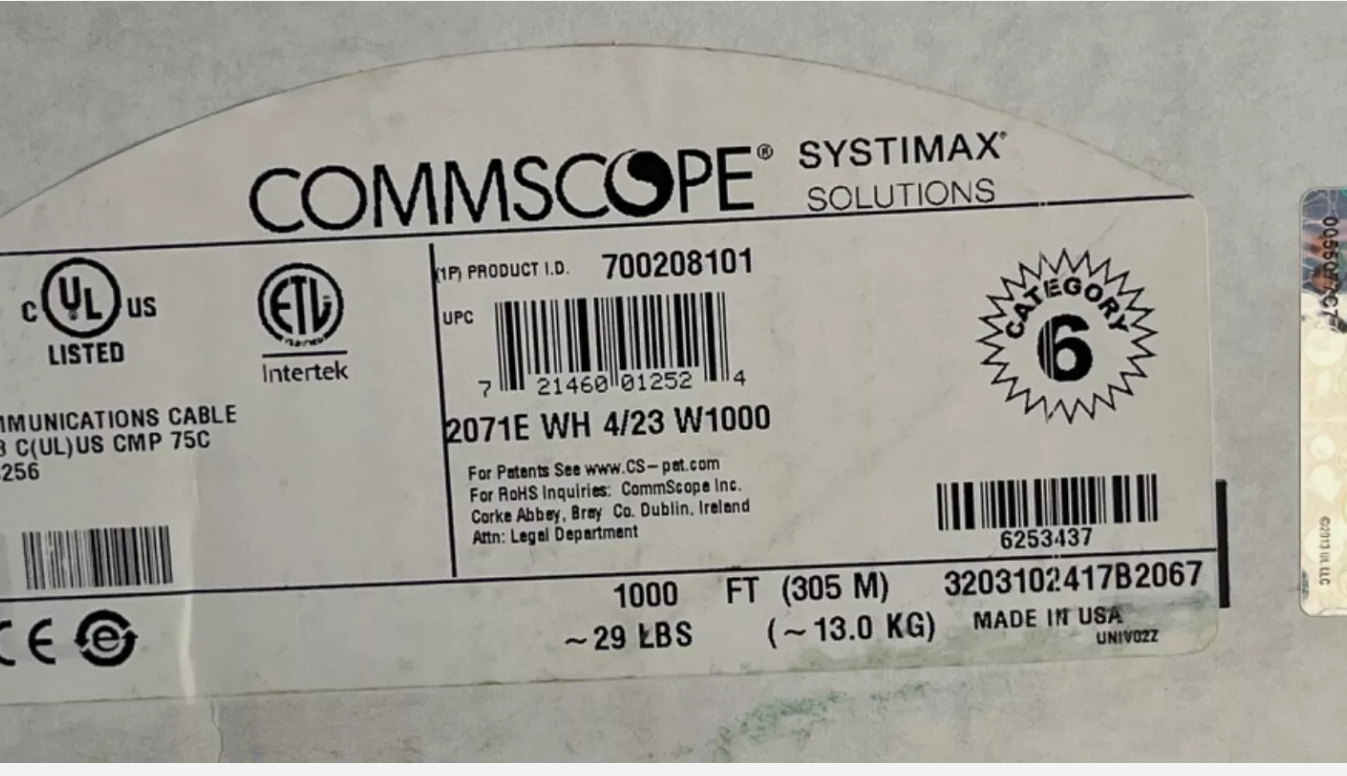

A close-up of the specification label for the CommScope 2071E Cat6 plenum white cable

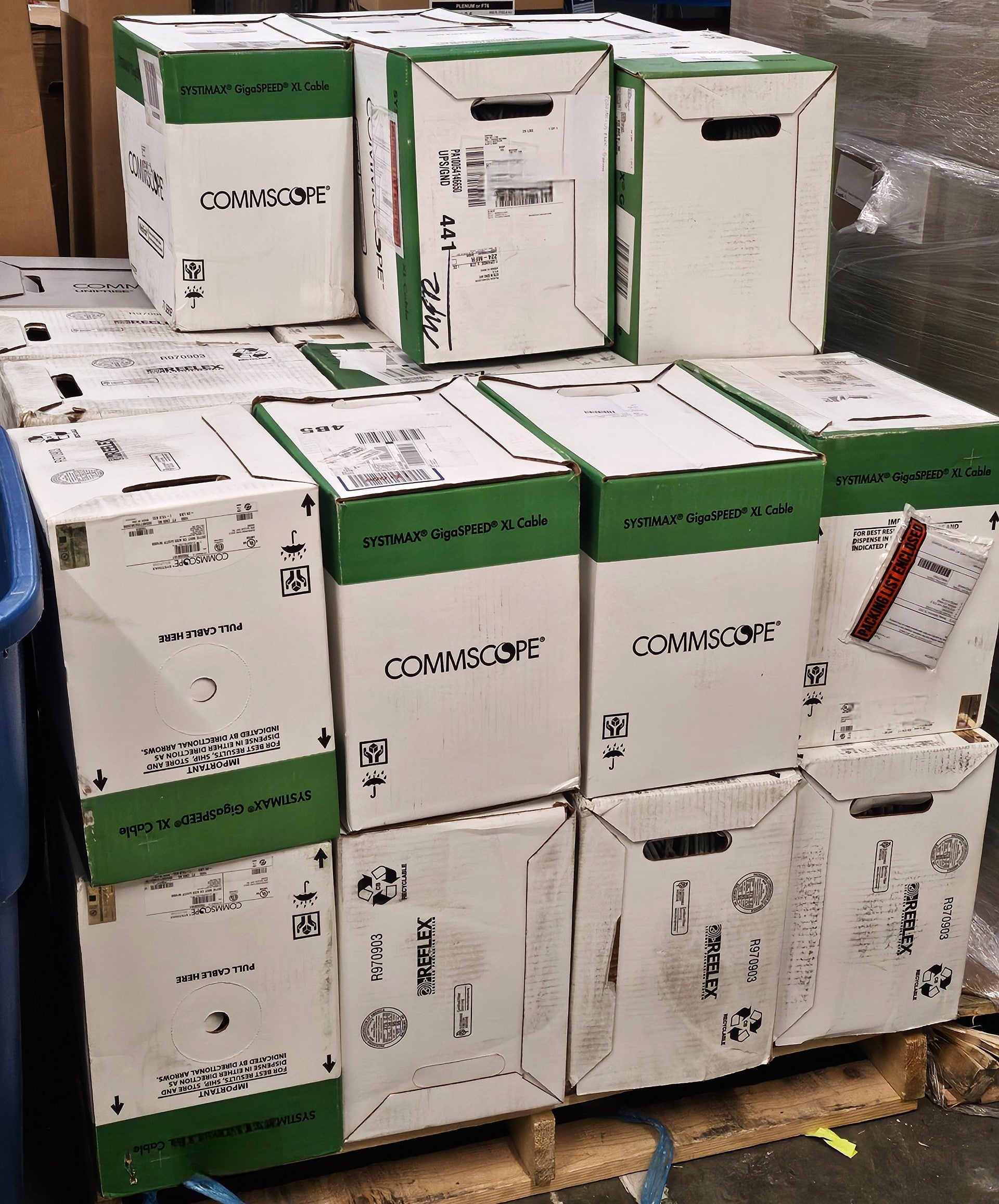

A bulk pallet of CommScope Systimax GigaSPEED XL Cat6 plenum cable boxes

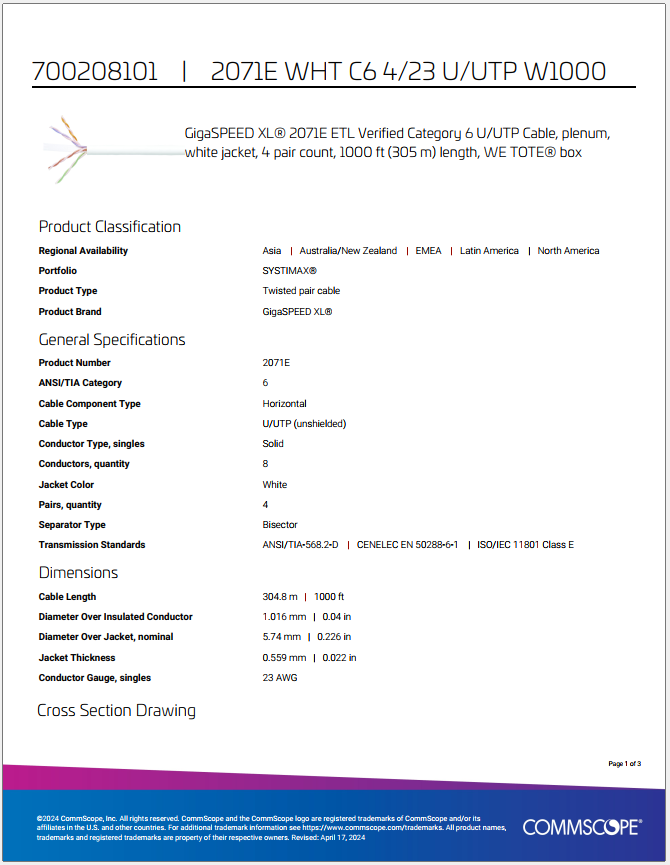

Page one of the CommScope 2071E Cat6 cable data sheet, showing general specifications

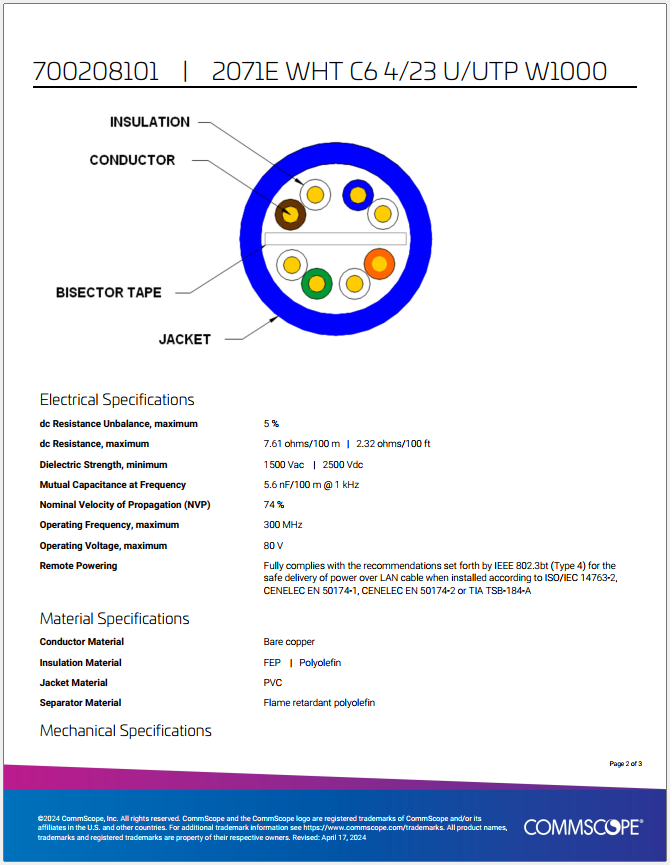

Page two of the CommScope 2071E data sheet, with a cross-section diagram and electrical specs

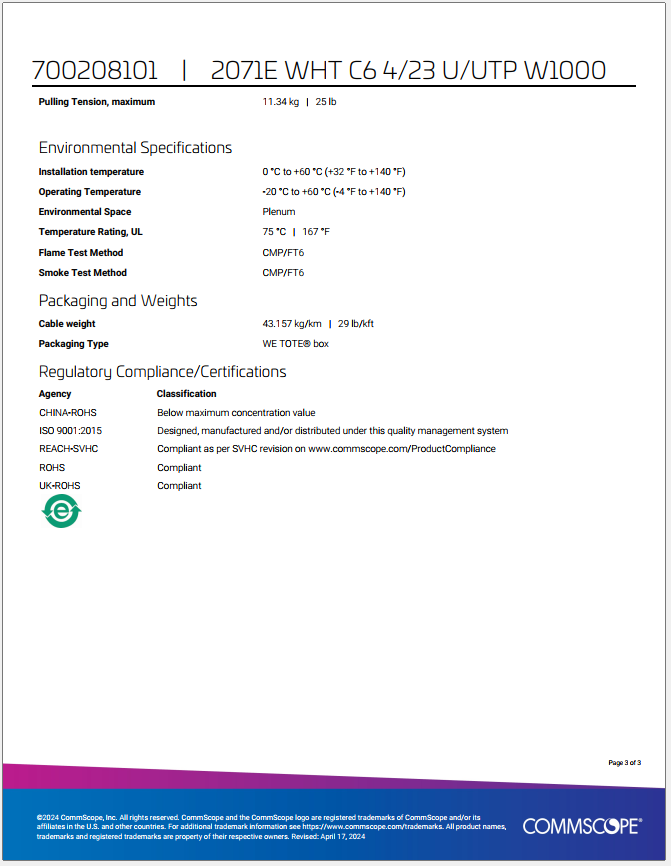

Page three of the CommScope 2071E data sheet, listing environmental and regulatory compliance

700208101 CommScope Systimax 2071E Cat6 Plenum White 1000Feet 23 AWG UTP W1000 Solid Copper Made In USA

Name: 700208101 CommScope Systimax 2071E Cat6 Plenum White 1000Feet 23 AWG UTP W1000 Solid Copper Made In USA
Brand: Discounted Cables
SKU: shopify_US_9821463150914_50110316839234
Price: 299.99 USD
Availability: InStock

Write a review

$299.99 $349.99

Discount: $50.00 (15%)

700208101 | 2071E WHT C6 4/23 U/UTP W1000 Base Product: 2071E GigaSPEED XL® 2071E ETL Verified Category 6 U/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

View Specs Sheet

Hurry Up! Only 1 Left in Stock!

Contact For Availability

Add wishlist Delete wishlist Add compare Delete compare

Lowest shipping rates, with No Sales Tax

Availability: In Stock Call for Availability

SKU: COMM-CAT6-2071E-WHT

Vendor: Discounted Cables

Categories:

Cat6 Ethernet Cables, Featured Products

Guarantee safe & Secure checkout

Description
Additional Info & Specs
Shipping & Return
Reviews

UPC: 721460012524

This SYSTIMAX® 71E series exceeds Cat 6 plenum standards and transmits voice, data and video with reliable quality. They offer a bisector tape that enhances the cables bandwidth and will support network speeds of 1 gigabit or more.

Plenum rated
23 AWG solid bare copper conductors
Can support network line speeds in excess of 1 gigabit per second
FEP, Low-smoke PVC jacket

Specifications

Product Classification

Portfolio	SYSTIMAX^®
Product Type	Twisted pair cable
Product Brand	GigaSPEED XL^®

General Specifications

Product Number	2071E
ANSI/TIA Category	6
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	White
Pairs, quantity	4
Separator Type	Bisector
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-6-1 \| ISO/IEC 11801 Class E

Dimensions

Cable Length	304.8 m \| 1000 ft
Diameter Over Insulated Conductor	1.016 mm \| 0.04 in
Diameter Over Jacket, nominal	5.74 mm \| 0.226 in
Jacket Thickness	0.559 mm \| 0.022 in
Conductor Gauge, singles	23 AWG

Cross Section Drawing

Click on image to enlarge.

Electrical Specifications

dc Resistance Unbalance, maximum	5 %
dc Resistance, maximum	7.61 ohms/100 m \| 2.32 ohms/100 ft
Dielectric Strength, minimum	1500 Vac \| 2500 Vdc
Mutual Capacitance at Frequency	5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	74 %
Operating Frequency, maximum	300 MHz
Operating Voltage, maximum	80 V
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Material Specifications

Conductor Material	Bare copper
Insulation Material	FEP \| Polyolefin
Jacket Material	PVC
Separator Material	Flame retardant polyolefin

Mechanical Specifications

Pulling Tension, maximum

11.34 kg | 25 lb

Environmental Specifications

Installation temperature	0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Environmental Space	Plenum
Temperature Rating, UL	75 °C \| 167 °F
Flame Test Method	CMP/FT6
Smoke Test Method	CMP/FT6

Packaging and Weights

Cable weight	43.157 kg/km \| 29 lb/kft
Packaging Type	WE TOTE^® box

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant

CommScope Brand Systimax Cat6 Plenum 2071E part number, USA Made Cable, UL Listed, ETL Certified, Solid Copper, 1000 Feet, TAA Compliant.
