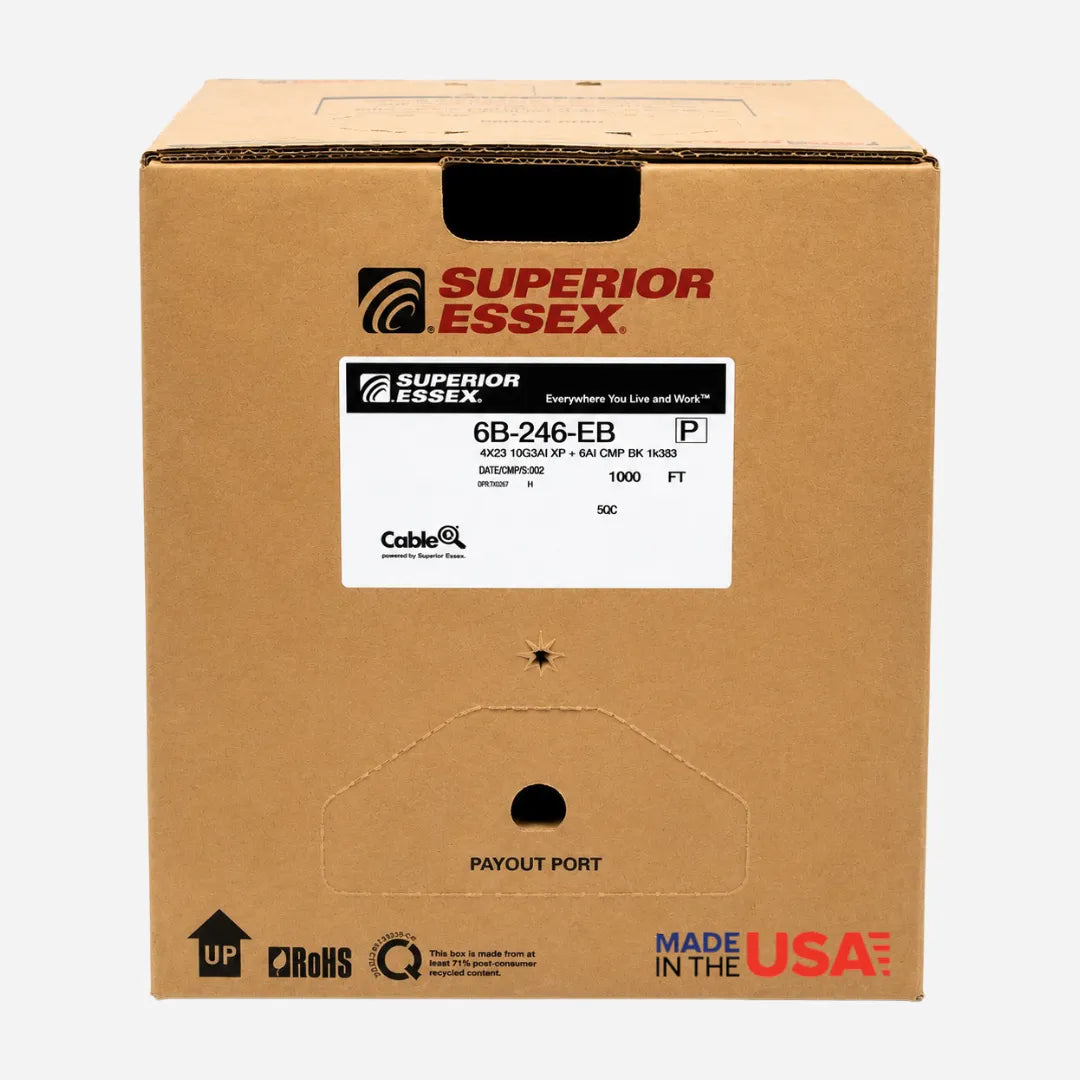

Superior Essex 10Gain XP+ Cat6A Plenum UTP Cable
The Superior Essex 6B-246-EB (10Gain XP+) is a high-performance Category 6A plenum-rated UTP cable built for 10GBASE-T Ethernet networks. Constructed with 23AWG solid annealed copper conductors and FEP insulation, this 1000ft black cable delivers reliable performance up to 650 MHz with a guaranteed 15dB alien crosstalk (AXT) margin.
Key Features
- Category 6A Performance – Tested to 650 MHz, exceeding ANSI/TIA-568.2-E standards
- Solid Copper Conductors – 23 AWG solid annealed bare copper for maximum signal integrity
- Plenum (CMP) Rated – UL Listed CMP-LP (0.5) for low-smoke plenum installations
- 10GBASE-T Ready – Supports 10BASE-T through 10GBASE-T Ethernet
- PoE Compatible – IEEE 802.3bt Type 1-4 (up to 100W)
- Cross-Web Separator – Maintains pair geometry for superior performance

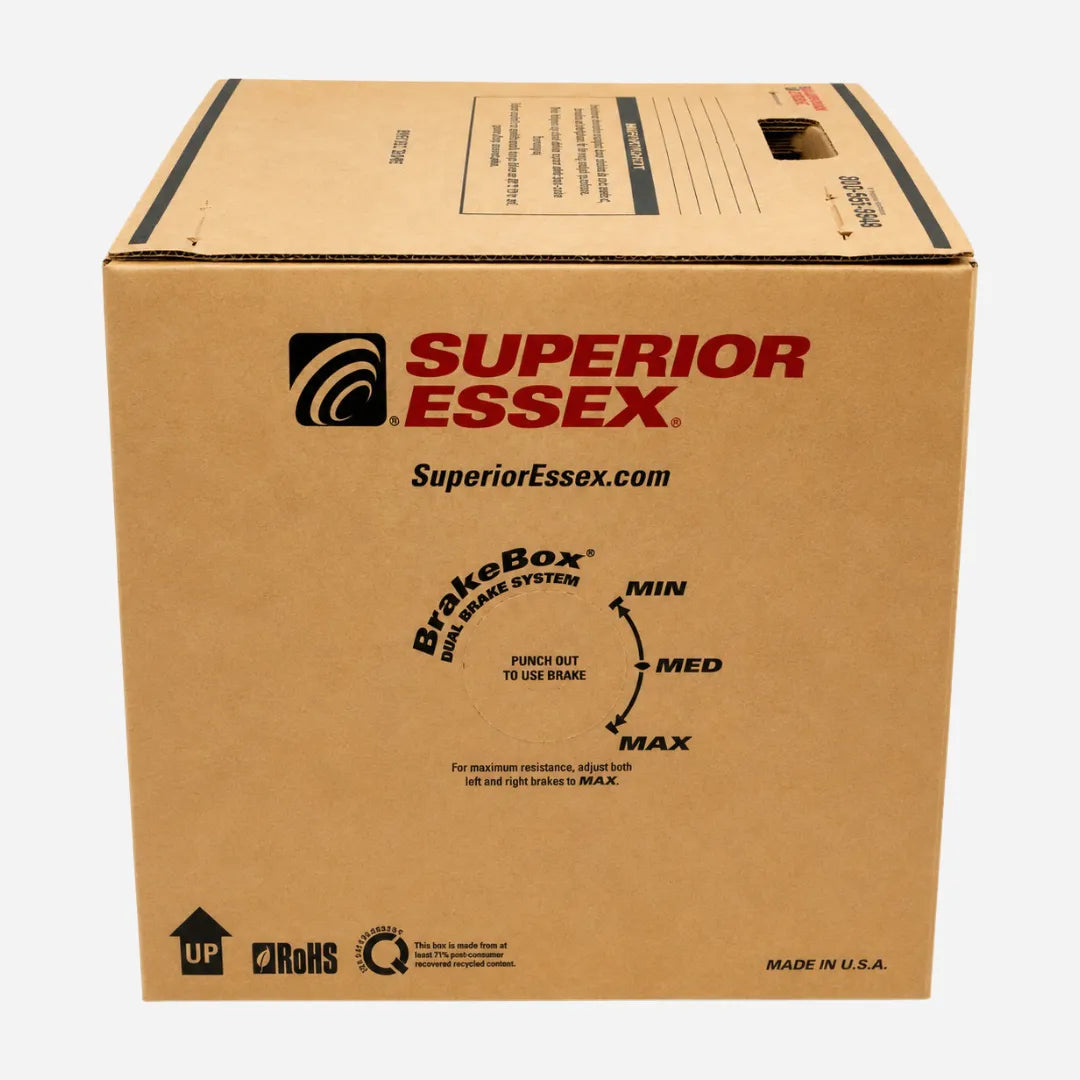

- BrakeBox Package – Tangle-free 1000ft pull box
Technical Specifications
| Conductor | 23 AWG Solid Annealed Copper |
| Insulation | FEP |
| Jacket | LSPVC, Plenum (CMP) |
| Impedance | 100 ± 15 Ohms |
| NVP | 71% |
| Frequency Tested | 650 MHz |
| AXT Margin | Guaranteed 15 dB |
| Diameter | 0.249 in (6.32 mm) |
| Weight | 34 lbs/kft |
| Length | 1000 ft (305 m) |
| Color | Black |
Standards & Compliance
- UL 444, CSA C22.2 No.214-08, UL 1666
- ANSI/TIA-568.2-E
- NEC (NFPA 70) Article 800
- RoHS 2 & REACH Compliant
- UL Verified CAT 6A
- UL Listed CMP-LP (0.5)
Additional Info & Specs
| Conductor | 23 AWG Solid Annealed Copper |
| Insulation | FEP |
| Jacket | LSPVC, Plenum (CMP) |
| Impedance | 100 ± 15 Ohms |
| NVP | 71% |
| Frequency Tested | 650 MHz |
| AXT Margin | Guaranteed 15 dB |
| Diameter | 0.249 in (6.32 mm) |
| Weight | 34 lbs/kft |
| Length | 1000 ft (305 m) |
| Color | Black |
| Separator | Cross-Web |
| Standards | UL 444, CSA C22.2 No.214-08, ANSI/TIA-568.2-E |
