Description

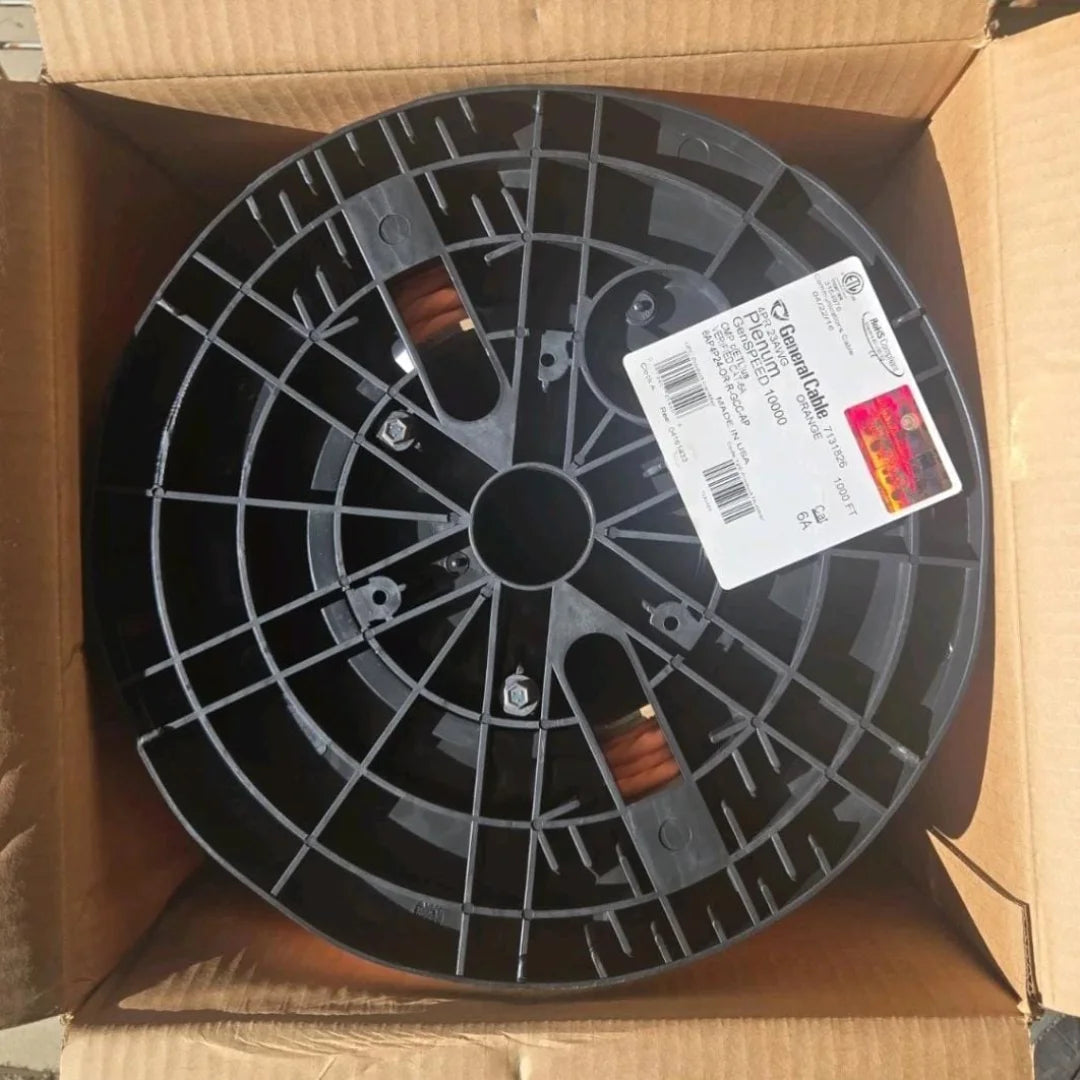

The General Cable GenSPEED 10,000 Category 6A Plenum (CMP) cable (part number 7131826) delivers robust signal strength, high electrical throughput, and superior alien crosstalk suppression for 10GBASE-T enterprise networks. Constructed with 23 AWG solid bare annealed copper conductors and premium fluoropolymer insulation, this cable features General Cable's innovative T-Top cross-web separator that locks the twisted pairs into a systematic orientation, preserving critical pair geometry under installation tension. Engineered with proprietary AirEs jacket technology, it provides exceptional flexibility during routing and maximizes pair separation between adjacent cables to ensure dependable PSANEXT and PSAACRF performance across dense bundles. Rated CMP (NFPA 262 / UL 444) for commercial plenum air handling spaces, this cable operates smoothly across -20°C to +75°C and supports high-power PoE/PoE+ applications. Supplied on a 1,000-foot orange spool with TRU-Mark footage markings, it is certified to ANSI/TIA 568-C.2 and proudly made in the USA.
Electrical Characteristics
| Frequency (MHz) | Insertion Loss (Max dB/100m) | NEXT (Min dB) | PSNEXT (Min dB) | Return Loss (Min dB) | TCL (Min dB) | PSANEXT (Min dB) | PSAACRF (Min dB) |
|---|---|---|---|---|---|---|---|
| 1 | 2.1 | 74.3 | 72.3 | 20.0 | 40.0 | 67.0 | 67.0 |
| 4 | 3.8 | 65.3 | 63.3 | 23.0 | 40.0 | 67.0 | 66.2 |
| 8 | 5.3 | 60.8 | 58.8 | 24.5 | 40.0 | 67.0 | 60.1 |
| 10 | 5.9 | 59.3 | 57.3 | 25.0 | 40.0 | 67.0 | 58.2 |
| 16 | 7.5 | 56.2 | 54.2 | 25.0 | 38.0 | 67.0 | 54.1 |
| 20 | 8.4 | 54.8 | 52.8 | 25.0 | 37.0 | 67.0 | 52.2 |
| 25 | 9.4 | 53.3 | 51.3 | 24.3 | 36.0 | 67.0 | 50.2 |
| 31.25 | 10.5 | 51.9 | 49.9 | 23.6 | 35.1 | 67.0 | 48.3 |
| 62.5 | 15.0 | 47.4 | 45.4 | 21.5 | 32.0 | 65.6 | 42.3 |
| 100 | 19.1 | 44.3 | 42.3 | 20.1 | 30.0 | 62.5 | 38.2 |
| 200 | 27.6 | 39.8 | 37.8 | 18.0 | 27.0 | 58.0 | 32.2 |
| 250 | 31.1 | 38.3 | 36.3 | 17.3 | 26.0 | 56.5 | 30.2 |
| 300 | 34.3 | 37.1 | 35.1 | 16.8 | 25.2 | 55.3 | 28.7 |
| 400 | 40.1 | 35.3 | 33.3 | 15.9 | 24.0 | 53.5 | 26.2 |
| 500 | 45.3 | 33.8 | 31.8 | 15.2 | 23.0 | 52.0 | 24.2 |
| Electrical Parameter | Specification (Max) | Nominal Value |
|---|---|---|
| DC Resistance (@ 20°C) | 9.38 Ohms/100 m (328 ft) | 7.50 Ohms/100 m |
| DC Resistance Unbalance (Individual Pair) | 4.00% | < 1% |
| Delay Skew | 45 ns/100 m | 30 ns/100 m |
| Nominal Velocity of Propagation (NVP) | 70% | 70% |
| Characteristic Impedance (1 – 500 MHz) | 100 ± 15 Ohms | 100 Ohms |
| PoE Capability | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++) | Verified |
Physical Characteristics
| Physical Parameter | Specification |
|---|---|
| Nominal Cable Diameter | 0.320 in (8.13 mm) |
| Nominal Cable Weight | 45 lbs/1,000 ft (20.41 kg/kft) |
| Minimum Bend Radius | 1.5 in (38.1 mm) |
| Maximum Pulling Force | 40 lbs (178 N) |
| Installation Temperature Range | 0°C to +60°C (32°F to +140°F) |
| Operating Temperature Range | -20°C to +75°C (-4°F to +167°F) |
| Packaging Format | 1,000 ft Spool |
| Jacket Color | Orange |
Features and Applications
- 10 Gigabit Performance: Fully tested and compliant for 10GBASE-T 10 Gigabit Ethernet up to 100 meters, compliant with ANSI/TIA 568-C.2 Cat 6A standards.
- Innovative T-Top Cross-Web: Locks twisted pairs into systematic orientation inside the cable to maintain superior internal electrical balance and structural integrity under stress.
- AirEs Jacket Technology: Provides superior flexibility during installation and ensures maximum cable-to-cable pair separation for consistent PSANEXT and PSAACRF performance.
- CMP Plenum Safety: Low-smoke, flame-retardant PVC jacket meets NFPA 262 and UL 444 standards for commercial air plenums, drop ceilings, and duct spaces.
- High-Power PoE Support: 23 AWG solid bare annealed copper conductors with fluoropolymer insulation support IEEE 802.3af PoE, IEEE 802.3at PoE+, and IEEE 802.3bt PoE++.
- TRU-Mark Footage Markers: Jacket features descending footage markings from 1000' to 0' for precise length management and zero job-site guesswork.
- Enterprise Network Ready: Approved for 1000BASE-TX, 100BASE-TX, CDDI, Token Ring, ATM, digital video, broadband and baseband analog video, and smart building automation (ANSI/TIA 862).
- Made in USA: Proudly engineered and manufactured in the United States to rigorous datacom quality standards.
Construction
Conductors: 23 AWG solid bare annealed copper.
Insulation: Fluoropolymer.
Color Code: Pair 1: Blue-White; Pair 2: Orange-White; Pair 3: Green-White; Pair 4: Brown-White.
Separator: T-Top cross-web internal separator.
Jacket: Low-Smoke, Flame-Retardant PVC with AirEs design, Orange.
Nominal Diameter: 0.320 in (8.13 mm).
Packaging: 1,000 ft Spool.
Additional Information
Part Number: 7131826.
Packaging Format: 1,000 ft Spool.

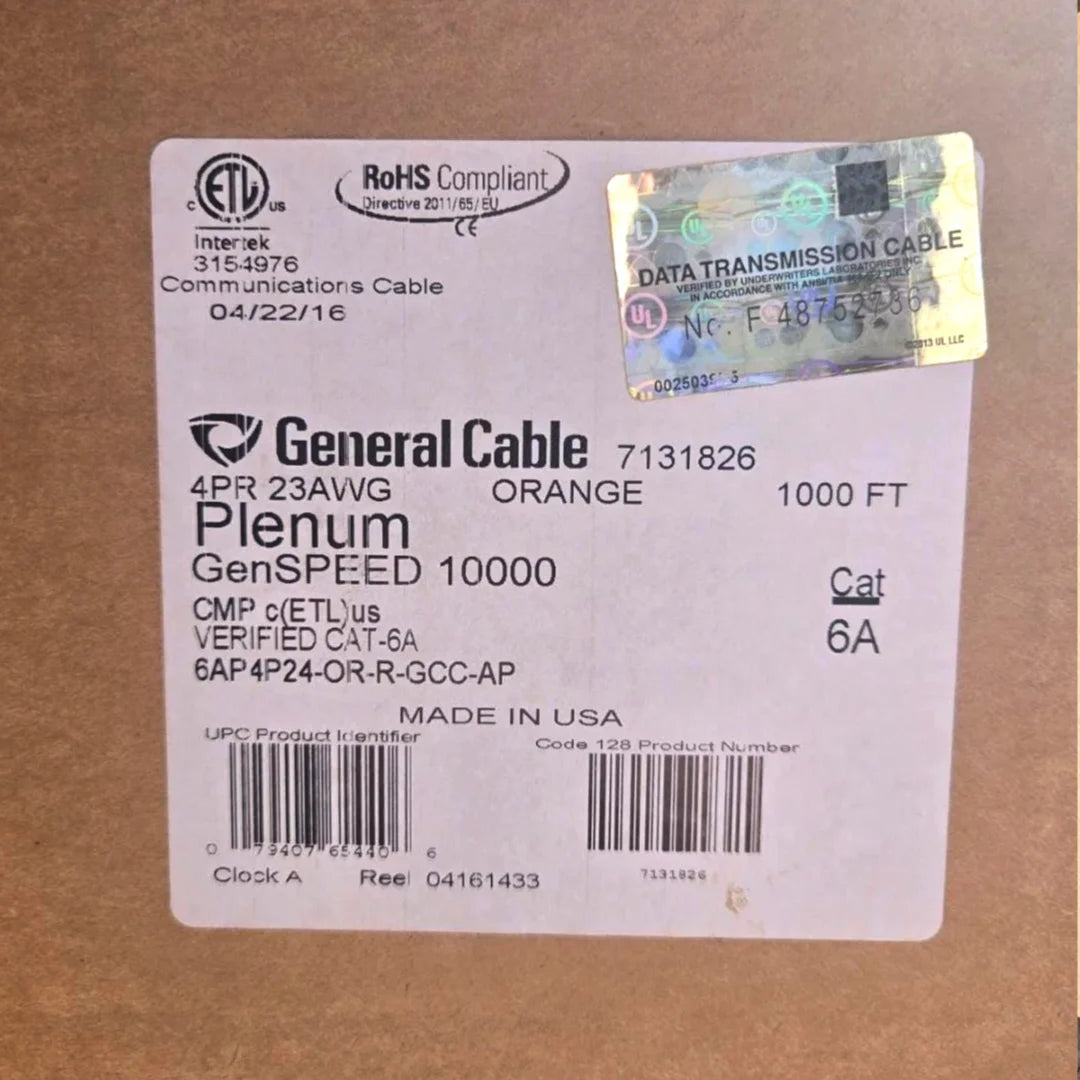

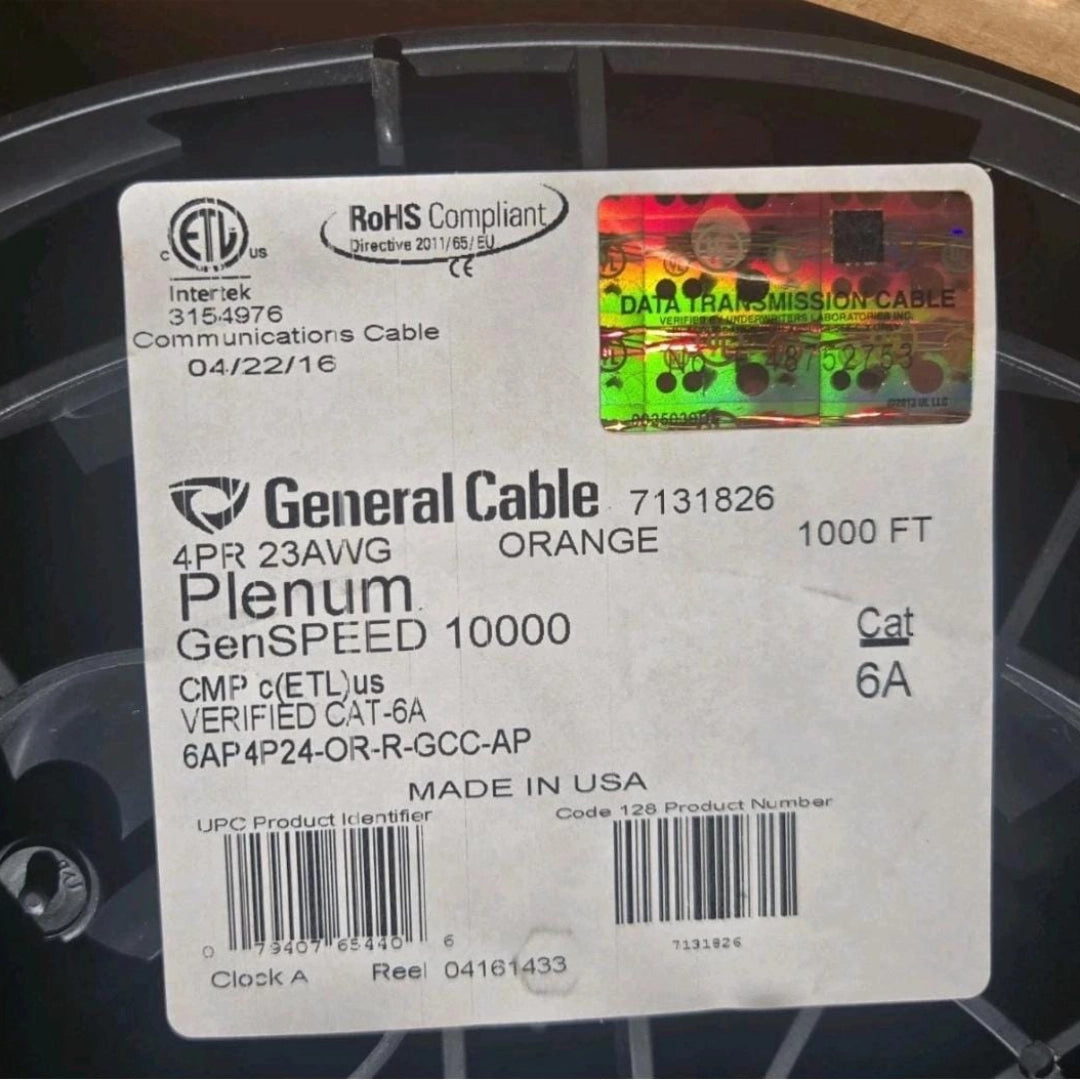

Print Legend: TRU-Mark print legend contains footage markings from 1000' to 0'.
Flame & Safety Ratings: NEC/CEC Type CMP (NFPA 262), UL 444.
Industry Standards: ANSI/TIA 568-C.2 Category 6A, ANSI/TIA 854 (1000 BASE-TX), ANSI/TIA 862 (Building Automation), ICEA S-116-732, ISO/IEC 11801 Ed. 2.0 (Class EA).
Environmental Compliance: RoHS Compliant Directive 2011/65/EU.
Verification: ETL Verified.
Country of Origin: Made in U.S.A.
Additional Info & Specs
| General Specifications | |
|---|---|
| Manufacturer / Brand | General Cable / GenSPEED (Prysmian Group) |
| Product Series | GenSPEED 10,000 Category 6A |
| Part Number | 7131826 |
| Category Rating | Category 6A (Cat 6A U/UTP) |
| Flame / Safety Rating | CMP - Plenum Rated (NFPA 262 / UL 444) |
| Packaging Format | 1,000 ft Spool |
| Jacket Color | Orange |
| Print Legend | TRU-Mark Footage Markings (1000' to 0') |
| Country of Origin | USA (Made in U.S.A.) |
| Conductor & Construction | |
| Conductor Gauge | 23 AWG |
| Conductor Type | Solid Bare Annealed Copper |
| Insulation Material | Fluoropolymer |
| Pair Count / Color Code | 4 Twisted Pairs (Pair 1: Blue-White, Pair 2: Orange-White, Pair 3: Green-White, Pair 4: Brown-White) |
| Separator Type | T-Top Cross-Web |
| Jacket Technology | AirEs Jacket Design |
| Jacket Material | Low-Smoke, Flame-Retardant PVC |
| Nominal Cable Diameter | 0.320 in (8.13 mm) |
| Electrical & Transmission | |
| Frequency Bandwidth | 1 – 500 MHz |
| Characteristic Impedance | 100 ± 15 Ohms (1 – 500 MHz) |
| DC Resistance (Max @ 20°C) | 9.38 Ohms/100 m (Nominal: 7.50 Ohms/100 m) |
| DC Resistance Unbalance (Max) | 4.00% (Nominal: < 1%) |
| Delay Skew (Max) | 45 ns/100 m (Nominal: 30 ns/100 m) |
| Nominal Velocity of Propagation (NVP) | 70% |
| Power over Ethernet (PoE) | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++) |
| Mechanical & Environmental | |
| Nominal Cable Weight | 45 lbs/1,000 ft |
| Shipping Weight | 47 lbs |
| Minimum Bend Radius | 1.5 in (38.1 mm) |
| Maximum Pulling Force | 40 lbs (178 N) |
| Installation Temperature Range | 0°C to +60°C (32°F to +140°F) |
| Operating Temperature Range | -20°C to +75°C (-4°F to +167°F) |
| Installation Environment | Indoor / Plenum Spaces (Air Plenums, Ducts, Risers) |
| Standards & Regulatory | |
| Telecommunications Standards | ANSI/TIA 568-C.2 Category 6A, ANSI/TIA 854 (1000 BASE-TX), ANSI/TIA 862 (Building Automation), ISO/IEC 11801 Ed. 2.0 (Class EA) |
| Safety & Fire Standards | NEC/CEC Type CMP (NFPA 262), UL 444, ICEA S-116-732 |
| Verification & Compliance | ETL Verified, RoHS Compliant Directive 2011/65/EU |
