RG11

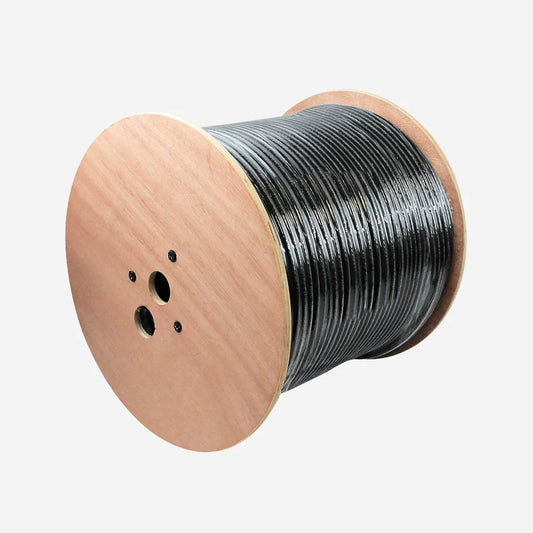

The Wavenet RG11QRBK2 is a 14AWG RG-11U Quad Shield Riser-rated (CMR) broadband coaxial cable engineered for vertical in-building signal distribution where strong shielding and low signal loss are essential. It's built around a Copper-Clad Steel center conductor insulated with foam polyethylene, wrapped in a quad-shield system of aluminum foil and 60% aluminum braid, and finished with a black PVC CMR-rated jacket. Electrically, the cable holds a 75 Ohm impedance with a velocity of propagation of 82% and a capacitance of 15.5 pF/ft, with attenuation measured from 1.50 dB/100m at 5 MHz through 25.60 dB/100m at 3000 MHz swept and ETL-verified to 3.0 GHz. Compliant with SCTE, UL 444, and ROHS, and ETL Listed through Intertek, it's packaged on a 1000-foot reel weighing 64 lbs., ready for professional CATV and broadband riser installations.

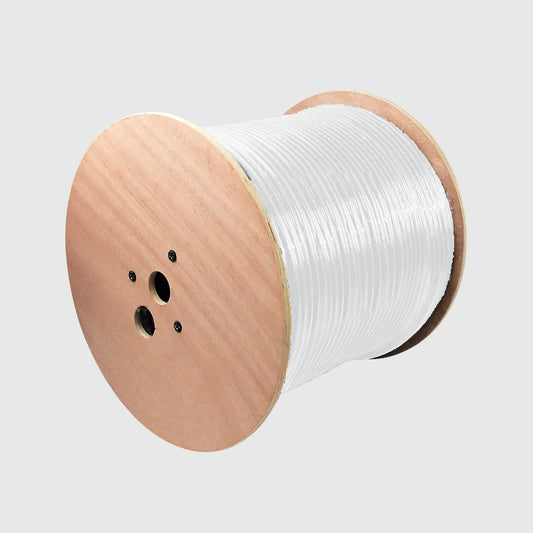

The Wavenet RG11PWH2 is a 14AWG RG-11U Plenum-rated (CMP) broadband coaxial cable built for professional CATV and signal distribution installations where fire code compliance is required. It features a Copper-Clad Steel center conductor surrounded by FEP dielectric insulation, a dual-shield system consisting of an aluminum/poly tape foil and a 60% aluminum braid, and a Plenum PVC outer jacket in white. Rated for 75 Ohm impedance with a velocity of propagation of 84%, this cable handles frequencies swept and tested to 3.0 GHz, with attenuation as low as 0.09 dB/100m at 1 MHz and 9.88 dB/100m at 3000 MHz. Compliant with UL 1655, UL 13, UL 444, SCTE IPS-SP-001, and ROHS, it's UL listed and NEC-rated for safe installation in air-handling plenum spaces. Available in a 1000-foot reel at a nominal weight of 63 lbs.

The Wavenet RG11RBK2 is a 14 AWG RG-11U 60% Shield Riser (CMR) Broadband Coaxial Cable supplied on a 1000-foot black reel, purpose-built for CATV distribution runs where low signal attenuation over long distances matters most. Its solid Copper Clad Steel center conductor noticeably larger than what you'd find in standard RG-6 delivers a DC resistance of just 12.7 ohms per 1000 feet and keeps attenuation to 15.08 dB/100m at 1 GHz and 26.89 dB/100m at 3.0 GHz, making it a go-to for trunk and backbone wiring in apartment buildings, hotels, and commercial CATV systems. Foam Polyethylene insulation, a bonded aluminum tape layer, and a 60% aluminum braid shield work together to maintain signal integrity and reject interference. ETL listed by Intertek and compliant with SCTE IPS-SP-001, UL 1655, UL 13, UL 444, and ROHS, this cable meets riser-installation code requirements right out of the box.
