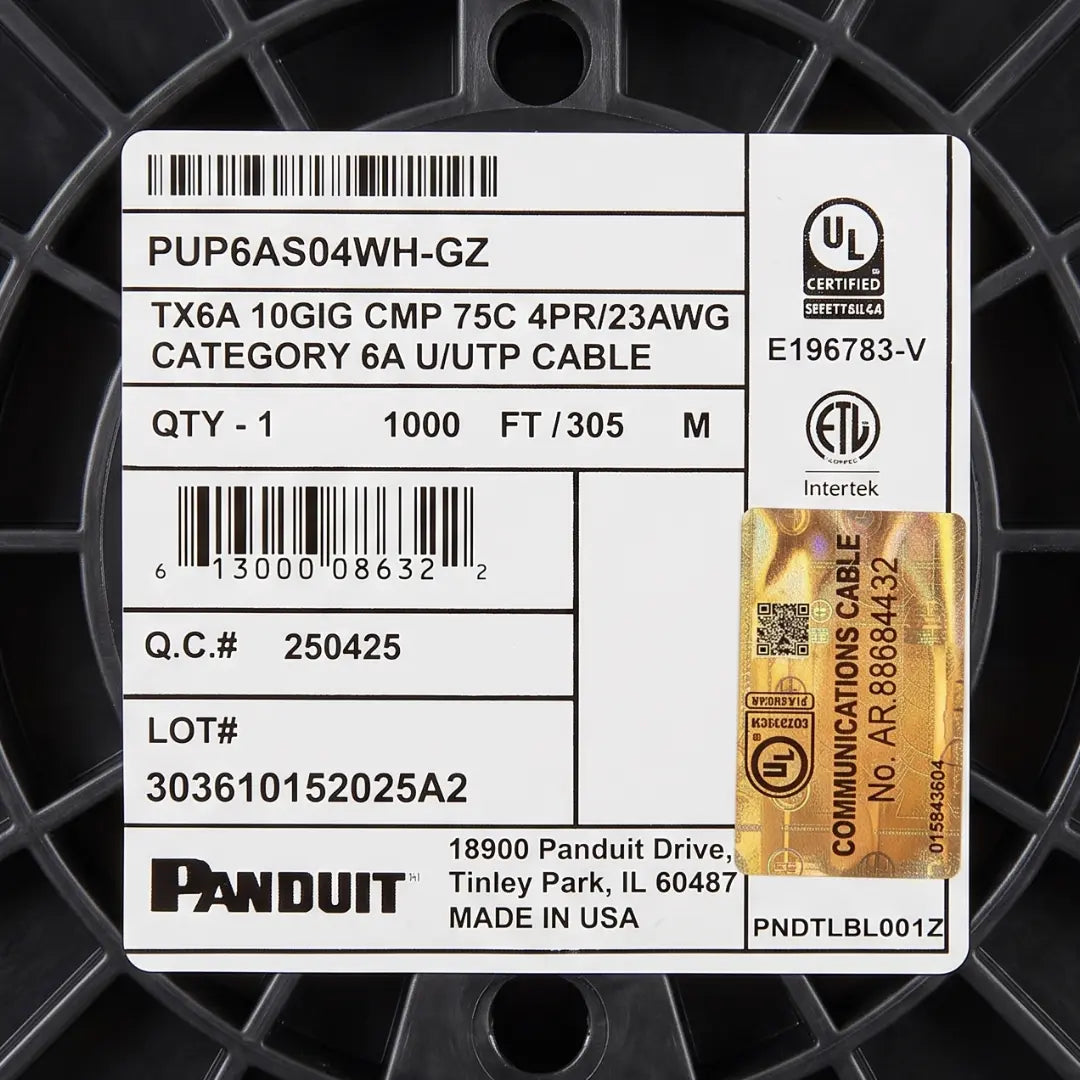

Panduit TX6A Category 6A Plenum U/UTP Cable
The Panduit PUP6AS04WH-GZ is a high-performance Category 6A unshielded twisted pair (U/UTP) plenum-rated cable engineered for demanding enterprise network installations. Built with 23 AWG solid bare copper conductors and a flame-retardant CMP jacket, this cable delivers reliable 10GBASE-T performance across structured cabling systems.
Construction & Design
Each of the four twisted pairs is separated by a cross-divider and wrapped with a non-conductive AXT barrier tape, all enclosed within a flame-retardant PVC (CMP) jacket. The FEP insulation provides excellent thermal and electrical stability, making this cable ideal for plenum air-handling spaces.
Performance & Compliance
Certified to ANSI/TIA-568.2-E Category 6A and ISO 11801 Class EA standards, this cable is swept up to 650 MHz and fully supports IEEE 802.3af, 802.3at, and 802.3bt Power over Ethernet (PoE) applications. The UL Listed CMP-LP (0.7A) rating and NFPA 262 flammability compliance ensure safe installation in plenum environments.
Physical Specifications
| Conductor | 23 AWG Solid Bare Copper |
| Pairs | 4 Twisted Pairs |
| Jacket | Flame Retardant PVC (CMP) |
| Insulation | FEP |
| Cable Diameter | 0.246 in. (6.2 mm) Nominal |
| Minimum Bend Radius | 4 x Cable Diameter |

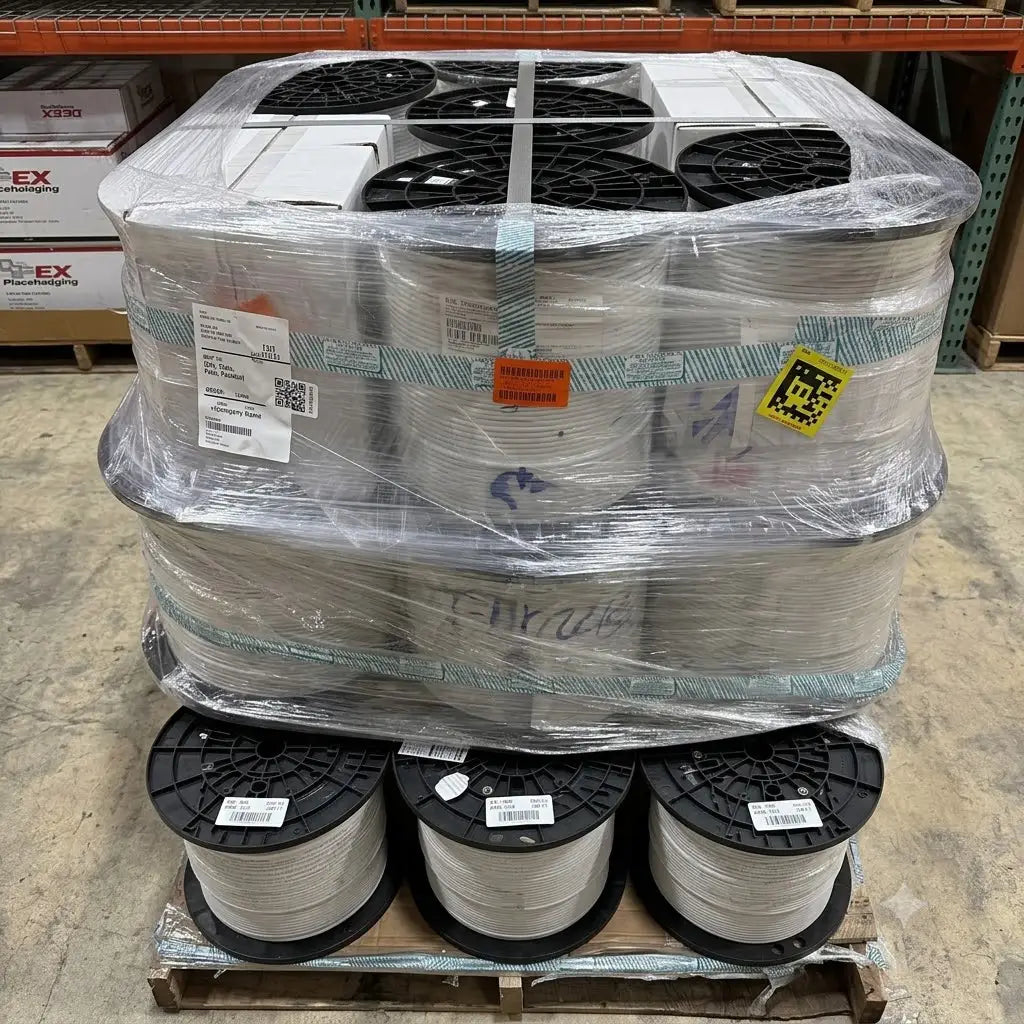

| Length | 1000 ft. (305 m) Reel |
| Cable Weight | 38 lbs./1000 ft. (17 kg/305 m) |
| Operating Temperature | -4°F to 221°F (-20°C to 105°C) |
| Installation Tension | 110 N (25 lbf) Maximum |
| Ultimate Breaking Strength | > 400 N (90 lbf) |
| Nominal Velocity of Propagation | 70% Nominal |
| Maximum Operating Voltage | 80 V |
| Flammability Rating | NFPA 262 (CMP) |
| Standards | ANSI/TIA-568.2-E Cat 6A, ISO 11801 Class EA |
Applications
Ideal for 10GBASE-T networks, data centers, enterprise LAN backbones, and high-density structured cabling systems requiring plenum-rated fire safety compliance.
Additional Info & Specs
| Conductor | 23 AWG Solid Bare Copper |
| Pairs | 4 Twisted Pairs |
| Jacket | Flame Retardant PVC (CMP) |
| Insulation | FEP |
| Cable Diameter | 0.246 in. (6.2 mm) Nominal |
| Minimum Bend Radius | 4 x Cable Diameter |
| Length | 1000 ft. (305 m) Reel |
| Cable Weight | 38 lbs./1000 ft. (17 kg/305 m) |
| Operating Temperature | -4°F to 221°F (-20°C to 105°C) |
| Installation Tension | 110 N (25 lbf) Maximum |
| Ultimate Breaking Strength | > 400 N (90 lbf) |
| Nominal Velocity of Propagation | 70% Nominal |
| Maximum Operating Voltage | 80 V |
| Flammability Rating | NFPA 262 (CMP) |
| Standards | ANSI/TIA-568.2-E Cat 6A, ISO 11801 Class EA |
