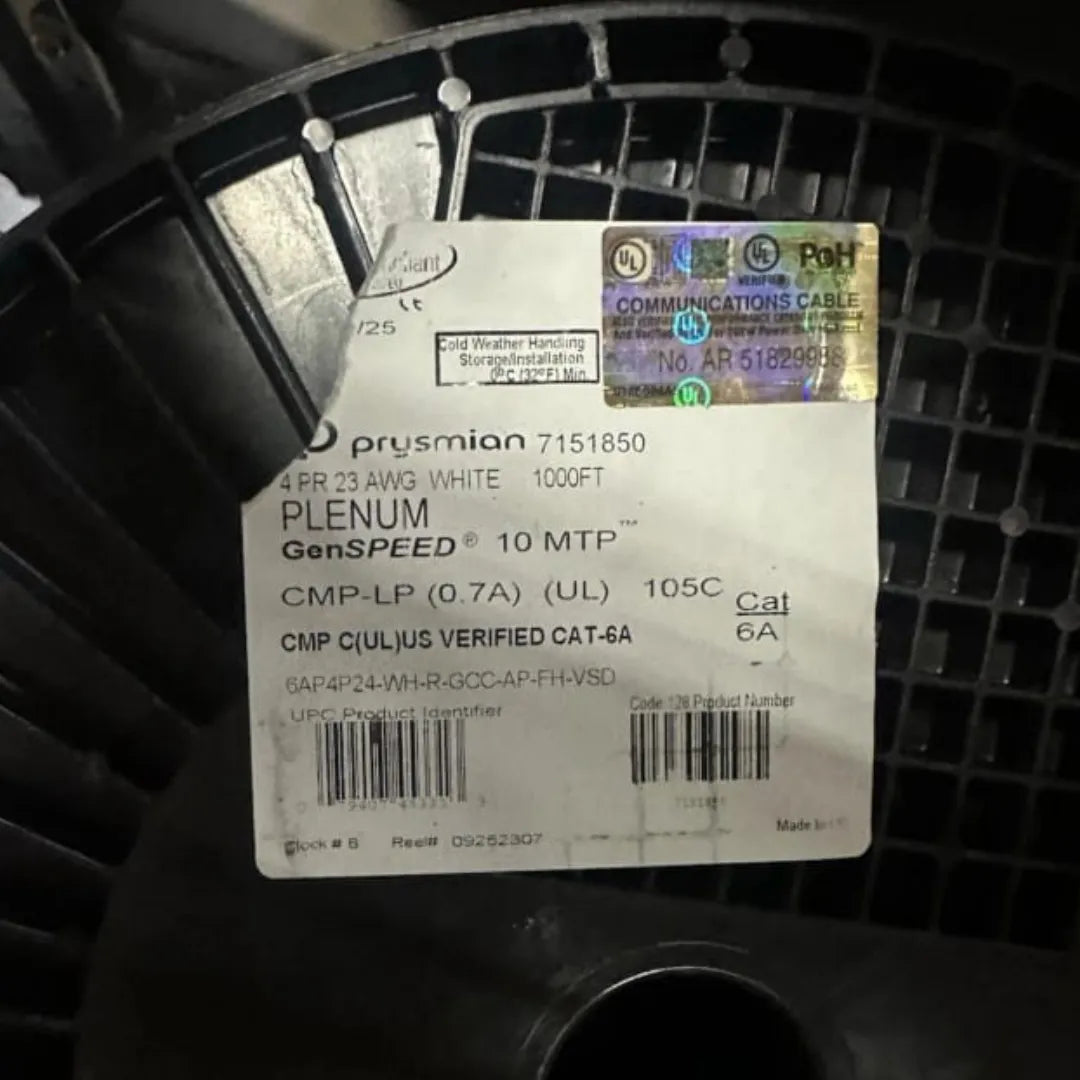

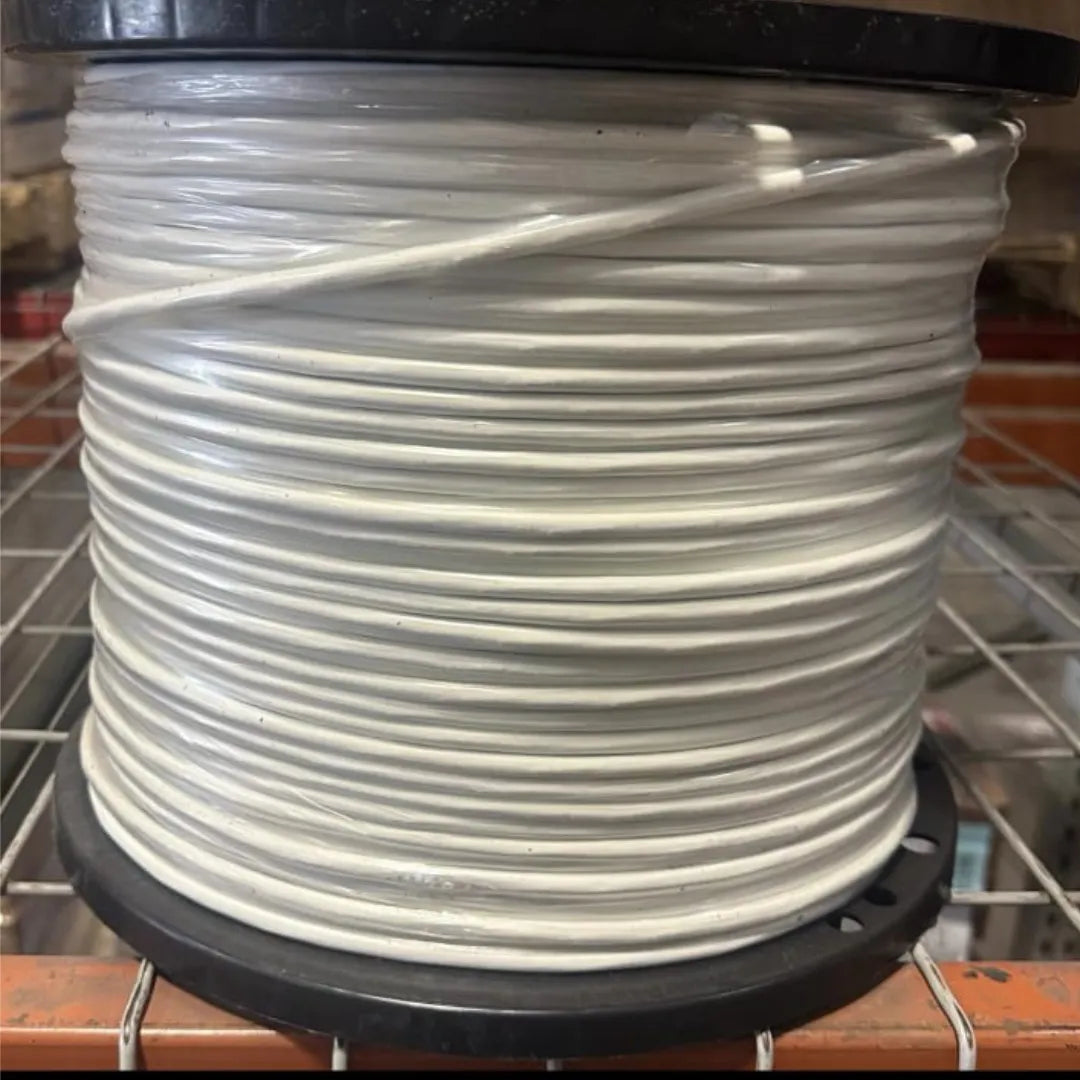

GenSPEED 7151850 Cat6A Plenum 23AWG UTP 1000ft Solid Copper Ethernet Cable
The GenSPEED 10 MTP Gen 5 Category 6A cable delivers high-performance 10Gbps Ethernet connectivity for demanding enterprise and data center environments. Built with 23 AWG solid bare annealed copper conductors and a low-smoke, flame-retardant plenum jacket, this 1000ft UTP cable is engineered for reliable, high-bandwidth structured cabling installations.
Performance & Compliance
This Cat6A cable is tested up to 750 MHz and meets ANSI/TIA 568.2-E, ANSI/TIA 862, ISO/IEC 11801 Ed. 2.0 (Class EA), and ICEA S-116-732 standards. It is UL Listed (CMP-LP 0.7A, UL 444, UL 4299) and RoHS compliant, with a NEC/CEC Type CMP (NFPA 262) rating suitable for plenum air-handling spaces.
Construction & Specifications
| Conductor Gauge | 23 AWG |
| Conductor Type | Solid Bare Annealed Copper |
| Jacket Type | Plenum (Low-Smoke, Flame-Retardant PVC) |
| Shielding | UTP (Unshielded Twisted Pair) |
| Cable Length | 1000 ft |
| Frequency Rating | Tested up to 750 MHz |
| Nominal Cable Diameter | 0.230 in |
| Nominal Cable Weight | 30 lbs/1000 ft |
| Maximum Pulling Force | 40 lbs |
| Characteristic Impedance | 100 ± 15 Ohms (1-500 MHz) |
| Nominal Velocity of Propagation | 70% Speed of Light |
| Delay Skew | 45 ns/100m (Max) |
| DC Resistance | 9.38 Ohms/100m (Max) @ 20°C |
| Temperature Rating | Installation 0 to +60°C; Operation -20 to +105°C |
| Standards | ANSI/TIA 568.2-E, ANSI/TIA 862, ISO/IEC 11801 Ed. 2.0, ICEA S-116-732 |
| UL Listings | UL Listed CMP-LP 0.7A, UL 444, UL 4299 |
| Certifications | RoHS Compliant Directive 2011/65/EU, NEC/CEC Type CMP (NFPA 262) |
Additional Info & Specs
| Conductor Gauge | 23 AWG |
| Conductor Type | Solid Bare Annealed Copper |
| Jacket Type | Plenum (Low-Smoke, Flame-Retardant PVC) |
| Shielding | UTP (Unshielded Twisted Pair) |
| Cable Length | 1000 ft |
| Frequency Rating | Tested up to 750 MHz |
| Nominal Cable Diameter | 0.230 in |
| Nominal Cable Weight | 30 lbs/1000 ft |
| Maximum Pulling Force | 40 lbs |
| Characteristic Impedance | 100 ± 15 Ohms (1-500 MHz) |
| Nominal Velocity of Propagation | 70% Speed of Light |
| Delay Skew | 45 ns/100m (Max) |
| DC Resistance | 9.38 Ohms/100m (Max) @ 20°C |
| Temperature Rating | Installation 0 to +60°C; Operation -20 to +105°C |
| Standards | ANSI/TIA 568.2-E, ANSI/TIA 862, ISO/IEC 11801 Ed. 2.0, ICEA S-116-732 |
| UL Listings | UL Listed CMP-LP 0.7A, UL 444, UL 4299 |
| Certifications | RoHS Compliant Directive 2011/65/EU, NEC/CEC Type CMP (NFPA 262) |
