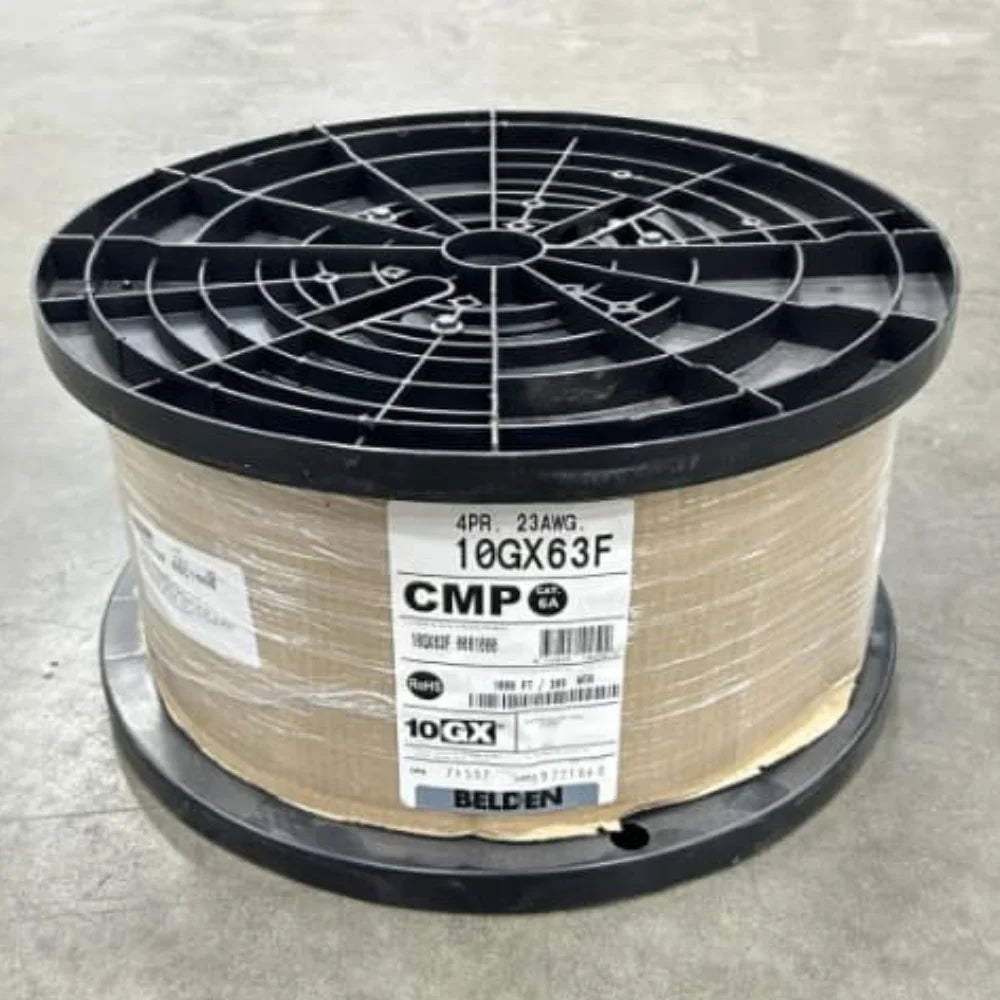

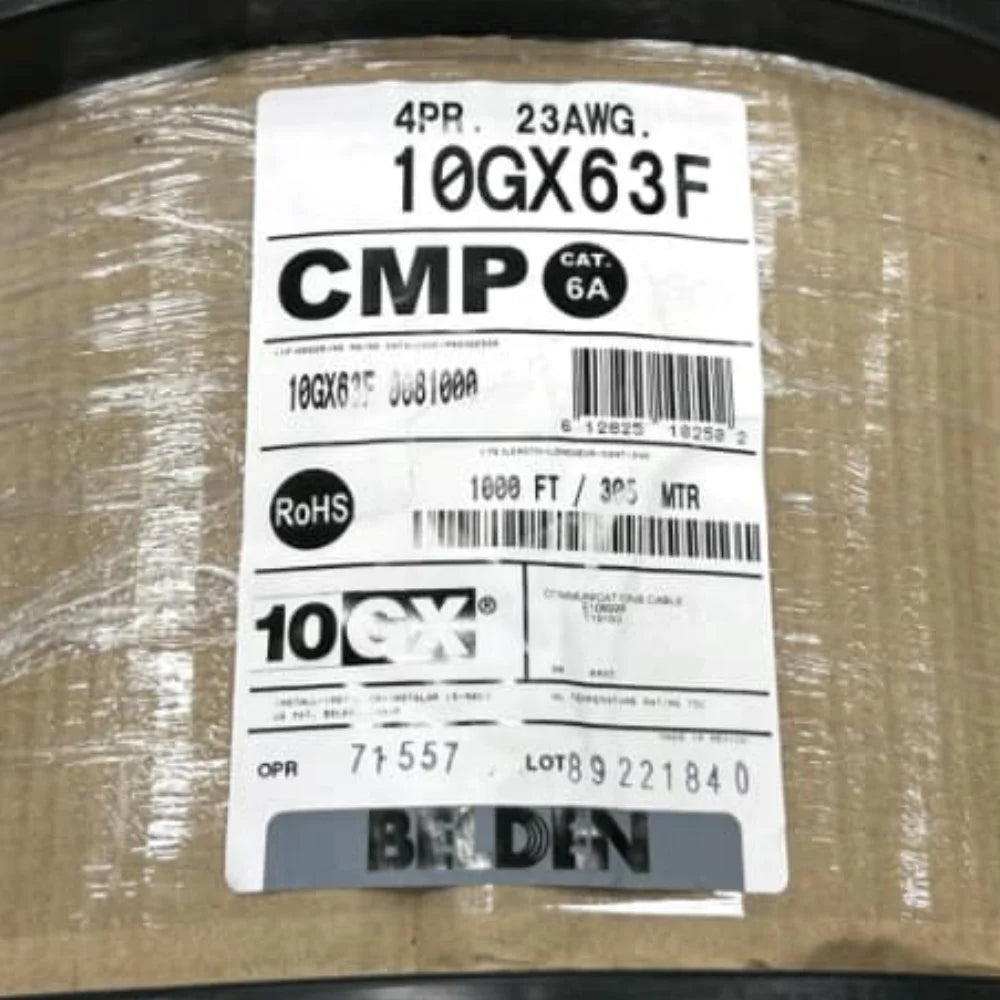

Belden 10GX63F Cat6A Plenum 23AWG F/UTP 1000ft Enhanced Ethernet Cable

The Belden 10GX63F in GRAY color is a Category 6A Enhanced Premise Horizontal Cable engineered for demanding enterprise and commercial network environments. Rated to 625MHz and designed for 10GBASE-T transmission, it carries Belden's F/UTP foil-shielded, bonded-pair construction alongside a Flamarrest Plenum-CMP jacket making it one of the more comprehensively specified horizontal cables available for plenum-rated structured cabling deployments. Whether the application calls for high-density 10 Gigabit Ethernet, PoE++ power delivery, or interference-sensitive runs near noisy equipment, the 10GX63F is built to meet it.

Product Specifications

Conductor

• Size: 23 AWG
• Stranding: Solid
• Material: BC — Bare Copper
• Number of Pairs: 4

Insulation

• Material: FEP — Fluorinated Ethylene Propylene
• Color Code: White & Blue, White & Orange, White & Green, White & Brown
• Bonded-Pair: Yes

Inner Jacket

• Material: PVC — Polyvinyl Chloride
• Nominal Diameter: 0.26 in (6.6 mm)
• Ripcord: Yes

Outer Shield

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC

Outer Jacket

• Separator: Center Member — Patented X-Spline®
• Material: PVC — Polyvinyl Chloride
• Material Trade Name: Flamarrest®
• Nominal Diameter: 0.310 in (7.87 mm)
• Ripcord: Yes
• Overall Cable Diameter (Nominal): 0.310 in (7.87 mm)

Electrical

• Max. Conductor DCR: 82 Ohm/km (25 Ohm/1000ft)
• Max. Capacitance Unbalance: 90 pF/100m
• Max. Delay at 100MHz: 537.6 ns/100m
• Max. Delay Skew at 100MHz: 45 ns/100m
• Nominal Velocity of Propagation: 64%
• UL Voltage Rating: 300 V (CMP)

Selected High-Frequency Performance

Values above 625MHz are for engineering information only.

Mechanical

• UL Temperature Rating: 75°C
• Operating Temperature: -20°C to +75°C
• Installation Temperature: 0°C to +50°C
• Storage Temperature: -20°C to +75°C
• Stationary Bend Radius: 1.2 in (30 mm)
• Installation Bend Radius: 3.0 in (76 mm)
• Max. Pull Tension: 40 lbs (18 kg)
• Bulk Cable Weight: 48 lbs/1000ft

Features and Applications

The 10GX63F is rated for Ethernet up to 10GBASE-T, making it a direct fit for 10 Gigabit horizontal runs from patch panels to workstations, access points, and IP cameras. Its suitability for Wi-Fi 6 and Wi-Fi 5 access point drops addresses the growing bandwidth requirements of wireless infrastructure backhaul, where the access point itself may require multi-gigabit throughput.

Power delivery credentials are equally strong. The cable is IEEE 802.3bt compliant — covering Type 1 through Type 4 which means it is rated for PoE, PoE+, PoE++, and the full range of powered device classes currently in the IEEE standard. This makes it appropriate for powering high-wattage devices such as PTZ cameras, digital signage controllers, and 802.11ax access points over a single cable.

The F/UTP foil shield with 100% bi-laminate coverage provides a consistent barrier against alien crosstalk and electromagnetic interference, a key advantage in noisy environments where unshielded cables may struggle to maintain 10GbE link quality. The bonded-pair construction further stabilizes pair geometry under installation stress, reducing susceptibility to transmission degradation during pulling or bending.

HDBaseT compatibility extends the cable's relevance into AV-over-IP and digital signage applications where long-distance uncompressed video transport over structured cabling is required.

Uses

The Belden 10GX63F is appropriate for:

• Enterprise LAN Horizontal Runs: 10GBASE-T connectivity from telecommunications rooms to workstations, IP phones, and endpoint devices in office, healthcare, and education facilities
• Wireless Infrastructure: Plenum-rated backhaul drops to Wi-Fi 6 and Wi-Fi 5 ceiling-mounted access points
• IP Surveillance Systems: High-resolution camera runs requiring both data bandwidth and PoE++ power over a single structured cable
• HDBaseT AV Distribution: Long-distance digital video and audio transport to displays, projectors, and AV endpoints
• High-Power PoE Deployments: Runs to IEEE 802.3bt Type 3 and Type 4 devices requiring up to the standard's maximum power levels
• Noisy Environments: Installations near electrical equipment, industrial machinery, or dense wireless environments where shielded cable is specified to control EMI

Because the outer jacket carries a CMP (Plenum) rating and passes NFPA 262 / UL 910 testing, the 10GX63F can be installed in air-handling spaces and return-air plenums without conduit in jurisdictions following the NEC.

Construction

Belden builds the 10GX63F around four pairs of 23 AWG solid bare copper conductors, each insulated with FEP (Fluorinated Ethylene Propylene) — a material chosen for its low dielectric constant and dimensional stability, which together support the cable's high-frequency electrical performance. Pairs are bonded, meaning the two conductors within each pair are lightly adhered together to maintain consistent geometry and reduce alien crosstalk susceptibility during and after installation.

An inner PVC jacket with a ripcord surrounds the four bonded pairs at 0.26 in (6.6 mm) nominal diameter. A 100% coverage bi-laminate (aluminum + polyester) tape shield with a 26 AWG tinned copper drainwire wraps the inner jacket, delivering the "F" in F/UTP — a single overall foil shield without individual pair shielding.

The outer jacket uses Belden's patented X-Spline® center member as a separator, maintaining pair separation and cable geometry without adding significant bulk. The jacket compound itself is Flamarrest® PVC, Belden's low-smoke flame-retardant formulation that meets the stringent requirements of UL 910 and NFPA 262 for plenum environments. Both the inner and outer jackets include ripcords for clean field termination without cutting tools damaging the conductor pairs. Overall nominal outer diameter is 0.310 in (7.87 mm).

Additional Information

The 10GX63F holds a comprehensive compliance profile. It meets ANSI/TIA-568.2-D Category 6A, ISO/IEC 11801-1, and IEC 61156-5. NEC/UL compliance covers Article 800 and CMP. IEEE 802.3bt Types 1–4 compliance is documented. Additional listings include ANSI/NEMA WC-66, ICEA S-116-732, and CPR Euroclass Eca (EU and UKCA). The cable carries the EU CE Mark and complies with RoHS 2 (EU Directive 2011/65/EU and the 2015/863/EU amendment), REACH, WEEE, and China RoHS II (GB/T 26572-2011).
