The Prysmian GenSPEED 10 UTP Gen5 Category 6A Cable (Part No. 7151820) is a white, 1000ft plenum-rated Ethernet cable built for the demands of modern commercial and enterprise networks. As the industry's smallest full-channel, component-compliant Cat 6A cable, it packs a nominal outer diameter of just 0.230 inches — giving installers more room to work with in crowded conduit runs without compromising on performance. Made entirely in the U.S.A. and compliant with ANSI/TIA 568.2-D, this fifth-generation design combines smart engineering with independently verified electrical performance, making it one of the more thoughtfully built Cat 6A options available today.
Product Specifications
Part Number: 7151820 (White, Spool)
Conductor: 23 AWG Solid Bare Annealed Copper
Nominal Cable Diameter: 0.230 in.
Cable Weight: 30 lbs/1000 ft
Number of Pairs: 4
Length: 1000 ft (Spool)
Minimum Bend Radius: 1 in.
Maximum Pulling Force: 40 lbs
Nominal Velocity of Propagation: 70% speed of light
DC Resistance: Max. 9.38 Ω/100 m at 20°C; Nom. 7.50 Ω/100 m
DC Resistance Unbalance: Max. 4%; Nom. <1%
Delay Skew: 45 ns/100 m max
Characteristic Impedance: 100 ± 15 Ohms (1–500 MHz)
Installation Temperature: 0°C to +60°C
Operating Temperature: -20°C to +105°C
Fire Rating: CMP Plenum — UL Listed CMP-LP 0.7A (140W @ 50V over 4 pairs)
Country of Origin: USA
Features and Applications
What makes the GenSPEED Gen5 stand out isn't just the slim diameter — it's how that design pays off across a full installation. The simplified construction means less time stripping and terminating, and the improved bend radius makes routing through tight corners genuinely easier. The 105°C CMP jacket rating is a practical advantage for high-density PoE deployments where heat buildup is a real concern. And the TRU-Mark® footage markings — counting down from 1000' to 0' — help installers track exactly how much cable they've pulled without any guesswork.
Performance is guaranteed at +2 dB above the ANSI/TIA 568.2-D standard for PSANEXT, and the cable holds CMP-LP 0.7A certification, confirming it's rated for 100W power over HDBaseT. That combination of verified performance and high-power PoE capability covers most of what enterprise installers are working with today.
Uses
This cable is designed for:
10GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet
PoE, PoE+, and PoE++ (Types 1–4) power delivery
100W Power over HDBaseT (PHoE/ChdBT)
High-density LAN infrastructure in commercial, enterprise, and institutional buildings
Digital video distribution
Broadband and baseband analog video
Building automation systems (ANSI/TIA 862)
CDDI, Token Ring, and ATM applications
Construction
Each conductor is 23 AWG solid bare annealed copper, insulated with fluoropolymer for plenum-safe performance. Four individually insulated pairs are twisted together and wrapped in an encapsulated isolation wrap that acts as the primary defense against alien crosstalk (ANEXT) — eliminating the need for bulkier designs. The outer jacket is a low-smoke, flame-retardant PVC formulated for CMP-rated plenum spaces, fully compliant with NFPA 262.
Color coding: Pair 1 (Blue/White), Pair 2 (Orange/White), Pair 3 (Green/White), Pair 4 (Brown/White).
Additional Information

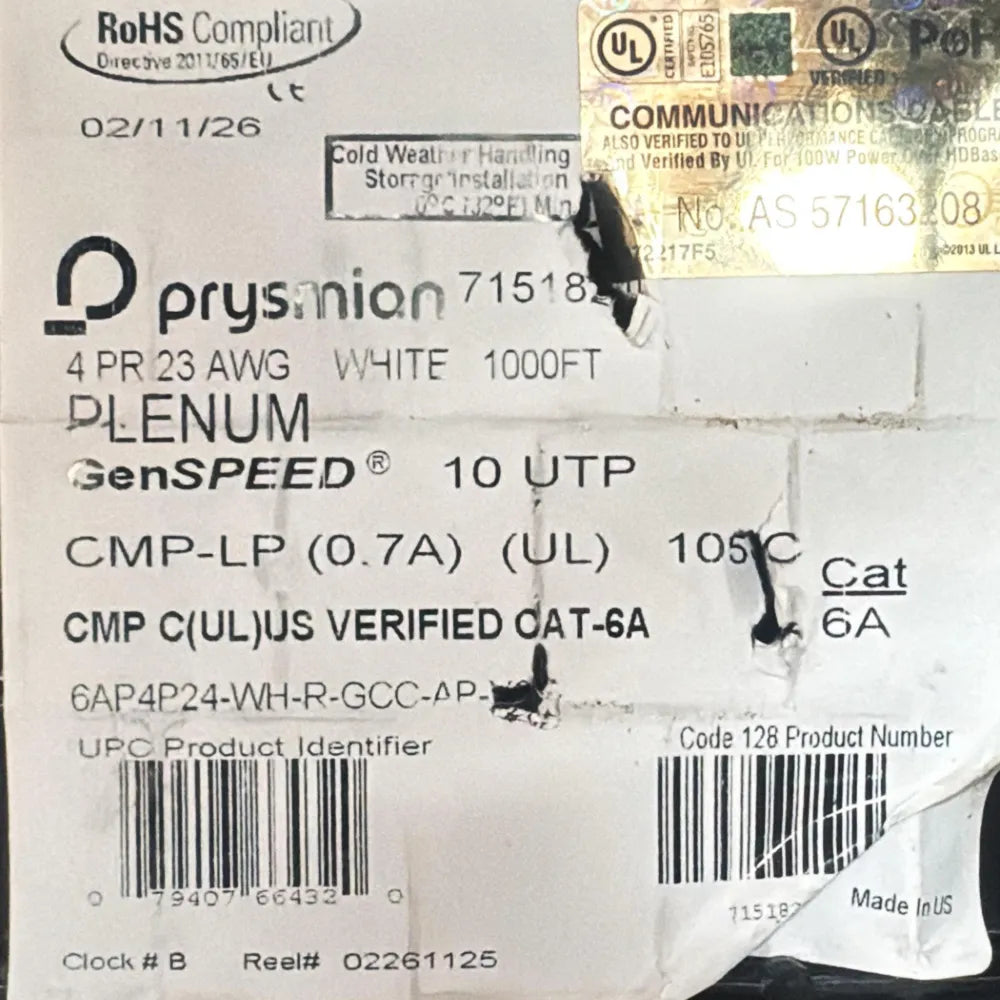

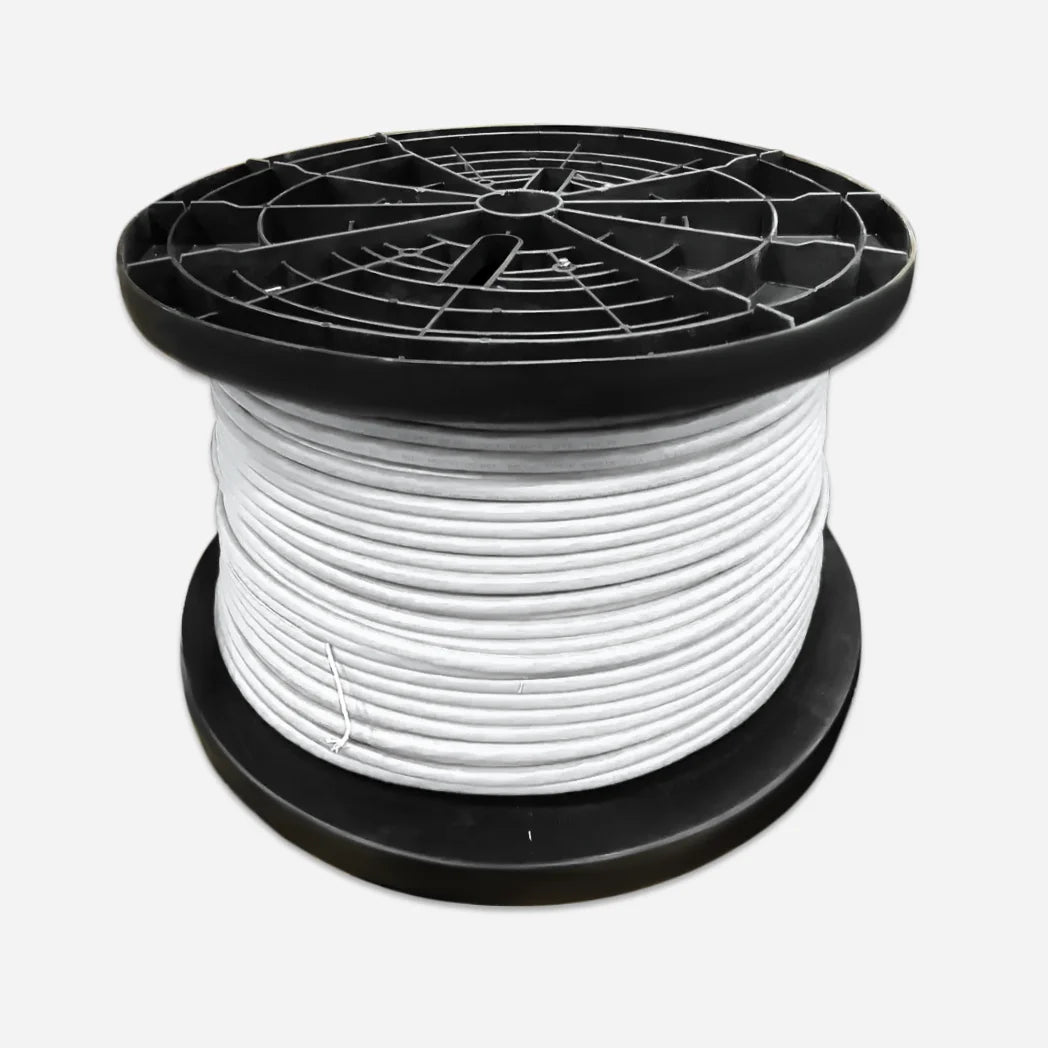

The 7151820 ships on a spool in a white jacket, making it easy to identify in multi-cable installations. A Pull-Pac® version (Part No. 7151801) is also available if your installation process benefits from box-style dispensing. Other jacket colors — blue, gray, yellow, green, red, purple, orange, pink, and black — are available across the Gen5 spool and Pull-Pac lineup. Non-stock colors may carry minimum order requirements.
Standard compliances include ANSI/TIA 568.2-D, NEC/CEC Type CMP (NFPA 262), UL 444, UL 4299, ISO/IEC 11801 Ed. 2.0 (Class EA), ICEA S-116-732, ANSI/TIA 862, and RoHS Directive 2011/65/EU.
