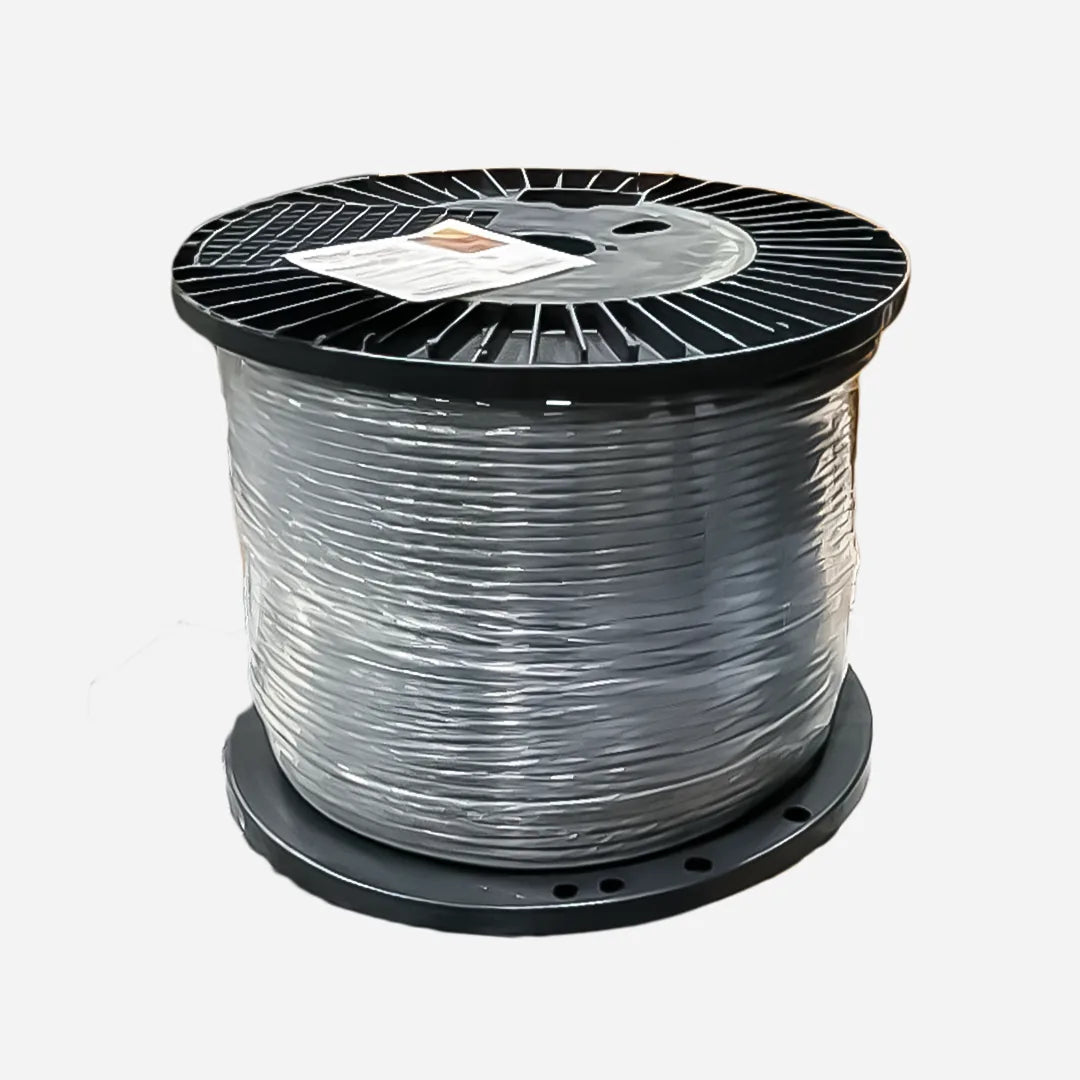

GenSPEED 7141851 Cat6A Plenum Solid Copper 1000ft UTP Gray Ethernet Cable

The GenSPEED 7141851 Cat6A Plenum Solid Copper 1000ft UTP Gray Ethernet Cable is designed to provide superior performance and reliability for high-speed networking applications. With 23 AWG solid bare annealed copper conductors, this cable supports 10GBASE-T Ethernet, delivering robust connectivity for data centers, office buildings, and high-performance PoE applications. Featuring innovative Mosaic™ Variable Laser Cut Tape, the GenSPEED 7141851 Cat6A cable offers superior Alien Crosstalk (ANEXT) protection and excellent Electromagnetic Interference (EMI) immunity. This ensures clean signal transmission even in environments with high external noise, making it ideal for installations requiring the highest performance and safety levels. Additionally, the cable’s plenum-rated, low-smoke, flame-retardant PVC jacket meets stringent fire safety standards, making it suitable for use in plenum spaces where safety is critical.

This cable is engineered to minimize cable management challenges with a smaller diameter, flexible design, and easy-to-use TRU-Mark® print legend for precise installation. Whether you’re deploying advanced Ethernet systems, broadband video, or powering high-wattage devices, the GenSPEED 7141851 delivers unmatched performance, reliability, and ease of installation.

Product Specifications:

• Conductor: 23 AWG solid bare annealed copper
• Insulation: Fluoropolymer
• Separator: Cross-Web
• Jacket Material: Low-smoke, Flame-Retardant PVC (Plenum-rated)
• Cable Diameter: 0.25 inches
• Weight: 32 lbs per 1000 ft
• Minimum Bend Radius: 1 inch
• Maximum Pulling Force: 40 lbs
• Temperature Rating:
  • Installation: 0°C to +60°C
  • Operation: -20°C to +105°C

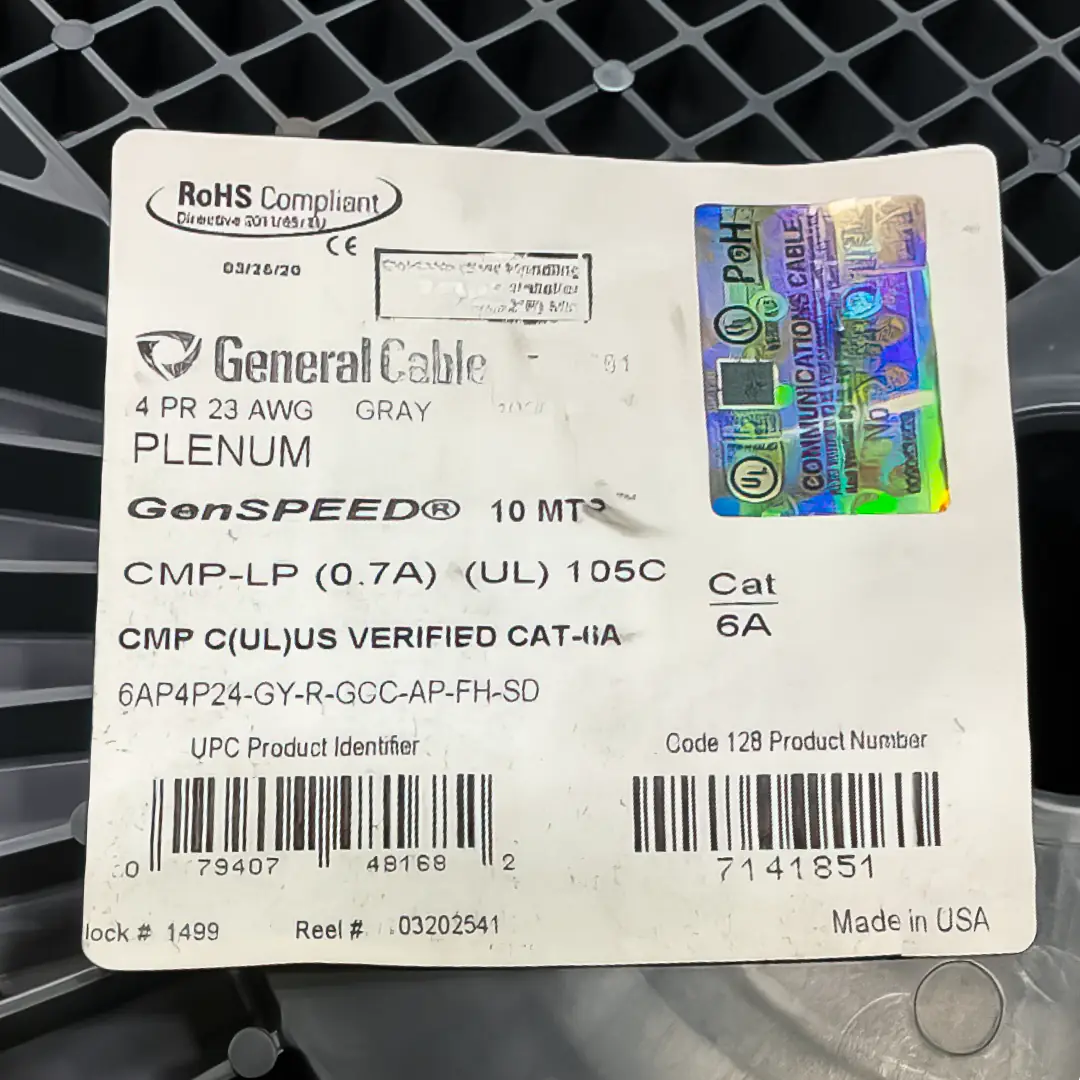

• Compliance: ANSI/TIA 568-C.2, NEC/CEC Type CMP, UL Listed CMP-LP 0.7A, RoHS compliant, UL 444, ANSI/TIA 862 (Building Automation), ICEA S-116-732

Key Features:

• Alien Crosstalk Protection: Utilizes Mosaic™ Variable Laser Cut Tape to ensure +8 dB over TIA 568-C.2 standards for PSANEXT and PSAACRF, providing superior protection against interference.
• EMI Immunity: The variable laser-cut pattern enhances protection against electromagnetic interference.
• Compact Design: A smaller diameter increases cable density and reduces cable management costs.
• High-Power PoE Ready: UL Listed CMP-LP 0.7A certification ensures the cable can handle high-power PoE applications with reliable performance.
• Temperature Resilience: Rated for up to 105°C, making it suitable for high-wattage, high-temperature environments.
• Easy Installation: Simplified cable design with an improved bend radius for faster installation and routing.
• TRU-Mark® Print Legend: Includes precise footage markings for easy length identification during installation.

Applications:

• Ethernet Standards: IEEE 802.3 10GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, PoE, PoE+, and PoE++
• Video Transmission: Digital, broadband, and baseband analog video
• Legacy Systems: Compatible with systems like CDDI, Token Ring, and ATM
• Automation Systems: Meets ANSI/TIA 862 for building automation applications

Construction Details:

• Conductor: 23 AWG solid bare annealed copper for reliable signal transmission.
• Insulation: Fluoropolymer insulation provides high performance in plenum spaces.
• Separator: Cross-Web design to optimize the cable’s internal pair geometry, ensuring superior electrical performance and flexibility.
• Jacket: Low-smoke, flame-retardant PVC for safe usage in plenum-rated spaces.

Compliance & Safety:

• UL Listed CMP-LP 0.7A: Suitable for high-power PoE applications.
• RoHS Compliant: Adheres to Directive 2011/65/EU for the restriction of hazardous substances.
• ANSI/TIA 568-C.2 compliant: Ensuring the cable meets industry standards for performance and reliability.

The GenSPEED 7141851 Cat6A Plenum Cable is your solution for high-performance Ethernet, PoE, and video transmission needs. Designed for easy installation, robust durability, and superior signal quality, it’s an excellent choice for professional network installations in commercial and industrial environments.
