BERK-TEK | LANmark-XTP CAT6A Plenum 1000ft UTP 23AWG Ethernet Cable

BERK-TEK LANmark‑XTP Cat6A Plenum UTP 23AWG Ethernet 1000ft cable Deliver reliable 10 Gigabit performance in plenum spaces with LANmark‑XTP. Engineered with Berk‑Tek’s noise‑canceling XTP technology, this slim Cat6A UTP cable (0.275" O.D.) provides industry‑leading alien crosstalk immunity, low heat rise under PoE and verified performance beyond ANSI/TIA Category 6A. Ideal for high‑density data centers, enterprise LANs, wireless AP backbones and AV/HD video deployments that require 10GBASE‑T over plenum-rated pathways.

Key SKUs (colors & availability)

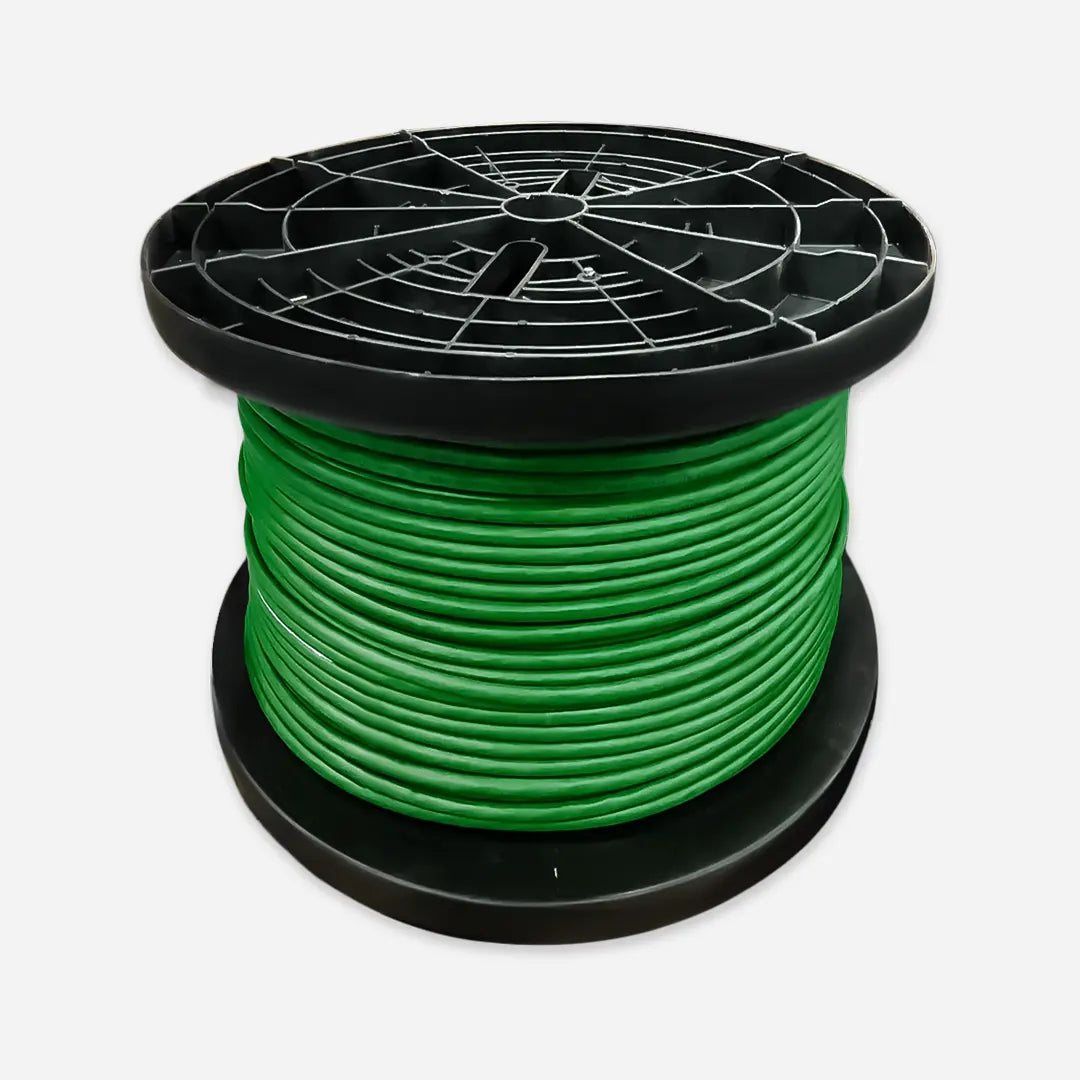

• 11083158 — Green

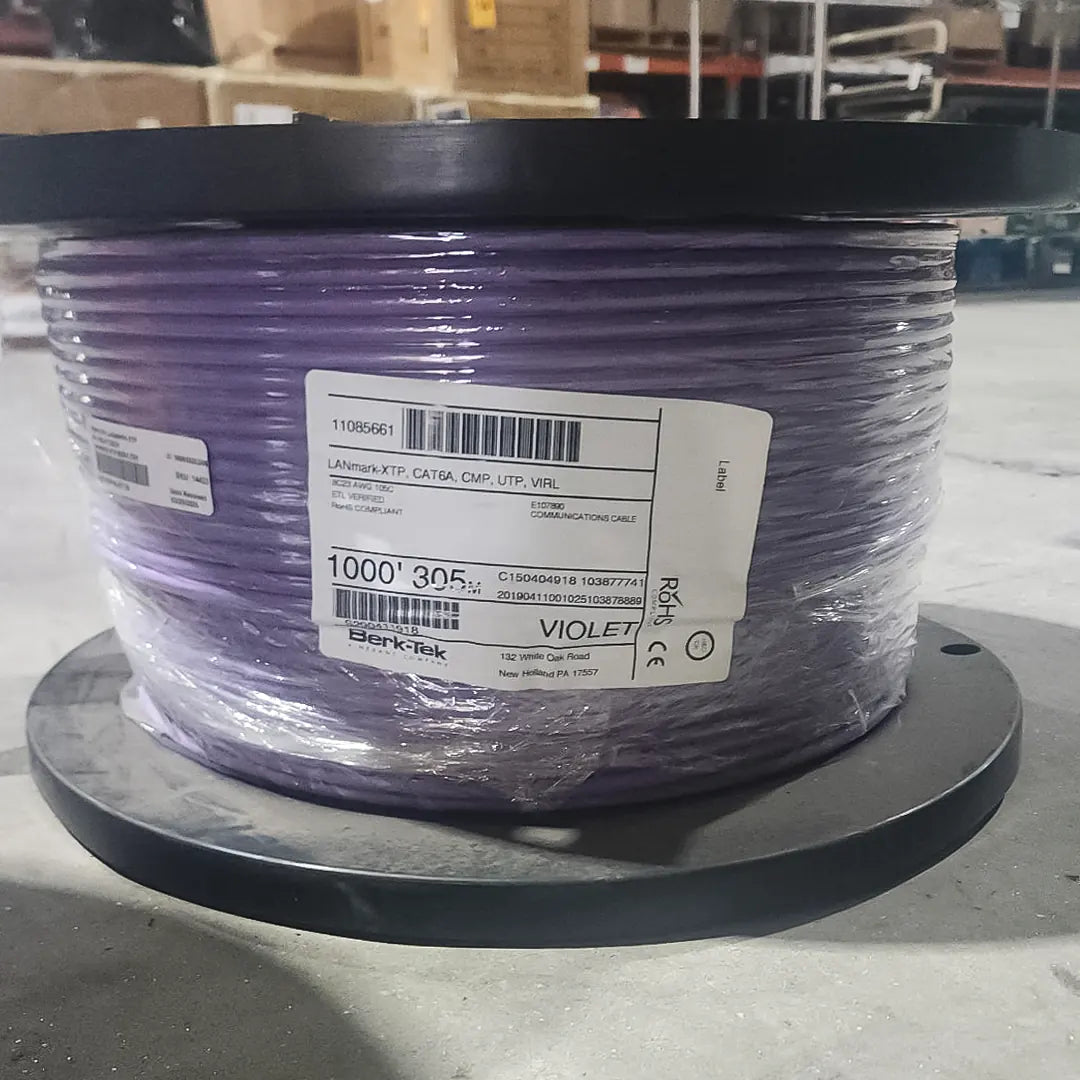

• 11085661 — Violet

Product specifications

• Category: Cat 6A UTP, Plenum (CMP)
• Reel length: 1000 ft
• Conductor: 23 AWG bare copper
• Insulation: FEP on each conductor
• Cable diameter: 0.275 in (6.985 mm) — small‑diameter design for higher density
• Nominal weight: 38 lb/kft (17.24 kg/kft)
• Max installation tension: 25 lb (110 N)
• Minimum

bend radius: 1.12 in (28.45 mm)

• Temperature: Installation 0 to +50°C; Operation -20 to +75°C
• Electrical: Velocity of propagation 67% nominal; DC resistance ≤ 9.38 Ω/100 m; mutual capacitance ≤ 5.1 nF/100 m; skew ≤ 45 ns/100 m; DC resistance unbalance ≤ 4%
• Fire/Safety: CMP (NFPA 70), UL Listed; ETL Verified to TIA‑568‑C.2

Performance & standards

• Verified beyond ANSI/TIA‑568‑C.2 Category 6A by third‑party labs
• Supports frequencies to 500 MHz and full‑duplex 10GBASE‑T applications
• CA Score: 8.6 — top tier for application performance and low PoE heat rise
• Standards: ANSI/TIA‑568‑C.2; CSA C22.2 N°214‑02; UL 444

Construction & materials

• Pairs: 4 unshielded twisted pairs cabled around a central filler
• Pair twist and XTP structure optimize alien crosstalk immunity without foils/shields between pairs
• Core protected by aluminum/polyester tape; jacketed in flame‑retardant polymer alloy suitable for plenum spaces
• No bonding or special grounding required

Features and Benefits

• Exceptional AXT immunity due to proprietary XTP noise‑canceling design
• Small outer diameter (0.275") — increases pathway density and improves airflow/cooling in conduits and racks
• Backwards compatible with Cat6 and Cat5e for seamless network migration
• Verified for error‑free 10 Gigabit operation and strong PoE/PoE+ support (reduced heat rise)
• Easy to install: lighter weight per reel and lower bend radius requirement for tighter pathways

Applications and uses

• 10GBASE‑T backbone links and horizontal runs in commercial buildings
• High‑density data centers and telecommunications rooms where plenum compliance is required
• Wireless access point backhaul (802.11ac/ax) and HD video distribution (IP cameras, digital signage)
• Power over Ethernet deployments including PoE and PoE+ for access points, cameras, VoIP and IoT devices
• Environments demanding low cable bulk and improved airflow (racks, ladder trays, conduits)

Packaging & identification

• Supplied on 1000 ft

reels for structured cabling projects

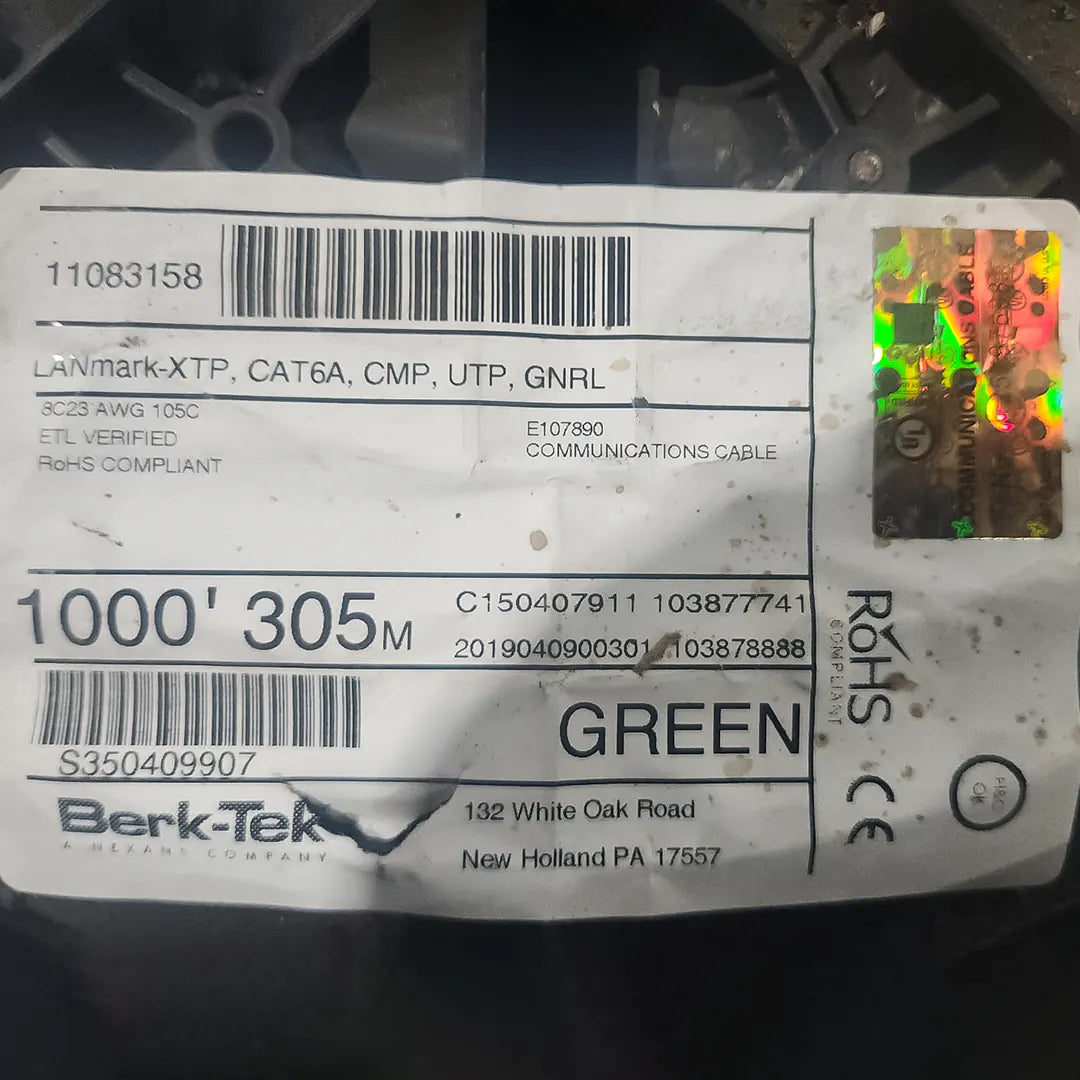

• Jacket legend: "BERK‑TEK LANMARK‑XTP UTP 23 AWG CMP 75C C(UL)US — ETL VERIFIED TIA‑568‑C.2 CAT 6A" plus date/sequence coding for traceability

Why choose LANmark‑XTP

Choose LANmark‑XTP when you need Cat6A plenum cable that minimizes pathway congestion while delivering exceptional alien crosstalk immunity and proven 10G performance. With a CA Score of 8.6 and third‑party verification, it’s built to support converged voice, video and data networks today — and scale for tomorrow.
