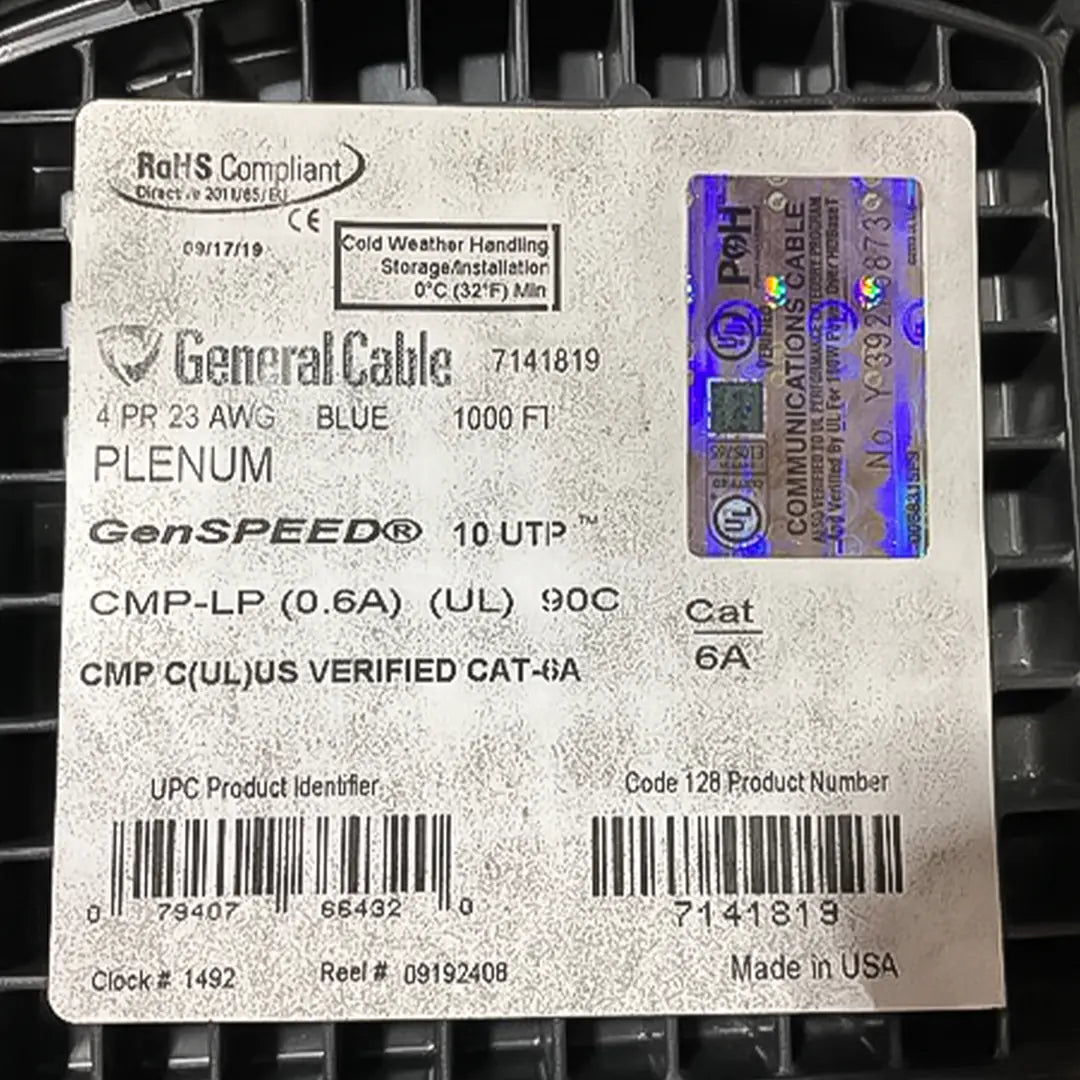

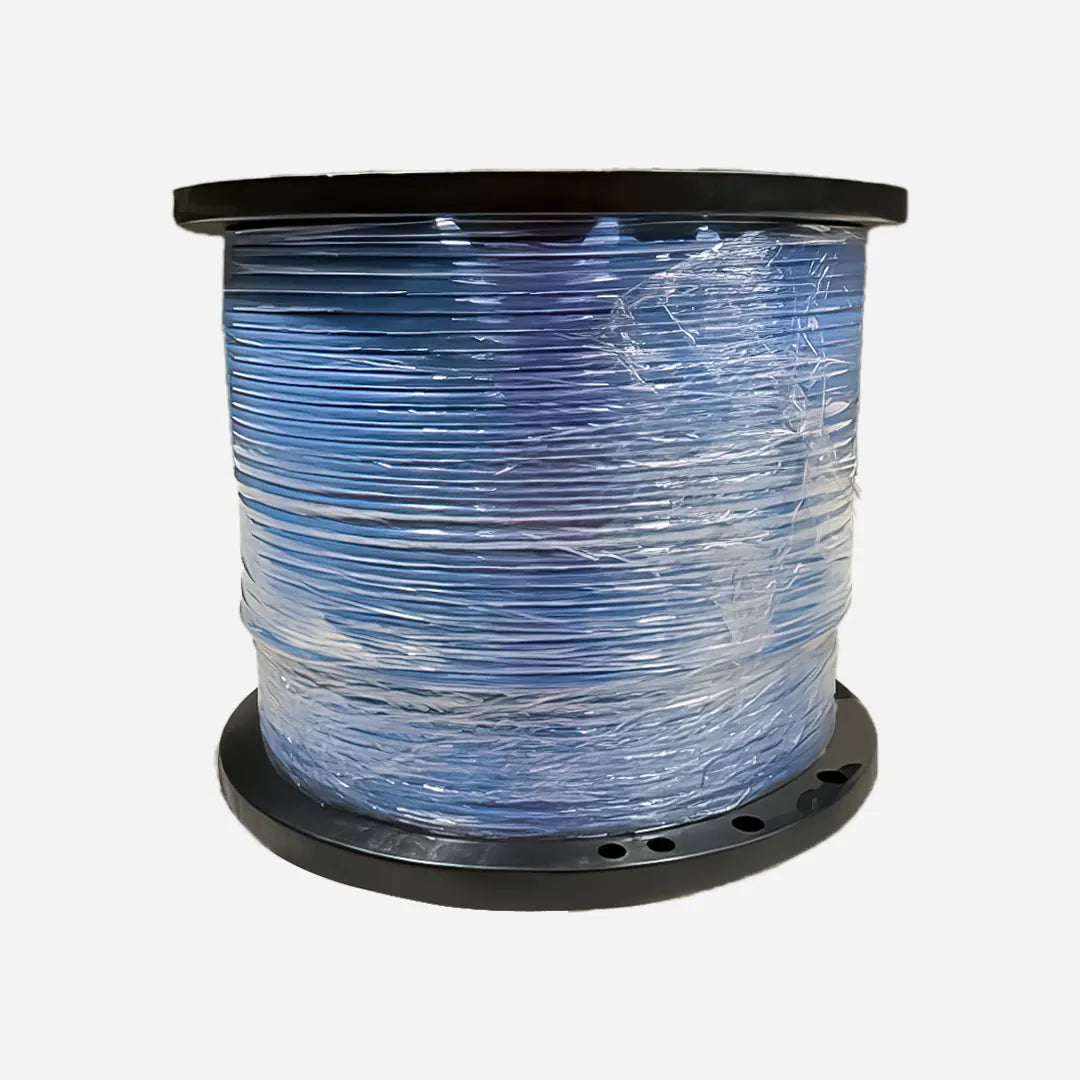

GenSPEED 7141819 Cat6A Plenum Solid Copper 1000ft UTP Blue Ethernet Cable

The GenSPEED 7141819 Cat6A Plenum Solid Copper 1000ft UTP Blue Ethernet Cable is engineered for high-performance data transmission in commercial and industrial settings. Designed with 23 AWG solid bare annealed copper conductors, this cable supports 10GBASE-T Ethernet, ensuring fast and reliable connections for demanding applications. The innovative Encapsulated Isolation Wrap provides superior Alien Crosstalk (ANEXT) protection, while the smaller diameter of the cable enhances installation flexibility and reduces cable management costs. Featuring a plenum-rated, low-smoke, flame-retardant PVC jacket, this cable meets stringent fire safety requirements, making it ideal for installation in plenum spaces where safety is a priority. Its simplified design with improved bend radius makes it easier to route and terminate, reducing installation time and cost. Additionally, the cable is UL-listed CMP-LP 0.6A, ensuring it can handle high-power PoE applications with consistent performance, even in high-temperature environments.

Product Specifications:

• Conductor: 23 AWG solid bare annealed copper
• Insulation: Fluoropolymer (Plenum)
• Separator: Engineered Cross-Web
• Jacket Material: Low-Smoke, Flame-Retardant PVC (Plenum)
• Cable Diameter: 0.250 inches
• Weight: 32 lbs per 1000 ft
• Minimum Bend Radius: 1 inch
• Maximum Pulling Force: 40 lbs
• Temperature Rating:
  • Installation: 0°C to +60°C
  • Operation: -20°C to +90°C
• Compliance: ANSI/TIA 568.2-D, NEC/CEC Type CMP, UL Listed CMP-LP 0.6A, RoHS Compliant, UL 444, UL 4299, ANSI/TIA 862 (Building Automation)

Key Features:

• Alien Crosstalk Protection: Utilizes Encapsulated Isolation Wrap for superior ANEXT protection.
• Compact Design: A smaller diameter allows for easier installation, higher cable density, and lower cable management costs.
• PoE Support: Certified for high-power PoE applications, including PoE, PoE+, and PoE++.
• High-Temperature Resilience: Plenum-rated with a 90°C jacket rating, ideal for a wide range of operating environments.
• Easy Installation: Simplified design and improved bend radius make stripping, terminating, and routing easier and faster, reducing installation time.
• TRU-Mark® Footage Markings: Clear print legend for easy length identification during installation.
• Made in the USA: High-quality manufacturing for reliable performance.

Applications:

• Ethernet Standards: IEEE 802.3 10GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, PoE, PoE+, and PoE++
• Video Transmission: Supports digital video, broadband, and baseband analog video
• Legacy Systems: Compatible with CDDI, Token Ring, ATM systems
• Building Automation: Meets ANSI/TIA 862 standards for building automation applications

Construction Details:

• Conductor: 23 AWG solid bare annealed copper for strong signal transmission.
• Insulation: Fluoropolymer insulation for high performance in plenum spaces.
• Separator: Engineered cross-web design improves internal electrical characteristics by ensuring systematic pair orientation.
• Jacket: Low-smoke, flame-retardant PVC for safe use in plenum spaces, meeting stringent fire safety codes.

Compliance & Safety:

• UL Listed CMP-LP 0.6A: Suitable for high-power PoE applications.
• RoHS Compliant: Adheres to Directive 2011/65/EU for hazardous substance restrictions.
• NEC/CEC Type CMP compliant: For plenum-rated installations.
• ANSI/TIA 568.2-D compliant: Ensures industry-standard performance.

The GenSPEED 7141819 Cat6A Plenum Cable is the ideal solution for high-performance networking, offering advanced crosstalk protection, ease of installation, and support for high-power PoE. Perfect for environments that demand high-speed, reliable data transmission.
