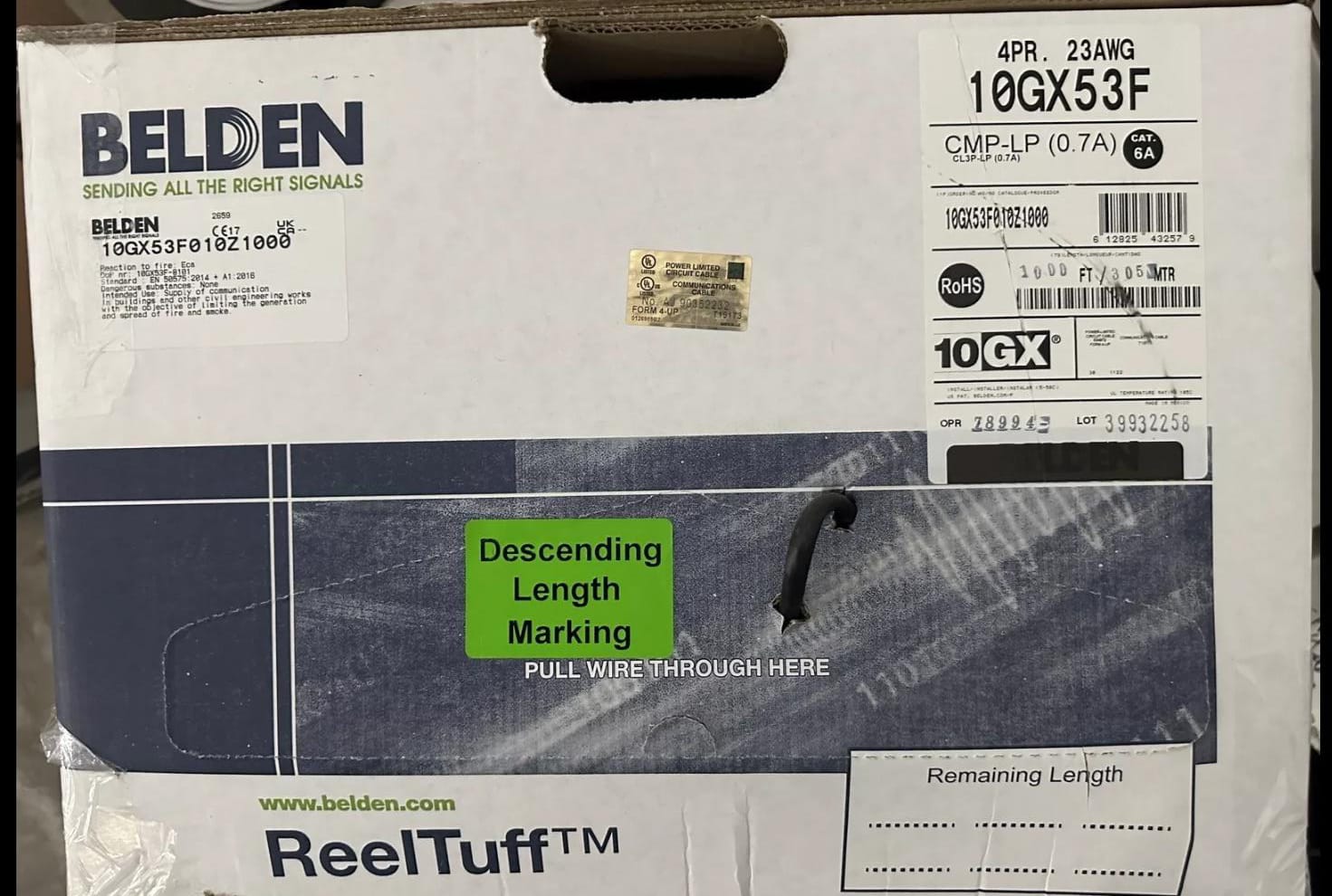

Belden Cat6A Plenum 10GX53F Solid Copper F/UTP 1000ft USA Made 23AWG Black Ethernet Cable

The Belden Cat6A Plenum 10GX53F Solid Copper F/UTP 23AWG Ethernet Cable is an advanced solution designed to support high-speed data transmission in demanding environments. Engineered for performance, this Category 6A enhanced cable operates at 625 MHz, providing excellent signal integrity for Ethernet applications, including 10GBASE-T, Wi-Fi 6, and Wi-Fi 5. Constructed with 23 AWG solid bare copper conductors, the cable is shielded with a foil layer to minimize interference, making it ideal for use in noisy environments. Its plenum-rated (CMP) Flamarrest PVC-LS jacket ensures safety and compliance with stringent fire and safety standards, making it suitable for installation in air-handling spaces. This cable delivers superior performance for a wide range of applications, including surveillance systems, HDBaseT, and PoE++.

Product Specifications

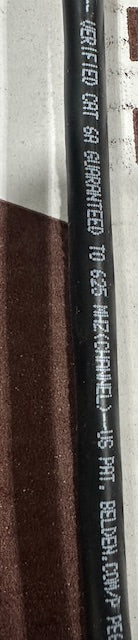

• Category: 6A Enhanced (625 MHz)
• Conductors: 23 AWG Solid Bare Copper
• Shielding: F/UTP (Foil Shielded)
• Jacket Material: Flamarrest® PVC-LS, Plenum-rated (CMP)
• Outer Cable Diameter: 0.275 in (6.99 mm)
• Maximum Conductor DC Resistance: 82 Ohm/km
• Temperature Rating: -20°C to +75°C (Storage), 0°C to +50°C (Installation)
• UL Voltage Rating: 300V

Features

• High-Speed Transmission: Supports Ethernet applications up to 10GBASE-T for high-performance networking.
• Noise Immunity: Foil shielding provides excellent protection against electromagnetic interference (EMI) and crosstalk, ensuring clear signal transmission even in noisy environments.
• Plenum Rating: Complies with CMP (Plenum) standards, making it safe for use in air-handling spaces and other areas with strict fire regulations.
• PoE Support: Compatible with PoE, PoE+, and PoE++ for powering devices such as IP cameras and wireless access points.
• Color-Coded Insulation: Insulated with FEP (Fluorinated Ethylene Propylene) material with clear color coding for easy installation (White & Blue, White & Orange, White & Green, White & Brown).

Applications

• Premise Horizontal Cabling: Ideal for horizontal cabling systems in commercial buildings.
• 10 Gigabit Ethernet: Delivers reliable performance for 10GBASE-T Ethernet connections, making it a great option for data centers and enterprise networks.
• Wi-Fi Systems: Perfect for supporting Wi-Fi 6 and Wi-Fi 5 installations in large facilities, ensuring high data throughput.
• Power over Ethernet (PoE): Suitable for powering networked devices such as IP cameras, wireless access points, and VoIP phones.
• Surveillance and HDBaseT: Ideal for deploying in surveillance networks and HDBaseT connections for video and audio over Ethernet.

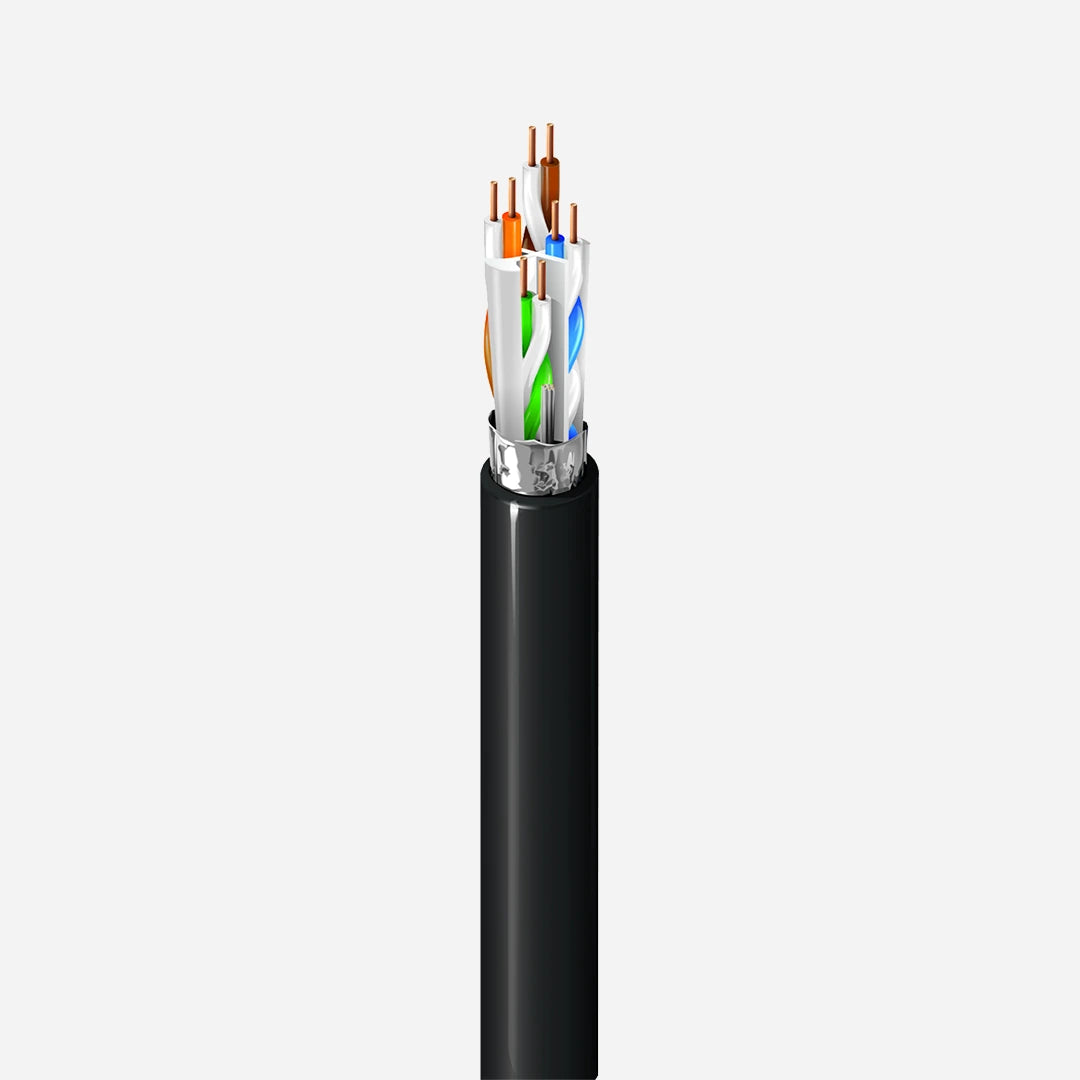

Construction

• Conductor Material: Solid bare copper conductors ensure excellent electrical performance and durability.
• Insulation: FEP insulation provides heat resistance and durability, and is color-coded for ease of installation.

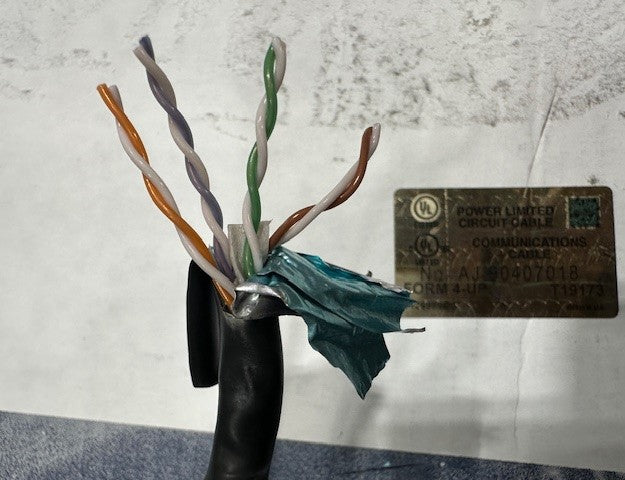

• Shielding: The bi-laminate foil shield (aluminum + polyester) offers 100% coverage, effectively blocking interference.
• Jacket: Plenum-rated Flamarrest® PVC-LS jacket provides a low-smoke, flame-resistant exterior for added safety in critical environments.
• Separator: Features a patented EquiSpline® center member to maintain consistent conductor spacing, reducing crosstalk and ensuring high-performance data transmission.

Compliance & Certifications

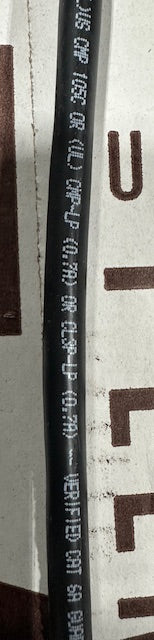

• NEC/UL Compliance: Article 800, CMP, CMP-LP (0.7A), CL3P-LP (0.7A)
• TIA/EIA Standards: ANSI/TIA-568.2-D Category 6A compliant.
• IEEE Standards: IEEE 802.3bt Types 1, 2, 3, and 4 compliant, ensuring compatibility with PoE systems.
• Environmental Compliance: Meets EU CE Mark, RoHS 2, REACH, and WEEE directives, ensuring environmentally responsible construction.

With its robust design, compliance with safety standards, and high-performance capabilities, the Belden 10GX53F Cat6A Ethernet Cable is the ideal solution for demanding networking applications, providing reliable and high-speed connections in commercial and industrial environments.
