Description

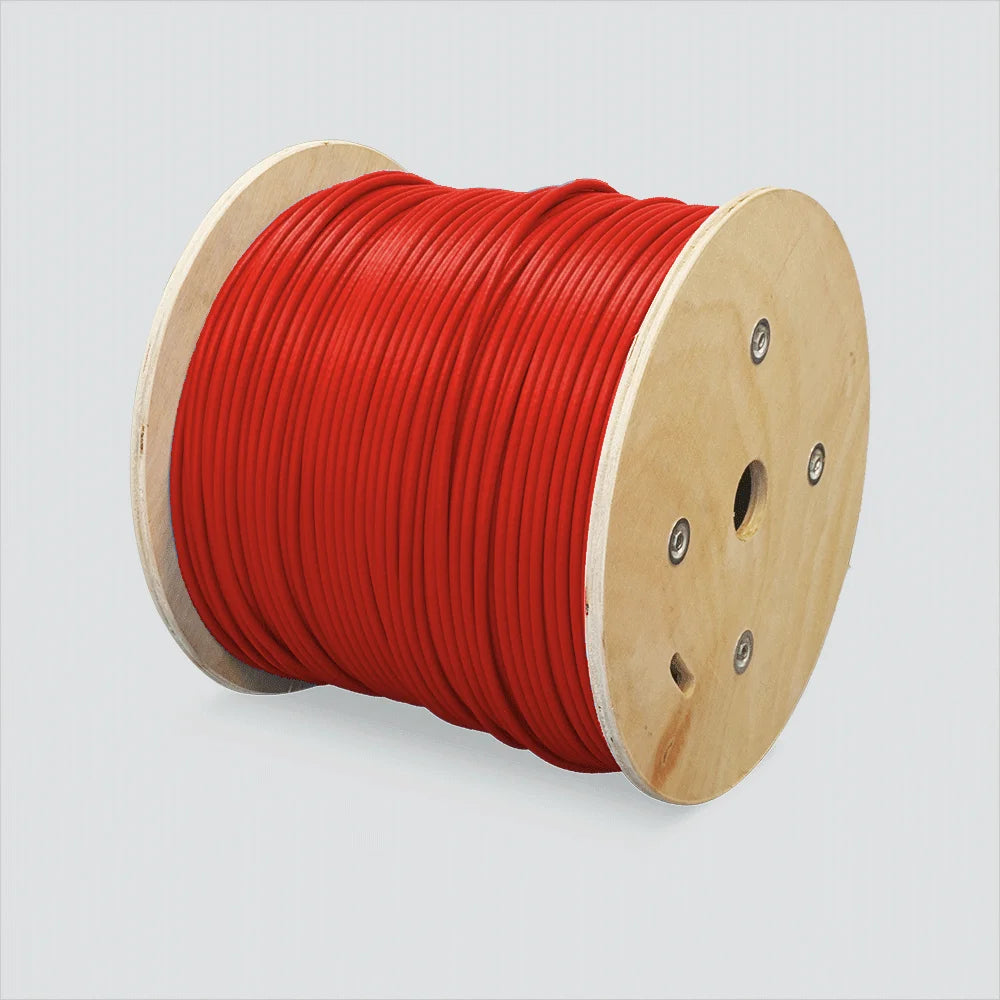

The Cat6A Riser Wavenet 6A04URXX2 is a 23 AWG solid bare copper cable built for 10 Gigabit network runs in commercial and residential buildings. It carries a 750 MHz frequency rating and meets ANSI/TIA-568-C.2 requirements for Category 6A performance. The Wavenet 6A04URXX2 Ethernet Cable ships as a 1000ft spool, and its CMR riser jacket suits vertical runs between floors without added conduit. ETL Verified testing confirms the cable meets its published electrical specs, and RoHS compliance confirms it's free of restricted hazardous substances.
Product Specifications
|
Specification |
Value |
|
Category |
Cat6A UTP (Unshielded Twisted Pair) |
|
Part Number |
6A04URXX2 |
|
Cable Length |
1000 ft per spool |
|
Conductor |
23 AWG solid bare copper |
|
Frequency Rating |
Up to 750 MHz |
|
Speed Rating |
10 Gigabit Ethernet (10G) |
|
DC Resistance |
9.38 Ω/100 m Max. @ 20°C |
|
Resistance Unbalance |
5% Max. @ 20°C |
|
Capacitance Unbalance |
330 pF/100m Max. @ 20°C |
|
Mutual Capacitance |
5.6 nF/100m Max. @ 20°C |
|
Delay Skew |
45 nS/100m Max. @ 20°C |
|
Nominal Propagation |
69% |
|
Outer Diameter |
0.30 in ± 0.008 in |
|
Weight |
51 lbs per spool |
|
Installation Temp |
0°C to +75°C |
|
Operating Temp |
-20°C to +75°C |
|
Tensile Strength |
≥ 13.8 MPa (before aging) |
|
Elongation |
≥ 100% (before aging); ≥ 50% (after aging) |
|
Jacket |
CMR / FT4 flame-retardant PVC |
|
Certification |
C(ETL)US Verified, RoHS compliant |
Construction
-
Solid bare copper conductors, not CCA, for lower resistance and a longer service life
-
Four twisted pairs, color-coded per pair (blue, orange, green, brown), each insulated in HDPE for stable dielectric performance
-
An internal cross-web separator that holds pair geometry and cuts crosstalk between pairs
-
A rip cord under the jacket for tool-free stripping during termination
Network Performance
Tested from 1 MHz to 750 MHz, this cable meets or exceeds TIA-568-C.2 minimums for NEXT, PS-NEXT, ELFEXT, PS-ELFEXT, PS-ANEXT, and PS-AELFEXT. That margin supports high throughput and stable connectivity for 10G links, even under sustained network load.
Applications
-
Backbone and horizontal riser runs in office buildings, data centers, schools, and hospitals.
-
Patch panel terminations and switch-to-switch links in server rooms
-
Large multi-floor deployments where crews cut cable to length on-site
For volume orders, browse bulk Cat6A riser spools by length and jacket color. You can also compare other options in the Wavenet cables line. Discounted Cables ships this spool with tax-free delivery across the USA.
Additional Info & Specs
| Color | Yellow, Blue, Green, White, Red, Grey |
|---|---|
| Product Type | Ethernet networking cable |
| Condition | New |
| Brand | Wavenet |
| Package | Reel |
| Category | 6A |
| Spaces | Riser |
| Gauge | 23 AWG |
| Jacket | Riser-Rated |
| Insulation Material | HDPE |
| Frequency | 750 MHz |
| No. of Pairs | 4 Twisted |
| Shielding | UTP |
| Conductor | Solid |
| Conductor Material | Bare Copper |
| Certification Standards | RoHS, ETL, TIA Compliant |
