Get Solid Performance of Cat6 Plenum Cable 1000ft Cable for Your Network at a Lower Price
We at Discounted Cables present the Cat6 Plenum Ethernet Cable in 1000 feet (305m) length, a top-tier choice for networking solutions. Our cable is different from others and we will tell you why.
Just to top it off, we sell our plenum-rated Cat 6 cables at a reasonable and discounted price. whereas other vendors' and manufacturers' prices are high and they charge more shipping not to mention the sales tax that comes at additional cost depending on your state's location. Now we don't charge sales tax. That's right! zero tax on shipping with low shipping rates. Also, if you buy in bulk we provide free shipping. You can ask us more through live chat or by contacting us.
What Makes Our Cat6 Plenum Cable a Better Choice for Ethernet Networking?
Our cable is budget-friendly as network cables can be expensive especially when it comes to plenum (CMP) rated cables. Now what makes our ethernet cable the most effective, is its specifications. Let's analyze them step by step. Or for Quick Specs Information click on ADDITIONAL INFO & SPECS. tab.
Specifications

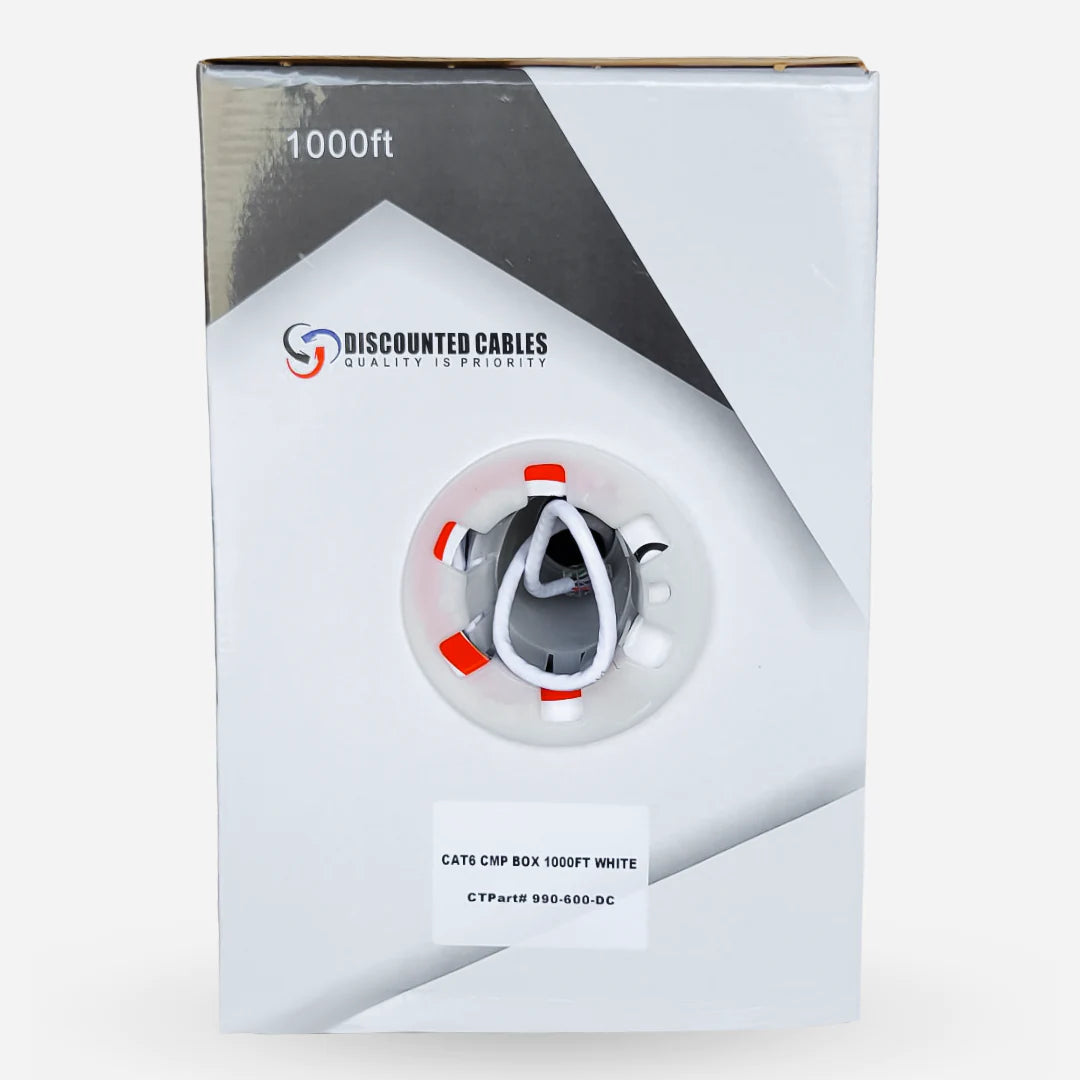

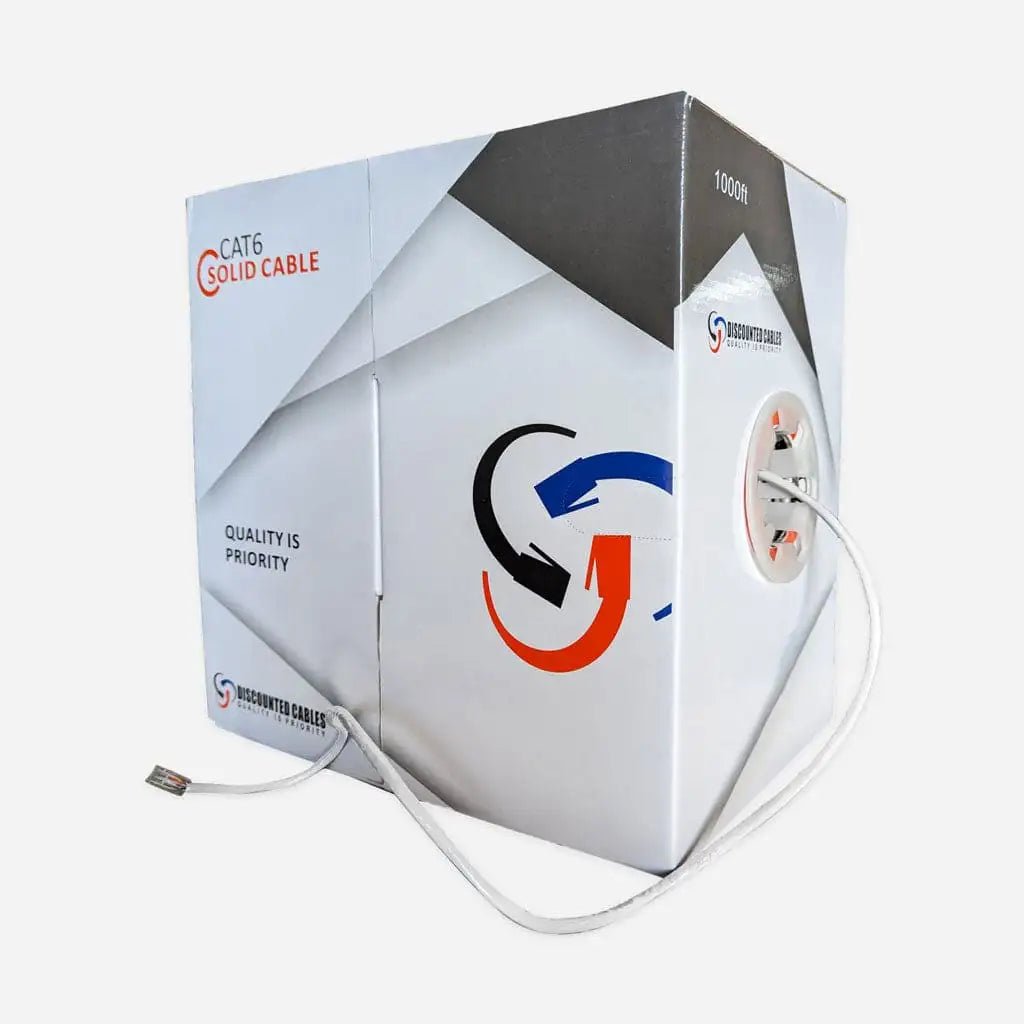

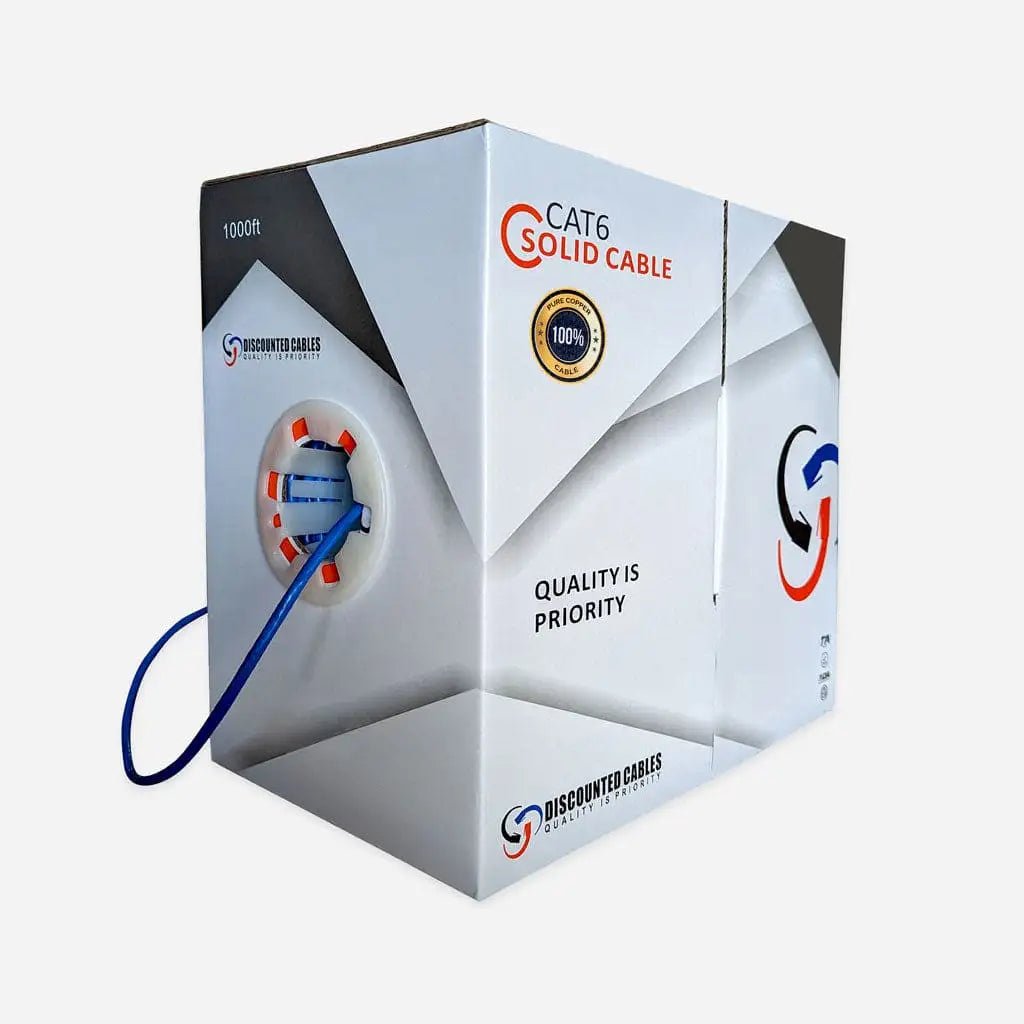

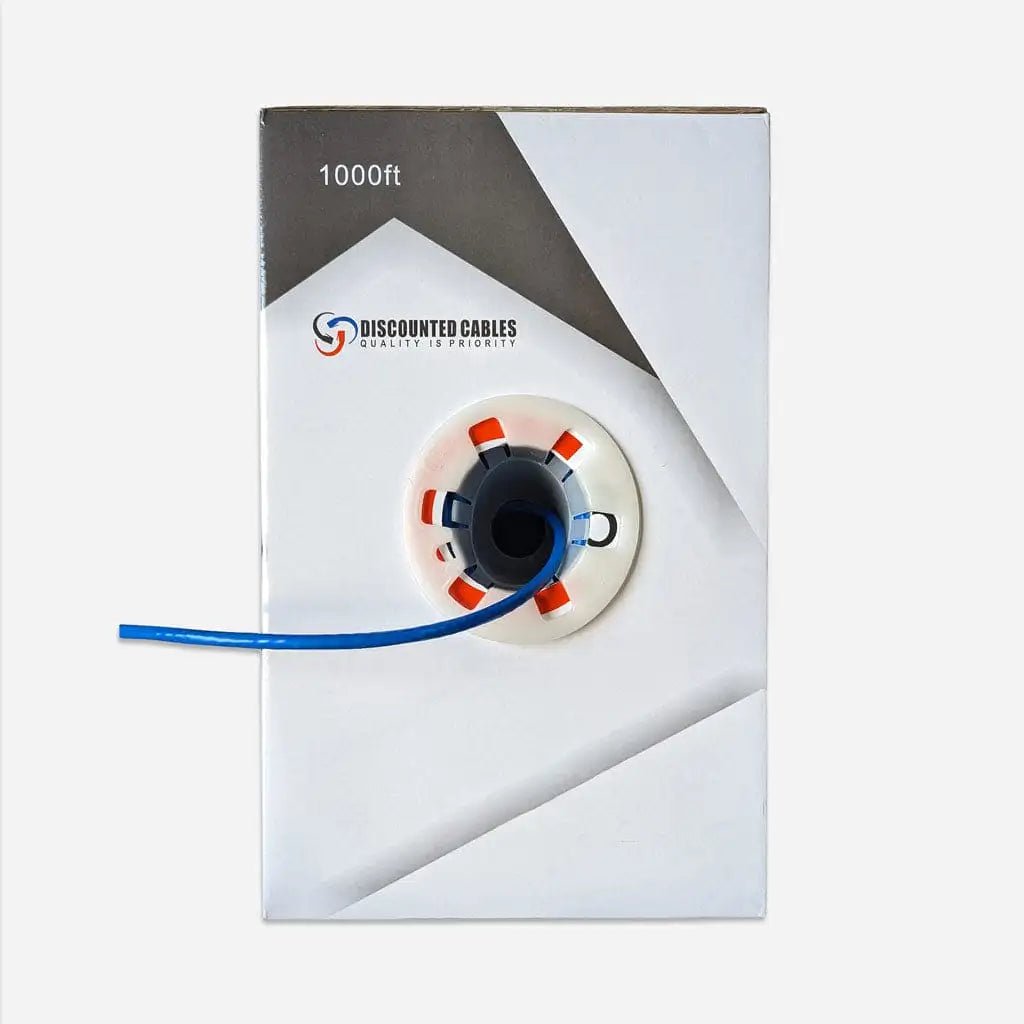

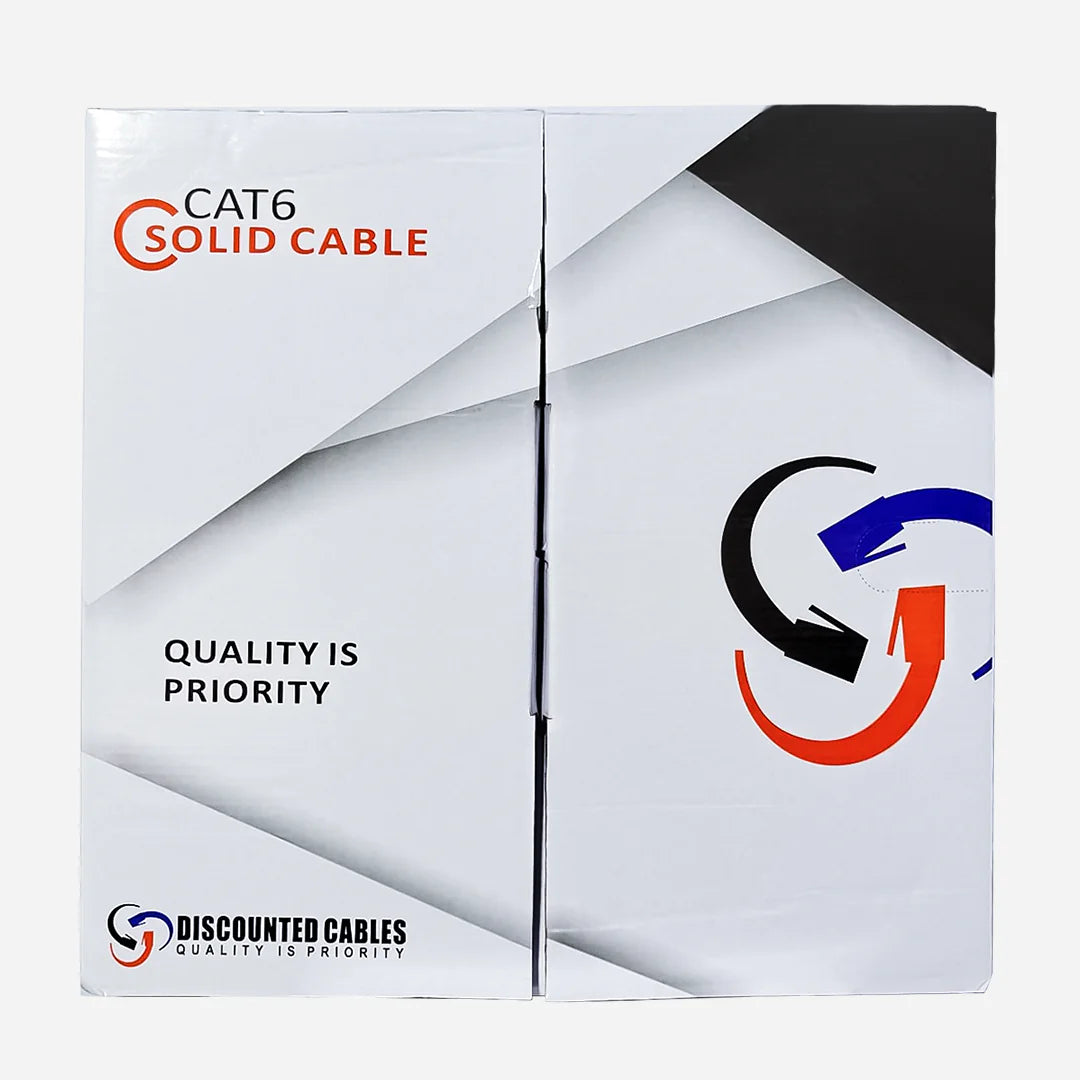

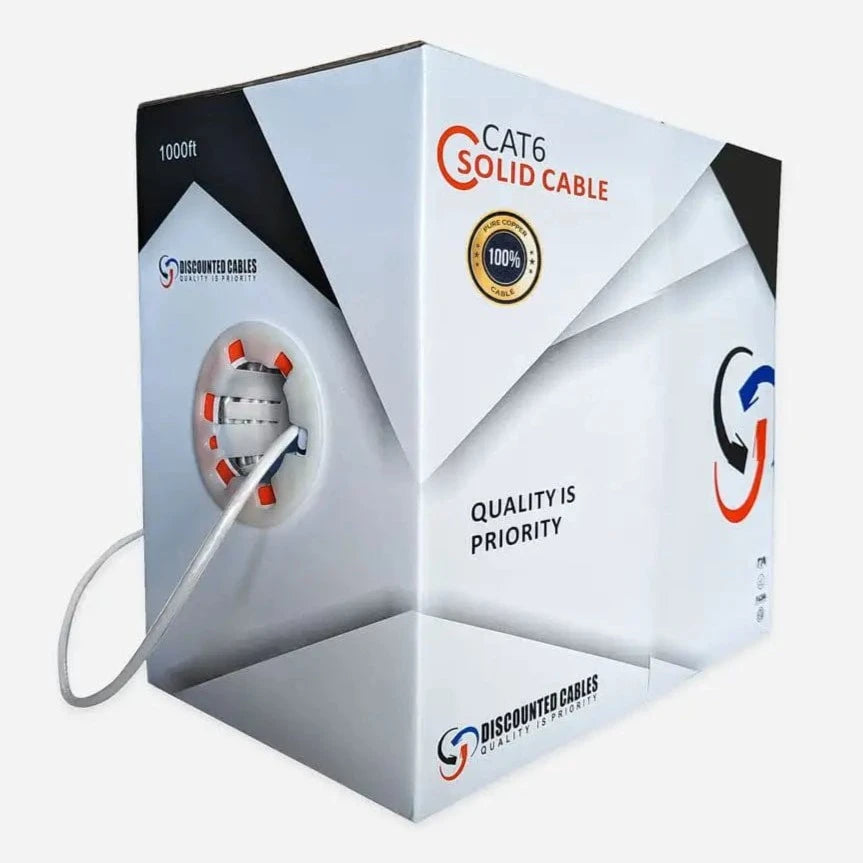

Our category 6 ethernet cable is manufactured in 1000ft length cable in a box.
Conductor Material - The conductor material used in making our data cable is Solid bare Copper. It is a tested cable and more importantly, one of our consumers who do structured cabling tested it and got a 99.6 % copper (Cu) conductor. which is more than sufficient for better connectivity.
Conductor Size - is 23 AWG x 4P. 23AWG which refers to the American Wire Gauge of the conductor. 4P refers to there being 4 twisted pairs of conductors.
Conductor Diameter - The diameter of each conductor. It is 0.574 ±/-0.008 mm, meaning the diameter is 0.574mm with a tolerance of 0.008mm.
Insulating Material Type - The insulating material used in our cable is HDPE, a High-Density Polyethylene. It has a high strength-to-density ratio, chemical resistance, and strong durability.
Insulation Avg. Thickness - It is 0.273 ±/-0.05 mm, meaning the thickness is 0.273mm with a tolerance of 0.05mm.
Shielding - Our ethernet cable is unshielded (UTP).
Specifications:
-
Transmission Performance - Discounted Cables cat6 is compliant with Category 6 specifications for 4-pair UTP (unshielded twisted pair) cables as per TIA/EIA-568-C.2. Which facilitates the specific performance and data transmission.
-
Jacket - The jacket of our cable is plenum-rated, meaning it is best for plenum space installations.
-
Data Speed - The cable is designed in a way to support data speeds of up to 1000 Megabits per second (Mbps) OR (1Gbps) for 1000 BASE-T Ethernet connections.
-

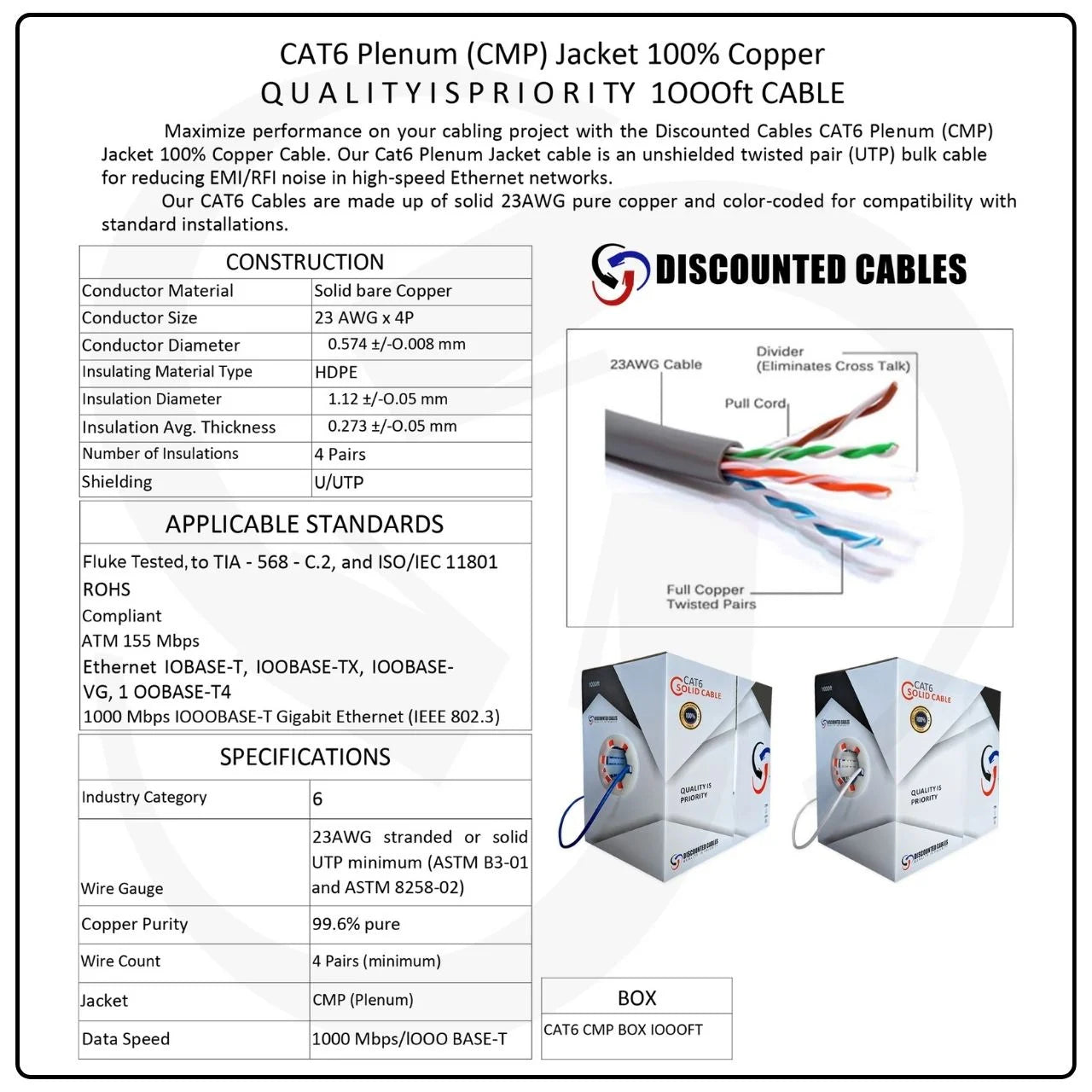

Frequency MHz - Our CAT 6 cable can go up to 550MHz. Please see the specs sheet for more detailed information.
Applicable Standards:
Fluke Tested: The cable has been tested using Fluke testing equipment to ensure performance and quality reliability.
TIA-568-C.2: Our cable meets the standards set by the Telecommunications Industry Association (TIA) in document 568-C.2. That covers the design and installation of cabling systems.
ISO/IEC 11801: Now this indicates that our category 6 lan cable complies with the standards set by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC) in document 11801, which includes standard cabling for customer facilities.
The Importance of Plenum-Rated Cables in Safe Network Installations
These cables are essential for safer network installations. They are called plenum-rated cables due to their resistance against fire and they are flame retardant. So, they don't burn up in case there's a fire which in turn does not produce harmful smoke. This makes them the go-to cable for commercial as well as residential buildings.
Understanding the 550 MHz Bandwidth Advantage for High-Speed Ethernet
The more the bandwidth the higher the data transfer will be which is essential for applications that require real-time data processing and require lower ping for better response. These applications are videos, media streaming, and cloud computing. The bandwidth makes a ton of difference as you don't get tears when communicating live.
Why Choose Our Unshielded (UTP) Cat6 Cables for Your Project?
Our Cable can transfer the data at a stable rate for lengths up to 320 ft (100 meters) at this length you can reliably achieve the 1Gbps speed. While running cable in buildings.
Economies of Scale: How Buying in Bulk Can Lead to Significant Savings
When buying in bulk cat6 plenum cable we tend to provide discounts even more through shipping cost, We already don't charge extra shipping or sales tax but If you buy bulk quantity from us. shipping cost is cut down to a few dollars or even free shipping, all over the United States.
