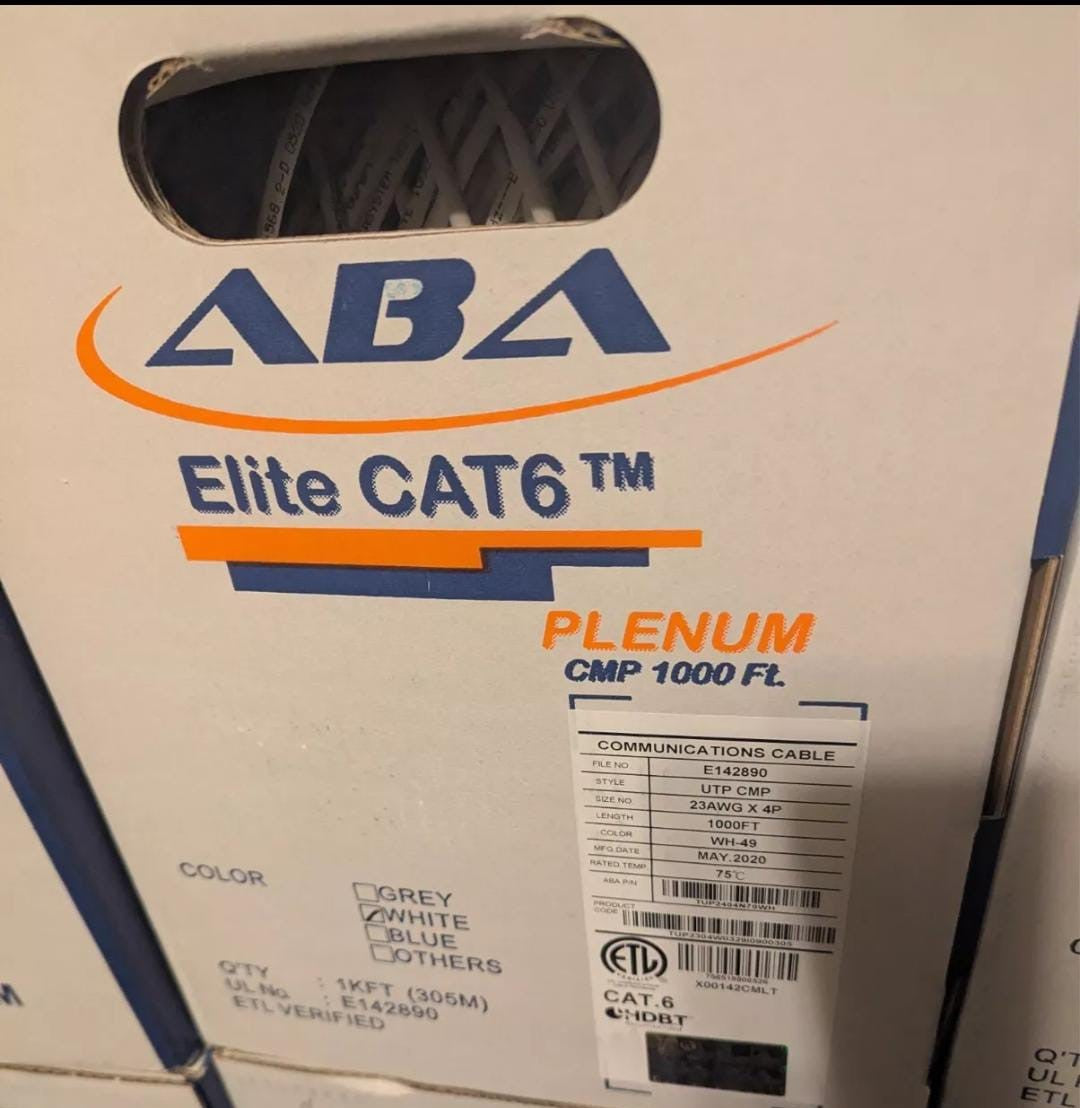

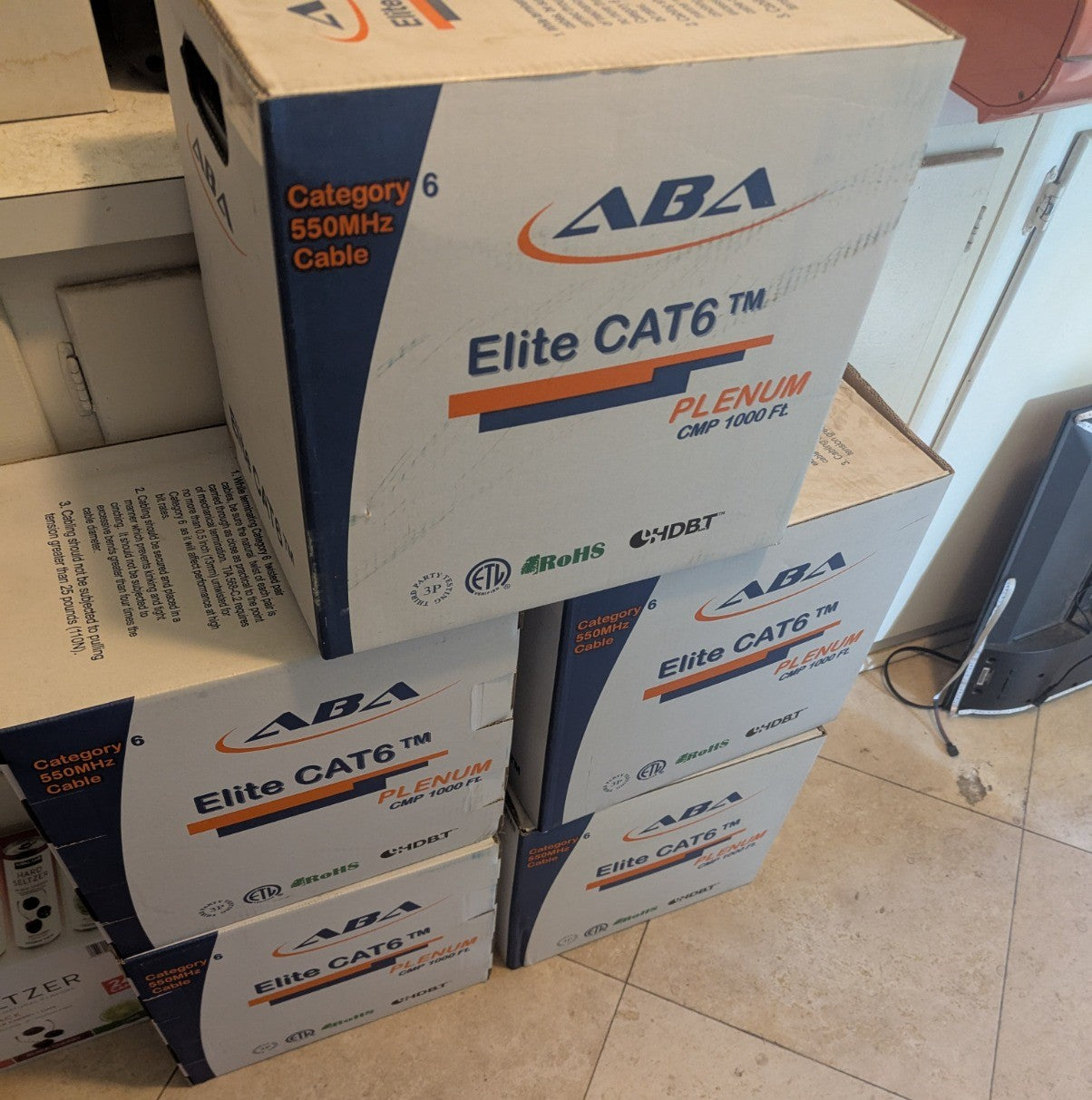

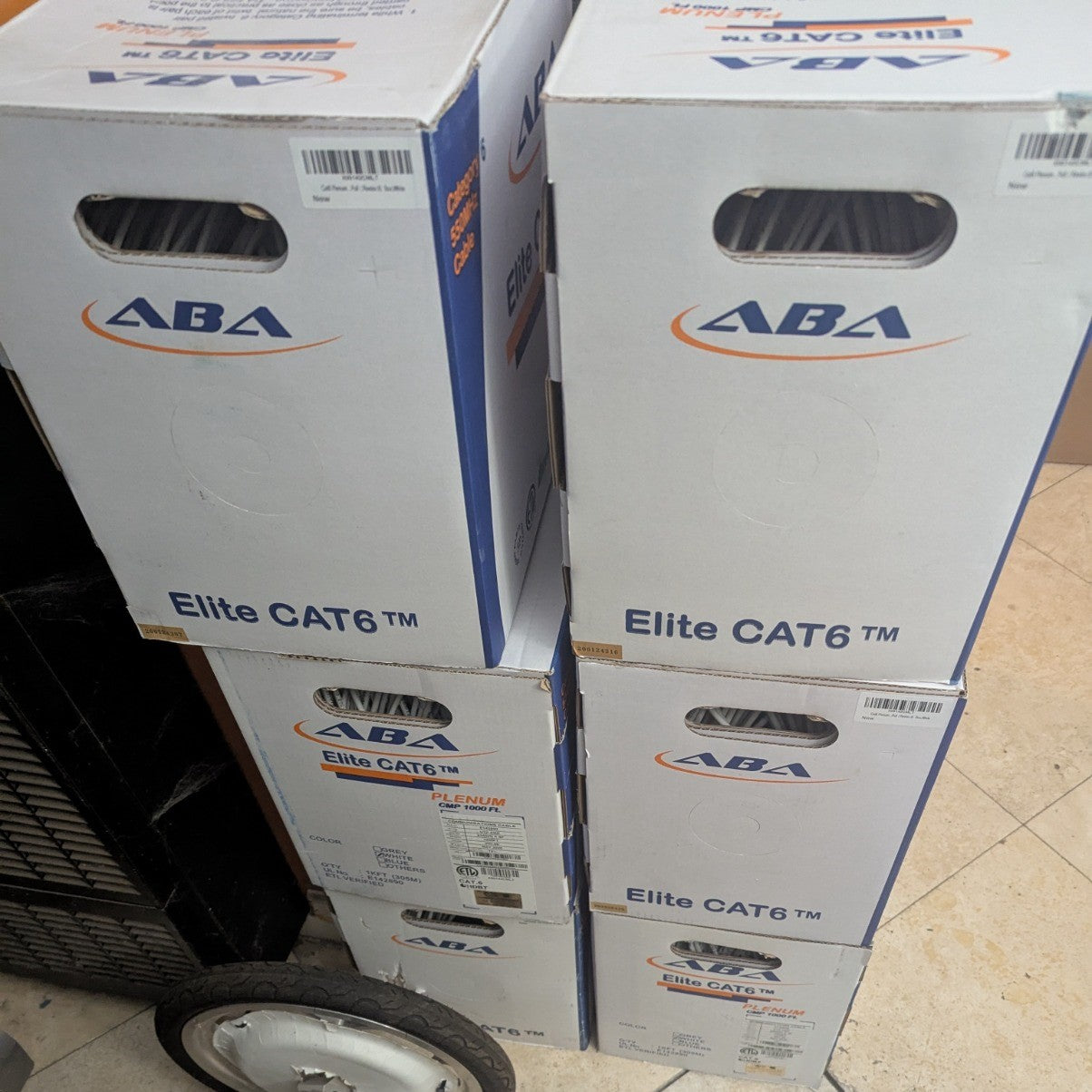

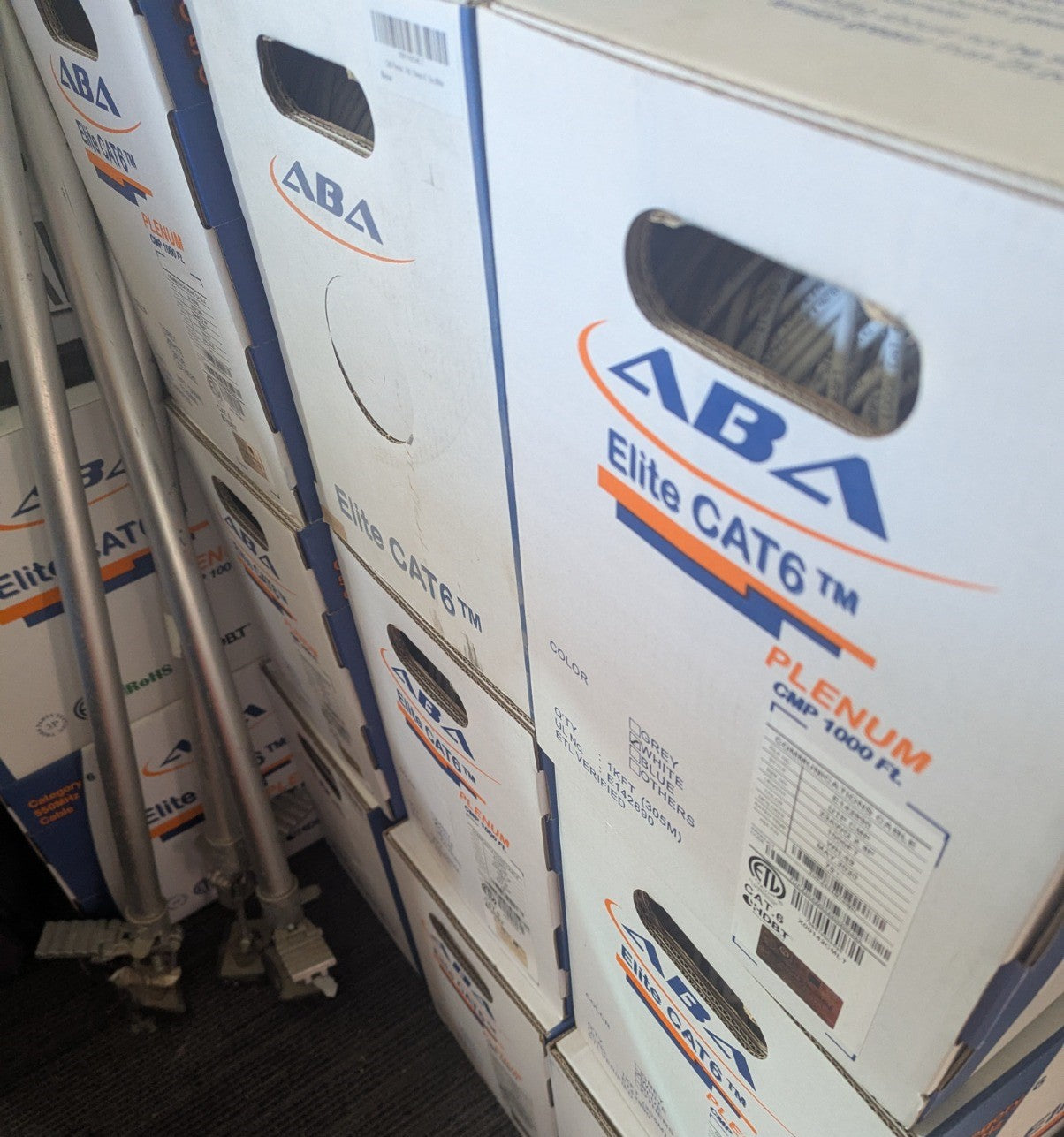

ABA Elite CAT6 Plenum Solid Copper 550MHz High-Speed 1000ft Ethernet Cable
The ABA Elite CAT6 Plenum cable delivers exceptional performance for professional networking installations. This 1000-foot white ethernet cable features solid bare copper conductors and CMP-rated plenum jacket, making it ideal for commercial buildings and air handling spaces. With sweep frequency up to 400MHz and gigabit ethernet compatibility, this high-speed cable ensures reliable data transmission for modern network infrastructures.
Product Specifications
Cable Type: U/UTP CAT6 Plenum (CMP)
Conductor: 23AWG solid bare copper
Length: 1000 feet (305 meters)
Color: White, Black
Frequency Range: Up to 400MHz
Temperature Rating: 75°C / 300V
Jacket Material: Low smoke flame retardant PVC (LSFRPVC)
Overall Diameter: 5.0 ± 0.2mm
Minimum Bend Radius: 4x overall diameter
Maximum Pulling Tension: ≤110N
Key Features & Applications
High-Performance Transmission
- Supports IEEE 802.3ab 1000BASE-T gigabit ethernet
- Compatible with 1000BASE-TX and legacy network speeds
- Tested and verified to 400MHz frequency range
- Exceeds CAT6 performance standards
Safety & Compliance
- CMP plenum rating for air handling spaces
- UL listed and ETL verified
- RoHS2 compliant materials
- Meets ANSI/TIA-568-C.2 and ISO/IEC 11801 standards
Professional Installation

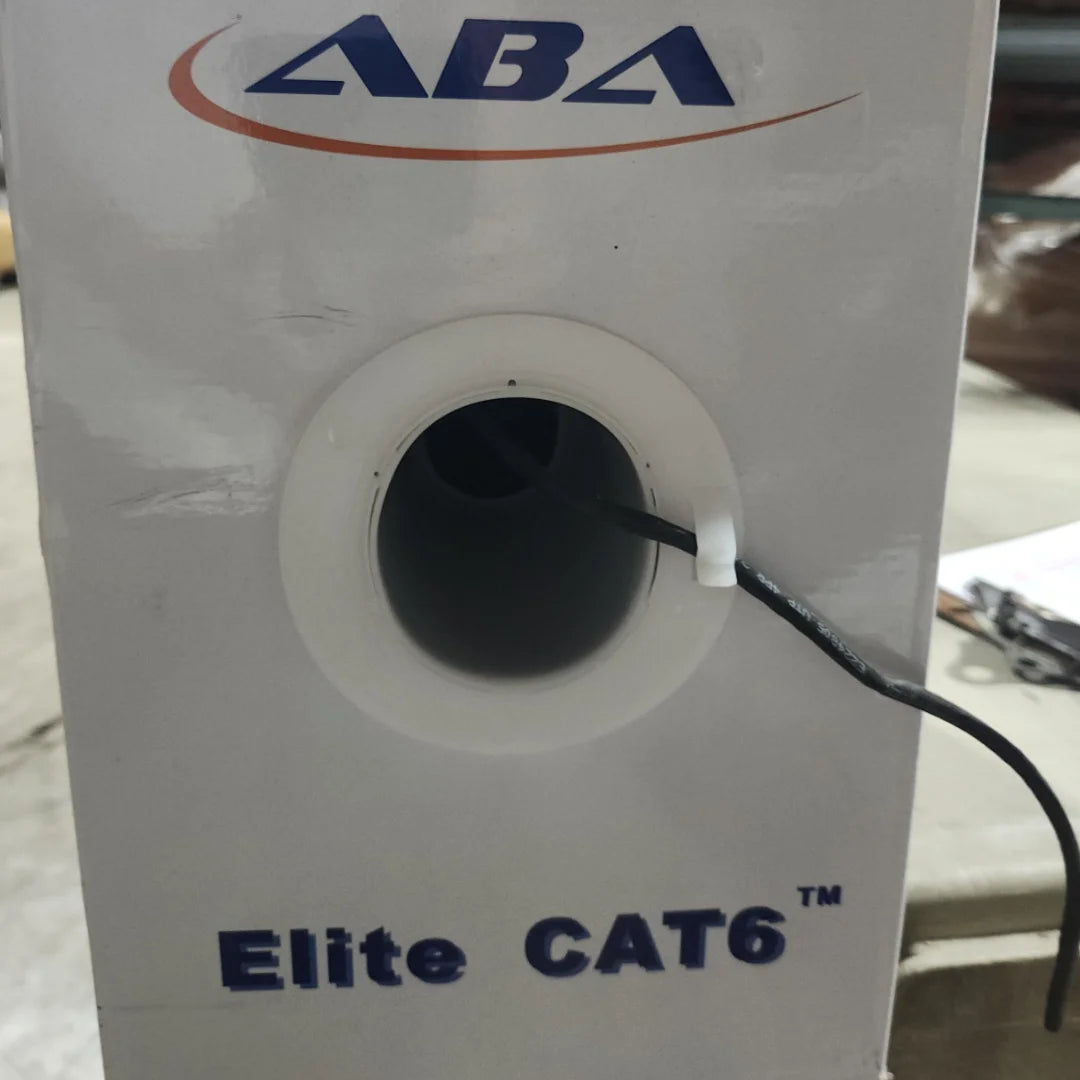

- Reelex II carton for easy cable pulling
- Integrated rip cord for quick jacket removal
- Left-hand twisted pair assembly
- One-layer corrugated packaging design
Primary Uses
Structured Cabling Systems
- Horizontal building cabling installations
- Backbone cable infrastructure
- Commercial and enterprise networks
Data Applications
- High-speed internet connections
- Digital and analog data transmission
- Video and audio signal applications
- CDDI/ATM/Token Ring networks
Power over Ethernet
- IEEE 802.3af (PoE) compatible
- IEEE 802.3at (PoE+) support
- Powers IP cameras, wireless access points, VoIP phones
Construction Details
Conductor Design
- Four twisted pairs of 23AWG solid copper
- Color-coded insulation: Blue, Orange, Green, Brown pairs
- Dual-layer insulation with FEP and polyolefin materials
Performance Characteristics
- Conductor DC resistance: ≤9.38Ω/100m
- Insulation resistance: ≥5000MΩ•m
- Mutual capacitance: ≤5.6nF/100m
- Operating temperature: -20°C to 60°C
Quality Assurance
- Individual cable testing to 400MHz
- Flame test compliance (NFPA 262)
- Dielectric strength: 1.5KV AC for 2 seconds
- AC leakage current: ≤10mA at 1.5KV
This professional grade ethernet cable provides the reliability and performance required for demanding network installations while meeting stringent fire safety requirements for plenum applications.
Additional Info & Specs
| Color | Black, White |
|---|---|
| Product Type | Ethernet Cable |
| Condition | New |
| Brand | ABA |
| Package | Reelex |
| Category | 6 |
| Spaces | Plenum |
| Gauge | 23 AWG |
| Jacket | Plenum |
| Insulation Material | POLYVINYLCHLORIDE |
| No. of Pairs | 4 Twisted |
| Shielding | unshielded |
| Conductor | Solid |
| Conductor Material | Bare Copper |
| Certification Standards | UL Listed, RoHS, TIA |
