Panduit PUP6C04GR-WZ Cat6 Plenum TX6 UTP 1000ft Green Ethernet Cable

The Panduit PUP6C04GR-WZ Cat6 Plenum TX6 UTP 1000ft Green Ethernet Cable is a high-performance networking cable designed to exceed the demanding requirements of modern data transmission. This Category 6 cable offers exceptional speed and reliability, making it ideal for various applications, including Gigabit Ethernet and beyond. Constructed with 24 AWG solid copper conductors and FEP/polyolefin insulation, this cable ensures consistent electrical performance across long distances, supporting frequencies up to 250 MHz Its low smoke, flame-retardant (CMP) PVC jacket enhances safety, making it suitable for plenum spaces in commercial buildings. The cable's design provides outstanding flexibility for future network upgrades, ensuring your infrastructure remains robust and reliable.

Product Specifications:

• Category: 6 (exceeds ANSI/TIA-568.2-D Category 6 component standards)
• Conductors: 24 AWG solid copper with FEP/polyolefin insulation
• Insulation Diameter: 0.034"–0.046" (0.86mm–1.16mm)
• Flame Rating: NFPA 262 and CSA FT-6
• Cable Diameter: 0.230" (5.8mm) nominal
• Cable Weight: 27 lbs./1000' (12.2kg/305m)
• Temperature Rating:
  • Installation: 32°F to 122°F (0°C to 50°C)
  • Operation: -4°F to 167°F (-20°C to 75°C)
• Packaging: 1000' (305m) in an easy payout carton

Key Features:

• Third-Party Tested: Verified by an independent laboratory to comply with the ANSI/TIA-568.2-D Category 6 standards.
• Guaranteed Performance: Delivers industry-leading channel performance, exceeding TIA/ISO standards with guaranteed headroom.
• Descending Length Markings: Simplifies installation by providing easy identification of remaining cable, reducing waste.
• Extended Frequency Range: Characterized up to 550 MHz, surpassing standard requirements by 300 MHz.

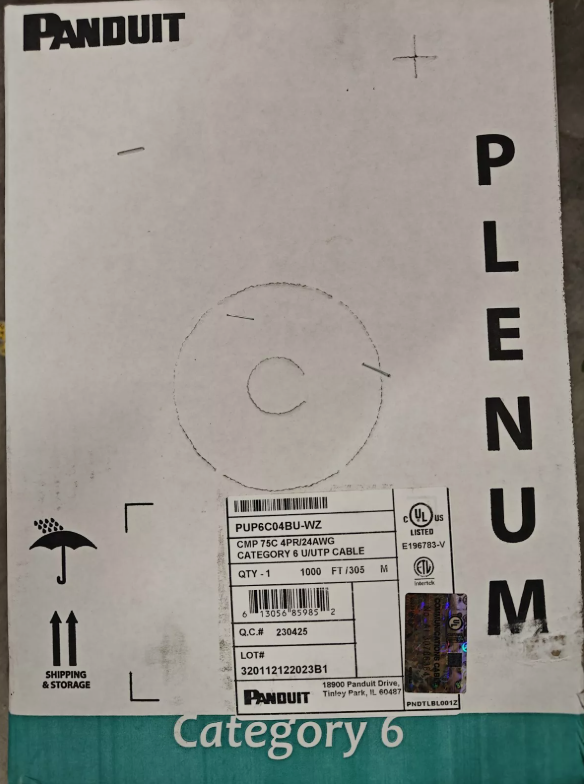

• Reelex™ Packaging: Compact carton design ensures optimal performance and facilitates quick, efficient installation.

Applications:

• Ideal for Ethernet applications, including 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), and 10GBASE-T (10 Gigabit Ethernet over limited distances).
• Supports high-speed networking technologies such as 155 Mb/s ATM, 622 Mb/s ATM, and 1.2 Gb/s ATM.
• Compatible with legacy systems like Token Ring 4/16, ensuring interoperability and backward compatibility.

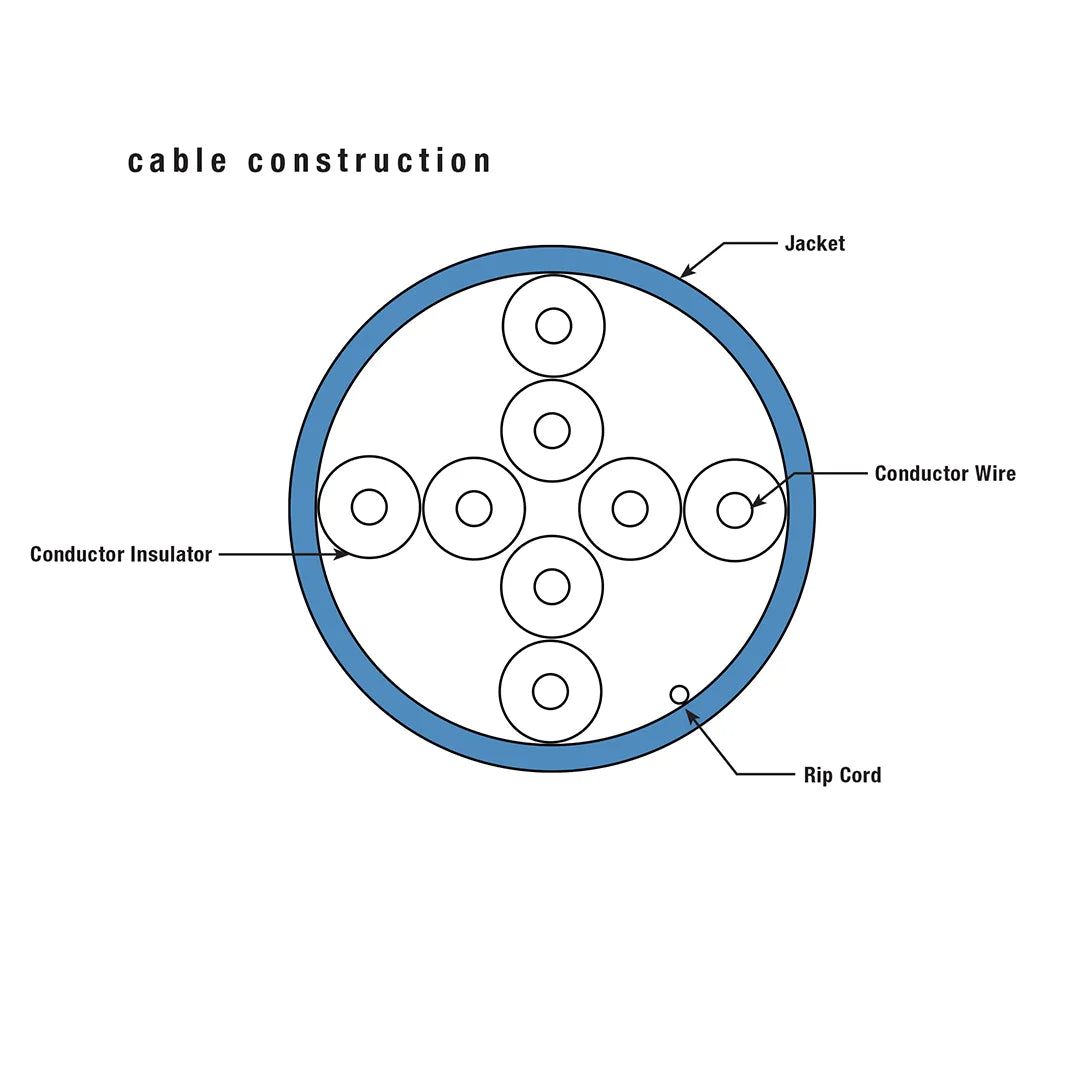

Construction:

• Conductor: 24 AWG solid copper wires
• Insulation: FEP/polyolefin
• Jacket: Low smoke, flame-retardant (CMP) PVC
• Rip Cord: Included for easy jacket removal during installation

Additional Information:

• Mechanical Test: Ultimate breaking strength of over 90 lbf (400 N) and a minimum bend radius of 4x the cable diameter.
• Electrical Test: Nominal velocity of propagation (NVP) is 67%, with a maximum operating voltage of 80 V.

The Panduit Cat6 Plenum 1000ft Green Cable offers superior quality and performance for both current and future network needs, making it an essential choice for professional installations.
