The Cat6 Riser Quabbin 2208 Datamax cable delivers exceptional performance for professional networking installations requiring reliable high-speed data transmission. This 600 MHz enhanced patch cord supports future applications and protocols beyond Gigabit Ethernet, making it an ideal choice for modern network infrastructure. Manufactured with premium materials and rigorous quality standards, this UL-listed CMR-rated cable ensures optimal signal integrity and safety compliance for commercial and residential riser applications.
Technical Specifications
Cable Type: Category 6 UTP Riser Cable
Part Number: Quabbin 2208
Conductor: 24 AWG 7/32 stranded tinned copper
Jacket Color: Grey
Cable Length: 1000 feet (305 meters)
Overall Diameter: 0.220" maximum
Temperature Rating: -20°C to 75°C
Voltage Rating: 300V maximum
Weight: 24.5 lbs per 1000 feet
Frequency Range: 1-600 MHz
Impedance: 100 ± 15 Ω (1-100 MHz), 100 ± 20 Ω (100-600 MHz)
Key Features & Applications
Enhanced Performance: 600 MHz bandwidth supports current and future network protocols, including 10 Gigabit Ethernet applications. The cable meets TIA-568.2-D Category 6 specifications with superior electrical characteristics.
Safety Certifications: UL Listed Type CMR and CEC C(UL) Type CMR approved for riser installations between floors in commercial buildings, ensuring code compliance and fire safety.
Power over Ethernet Ready: PoE compliant to 88 meters when installed per TIA TSB-184 recommendations, supporting powered devices like IP cameras, wireless access points, and VoIP phones.
Professional Construction: Features high-density polyethylene insulation with 0.007" wall thickness and durable PVC jacket providing excellent protection against environmental factors.
Construction Details

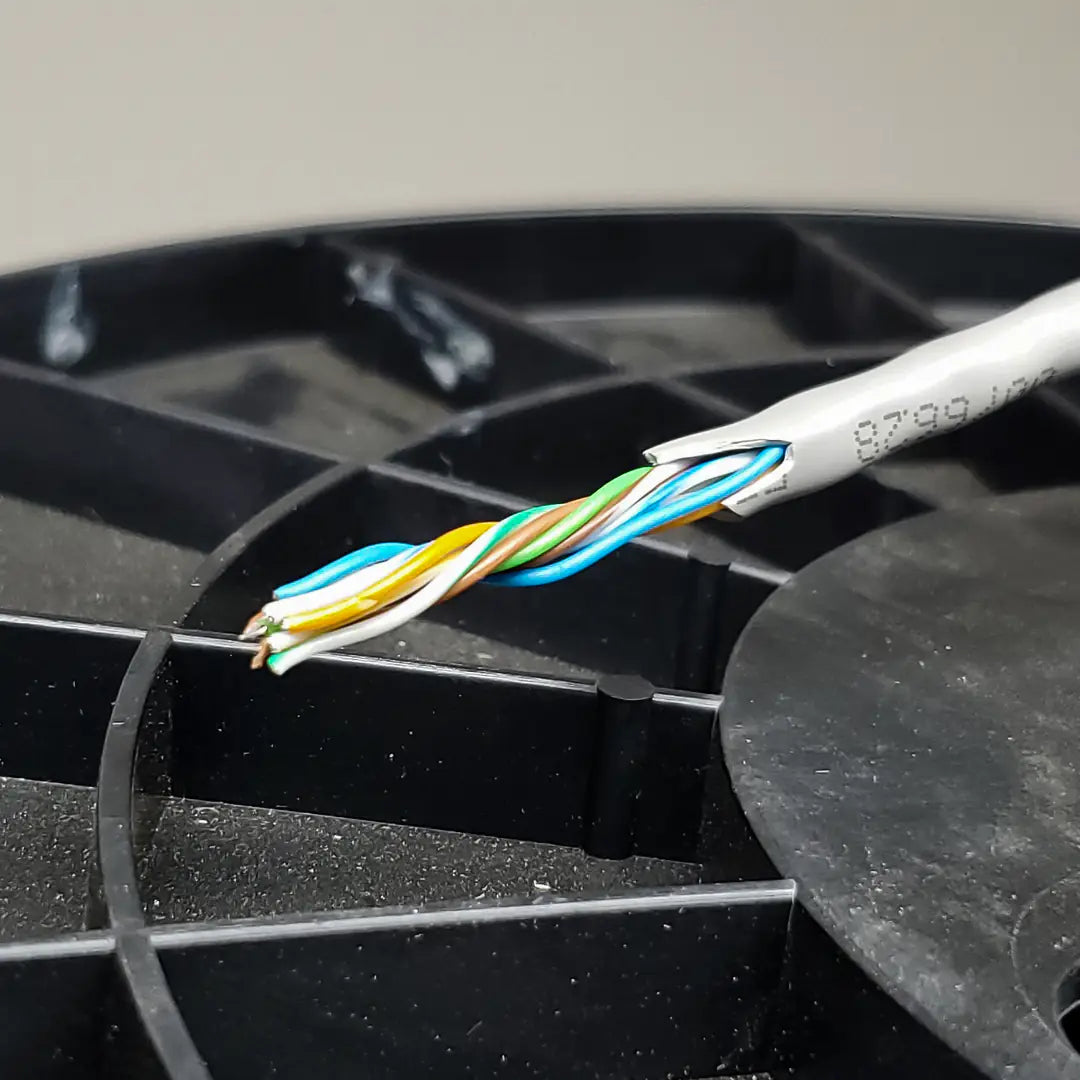

The cable core consists of four twisted pairs using standard T568A/B color coding: White/Blue-Blue, White/Orange-Orange, White/Green-Green, and White/Brown-Brown. Each pair is precisely twisted to minimize crosstalk and maintain signal integrity. The stranded tinned copper conductors ensure flexibility and corrosion resistance for long-term reliability.
Electrical Performance
Delivers exceptional signal quality with insertion loss maximum of 1.2[1.808√ƒ + 0.017(ƒ + 0.2/√ƒ)] dB, NEXT minimum of 47.8-15 LOG(ƒ/100) dB, and return loss specifications exceeding industry standards. Velocity of propagation at 68% ensures minimal signal delay.
Installation & Compatibility

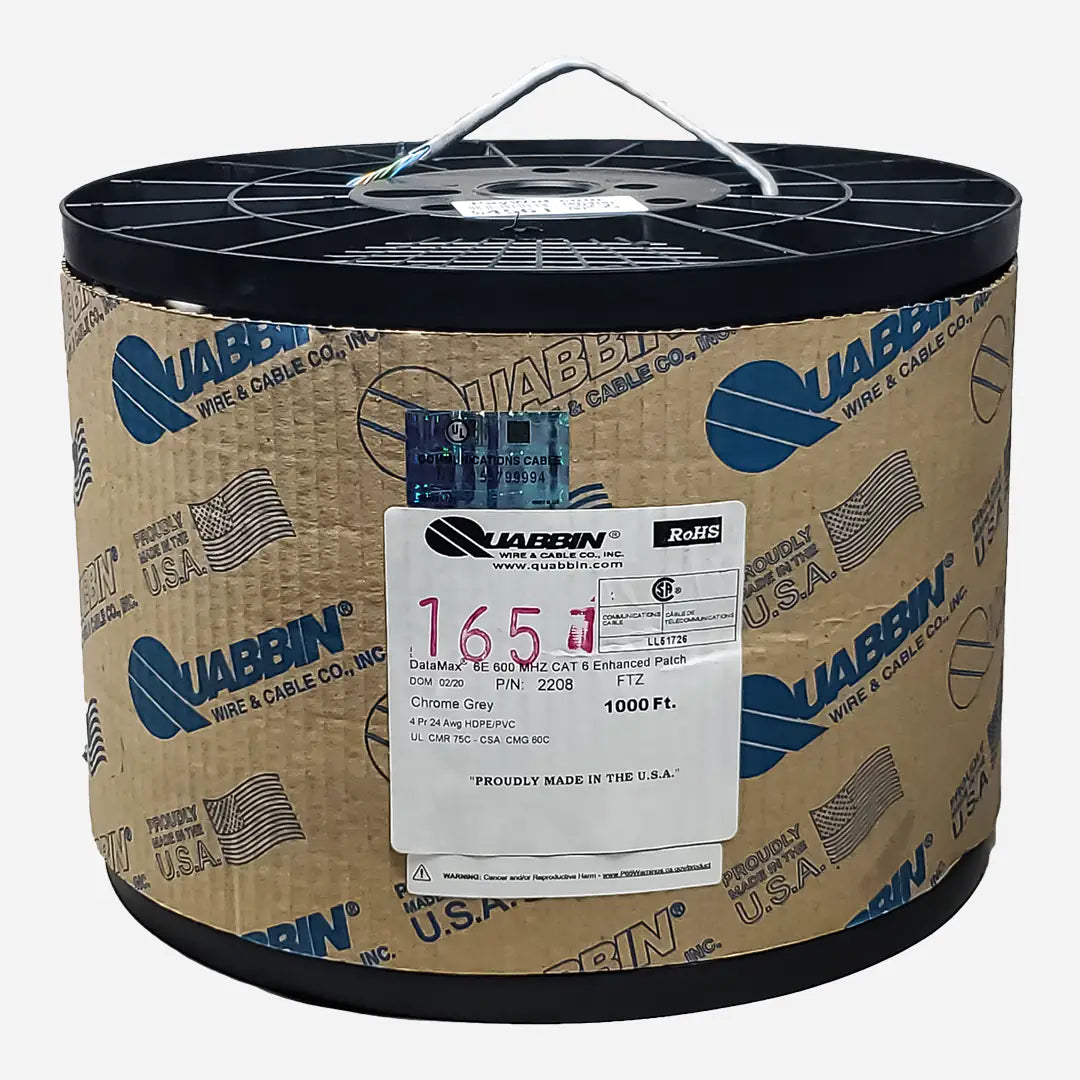

Compatible with standard modular plugs and termination hardware. The cable fits conventional patch panels, wall plates, and keystone jacks. RoHS compliant materials meet environmental regulations. Available in 1000-foot reels for efficient installation in structured cabling systems.
Applications: Data centers, office buildings, schools, hospitals, retail spaces, and residential high-rise installations requiring reliable network connectivity between floors.
