CAT5e Riser 4PR 24 AWG COPPER 350MHz Solid Copper White 1000ft Cable
The GenSPEED® 5350 Enhanced Category 5e cable delivers superior network performance for high-speed data transmission applications. This professional-grade ethernet cable features solid bare annealed copper conductors and advanced polyolefin insulation, ensuring reliable connectivity up to 350 MHz bandwidth. Designed for riser applications, this CMR-rated cable meets stringent fire safety standards while providing exceptional signal integrity for modern networking demands. The white jacket finish offers a clean, professional appearance perfect for commercial and residential installations.
Product Specifications
Cable Type: Category 5e Enhanced, 4-Pair Unshielded Twisted Pair (UTP)
Conductor: 24 AWG solid bare annealed copper
Bandwidth: 350 MHz guaranteed performance
Cable Diameter: 0.200 inches nominal
Weight: 20 lbs per 1000 feet

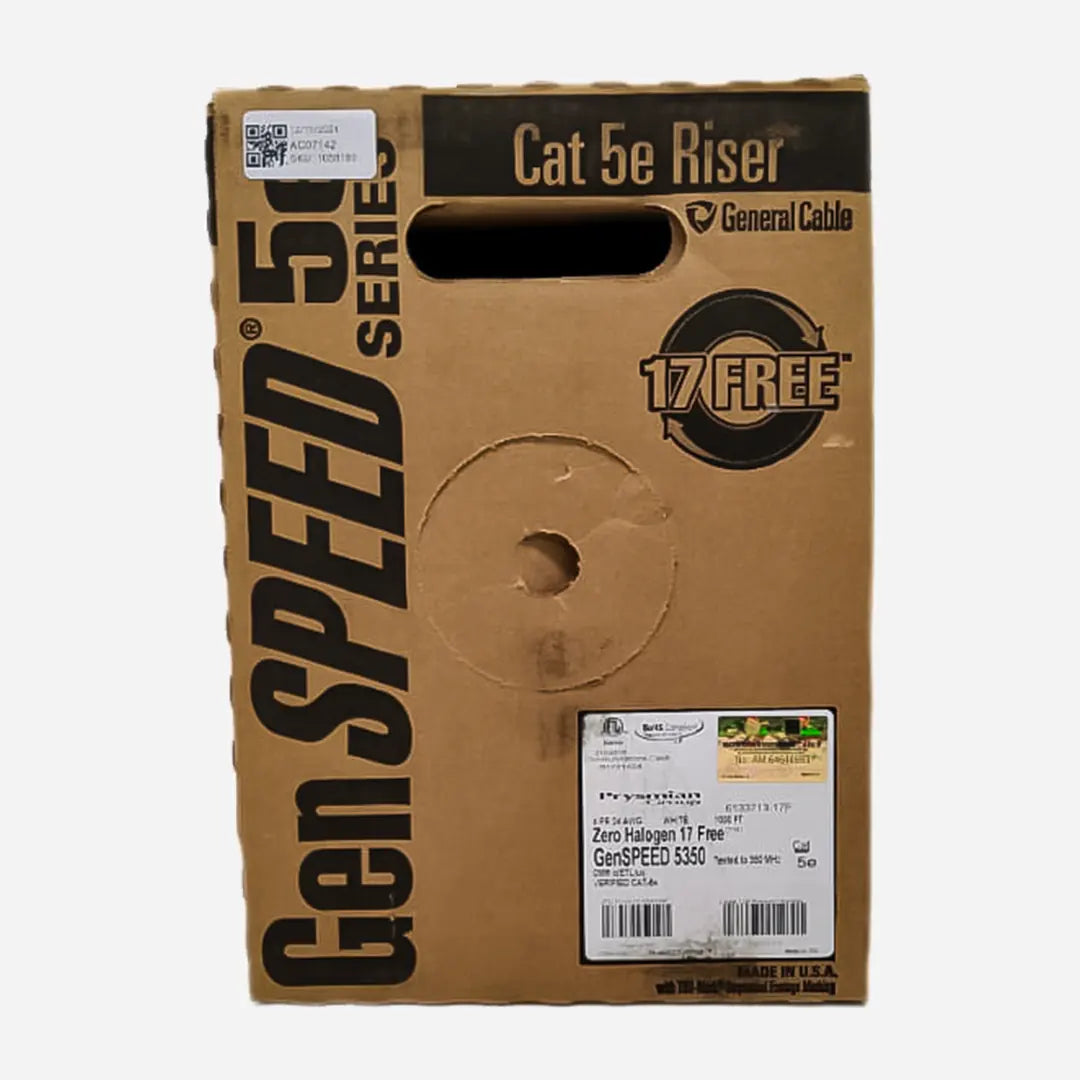

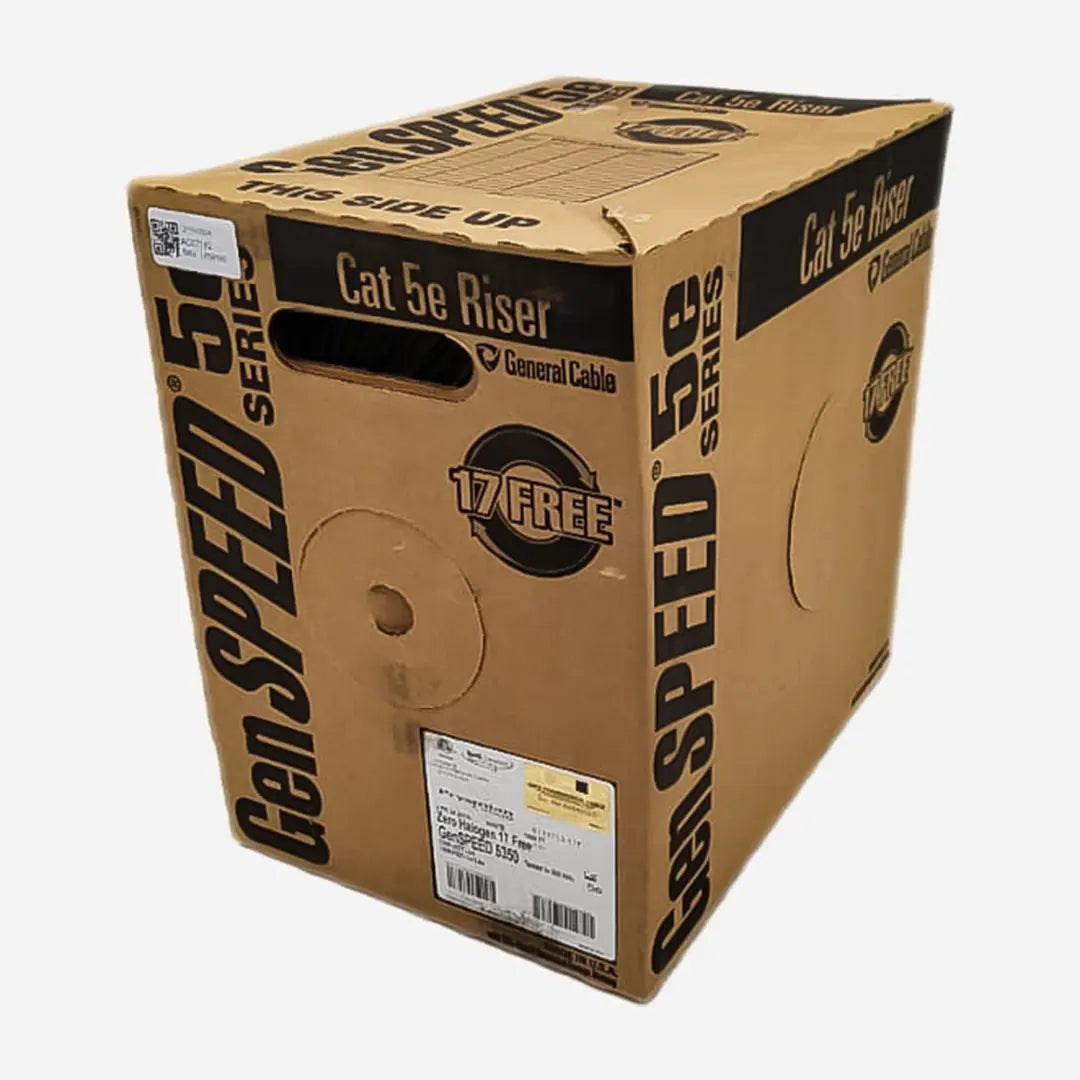

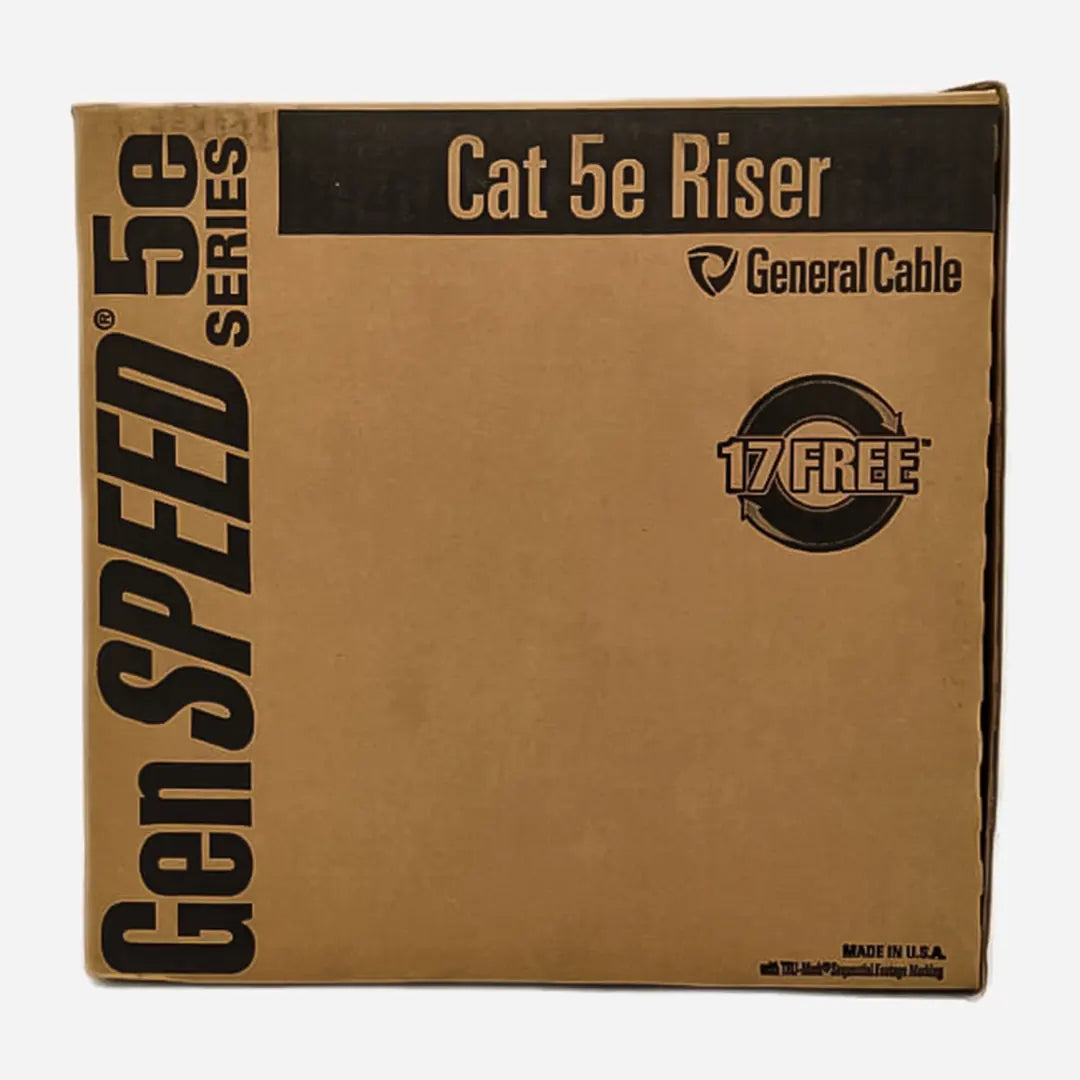

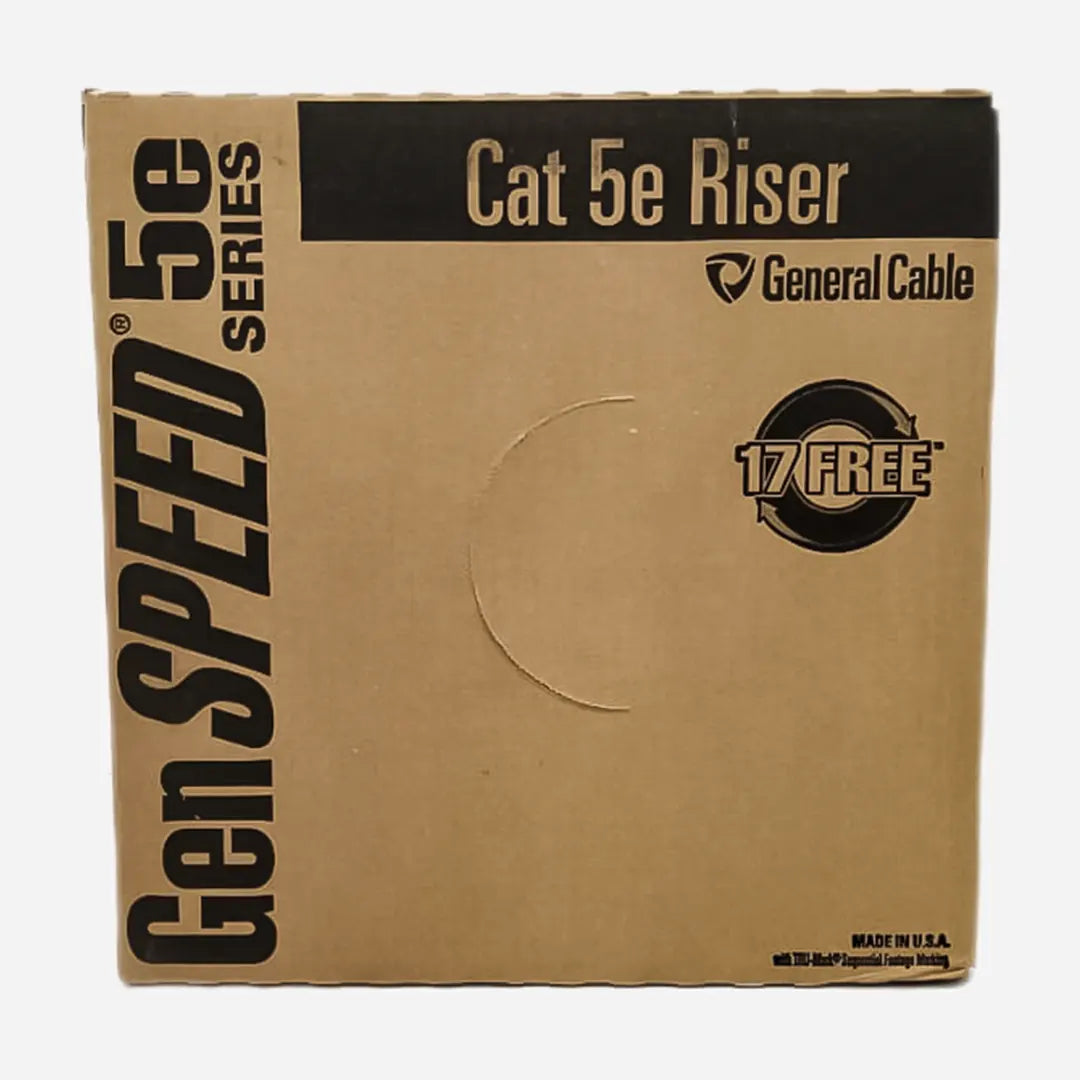

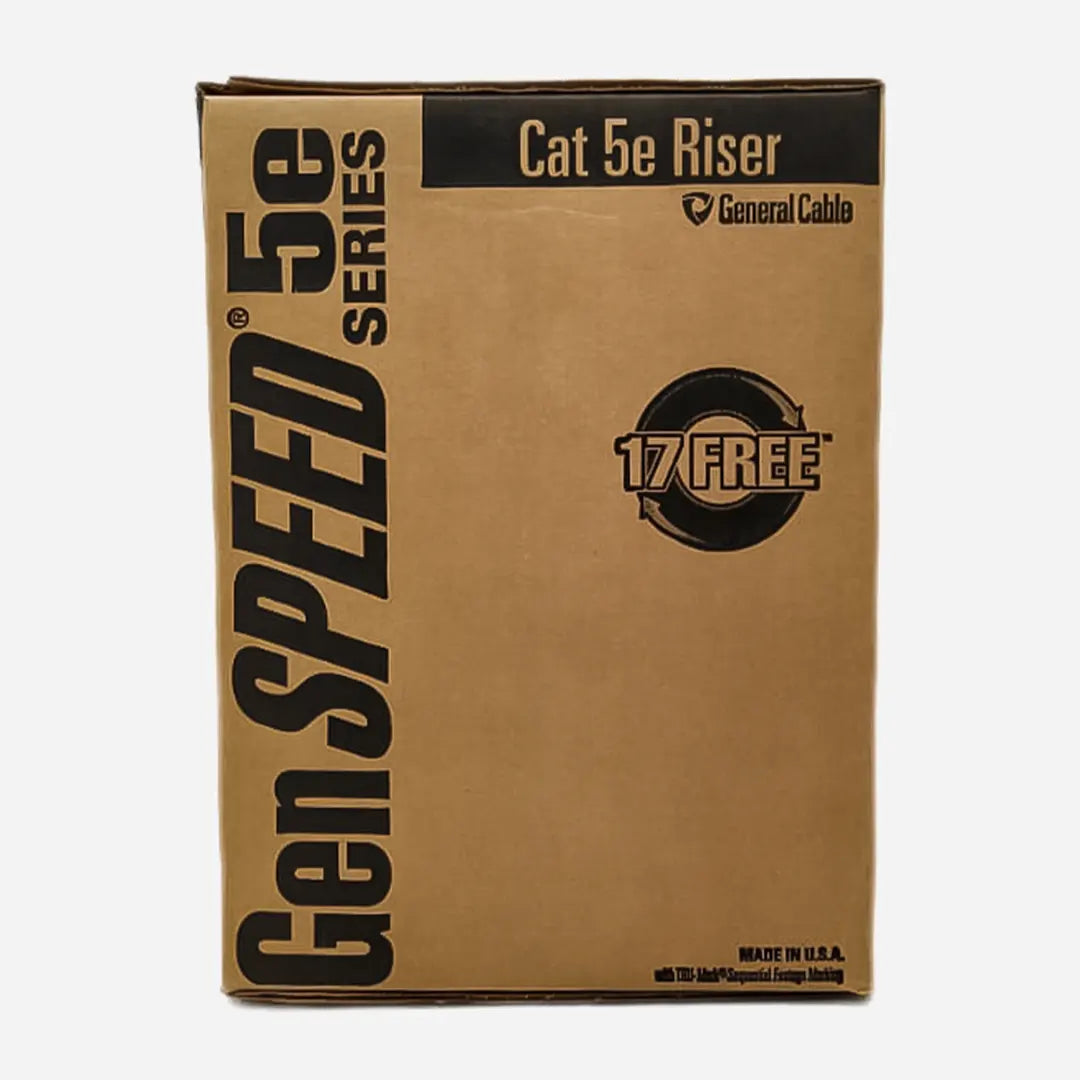

Length: 1000 feet Pull-Pac® II packaging
Jacket Color: White
Fire Rating: CMR (Non-Plenum) - UL 1666 compliant
Temperature Range: Installation: 0°C to +60°C, Operation: -20°C to +75°C
Minimum Bend Radius: 1.0 inch
Maximum Pulling Force: 25 lbs
Key Features & Benefits
-
High-Performance Design: Guaranteed performance to 350 MHz exceeds standard Cat 5e requirements
-
Premium Copper Construction: 24 AWG solid bare annealed copper ensures optimal signal transmission
-
TRU-Mark® Print Legend: Sequential footage markings from 1000' to 0' for precise installation tracking
-
Third-Party Verified: Independently tested and verified for guaranteed performance standards
-
Future-Ready: Optimized for applications requiring superior Cat 5e performance with upgrade flexibility
-
Made in USA: Manufactured to the highest quality standards with domestic production
Applications & Uses
Network Applications:
- Gigabit Ethernet (1000 BASE-T)
- Fast Ethernet (100 BASE-TX)
- Standard Ethernet (10 BASE-T)
- Power over Ethernet (PoE and PoE+)
Data Systems:
- CDDI (Copper Distributed Data Interface)
- Token Ring networks
- ATM (Asynchronous Transfer Mode)
- Building automation systems
- Broadband and baseband analog video transmission
Construction Details
Conductor Configuration: Four twisted pairs of 24 AWG solid copper
Insulation Material: High-grade polyolefin for superior electrical properties
Color Coding: Industry-standard TIA 568-C.2 color scheme:
- Pair 1: Blue-White/Blue
- Pair 2: Orange-White/Orange
- Pair 3: Green-White/Green
- Pair 4: Brown-White/Brown
Jacket Construction: Flame-retardant PVC with integrated rip cord for easy termination
Characteristic Impedance: 100 ± 15 ohms (1-350 MHz)
Velocity of Propagation: 70% speed of light
Standards & Compliance
- ANSI/TIA 568-C.2 certified
- NEC/CEC Type CMR (UL 1666) fire rating
- UL 444 listed
- RoHS Compliant (Directive 2011/65/EU)
- ANSI/TIA 862 (Building Automation)
- ICEA S-90-661
- ISO/IEC 11801 Ed. 2.0 (Class D)
Electrical Performance Highlights
DC Resistance: Maximum 8.9 ohms/100m at 20°C
Delay Skew: Maximum 45 ns/100m for synchronized data transmission
Insertion Loss: Optimized across full frequency range (2.0 dB at 1 MHz to 44.3 dB at 350 MHz)
NEXT Performance: Superior crosstalk rejection exceeding industry standards
