Description
You get reliable Category 6 performance with the Windy City Wire Cat6 Plenum 556600. This Windy City Wire Cat6 Plenum Cable delivers solid 23 AWG bare copper conductors in a 4-pair UTP design. Manufacturers sweep-test it to 550 MHz, so you gain headroom beyond the standard 250 MHz Cat6 requirement. The white CMP-rated jacket meets NFPA 262 flame tests and lets you install the cable in air-handling spaces without conduit.
Core Specifications
-
Part number: 556600
-
Conductor: 23 AWG solid bare copper
-
Construction: 4-pair unshielded twisted pair (UTP) with FEP/PE insulation
-
Jacket: Plenum-rated Flex PVC / CommFlex, white, 0.215" nominal OD
-
Weight: approximately 28 lbs per 1000 ft
-
Electricals: impedance 100–103 ±15 ohms, NVP 73%, voltage 300 V
-
Approvals: ETL Type CMP, C(ETL)US, TIA/EIA-568-C.2
-
Temperature Rating: -20C to 60C
-
Voltage Rating: 300VRMS
The Windy City Wire 556600 Ethernet Cable supports 10BASE-T through 1000BASE-T and short-run 10GBASE-T. You also use it for digital video, analog voice, PoE devices, and building automation. Pair colors follow the standard blue, orange, green, and brown scheme for quick termination.
Installation Advantages

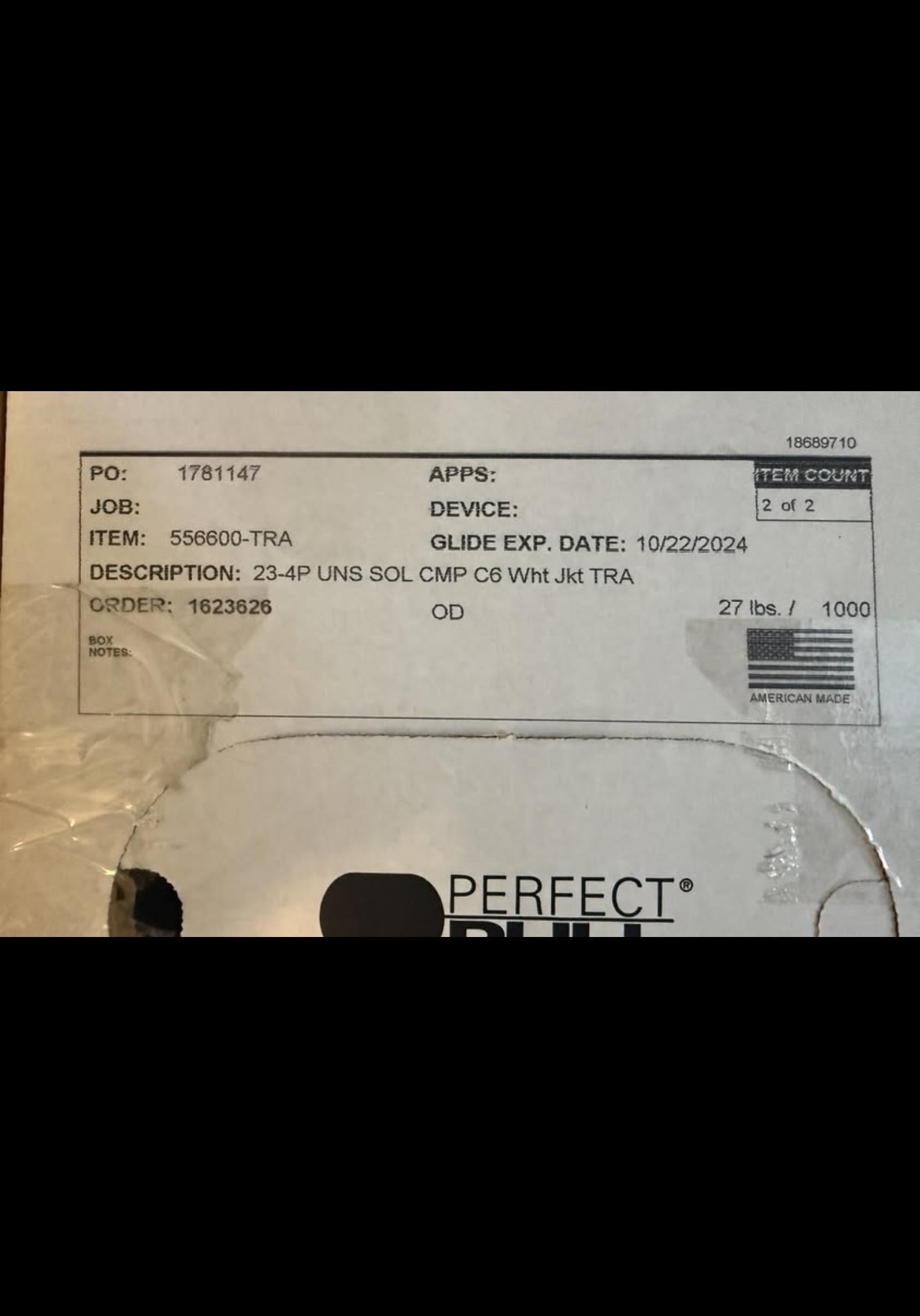

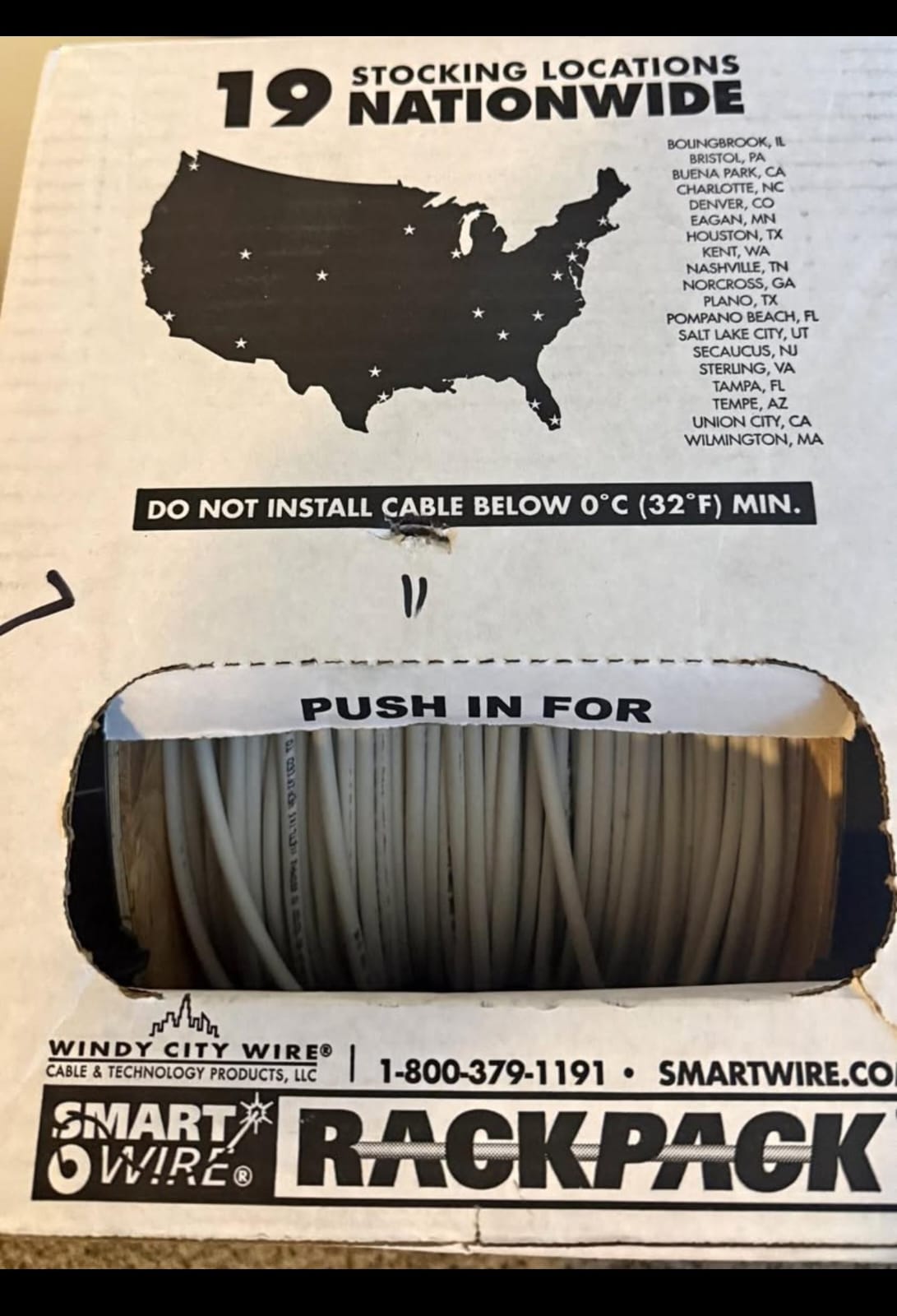

SmartWire Glide technology coats the jacket and cuts pulling friction by up to 70 percent. Clear ascending/descending footage markers (1000/0000) let you track remaining length and cut waste. The cable arrives in a convenient pull box or RackPack style packaging that simplifies job-site handling. Made in the USA, it meets the demands of commercial networking in offices, schools, data centers, and drop-ceiling runs.
When you need CMP Cable that performs in real commercial environments, choose this Windy City Wire Cat6 plenum cable 1000ft. Discounted Cables ships tax-free across the USA and stocks genuine Windy City Wire products. Browse our full Cat6 Plenum selection or shop as your trusted Ethernet Cable Supplier for the Windy City Wire 556600 and related networking cable.
Buy Windy City Wire Cat6 Cable today and equip your next plenum installation with verified performance and installer-friendly features.
Additional Info & Specs
| Color | Blue |
|---|---|
| Product Type | Ethernet Cable |
| Condition | New |
| Brand | Windy City Wire |
| Package | Pull Box |
| Category | 6 |
| Spaces | CMP |
| Gauge | 23 AWG |
| Jacket | Plenum-Rated |
| Insulation Material | FEP |
| No. of Pairs | 4 Twisted |
| Shielding | Unshielded |
| Conductor | Solid |
| Conductor Material | Bare Copper |
| Certification Standards | ETL, RoHS, TIA |
