Product Overview

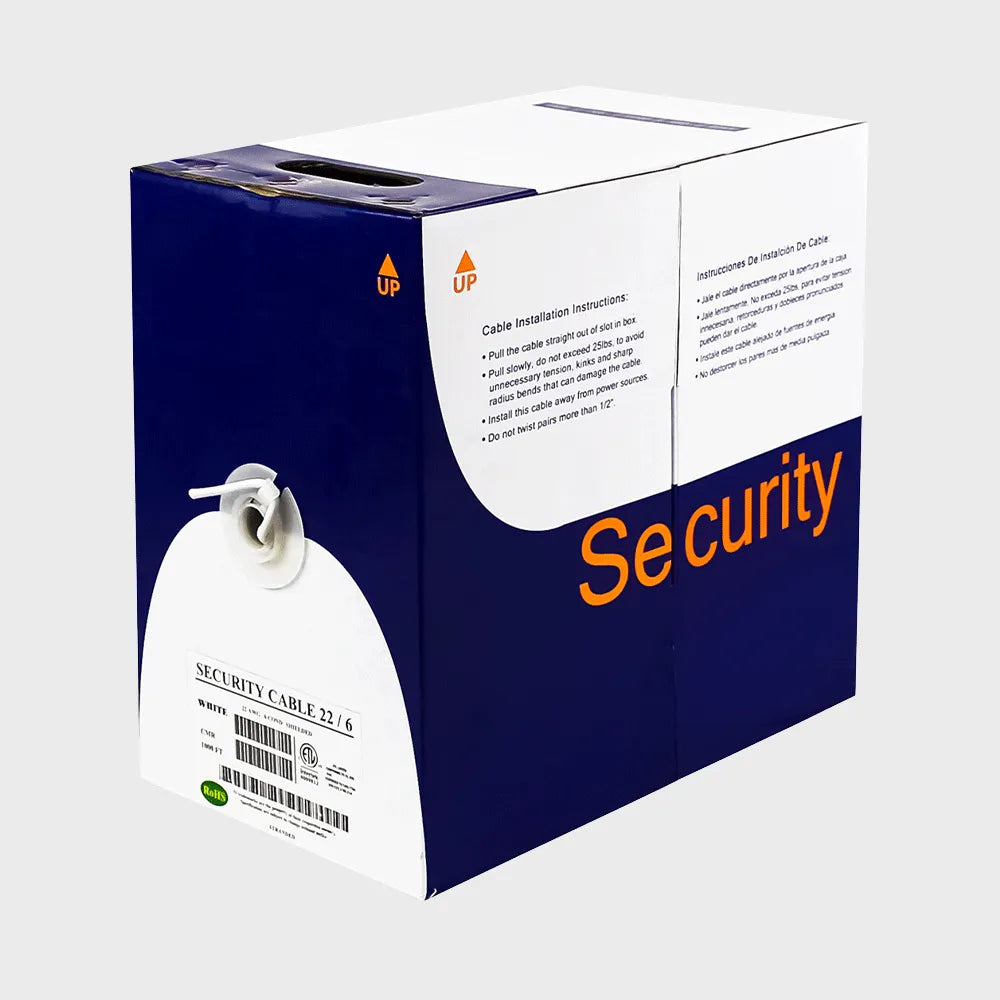

The Wavenet SC2206SRWH1-S is a premium 22/6 stranded bare copper shielded security cable designed for professional alarm and security system installations requiring EMI/RFI protection. This 1000ft pull pack features six color-coded conductors (Green, Red, Black, White, Brown, Blue) with a low-smoke aluminum mylar shield and 24 AWG tinned copper drain wire, all wrapped in a white FR-PVC jacket rated CMR for riser applications.
Key Specifications
| Conductor | 22 AWG Stranded Bare Copper (7 strands) |
| Conductor Count | 6 (Green, Red, Black, White, Brown, Blue) |
| Insulation | PVC, 0.007" Diameter |
| Shield | Low Smoke Aluminum Mylar Foil + 24 AWG Tinned Copper Drain Wire |
| Jacket | FR-PVC, 0.015" (0.38mm) Thickness |
| Jacket Color | White |
| Overall Diameter | 0.163" (4.14mm) |
| Voltage Rating | 300V RMS |
| Temperature Rating | -20°C to 75°C |
| Rating | CMR (Riser) / FT4 |
| Approvals | Intertek ETL Listed |
| Length | 1000ft Pull Pack (REELEX II) |
| Weight | 28 lb (nominal) |
| Rip Cord | Yes |
Shielded Construction
The low-smoke aluminum mylar foil shield combined with a 24 AWG tinned copper drain wire provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI). This makes the SC2206SRWH1-S the ideal choice for installations near power lines, motors, or other sources of electrical noise where signal integrity is critical.
Applications
This 22/6 stranded shielded security cable is purpose-built for Class 2 power-limited circuit and communications applications. It is the ideal choice for wired alarm systems, access control panels, intercom systems, and general-purpose low-voltage signal transmission in riser-rated environments where shielding is required.
Why Choose This Cable?
The stranded bare copper conductors provide superior flexibility compared to solid-core alternatives, making installation through tight conduit paths significantly easier. The six color-coded conductors simplify multi-zone termination and troubleshooting on the job site. ETL listing ensures compliance with applicable safety standards.
Additional Info & Specs
| Conductor | 22 AWG Stranded Bare Copper (7 strands) |
| Conductor Count | 6 (Green, Red, Black, White, Brown, Blue) |
| Insulation | PVC, 0.007" Diameter |
| Shield | Low Smoke Aluminum Mylar Foil + 24 AWG Tinned Copper Drain Wire |
| Jacket | FR-PVC, 0.015" (0.38mm) Thickness |
| Jacket Color | White |
| Overall Diameter | 0.163" (4.14mm) |
| Voltage Rating | 300V RMS |
| Temperature Rating | -20°C to 75°C |
| Rating | CMR (Riser) / FT4 |
| Approvals | Intertek ETL Listed |
| Length | 1000ft Pull Pack (REELEX II) |
| Weight | 28 lb (nominal) |
| Rip Cord | Yes |
