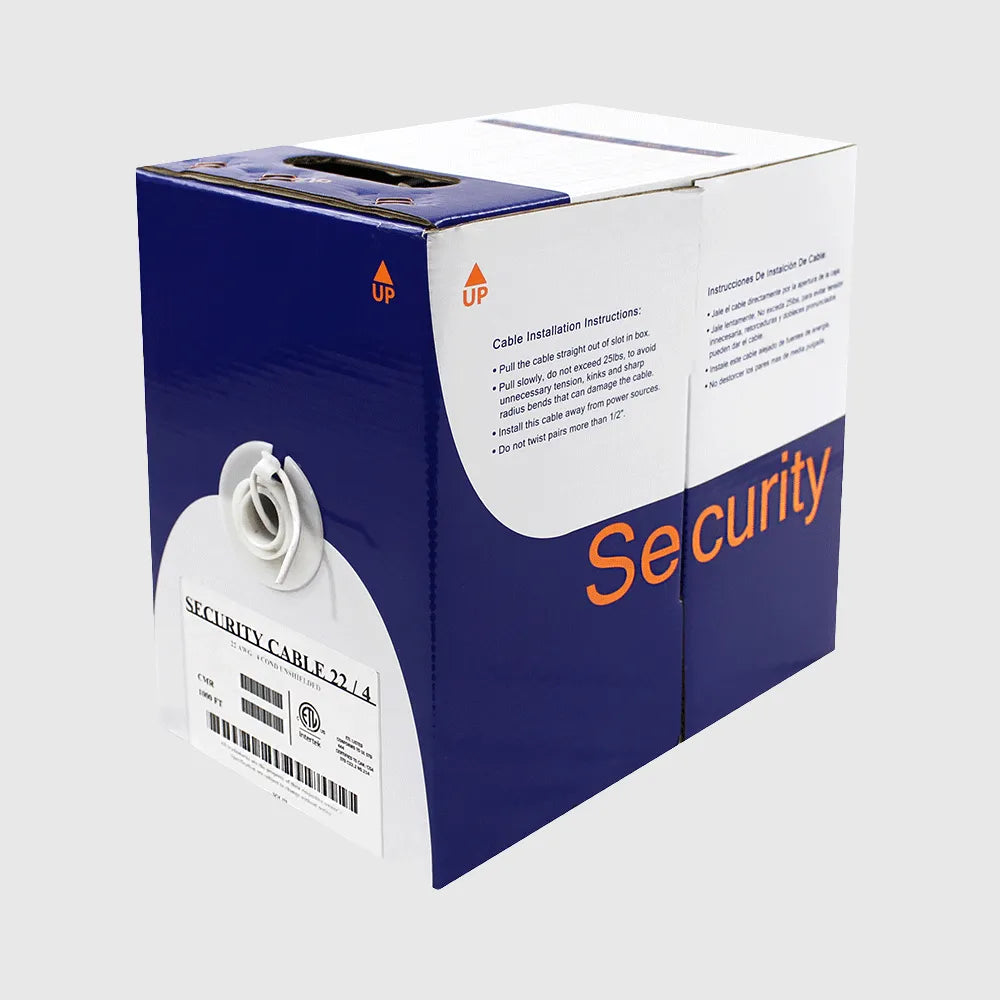

The Wavenet SC2204RXX1 is a high-performance 22/4 solid bare copper security cable designed for reliable signal transmission in security, intercom, and power-limited control systems. Featuring a Riser (CMR) rated jacket, this cable is suitable for vertical runs between floors in commercial and residential buildings. Its solid copper construction ensures superior conductivity and durability for critical security applications.
Electrical Characteristics
| Voltage Rating | 300V RMS |
| Temperature Rating | 75°C |
Physical Characteristics
| Conductor Material | Bare Copper |
| Number of Conductors | 4 |
| AWG Gauge | 22 AWG |
| Conductor Diameter | 0.61 mm |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Diameter | 0.96 mm |
| Insulation Colors | Red, Black, White, Green |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.45 mm |
| Nominal Outside Diameter | 3.20 mm |
| Rip Cord | Yes |
Features and Applications
- 22/4 Solid Bare Copper construction for optimal signal integrity.
- CMR (Riser) rated for safe installation in vertical shafts and non-plenum spaces.
- ETL Listed and verified for safety and performance standards.
- Ideal for security systems, intercoms, alarm signaling, and power-limited circuits.
Uses
Commonly utilized in commercial data centers, residential security networks, and industrial control installations requiring reliable 4-conductor 22AWG wiring.
Construction
This cable is constructed with four solid bare copper conductors, each insulated with color-coded PVC. The assembly is protected by a durable PVC outer jacket. Literal Print String: 22AWG 4 COND SOLID XXXX CMR FT4 C(ETL)US ****FT
Additional Information
- ETL Verified
- RoHS Compliant
- CMR (Riser) Rated — FT4
- Packaging: 1000ft Pull Box (REELEX II)
Additional Info & Specs
| Conductor: | Bare Copper, 22 AWG Solid |
| Conductors: | 4 (Red, Black, White, Green) |
| Insulation: | PVC, 0.96 mm Diameter |
| Jacket: | PVC, 0.45 mm Thickness |
| OD: | 3.20 mm Nominal |
| Voltage: | 300V RMS |
| Temp: | 75°C |
| Rating: | CMR Riser, FT4 |
| Certifications: | ETL Verified, RoHS Compliant |
| Packaging: | 1000ft REELEX II Pull Box |
