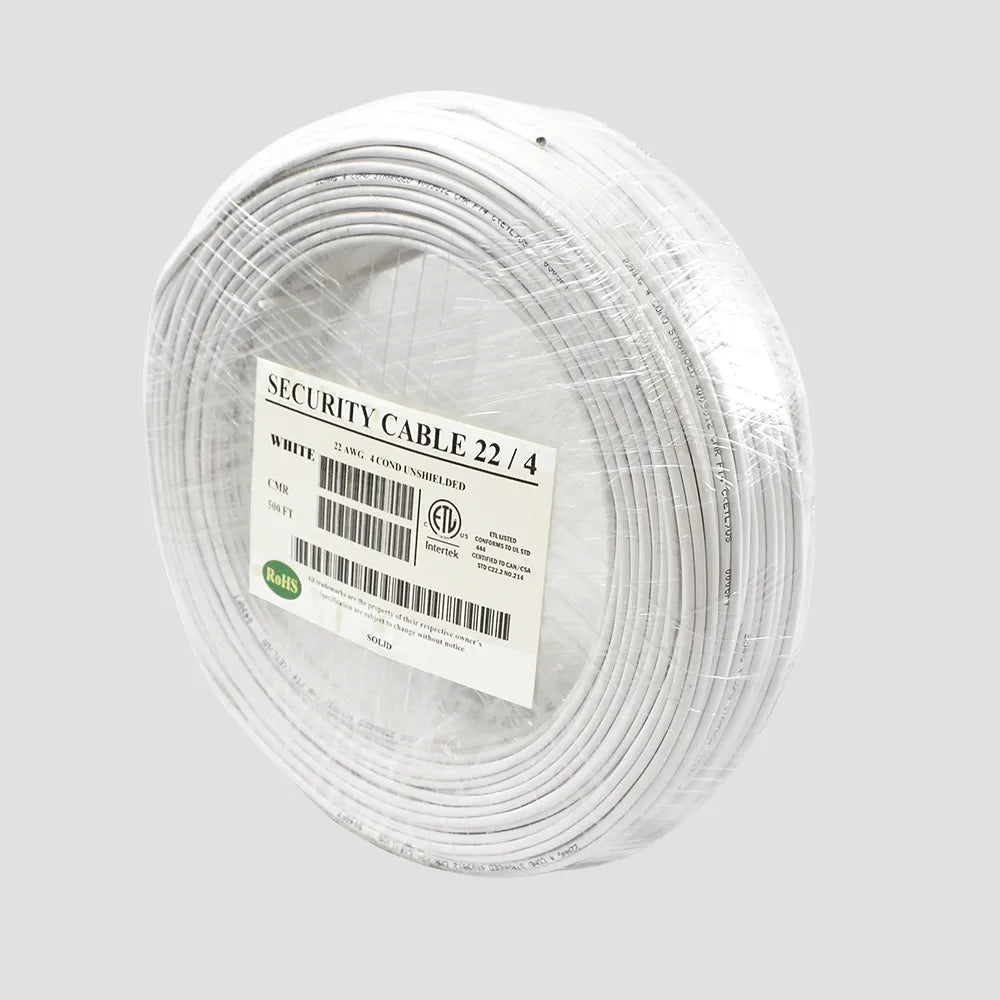

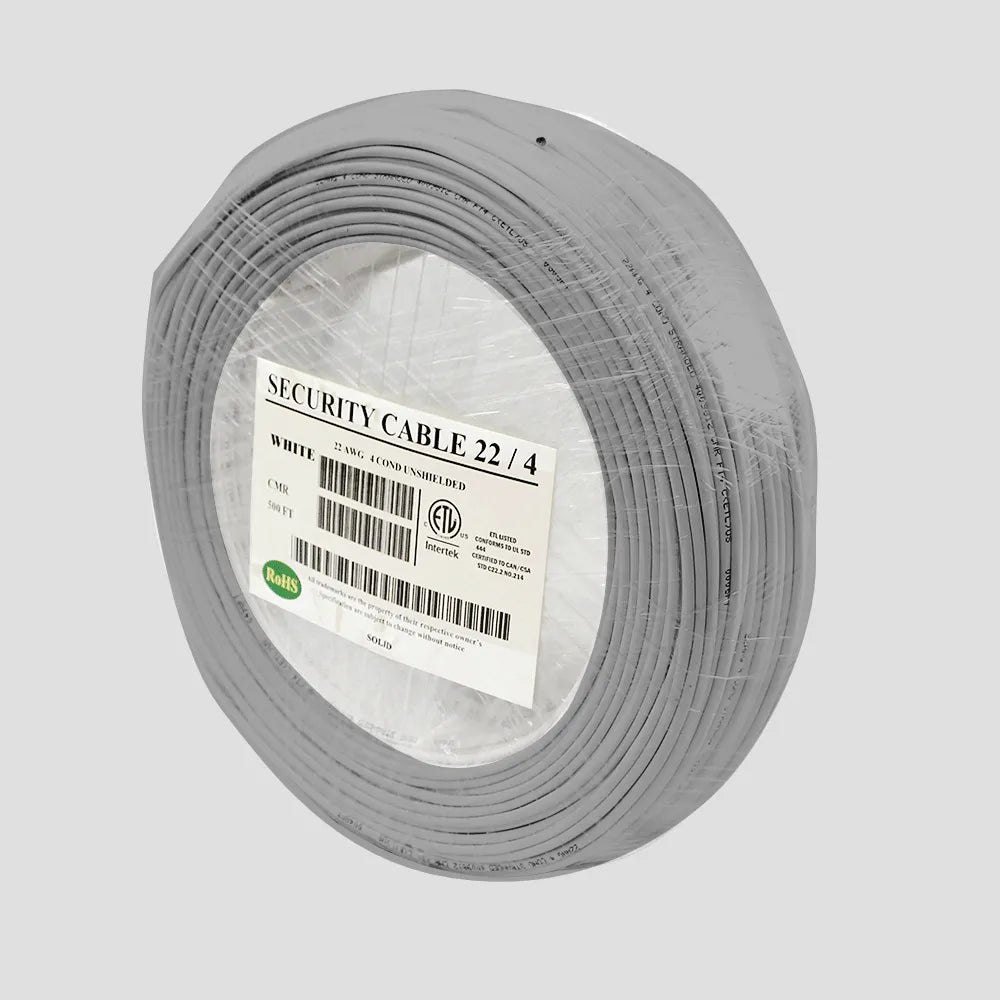

Wavenet SC2204RXX-500 22/4 Solid Copper 4C Riser CMR Security Cable - 500ft Coil Pack
The Wavenet SC2204RXX-500 is a professional-grade 22 AWG 4-conductor solid bare copper security cable engineered for Class 2 power-limited circuit and communications applications. Rated CMR (Riser) and built with a durable PVC jacket, this cable is ideal for smoke detectors, burglar alarms, addressable fire alarm systems, audio distribution, and other low-voltage security installations. Available in Grey and White jacket colors, each 500ft coil pack delivers reliable, code-compliant performance for commercial and residential projects alike.
Electrical Characteristics
| Voltage Rating | 300V RMS |
| Temperature Rating | 75C |
| Conductor Material | Solid Bare Copper |
| Conductor Count | 4 Conductors |
Physical Characteristics
| Conductor AWG | 22 AWG |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Diameter | 0.96 mm |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.45 mm |
| Nominal Outside Diameter | 3.20 mm |
| Shielding | Unshielded (U/UTP) |
| Rip Cord | Yes |
| Insulation Colors | Red, Black, White, Green |
Features and Applications
This CMR riser-rated security cable is designed for vertical runs between floors in commercial buildings. The solid bare copper conductors ensure superior signal integrity compared to copper-clad aluminum (CCA) alternatives. Key features include sequential footage marking for easy measurement during installation, a rip cord for fast jacket stripping, and a robust PVC jacket that resists abrasion and environmental stress. The cable supports power-limited control circuits for security, audio, and background music systems, as well as smoke detectors, burglar alarms, and addressable fire alarm systems.
Uses
Ideal for commercial data center security infrastructure, multi-story building access control systems, residential alarm routing networks, audio distribution systems, and industrial Power-over-Ethernet (PoE) edge device installations requiring a reliable 4-conductor riser-rated pathway.
Construction
The SC2204RXX-500 features four solid bare copper conductors individually insulated with color-coded PVC (Red, Black, White, Green), cabled together with a rip cord and encased in a flame-retardant PVC outer jacket. The cable is unshielded and designed for clean, consistent performance in riser environments.
Jacket Print String: 22AWG 4 COND SOLID XXXX CMR FT4 C(ETL)US ****FT
Additional Information
| Compliance | c(ETL) Listed, CMR, FT4, RoHS Compliant, TIA-569-C.2 |
| Packaging | 500ft Coil Pack (also available in 1000ft Reelex II) |
| Part Numbers | SC2204RGY-500 (Grey), SC2204RWH-500 (White) |
Additional Info & Specs
| Conductor | 22 AWG Solid Bare Copper (4 Conductors) |
|---|---|
| Insulation | PVC |
| Jacket | PVC, CMR Riser Rated |
| Voltage Rating | 300V RMS |
| Temperature Rating | 75C |
| Impedance | 100 +/- 15 Ohms |
| Mutual Capacitance | 6.6 nF/100m max |
| DC Resistance | 16.5 Ohms/100m max |
| Velocity of Propagation | 66% min |
| Certifications | c(ETL) Listed, RoHS Compliant, TIA-569-C.2 |
| Packaging | 500ft Coil Pack |
