Product Overview

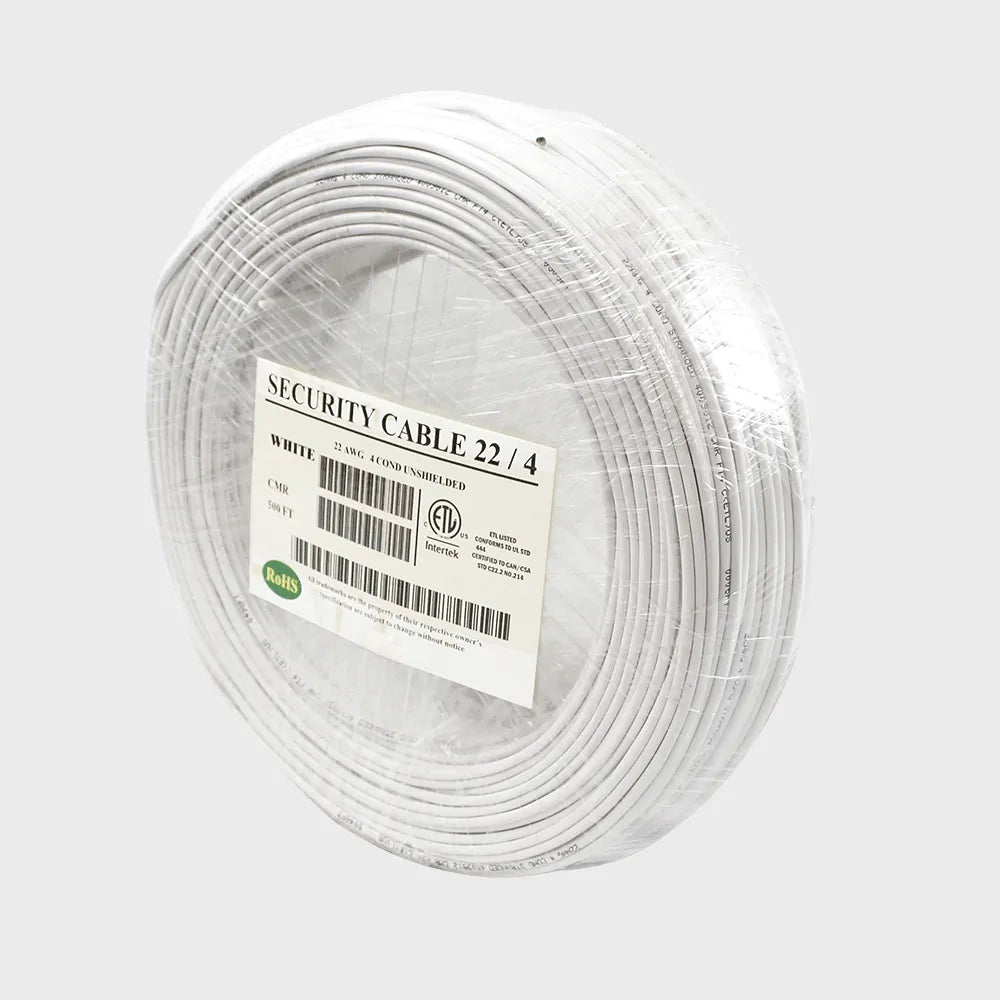

The Wavenet SC2204RWH-500-S is a premium 22/4 stranded bare copper security cable designed for professional alarm and security system installations. This 500ft coil pack features four color-coded conductors (Red, Black, White, Green) with a white PVC jacket, making it ideal for riser (CMR) rated applications in commercial and residential buildings.
Key Specifications
| Conductor | 22 AWG Stranded Bare Copper (7/0.24mm) |
| Conductor Count | 4 (Red, Black, White, Green) |
| Insulation | PVC, 1.10mm Diameter |
| Jacket | PVC, 0.45mm Thickness, 3.60mm Overall Diameter |
| Jacket Color | White |
| Voltage Rating | 300V RMS |
| Temperature Rating | 75°C |
| Rating | CMR (Riser) / FT4 |
| Approvals | Intertek ETL Listed |
| Length | 500ft Coil Pack |
| Rip Cord | Yes |
Applications
This 22/4 stranded security cable is purpose-built for Class 2 power-limited circuit and communications applications. It is the ideal choice for wired alarm systems, access control panels, intercom systems, and general-purpose low-voltage signal transmission in riser-rated environments.
Why Choose This Cable?
The stranded bare copper conductors provide superior flexibility compared to solid-core alternatives, making installation through tight conduit paths and around corners significantly easier. The clear color-coded insulation simplifies termination and troubleshooting on the job site. ETL listing ensures compliance with applicable safety standards.
Additional Info & Specs
| Conductor | 22 AWG Stranded Bare Copper (7/0.24mm) |
| Conductor Count | 4 (Red, Black, White, Green) |
| Insulation | PVC, 1.10mm Diameter |
| Jacket | PVC, 0.45mm Thickness, 3.60mm Overall Diameter |
| Jacket Color | White |
| Voltage Rating | 300V RMS |
| Temperature Rating | 75°C |
| Rating | CMR (Riser) / FT4 |
| Approvals | Intertek ETL Listed |
| Length | 500ft Coil Pack |
| Rip Cord | Yes |
