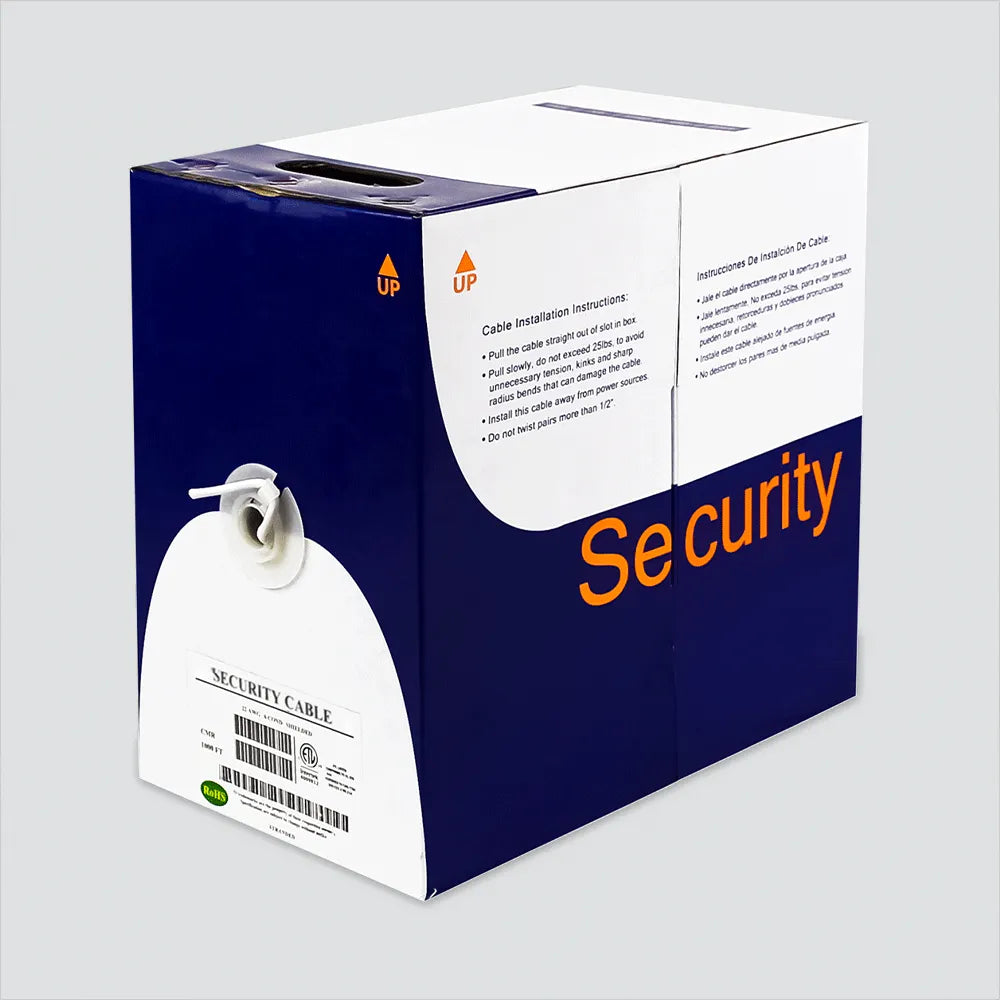

Wavenet SC2202RXX1-S 22/2 Stranded Copper Riser Security Cable - 1000ft Pull Box
The Wavenet SC2202RXX1-S is a professional-grade 22AWG 2-conductor stranded bare copper security cable rated for Riser (CMR) applications. Engineered for reliable low-voltage power-limited circuits and general-purpose communications, this unshielded cable delivers consistent performance for security, intercom, and control installations. Supplied in a 1000ft REELEX II pull box for fast, tangle-free pulls on job sites.
Electrical Characteristics
| Parameter | Value |
|---|---|
| Voltage Rating | 300V RMS |
| Temperature Rating | 75°C |
| Conductor Count | 2 Conductors (22/2) |
| Conductor Type | Stranded Bare Copper - 7 Strands |
| AWG | 22 AWG |
| Shielding | Unshielded (U/UTP) |
Physical Characteristics
| Parameter | Value |
|---|---|
| AWG Gauge | 22 AWG |
| Conductor Material | Stranded Bare Copper |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Jacket Material | Polyvinyl Chloride (PVC) - Riser Rated |
| Overall Diameter (OD) | 3.10 mm |
| Rip Cord | Yes |
| Packaging | 1000ft REELEX II Pull Box |
Features and Applications
- Riser Rated CMR and FT4 flame rating for vertical riser installations
- Unshielded construction for cost-effective general purpose security wiring
- Stranded copper provides flexibility for easy routing and termination
- Rip cord included for quick jacket stripping
- ETL Listed C(ETL)US for safety compliance
Uses
Ideal for Class 2 Power Limited Circuits, security systems, burglar alarms, intercom systems, access control, sound/audio, and general-purpose low-voltage communications in commercial and residential riser environments. Perfect for data centers, office buildings, and multi-floor residential routing where CMR rating is required.
Construction
- Conductor: 22 AWG Stranded Bare Copper (7x30)
- Insulation: PVC, color-coded conductors
- Jacket: PVC, Grey or White options
- Print Legend: 22AWG 2 COND STRANDED XXXX CMR FT4 C(ETL)US ****FT
Additional Information
- Compliance: C(ETL)US Listed, CMR, FT4, RoHS Compliant
- Voltage: 300V RMS
- Temperature: 75°C
- Packaging: 1000ft Pull Box (REELEX II)
- Also available in 500ft options (SC2202RWH-500-S)
Additional Info & Specs
| Spec | Detail |
|---|---|
| Part Number | SC2202RXX1-S / SC2202RGY1-S / SC2202RWH1-S |
| AWG / Conductors | 22AWG 2C (22/2) Stranded Bare Copper 7-strand |
| Voltage / Temp | 300V RMS / 75°C |
| Insulation / Jacket | PVC / PVC CMR Riser |
| OD | 3.10mm |
| Shielding | Unshielded |
| Flame Rating | CMR, FT4 |
| Listing | C(ETL)US Listed |
| Print Legend | 22AWG 2 COND STRANDED XXXX CMR FT4 C(ETL)US ****FT |
| Packaging | 1000ft REELEX II Pull Box |
