Wavenet SC2202R Series — 22/2 Solid Bare Copper CMR Riser Security Cable
Engineered for professional alarm, access control, and security system installations, the Wavenet SC2202R Series delivers reliable signal transmission over long cable runs. Constructed with 100% solid bare copper conductors and a rugged PVC jacket, this CMR-rated riser cable is the ideal choice for commercial and residential security infrastructure where code compliance and long-term performance are non-negotiable.
Electrical Characteristics
| Voltage Rating | 300V RMS |
| Temperature Rating | 75°C |
Physical Characteristics
| Conductor AWG | 22 AWG (Solid Bare Copper) |
| Number of Conductors | 2 (Twisted Pair) |
| Conductor Diameter | 0.61 mm |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Diameter | 0.96 mm |
| Insulation Colors | Black, Red |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.45 mm |
| Overall Cable Diameter | 2.80 mm |
| Rip Cord | Yes |
| Jacket Colors Available | Grey, White |
Features and Applications
The Wavenet SC2202R Series features 22 AWG solid bare copper conductors with PVC insulation and a durable PVC outer jacket. Designed for riser (CMR) applications, this cable is suitable for use in vertical shaft installations between floors in non-plenum spaces. The rip cord simplifies jacket removal during termination, reducing installation time on the job site.
Uses
- Alarm system wiring and security panel connections
- Automation keypads and motion detectors
- Security contacts and magnetic door switches
- Control circuits for access control systems
- General-purpose low-voltage signal transmission in riser environments
Construction
22 AWG solid bare copper conductors with PVC insulation (Black/Red), cabled as a twisted pair, wrapped with a PVC outer jacket. Sequential footage markings are printed along the cable jacket for easy length measurement during installation. The cable includes an integrated rip cord for rapid jacket stripping.
Additional Information
- Safety Rating: CMR (Riser) — c(ETL) US Listed
- Class: Class 2 Power Limited Circuit Cable
- Standards: TIA-568-C.2, RoHS Compliant
- Flame Rating: FT4

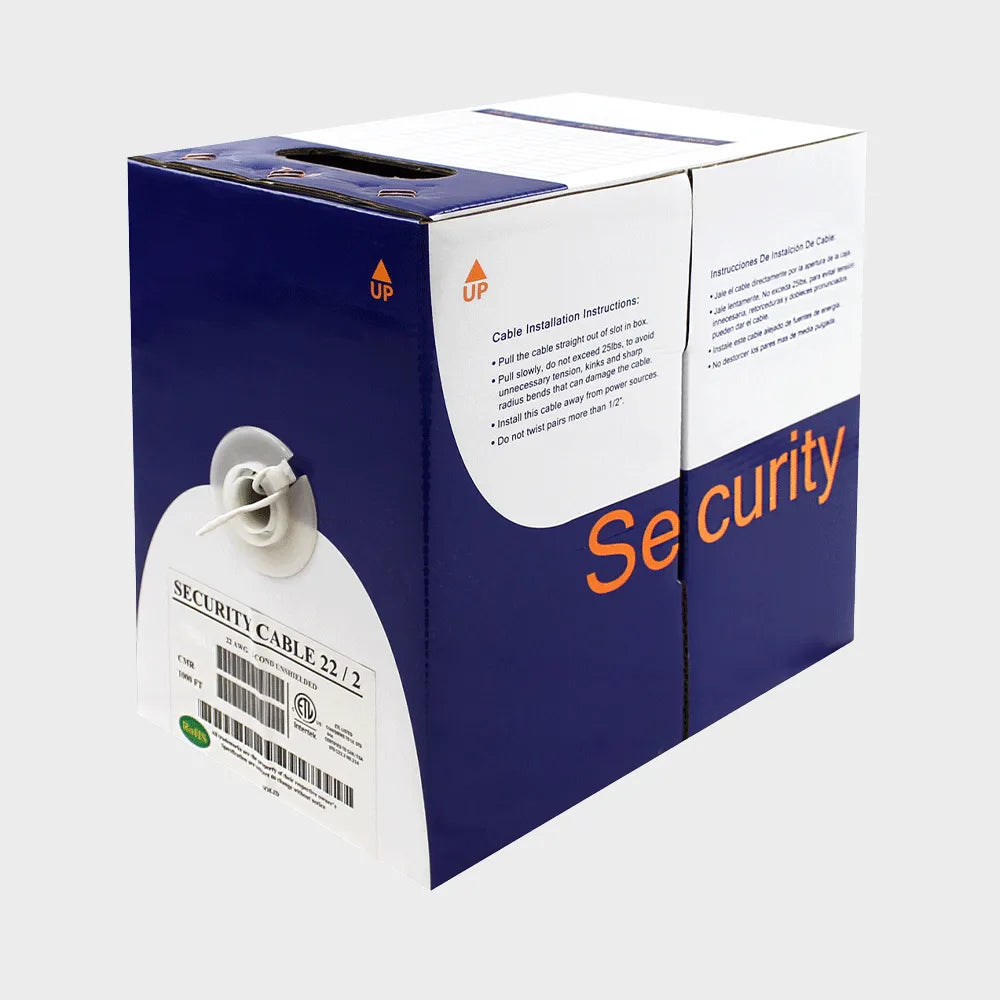

- Packaging: 1000 ft Pull Box (Reelex II)
- Cable Marking: 22AWG 2 COND SOLID XXXX CMR FT4 C(ETL) US ****FT
Additional Info & Specs
| Conductor | 22 AWG Solid Bare Copper |
| Conductors | 2 (Black, Red) |
| Insulation | PVC, 0.96 mm Diameter |
| Jacket | PVC, 0.45 mm Thickness |
| Overall Diameter | 2.80 mm |
| Voltage | 300V RMS |
| Temperature | 75°C |
| Rating | CMR Riser, FT4 |
| Listing | c(ETL) US |
| Standards | TIA-568-C.2, RoHS |
| Packaging | 1000 ft Pull Box |
