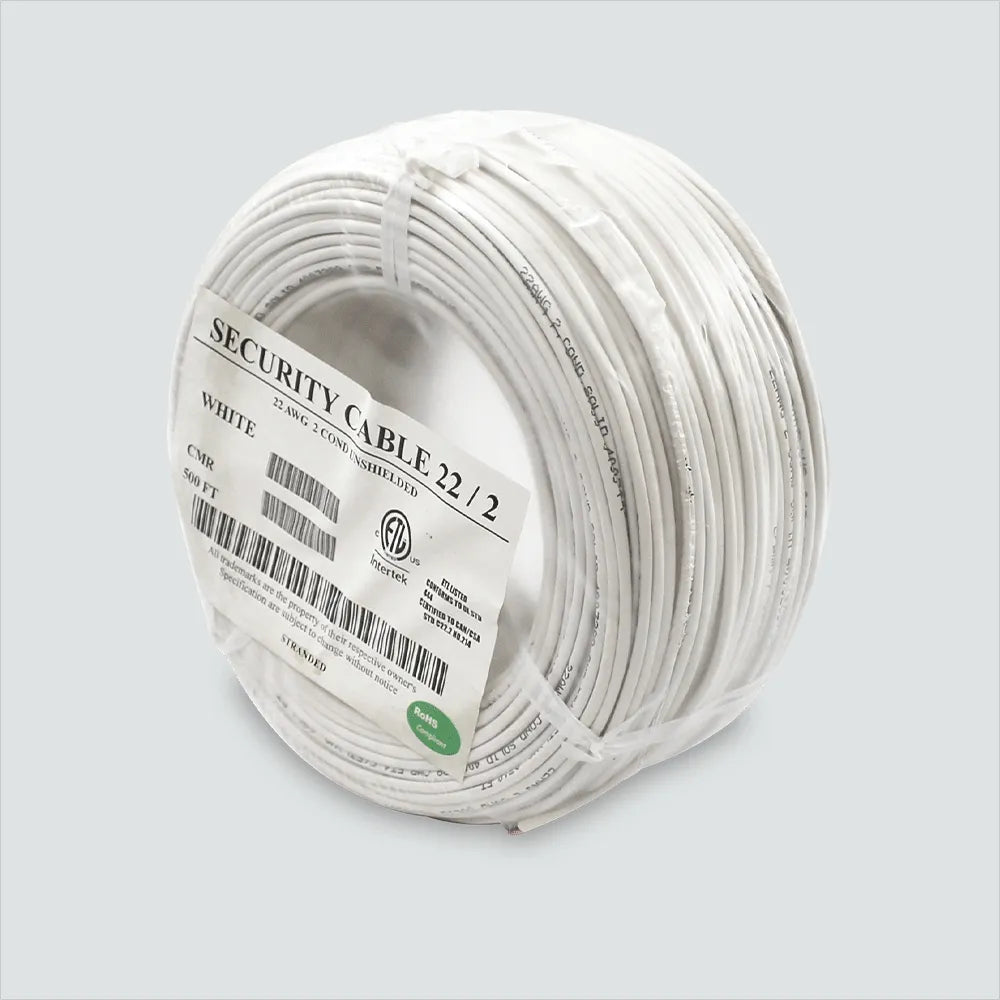

Wavenet SC2202RWH-500-S 22/2 Riser Security Cable - 500ft White Coil Pack
The Wavenet SC2202RWH-500-S is a 22AWG 2-conductor stranded bare copper security cable rated for Riser (CMR) applications. Designed for Class 2 power-limited circuits and general-purpose communications, this 500ft coil pack features a white PVC jacket with red and black PVC-insulated conductors, rip cord for easy stripping, and ETL Listed construction for reliable performance in security, alarm, and access control installations.
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Voltage Rating | 300V RMS |
| Temperature Rating | 75°C |
| Conductor Count | 2 Conductors |
| Conductor Type | Stranded Bare Copper - 7 Strands (7/0.24mm) |
| AWG | 22 AWG |
Physical Characteristics
| Parameter | Specification |
|---|---|
| AWG Gauge | 22 AWG |
| Conductor Material | Stranded Bare Copper |
| Number of Strands | 7 |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Diameter | 1.10 mm |
| Insulation Colors | Red / Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Color | White |
| Overall Diameter | 3.10 mm |
| Jacket Average Thickness | 0.45 mm |
| Rip Cord | Yes |
| Packaging | 500ft Coil Pack |
Features and Applications
- Riser Rated (CMR) - FT4 Rated for vertical riser applications
- ETL Listed - C(ETL)US Certified
- Unshielded construction for general purpose security applications
- Rip cord included for fast and easy jacket stripping
- Class 2 Power Limited Circuit Cable
- Ideal for burglar alarm, intercom, access control, and low-voltage security systems
Uses
Designed for professional installations including security alarm systems, intercom systems, access control, sound and audio, and other low-voltage Class 2 power-limited applications in riser environments. Suitable for residential, commercial, and data center routing where CMR rating is required.
Construction
Conductor: 22AWG Stranded Bare Copper (7/0.24mm), 2 Conductor
Insulation: PVC, 1.10mm diameter, Red/Black color coded
Jacket: White PVC, 3.10mm overall diameter, 0.45mm average thickness
Print Legend: 22AWG 2 COND STRANDED XXXX CMR FT4 C(ETL)US ****FT
Additional Information
- Applicable Standards: Class 2 Power Limited Circuit Cable and Communications, Cable for General Purpose Application
- Approval: ETL Listed Intertek
- Part Number: SC2202RWH-500-S
- Compliance: RoHS Compliant, ETL Verified
- Packaging: 500ft Coil Pack (Also available in 1000ft REELEX II - SC2202RGY1-S, SC2202RWH1-S)
Additional Info & Specs
| Feature | Spec |
|---|---|
| Part Number | SC2202RWH-500-S |
| AWG / Conductors | 22AWG / 2C Stranded Bare Copper (7/0.24mm) |
| Insulation | PVC 1.10mm Red/Black |
| Jacket | White PVC 3.10mm OD, 0.45mm thickness |
| Voltage / Temp | 300V RMS / 75C |
| Rating | CMR Riser FT4, ETL Listed C(ETL)US |
| Rip Cord | Yes |
| Packaging | 500ft Coil Pack |
| Jacket Print | 22AWG 2 COND STRANDED XXXX CMR FT4 C(ETL)US ****FT |
