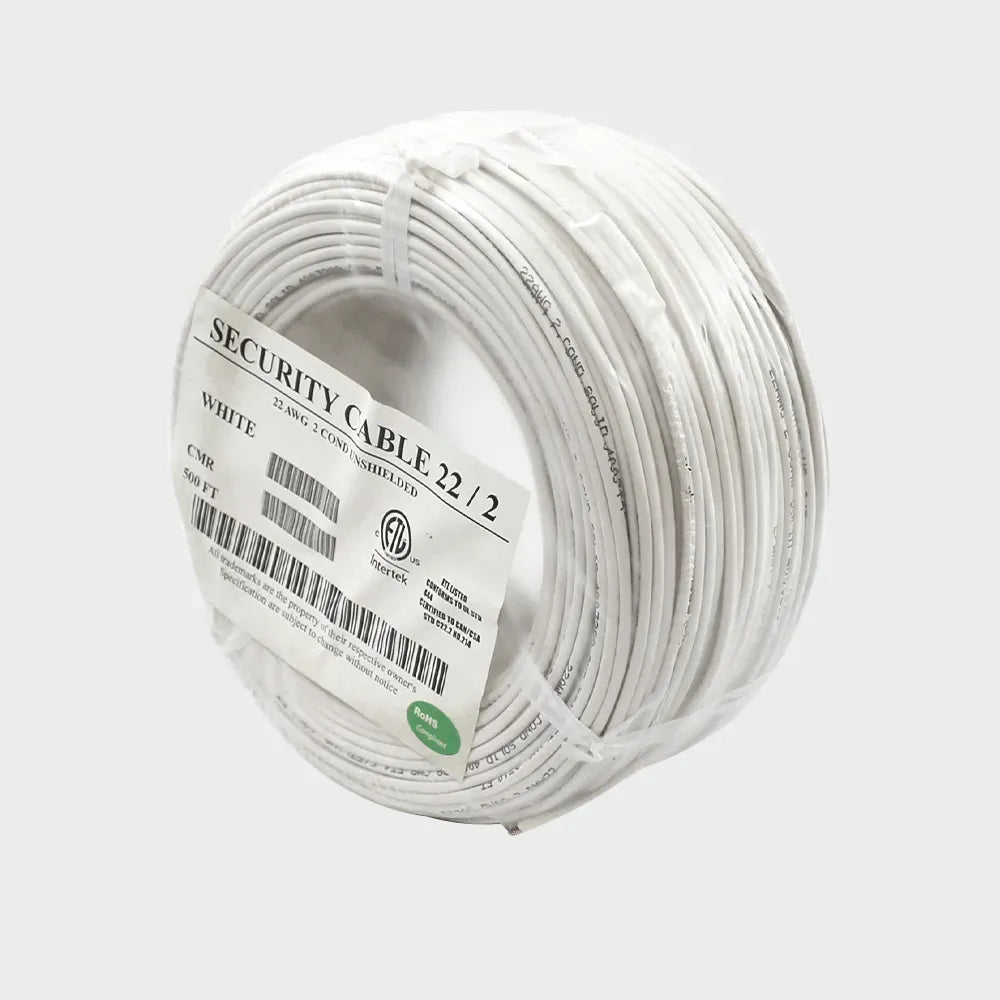

Wavenet SC2202RWH-500 22/2 SOLID 2C Riser 22AWG CMR CL2R 500ft Security Cable (Coil Pack)

Wavenet SC2202RWH-500 — 22/2 Solid Bare Copper CMR Security Cable

Engineered for low-voltage security and general-purpose power-limited applications, the Wavenet SC2202RWH-500 is a 22 AWG 2-conductor solid bare copper riser (CMR) cable with a grey PVC jacket. Rated for 300V RMS at 75°C, this 500ft coil pack delivers reliable signal transmission for Class 2 power-limited circuits in commercial and residential riser environments.

Physical Characteristics

Electrical Ratings

Features and Applications

This unshielded riser (CMR) cable is designed for Class 2 power-limited circuit applications and general-purpose communications cable installations. The solid bare copper conductors ensure stable signal integrity over long runs, while the PVC jacket provides reliable protection in vertical riser pathways. The built-in rip cord simplifies jacket stripping during termination.

Uses

Ideal for security system wiring, access control systems, CCTV installations, intercom systems, and other low-voltage power-limited circuits in commercial buildings, multi-story residential structures, and industrial riser applications.

Construction

Two 22 AWG solid bare copper conductors individually insulated with color-coded PVC (Red/Black), cabled together under a grey PVC outer jacket with an integrated rip cord. Cable marking: 22AWG 2 COND SOLID XXXX CMR FT4 C(ETL) US ****FT.

Additional Information

ETL Listed (c(ETL)us). Complies with CMR (Riser) flame rating and FT4 requirements. Suitable for Class 2 power-limited circuit applications per applicable standards. Available in 500ft coil pack format.
