Wavenet RG6URXX4-500 RG-6 60% Dual Shield (CCS) CMR 18AWG 3.0GHz 500ft Coaxial Cable

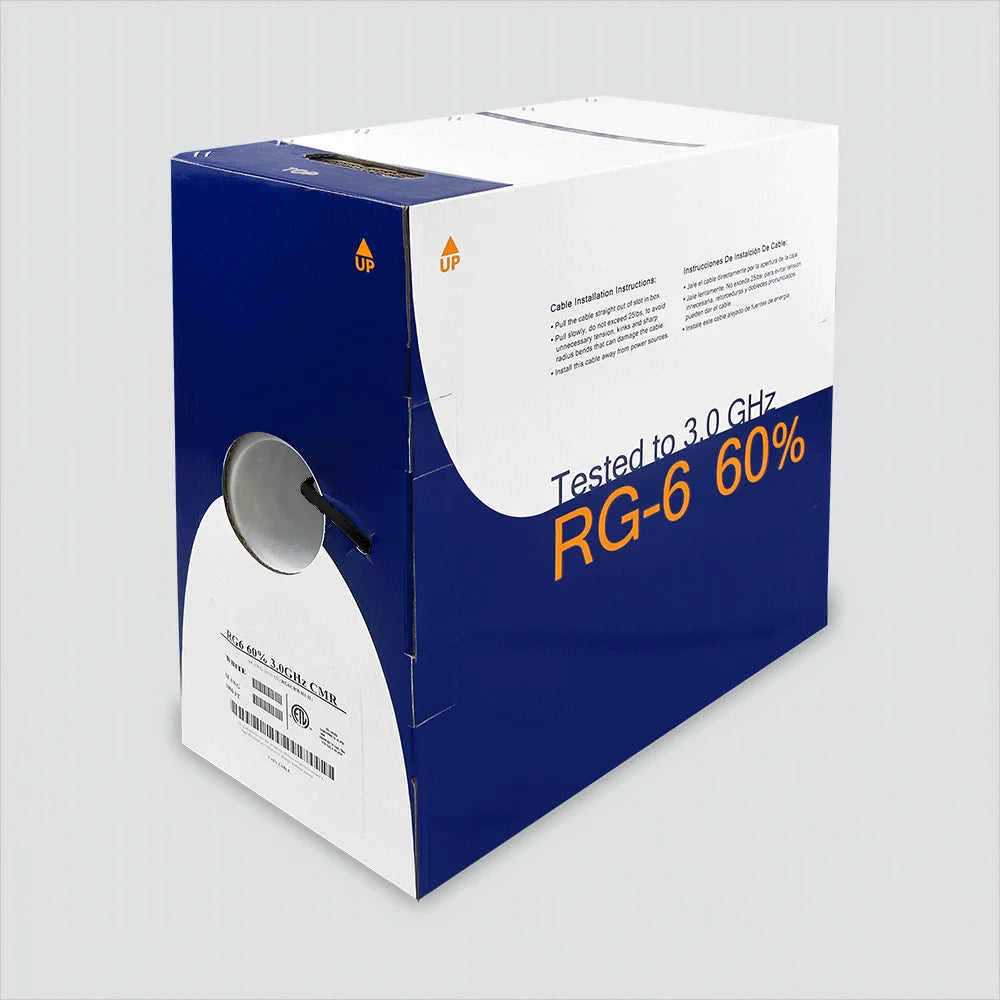

The Wavenet RG6URXX4-500 is a riser-rated (CMR) RG-6 coaxial cable built for professional signal distribution in commercial and residential installations. Packaged in a convenient 500 ft. Pullbox for easy, tangle-free payout on the job site, this cable delivers dual-shield construction and 3.0 GHz sweep-verified performance across a broad range of frequencies. Designed to meet the requirements of broadband networks, CATV, and video distribution systems, it provides the structural integrity and electrical consistency that installers depend on for long, reliable runs through walls and vertical risers.

Product Specifications

Electrical Performance

The cable is sweep-verified to 3.0 GHz. Measured attenuation values (dB/100m) across the frequency range include:

Features and Applications

The RG6URXX4-500 is engineered around a dual-shield system that pairs an aluminum foil layer with a 60% aluminum braid to suppress interference and maintain signal fidelity across the full 3.0 GHz frequency range. The 18 AWG solid copper clad steel center conductor combines adequate conductivity with the tensile strength needed to handle the mechanical stress of pulling cable through conduit, between floors, or along vertical risers.

The Foam PE dielectric insulation maintains consistent impedance across the cable's length, contributing directly to a velocity of propagation of 84% and a low capacitance of 15.5 pF/ft — both important for minimizing signal delay and loss in longer runs. The cable jacket is printed with footage markings and carries c(ETL)US verification, making it traceable and compliant for professional installation environments.

Uses

This riser-rated coaxial cable is suited for a wide range of signal distribution applications, including:

• CATV and broadband networks in multi-dwelling units, apartment complexes, and commercial buildings
• Satellite signal distribution requiring stable impedance and low signal loss across high frequencies
• CCTV and video surveillance systems in commercial, retail, and institutional facilities
• In-building riser runs between floors in structures where CMR-rated (FT4) wiring is required by code
• Professional AV and video signal distribution systems demanding consistent 75 Ohm performance from 5 MHz to 3.0 GHz

Construction

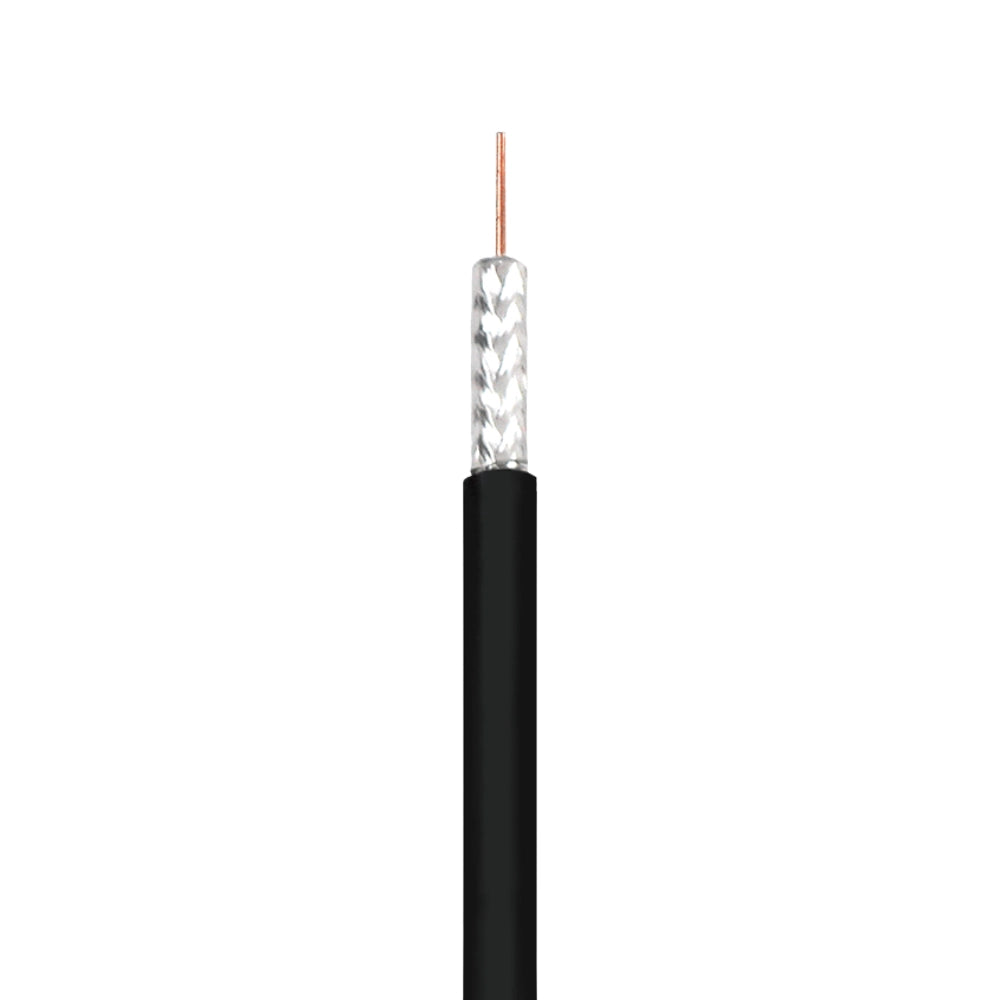

At the center of the cable sits a solid 18 AWG copper clad steel conductor measuring 0.040 inches in diameter, providing the structural strength needed for installation in demanding vertical or long horizontal runs. Surrounding it is a Foam PE insulation layer with a nominal thickness of 0.073 inches and an outer diameter of 0.186 inches, chosen to maintain consistent dielectric properties that support stable signal transmission. An aluminum braid with 60% coverage and a diameter of 0.213 inches forms the shielding layer, protecting the signal from electromagnetic interference. The PVC outer jacket completes the cable and carries the CMR riser rating (FT4), confirming its suitability for in-building vertical runs. Each foot of cable is sequentially marked for easy length verification during installation.

Additional Information

The cable is sweep-verified to 3.0 GHz and carries c(ETL)US listing, confirming it has been independently tested and verified against applicable standards. Applicable standards include SCTE IPS-SP-001, UL 1655, UL 13, UL 444, and RoHS. The cable marking reads: RG6/U 18AWG CMR FT4 XXXX VERIFIED TO C(ETL)US CATV SWEPT TO 3.0 GHZ, providing full traceability on the installed cable. The product is available in black and white jacket colors and in multiple put-up configurations — 500 ft. and 1,000 ft. Pullbox, and 1,000 ft. Reel — to suit different project scales and installation preferences. Wavenet is headquartered at 707 E. Sepulveda Blvd., Carson, CA 90745.
