Wavenet RG6UPWH4 RG-6 60% Dual Shield (CCS) CMP 18AWG 3.0GHz 1000ft White Coaxial Cable

The Wavenet RG6UPWH4 is a plenum-rated RG-6 coaxial cable engineered for demanding signal distribution environments where both performance and fire safety compliance are non-negotiable. Spanning 1,000 feet and packaged in a convenient REELEX II box, this white CMP-rated cable is purpose-built for broadband networks, CCTV installations, CATV, satellite systems, and a wide range of professional video applications. Whether you're running cable through shared air-handling spaces or complex commercial infrastructures, this dual-shield design ensures reliable, high-frequency signal transmission at every foot of the run.

Product Specifications

• Part Number: RG6UPWH4
• Cable Type: RG-6 60% Dual Shield
• Center Conductor: 18 AWG Copper Clad Steel (CCS)
• Shielding: Dual shield — aluminum foil + 60% aluminum braid
• Impedance: 75 Ohm
• Frequency Rating: 3.0 GHz
• Jacket Rating: CMP (Plenum)
• Color: White

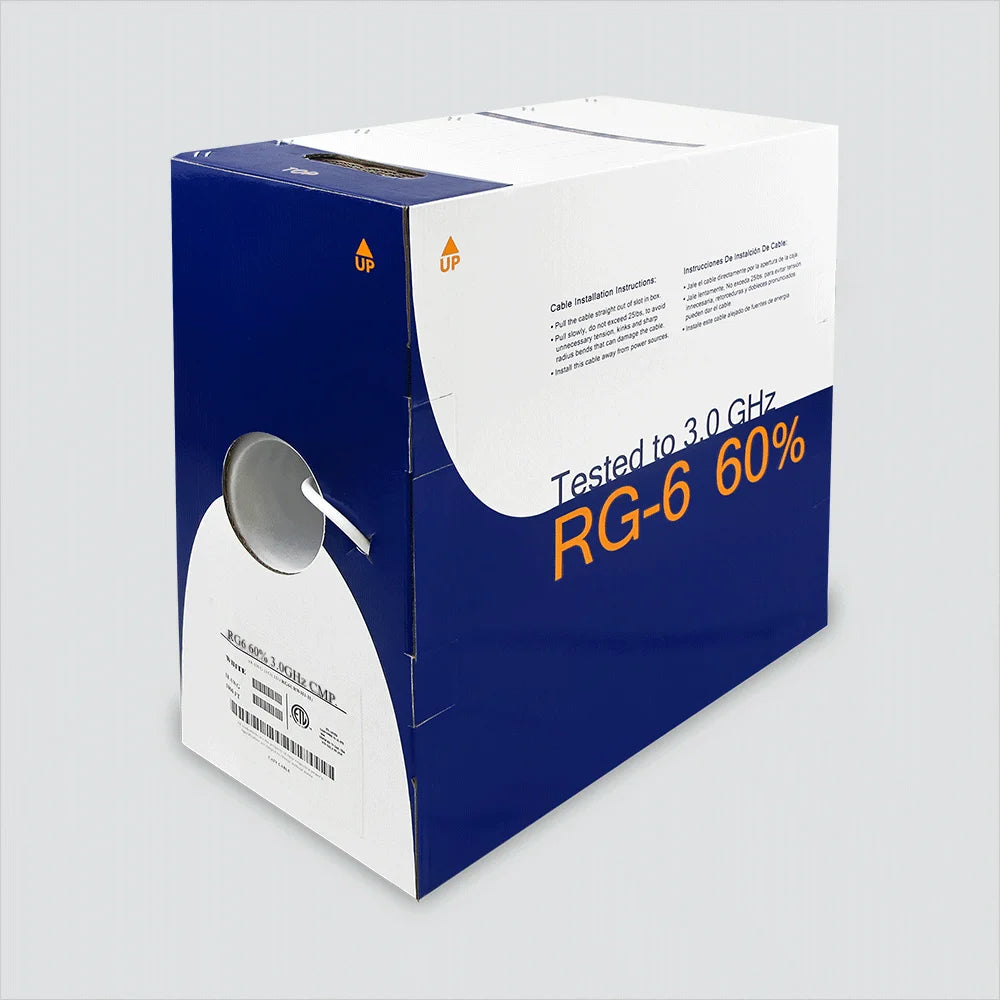

• Put Up / Packaging: 1,000 ft. REELEX II
• Pallet Quantity: 40 boxes (1 pallet)
• Footage Marking: Sequential

Features and Applications

The RG6UPWH4 delivers dual-shield protection through a combined aluminum foil layer and a 60% aluminum braid, working together to minimize signal interference and maintain clean transmission up to 3.0 GHz. The 18 AWG copper clad steel center conductor balances conductivity and structural strength, making it well-suited for longer cable runs without signal degradation. Sequential footage marking printed along the jacket simplifies installation planning and eliminates guesswork when managing large runs through walls, ceilings, and conduit. The REELEX II packaging format allows smooth, tangle-free cable payout directly from the box, which speeds up installation and reduces waste on the job site.

The CMP plenum jacket rating means this cable meets the fire performance requirements for installation in plenum spaces — areas above drop ceilings and within HVAC air-handling pathways — where building codes mandate low-smoke, low-flame materials.

Uses

This cable is designed for professionals and integrators deploying:

• Broadband and cable TV (CATV) networks in multi-tenant buildings, hotels, or campus environments
• Satellite (SAT) distribution systems requiring stable high-frequency transmission
• CCTV and security camera installations across commercial, institutional, or retail facilities
• Professional video signal distribution in applications demanding consistent 75 Ohm impedance
• Plenum-space cable runs in schools, hospitals, office buildings, and any structure subject to commercial building codes requiring CMP-rated wiring

Construction

The cable's layered construction follows a proven coaxial architecture. At the core sits an 18 AWG copper clad steel conductor, chosen for its combination of electrical conductivity and tensile strength — an important factor for long vertical or horizontal runs. Surrounding the conductor is a dielectric insulation layer, followed by an aluminum foil shield that provides full-coverage interference rejection. Over the foil, a 60% aluminum braid layer adds mechanical durability to the shielding system and further attenuates signal loss. The outermost CMP-rated plenum jacket completes the assembly, providing the fire resistance and low-smoke characteristics required for installation in plenum air-handling spaces under standard building and electrical codes.

Additional Information

The RG6UPWH4 carries a c(ETL) listing and is rated FT6 CMP, meeting the requirements of UL444 (Mechanical Properties), TIA-568-C.2, and is fully RoHS compliant — important for projects with environmental material restrictions or those pursuing green building certifications. The product ships in white, making it well-suited for finished interior spaces where aesthetics matter. At 40 boxes per pallet, it is available in quantities appropriate for large commercial projects or distributor stocking. Wavenet also offers this cable family in riser (CMR) variants with bare copper (BC) or copper clad steel (CCS) center conductors, as well as a direct burial outdoor (OSP) version for underground runs, giving integrators a complete coaxial solution across installation environments.
