Wavenet RG6QPWH4-BC RG-6 Quad Shield CMP 18AWG 3.0GHz 1000ft Bare Copper Coaxial Cable

The Wavenet RG6QPWH4-BC is a high-performance RG-6 quad shield plenum-rated coaxial cable engineered for high-bandwidth data and video transmission. Designed to deliver superior signal clarity across challenging commercial environments, this 1000-foot bulk cable features an 18 AWG solid bare copper conductor that guarantees exceptional performance and low attenuation up to 3.0 GHz.

Product Specifications

• Impedance: 75 Ohms ($\pm$3.0 Ohms).

• Capacitance: 15.5 pF/ft..

• Conductor DCR: 6.4 Ohms/1000ft at 20°C.

• Velocity of Propagation: 84%.

• Temperature Rating: -20 to 60°C.

• Frequency Performance: Extends up to 3000 MHz with a low attenuation profile, including 0.40 dB/100FT at 1 MHz, 4.33 dB/100FT at 400 MHz, and 13.80 dB/100FT at 3000 MHz.

• Nominal Weight: 36 lbs. per 1000 ft..

Features and Applications

• Quad Shielding Architecture: Employs four structural shielding layers to prevent signal degradation and isolate external noise.

• High-Frequency Sweep: Swept up to 3.0 GHz to confidently accommodate modern high-frequency infrastructure.

• Regulatory Compliance: Complies fully with standard NEC Article 800 requirements for communications circuits.

• Environmental Responsibility: Manufactured to follow rigid environmental standards and is completely RoHS Compliant.

Uses

• CATV Installations: Specifically engineered for community antenna television systems demanding low-loss broadband distribution.

• Plenum Spaces: Certified for installation within air plenums, drop ceilings, and environmental air ducts without the need for additional conduit.

• High-Bandwidth Networking: Ideal for commercial setups requiring steady connections across frequencies reaching up to 3.0 GHz.

Construction

• Center Conductor: Consists of a solid 18 AWG bare copper core with an exact diameter of 0.040 inches.

• Insulation: Formed with premium foamed FEP insulation measuring 0.170 inches in diameter.

• Shielding Details: Built with an inner aluminum/poly tape shield, a 60% inner aluminum braid, an outer aluminum/poly tape shield, and a 40% outer aluminum braid.

• Jacket Composition: Finished with a protective white plenum polymer jacket featuring a nominal thickness of 0.013 inches and an overall outer cable diameter of 0.260 inches.

Additional Relevant Information

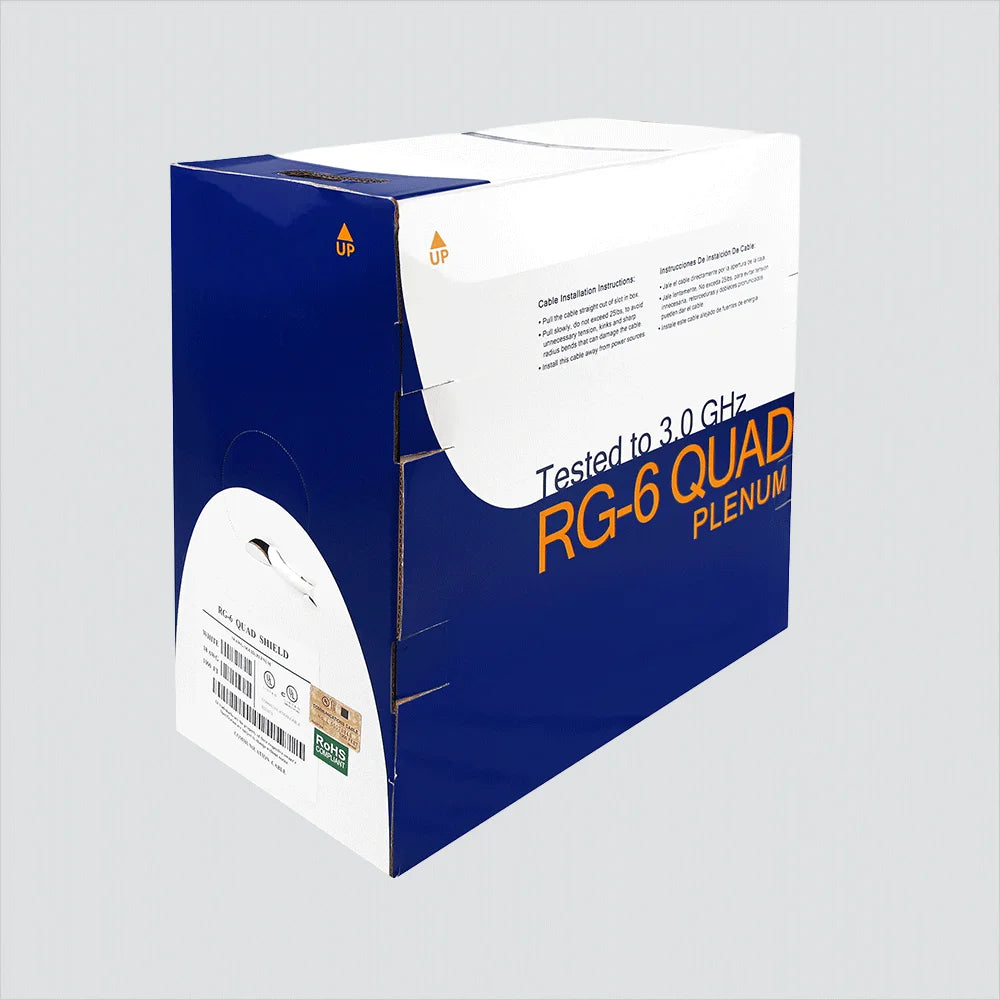

• Packaging: Distributed efficiently in a practical 1000ft Reelex II pull box to eliminate kinking during deployment.

• Industry Safety Approvals: Product is officially UL Verified and includes c(UL)us markings.

• Cable Legend Markings: The surface contains the explicit verification stamp: "XXXXXX 18AWG CMP FT6 BC RG6/U QUAD SHIELD VERIFIED TO C(UL)US CATV SWEPT TO 3.0 GHZ.
