Wavenet RG11RXX2 RG-11 60% Dual Shield (CCS) CMR 14AWG 3.0GHz 1000ft Reel Coaxial Cable

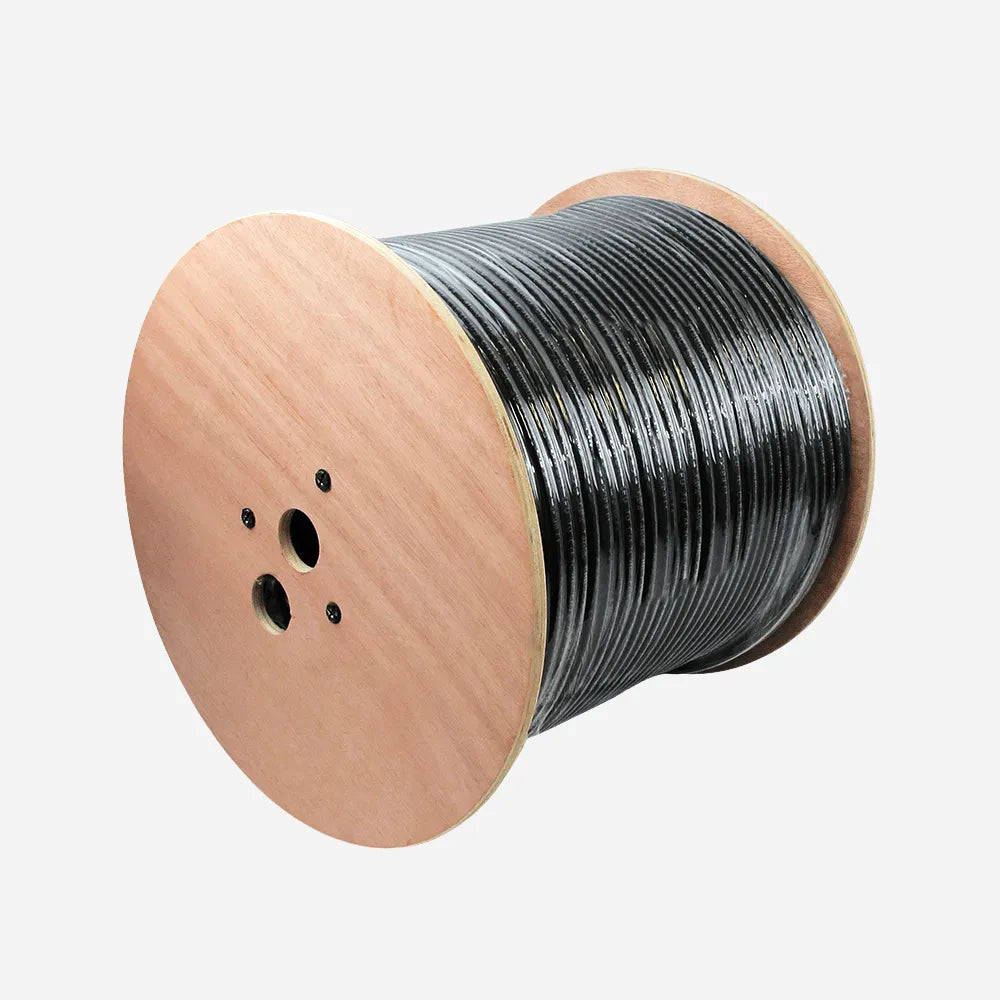

The Wavenet RG11RBK2 is a professional-grade RG-11U 60% Shield Riser (CMR) Broadband Coaxial Cable designed for high-performance CATV signal distribution where longer cable runs and lower signal loss are priorities. Built on a 14 AWG Copper Clad Steel center conductor and verified to 3.0 GHz, this 1000-foot black-jacketed reel meets the rigorous demands of modern broadband systems in both residential and commercial riser installations. ETL listed by Intertek and compliant with multiple industry standards, it is a trusted solution for installers who need reliable, code-compliant coaxial cable on large-scale projects.

Product Specifications

Electrical Characteristics

Physical Characteristics

Electrical Performance — Attenuation (dB/100m)

Features and Applications

RG-11 coaxial cable is a larger-gauge alternative to RG-6, and that larger conductor diameter translates directly into lower attenuation across the frequency spectrum. The attenuation figures above — just 15.08 dB/100m at 1000 MHz and 26.89 dB/100m at 3000 MHz — reflect the signal-retention advantage that makes RG-11 the preferred choice for long trunk runs where cumulative signal loss would otherwise degrade picture quality or data throughput.

The aluminum braid shield at 60% coverage, combined with the bonded laminated aluminum tape (foil) layer visible in the cable cross-section, provides effective protection against radio frequency interference (RFI) and electromagnetic interference (EMI). The CMR (Communications Multipurpose Cable, Riser) rating qualifies this cable for vertical runs between building floors, satisfying fire-spread requirements imposed by UL 1655 and related standards without requiring plenum-rated cable in non-plenum spaces. The operating temperature range of -20°C to 60°C accommodates installation in unconditioned environments such as attics and utility spaces.

Uses

The RG11RBK2 is particularly well suited for long-distance trunk and distribution runs in CATV head-end systems, apartment complexes, hotels, and commercial buildings where signal must travel significant distances before reaching the first tap or splitter. Its low attenuation profile makes it the practical choice for runs that would exceed the loss budget of RG-6 cable, deferring or eliminating the need for additional amplification. The 3.0 GHz sweep verification ensures compatibility with current and emerging broadband CATV channel plans, including high-split and full-duplex architectures that use frequencies well above 1 GHz. Riser-rated construction makes it directly applicable to multi-story residential and commercial installations governed by local building codes.

Construction

The center of the cable is a 14 AWG solid Copper Clad Steel conductor, 0.06377 inches in diameter — meaningfully larger than the 18 AWG conductor found in standard RG-6 cable. This heavier conductor is the primary reason RG-11 achieves lower DC resistance (12.7 ohms/1000ft) and lower signal attenuation at every measured frequency. Surrounding the conductor is Foam Polyethylene dielectric insulation, 0.1107 inches thick, which brings the insulation diameter to 0.2854 inches and contributes to the cable's 82% velocity of propagation and 15.5 pF/ft capacitance.

The shielding system consists of a bonded laminated aluminum tape layer and an aluminum braided shield at 60% coverage. The bonded construction keeps the foil adhered to the dielectric, which maintains shielding integrity during installation and reduces the risk of foil separation at connector terminations. The PVC outer jacket — also 0.1107 inches thick — brings the finished cable diameter to 0.4 inches and provides the mechanical protection and flame-spread resistance appropriate for riser-rated indoor installations.

The cable carries the permanent jacket marking: RG11 60% 14AWG CMR FT4 XXXXXX AL BRAID VERIFIED TO C(ETL) US CATV 75C SWEPT TO 3.0 GHZ ****FT, confirming ETL certification and 3.0 GHz performance at the point of installation inspection.

Additional Information

Applicable Standards

The RG11RBK2 is manufactured to the RG-11U 60% Coaxial Cable 75 Ohm Broadcast Coaxial specification and complies with SCTE IPS-SP-001, UL 1655, UL 13, UL 444, and ROHS. Third-party ETL listing is provided by Intertek.

Part Number, Color, and Packaging

The 1000-foot reel format suits large-scale distribution projects and backbone wiring runs, reducing the number of reels needed on major installations and minimizing mid-run splices that can introduce signal loss and reliability concerns.
