Wavenet AC1604UPBK4-500 16/4 OFC Plenum Stranded Audio Cable
The Wavenet AC1604UPBK4-500 is a premium 16AWG 4-conductor stranded bare copper audio cable with a plenum (CMP) rating, designed for remote control, signaling, and power-limited circuit applications. Constructed with high-strand oxygen-free copper (OFC) conductors and a Remguard Plenum Polymer jacket, this 500-foot cable delivers superior signal integrity and fire safety compliance for commercial installations.
Key Features
- 16AWG 4-Conductor Stranded Bare Copper — High-strand OFC for excellent conductivity and flexibility
- Plenum (CMP) Rated — NEC Article 800 / CMP FT6 compliant for use in air-handling spaces

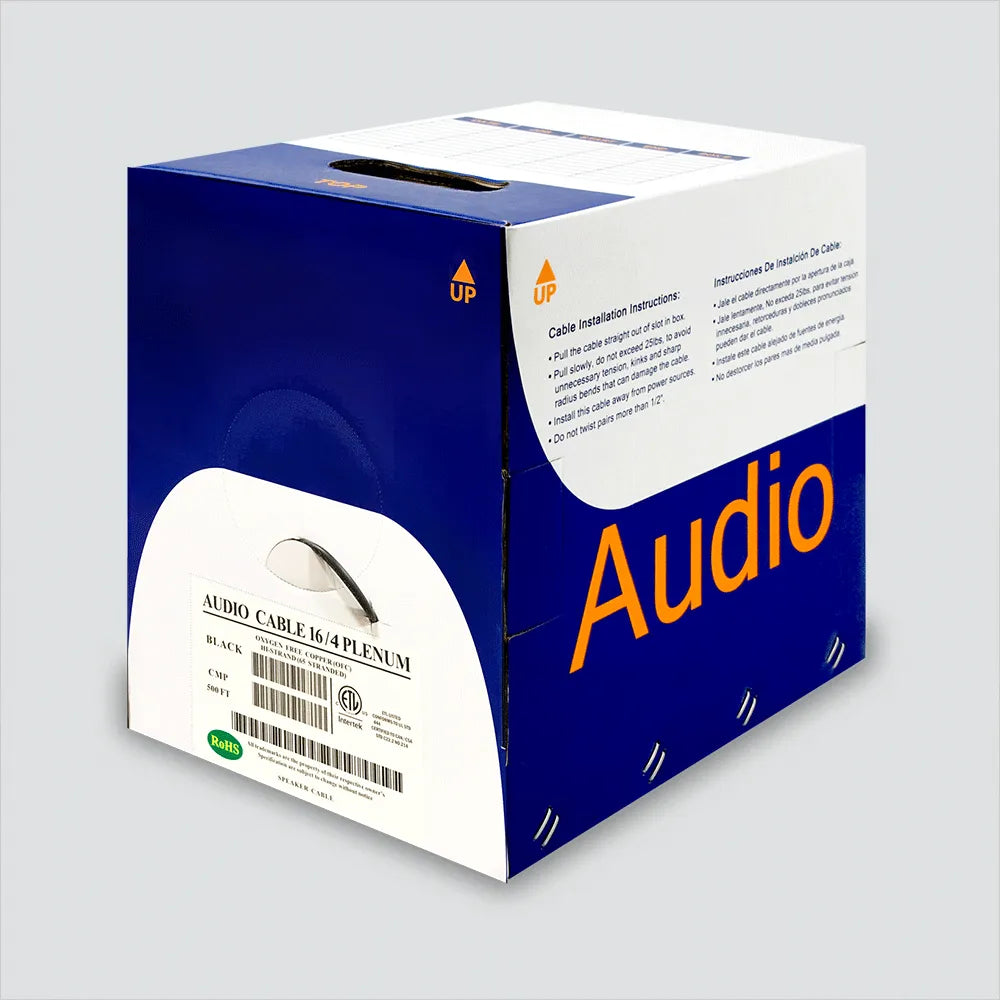

- 500FT REELEX II Packaging — Tangle-free payout for fast, efficient installation

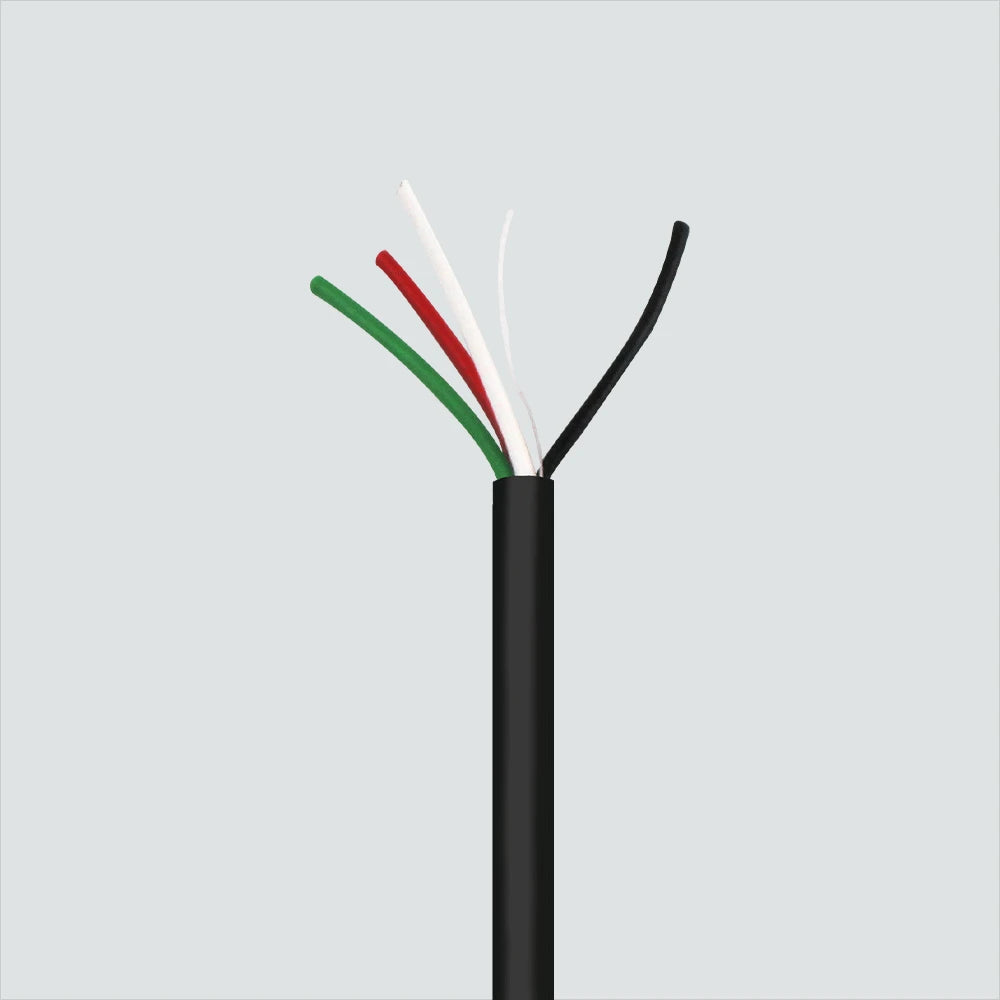

- Color-Coded Conductors — Black, Red, Green, and White insulation for easy identification
- ETL Listed — Certified to applicable safety standards
Technical Specifications
| Conductor Material | Stranded Bare Copper (OFC) |
| Number of Conductors | 4 |
| AWG | 16 |
| Insulation Material | Remguard Plenum Polymer |
| Nominal Insulation Diameter | 0.072 in |
| Nominal Insulation Thickness | 0.007 in |
| Jacket Material | Remguard Plenum Polymer |
| Nominal Jacket Diameter | 0.205 in |
| Nominal Jacket Thickness | 0.015 in |
| Nominal Weight | 44 lbs / 1,000 ft |
| Jacket Color | Black |
| Insulation Colors | Black / Red / Green / White |
| Length | 500 ft (REELEX II) |
| Rating | CMP / CL3P, 75°C |
| Standards | NEC Article 800, CMP FT6 |
Additional Info & Specs
| Conductor Material | Stranded Bare Copper (OFC) |
| Number of Conductors | 4 |
| AWG | 16 |
| Insulation Material | Remguard Plenum Polymer |
| Nominal Insulation Diameter | 0.072 in |
| Nominal Insulation Thickness | 0.007 in |
| Jacket Material | Remguard Plenum Polymer |
| Nominal Jacket Diameter | 0.205 in |
| Nominal Jacket Thickness | 0.015 in |
| Nominal Weight | 44 lbs / 1,000 ft |
| Jacket Color | Black |
| Insulation Colors | Black / Red / Green / White |
| Length | 500 ft (REELEX II) |
| Rating | CMP / CL3P, 75°C |
| Standards | NEC Article 800, CMP FT6 |
