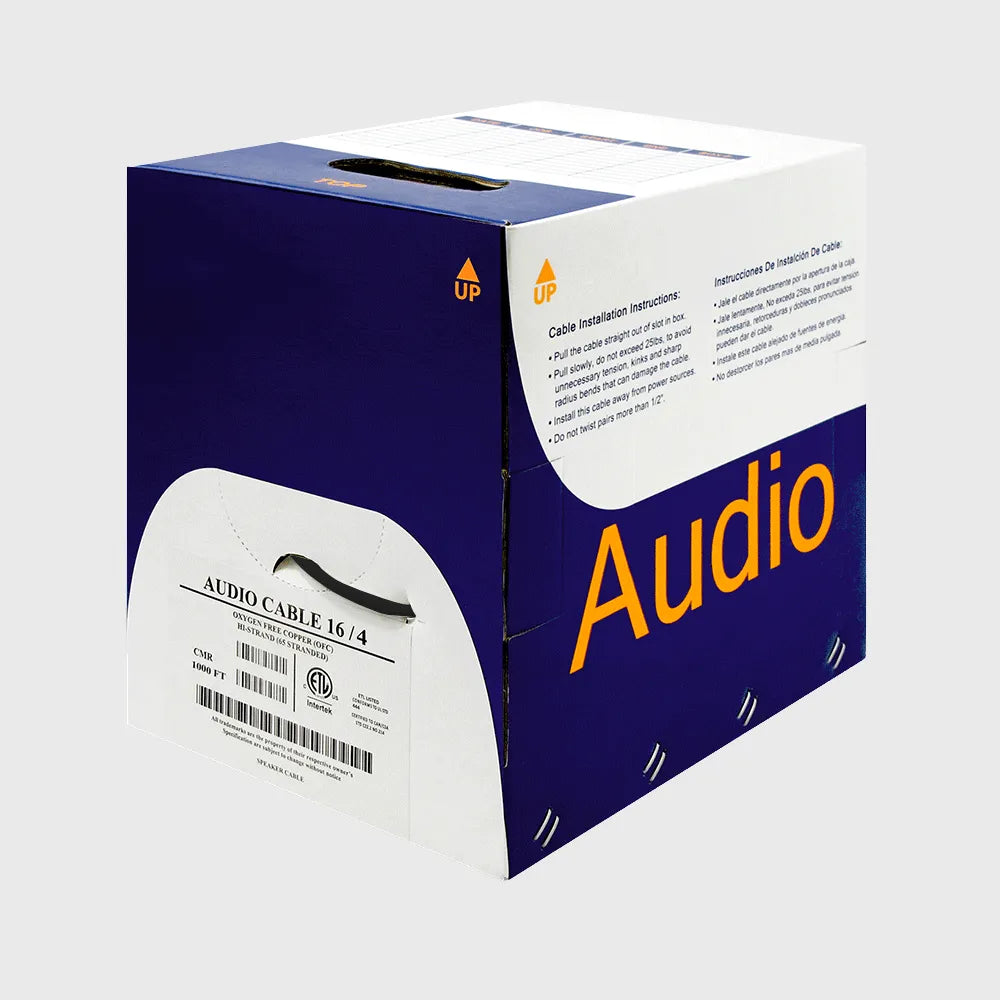

Wavenet AC1604RXX4-500 16/4 OFC Stranded Bare Copper Riser Audio Cable
The Wavenet AC1604RXX4-500 is a premium 16AWG 4-conductor stranded oxygen-free copper (OFC) audio cable designed for in-wall riser (CMR/CL3R) installations. With 65 strands per conductor and a flexible PVC jacket, this cable delivers excellent signal clarity for commercial and residential sound systems.
Key Features
- 16 AWG 4-conductor stranded OFC bare copper
- CMR (Riser) / CL3R rated for in-wall installations
- 65 strands per conductor for maximum flexibility
- PVC insulation with overall PVC jacket
- Nylon rip cord for easy jacket stripping
- 500 ft REELEX II box — tangle-free payout
- ETL Listed (Intertek)
Technical Specifications
| Conductor | Oxygen-Free Bare Copper (OFC) |
| Number of Conductors | 4 |
| AWG | 16 |
| Stranding | 65 x 0.0063 in |
| Insulation Material | PVC |
| Insulation Diameter | 0.0827 in |
| Assembly Diameter | 0.2008 in |
| Jacket Material | PVC |
| Outer Diameter | 0.248 in |
| Conductor Resistance | 15.5 Ω |
| Nominal Weight | 27 lb |
| Rating | CMR / CL3R / FT4 |
| Temperature Rating | 75°C |
| Length | 500 ft (REELEX II) |
Applications
- In-wall speaker installations
- Commercial sound systems
- Home theater audio
- Background music systems
- Communication and signal control systems
Additional Info & Specs
| Conductor | Oxygen-Free Bare Copper (OFC) |
| Conductor Count | 4 |
| AWG | 16 |
| Stranding | 65 x 0.0063 in |
| Insulation Material | PVC |
| Insulation Diameter | 0.0827 in |
| Assembly Diameter | 0.2008 in |
| Jacket Material | PVC |
| Outer Diameter | 0.248 in |
| Conductor Resistance | 15.5 Ω |
| Rating | CMR / CL3R / FT4 |
| Temperature | 75°C |
| Length | 500 ft (REELEX II) |
| Weight | 27 lb |
| Approval | ETL Listed (Intertek) |
