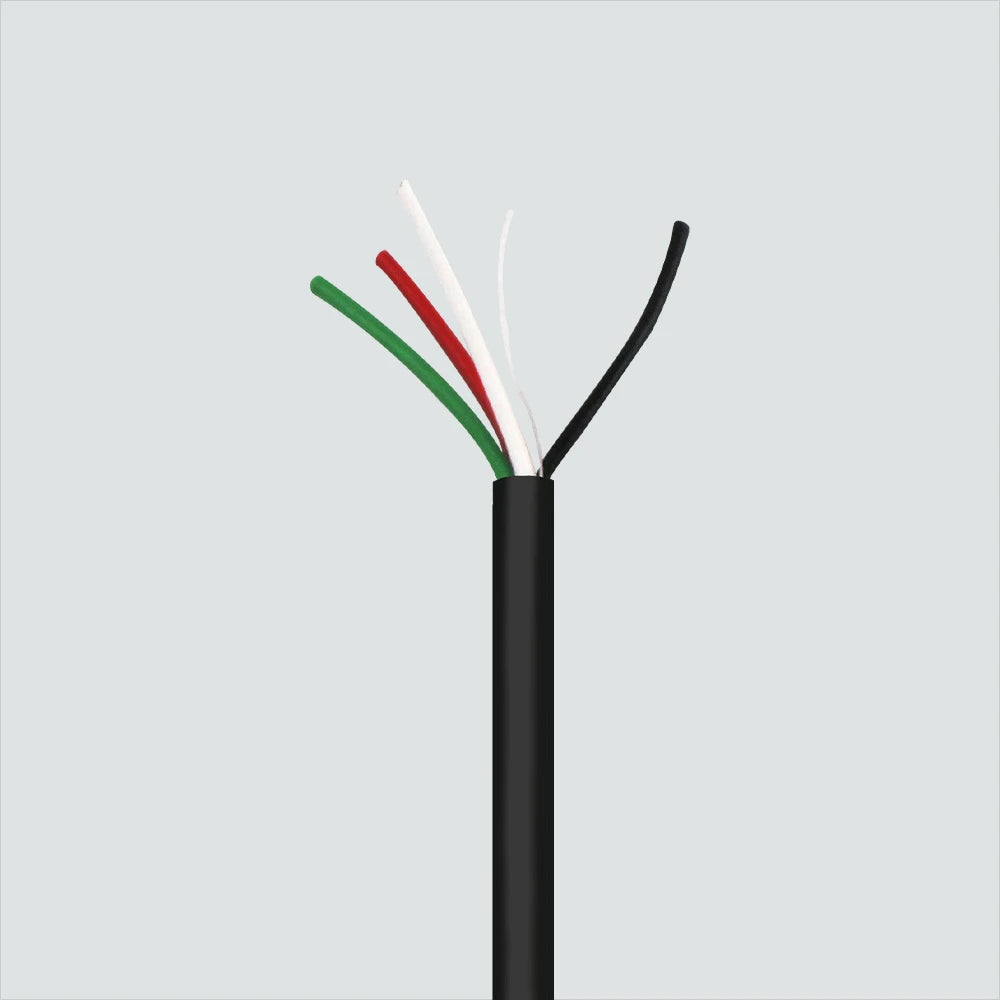

Wavenet AC1604OSPBK4-500 — 16/4 Outdoor Direct Burial Audio Cable (500ft)
The Wavenet AC1604OSPBK4-500 is a professional-grade 16 AWG 4-conductor stranded bare copper audio cable designed for direct burial, outdoor, and riser installations. ETL Intertek Listed and rated CMR/CL3R, this cable delivers reliable signal transmission for distributed audio, security, and communication systems in both residential and commercial environments.
Key Features
- Conductor: 4 x 16 AWG oxygen-free bare copper (OFC), 65-strand construction for superior conductivity and flexibility
- Direct Burial Rated: UV-resistant FR-PVC outer jacket withstands sunlight exposure and underground installation
- Riser Rated (CMR/CL3R): Suitable for in-wall riser runs per NEC Article 725 and 800
- 300V Voltage Rating: Meets requirements for audio, signal, and low-voltage control systems

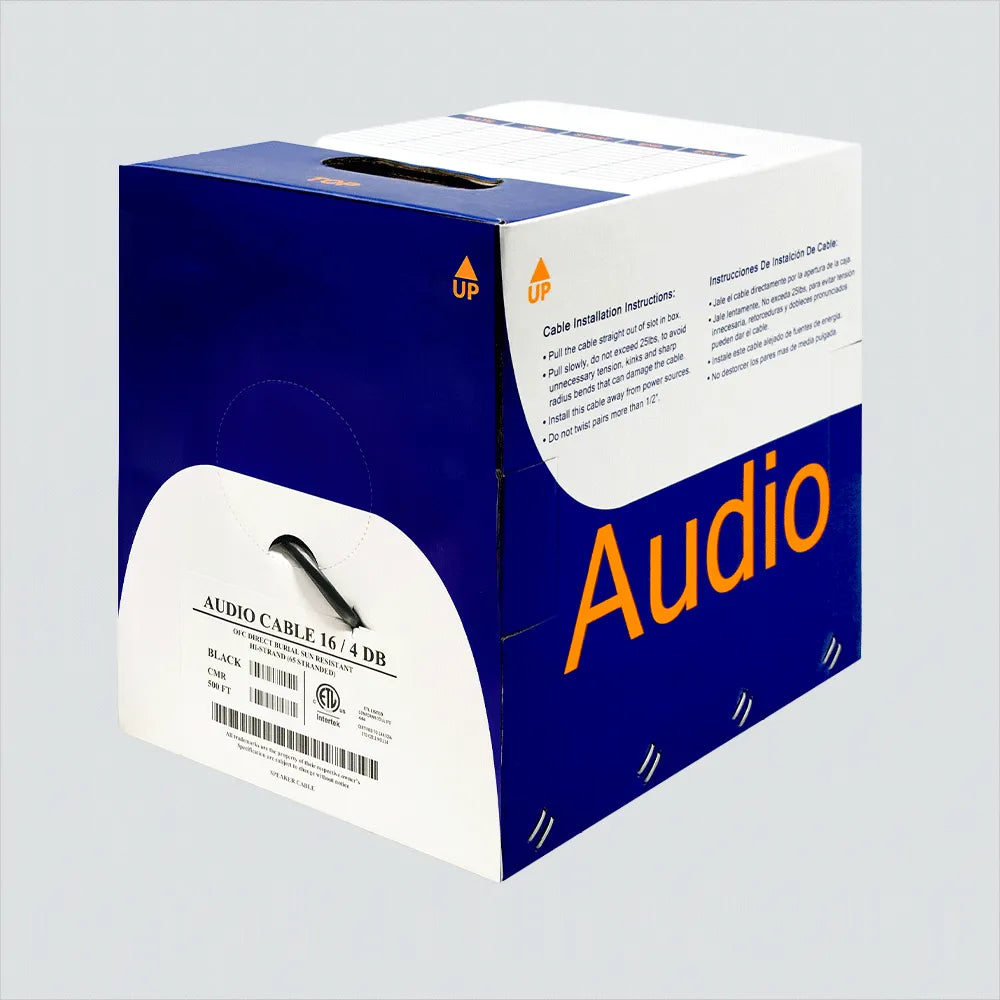

- Reelex II Packaging: Tangle-free 500ft payout for fast, frustration-free installation
- Color-Coded Conductors: Black, Red, White, Green for easy polarity identification
Technical Specifications
| Part Number | AC1604OSPBK4-500 |
| Conductor AWG | 16 AWG (4 conductors) |
| Conductor Material | Oxygen-Free Bare Copper (OFC) |
| Stranding | 65 strands |
| Conductor Diameter | 0.0063 in |
| Conductor Resistance | 15.8 Ω/1000m |
| Insulation Material | PVC |
| Insulation Wall | 0.0098 in |
| Jacket Material | FR-PVC (UV Resistant) |
| Jacket Thickness | 0.02165 in |
| Overall Diameter | 0.2559 in |
| Voltage Rating | 300V |
| Temperature Rating | Sun Resistant (SUN RES) |
| Approvals | ETL Intertek Listed, CMR/CL3R |
| Weight | 28 lbs |
| Length | 500 ft (Reelex II) |
Applications
- Distributed audio systems (70V/100V)
- Outdoor speaker runs and landscape audio
- Direct burial underground installations
- In-wall riser cable pathways
- Security and communication signal systems
Additional Info & Specs
| Part Number | AC1604OSPBK4-500 |
| Conductor AWG | 16 AWG (4 conductors) |
| Conductor Material | Oxygen-Free Bare Copper (OFC) |
| Stranding | 65 strands |
| Conductor Diameter | 0.0063 in |
| Conductor Resistance | 15.8 Ω/1000m |
| Insulation Material | PVC |
| Insulation Wall | 0.0098 in |
| Jacket Material | FR-PVC (UV Resistant) |
| Jacket Thickness | 0.02165 in |
| Overall Diameter | 0.2559 in |
| Voltage Rating | 300V |
| Approvals | ETL Intertek Listed, CMR/CL3R |
| Weight | 28 lbs |
| Length | 500 ft (Reelex II) |
