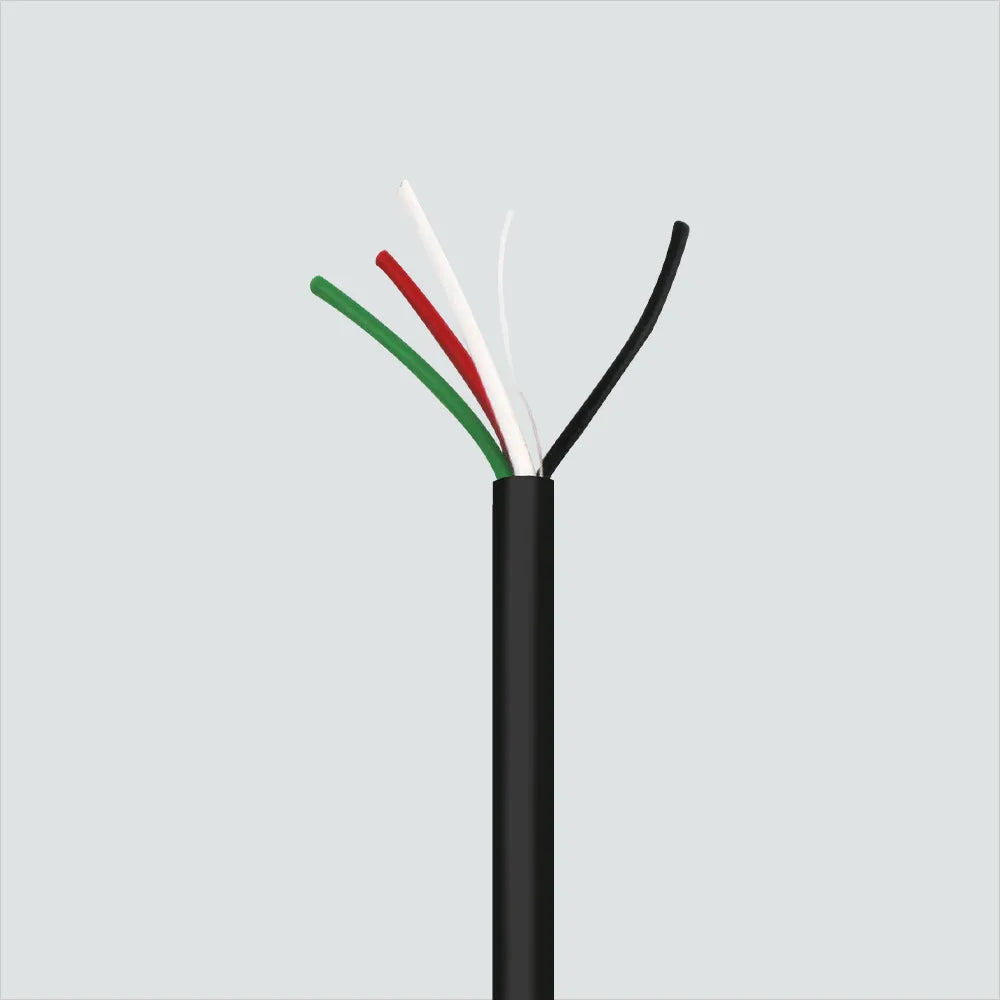

Wavenet AC1604HFXMXX4-500 — 16/4 Stranded Audio Cable
The Wavenet AC1604HFXMXX4-500 is a premium 16AWG 4-conductor stranded audio cable engineered for high-end commercial and residential in-wall rated speaker installations. Built with oxygen-free copper (OFC) strands and a glossy PVC jacket, this cable delivers superior signal clarity and long-term reliability.
Key Features
- 16 AWG, 4 conductors (65 strands of 0.16mm OFC each)
- UV-rated direct burial outdoor rated jacket
- Glossy PVC jacket with paper tape binding
- Sequential footage marking for easy measurement
- Nylon rip cord for easy jacket stripping

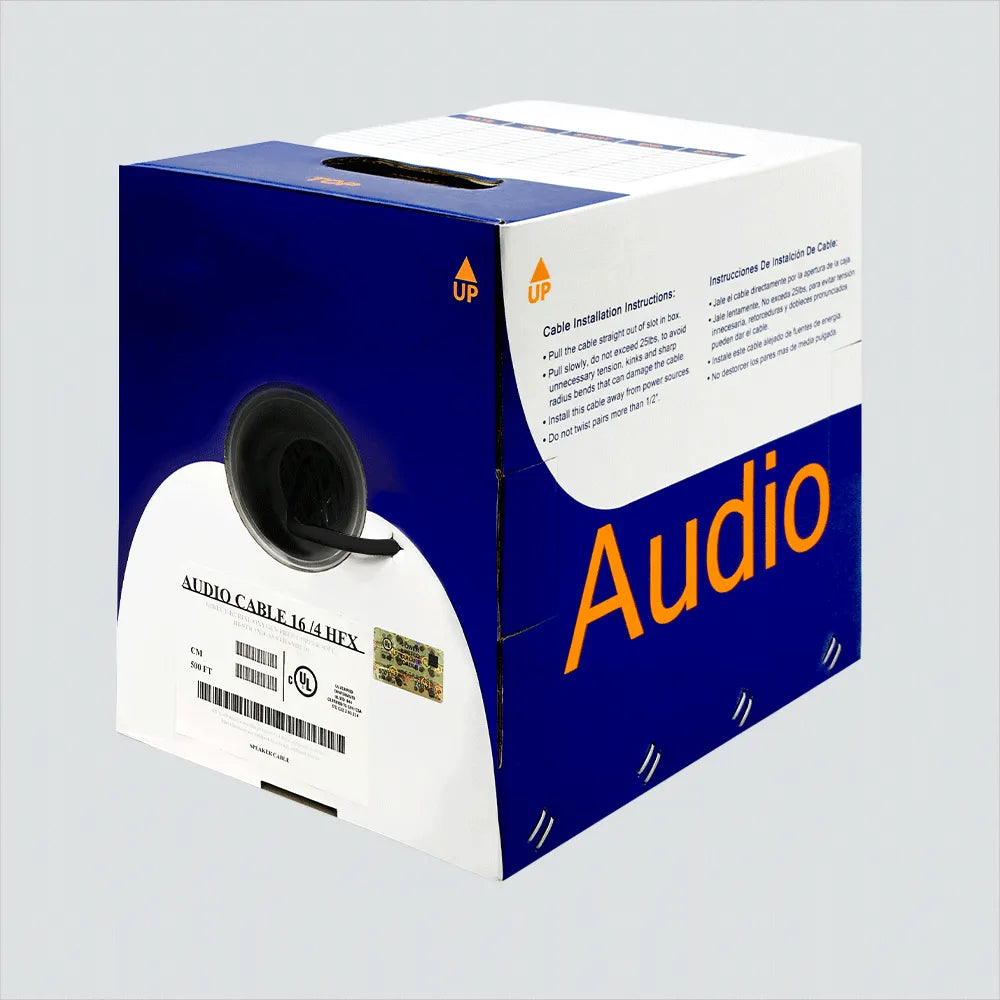

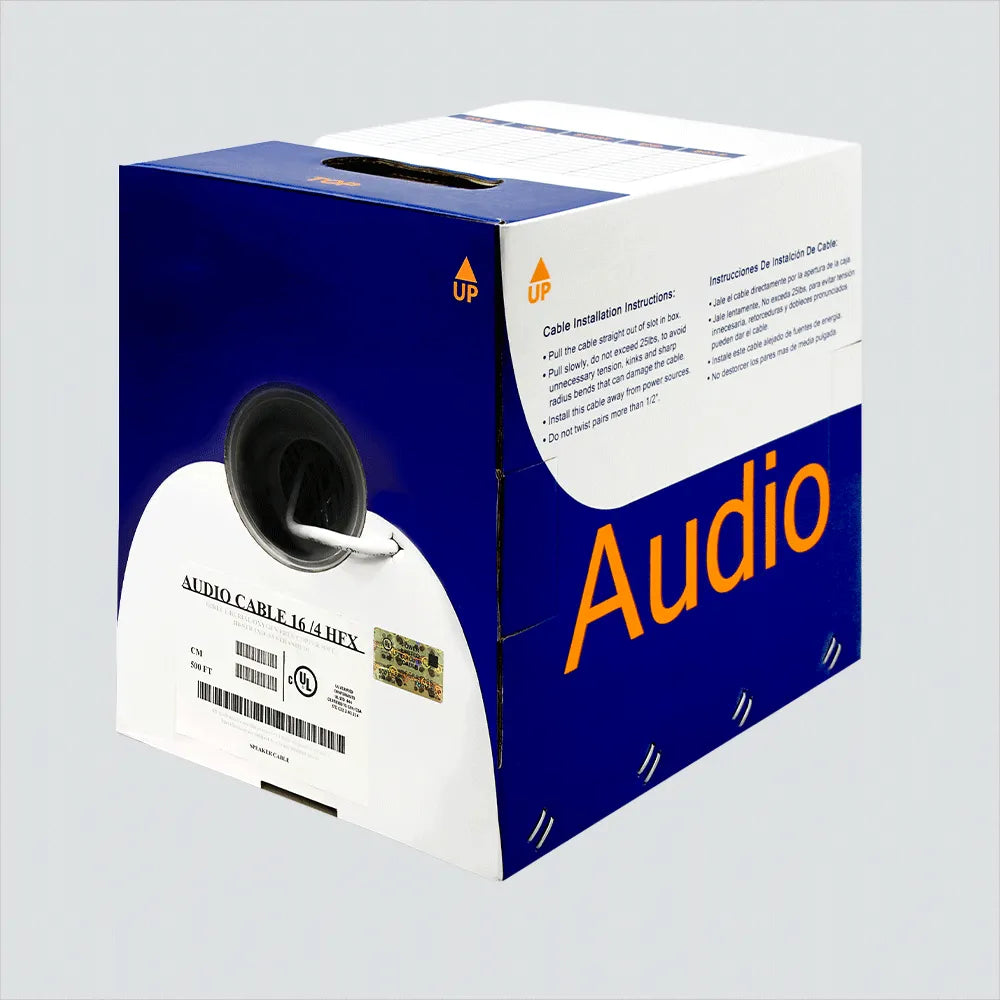

- Reelex II packaging for tangle-free payout
- 500ft spool length
Technical Specifications
| Conductor | Oxygen-Free Copper (OFC), 65/0.16mm stranded |
| AWG | 16 (1.307 mm²) |
| Insulation | 0.3mm thickness, 2.2mm ± 0.2mm diameter |
| Jacket | Glossy PVC, 0.90mm ± 0.15mm nominal thickness |
| Cable Diameter | 7.3mm ± 0.3mm |
| Insulation Resistance | ≥ 200 MΩ/km |
| Conductor Colors | Black, Red, White, Green |
| Jacket Colors | Black, White |
| Length | 500 ft (Reelex II) |
| Approvals | CL2/CL3, c(ETL) Listed CMR/CMP, RoHS |
Applications
Ideal for multi-conductor audio/sound, control, instrumentation, and LED lighting cable installations. Suitable for in-wall, riser, and direct burial outdoor environments.
Additional Info & Specs
| Conductor | Oxygen-Free Copper (OFC), 65/0.16mm stranded |
| AWG | 16 (1.307 mm2) |
| Insulation Thickness | 0.3mm |
| Insulation Diameter | 2.2mm +/- 0.2mm |
| Jacket Material | Glossy PVC |
| Jacket Thickness | 0.90mm +/- 0.15mm |
| Cable Diameter | 7.3mm +/- 0.3mm |
| Insulation Resistance | 200 MOhm/km |
| Conductor Colors | Black, Red, White, Green |
| Jacket Colors | Black, White |
| Length | 500 ft (Reelex II) |
| Approvals | CL2/CL3, c(ETL) Listed CMR/CMP, RoHS |
| Binding Tape | Paper Tape, ~125% coverage |
| Rip Cord | Nylon (210D) |
