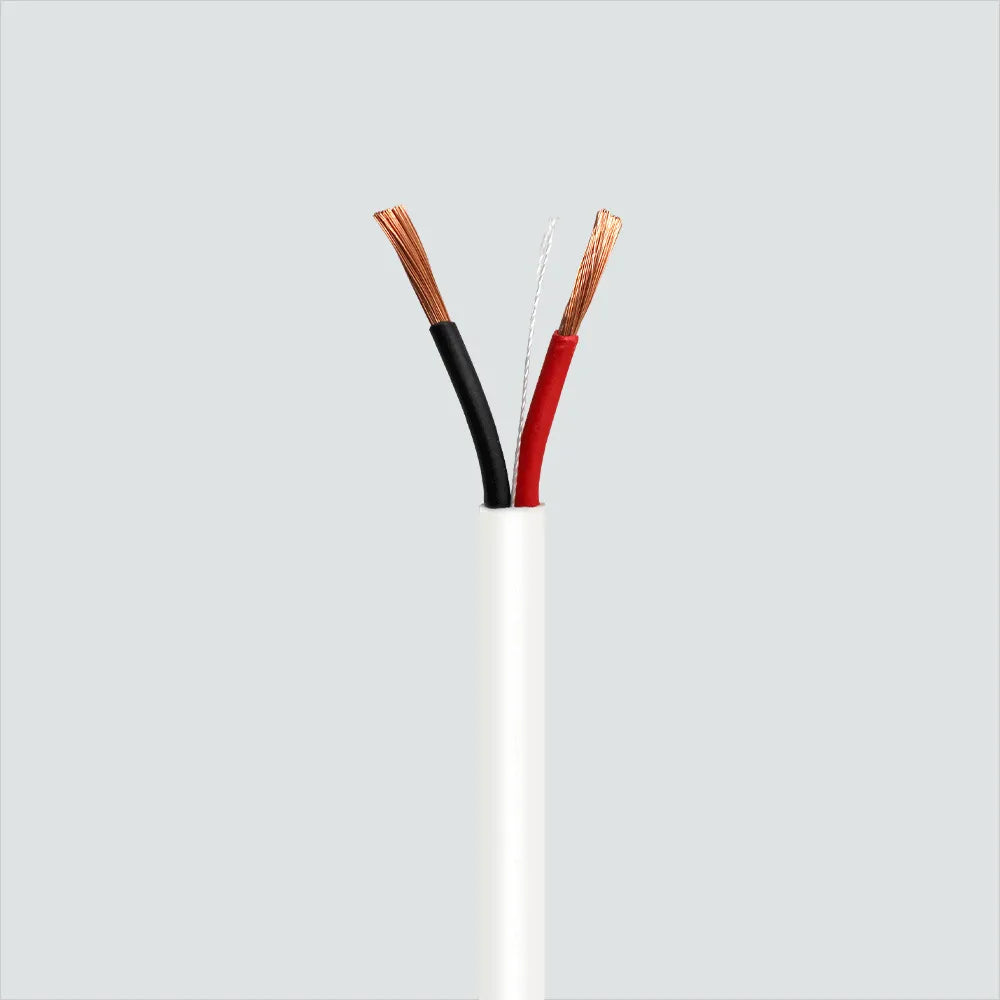

Wavenet AC1602RXX4-500 16/2 OFC Stranded Riser Audio Cable — 500ft

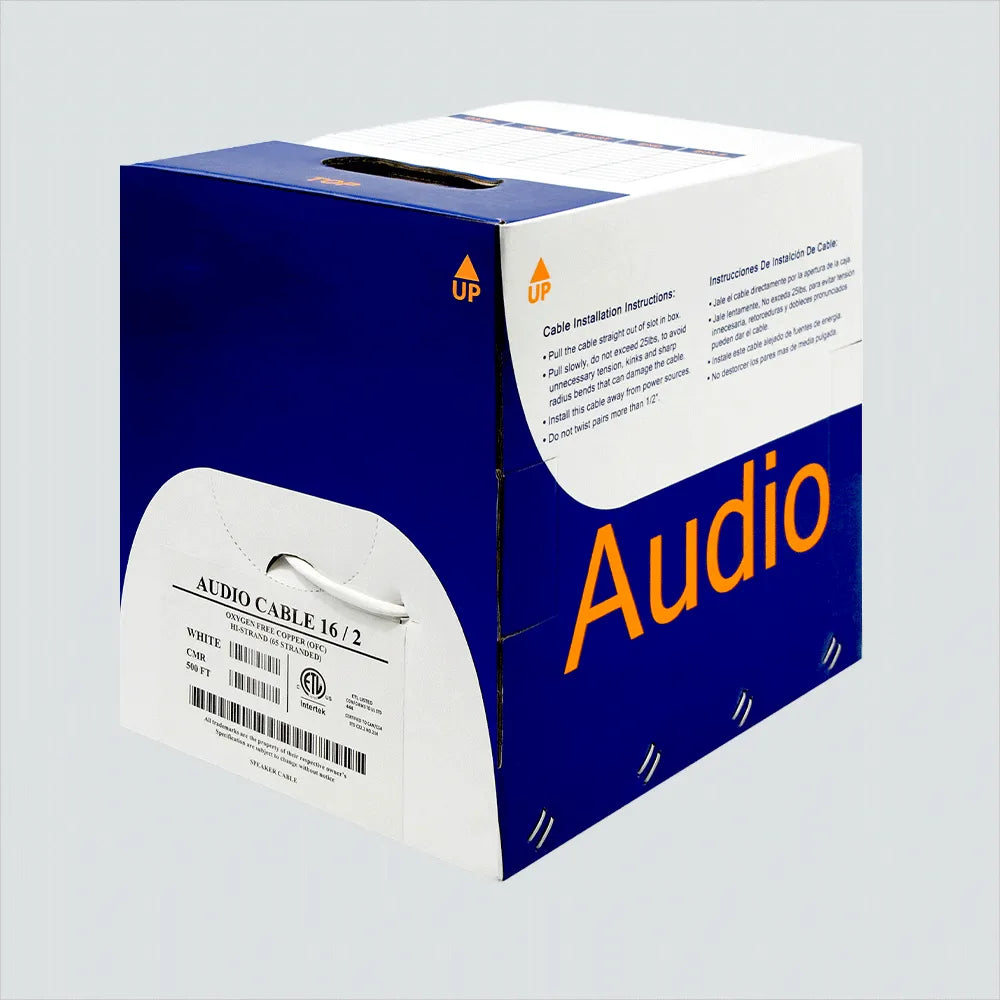

The Wavenet AC1602RXX4-500 is a premium 16 AWG 2-conductor oxygen-free copper (OFC) stranded audio cable built for riser (CMR/CL3R) in-wall installations. With a 500ft REELEX II box, this cable delivers clean signal transmission for commercial and residential sound systems, distributed audio, and signal control applications.
Construction & Performance
Each conductor uses 65 strands of 0.0063" bare copper for high flexibility and low resistance (15.5 Ω/1000ft). PVC insulation (0.0122" avg thickness) surrounds each conductor, with an overall PVC jacket rated at 300V and 75°C. A nylon rip cord simplifies jacket stripping during termination.
Technical Specifications
| Conductor | Oxygen-Free Bare Copper (OFC) |
| AWG | 16 (2 conductors) |
| Stranding | 65 x 0.0063" |
| Insulation | PVC, 0.0122" avg thickness |
| Jacket | PVC, 0.0197" avg thickness |
| Outer Diameter | 0.2008" |
| Conductor Resistance | 15.5 Ω/1000ft |
| Voltage Rating | 300V |
| Temperature Rating | 75°C |
| Weight | 15 lbs (nominal) |
| Rating | CMR / CL3R / FT4 |
| Length | 500 ft (REELEX II) |
Standards & Approvals
ETL Listed (c(ETL)us) per UL 444 and CSA C22.2. Suitable for riser-rated in-wall installations per NEC Article 800 and 725. Meets FT4 flame test requirements.
Additional Info & Specs
| Conductor | Oxygen-Free Bare Copper (OFC) |
| AWG | 16 (2 conductors) |
| Stranding | 65 x 0.0063" |
| Insulation | PVC, 0.0122" avg thickness |
| Jacket | PVC, 0.0197" avg thickness |
| Outer Diameter | 0.2008" |
| Conductor Resistance | 15.5 Ω/1000ft |
| Voltage Rating | 300V |
| Temperature Rating | 75°C |
| Weight | 15 lbs (nominal) |
| Rating | CMR / CL3R / FT4 |
| Length | 500 ft (REELEX II) |
