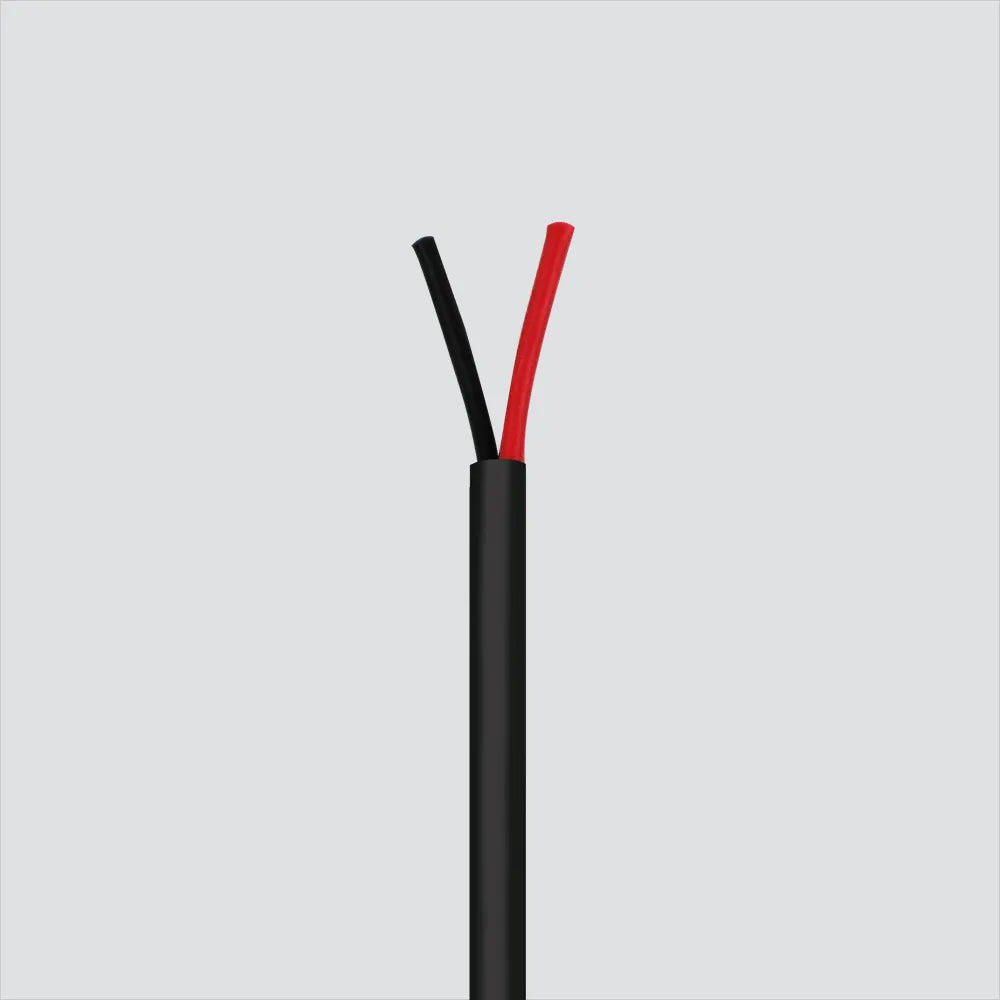

Wavenet AC1602OSPBK4-500 16/2 Outdoor Direct Burial Audio Cable
The Wavenet AC1602OSPBK4-500 is a professional-grade 16 AWG 2-conductor stranded audio cable engineered for direct burial and outdoor installations. Built with oxygen-free bare copper conductors and a UV-resistant FR-PVC jacket, this CMR/CL3R rated cable delivers reliable signal transmission in demanding environments.
Construction & Physical Specifications
| Conductor | 16 AWG (65 strands) Oxygen-Free Bare Copper |
| Conductor Diameter | 0.0063 in |
| Insulation | PVC, 0.0098 in nominal wall, 0.0827 in diameter |
| Jacket | FR-PVC, 0.0197 in nominal thickness |
| Overall Diameter | 0.2008 in |
| Weight | 16 lbs (500 ft spool) |
| Paper Tape | Yes |
| Rip Cord | Yes |
Electrical Ratings
| Conductor Resistance | 15.8 ohms/1000m |
| Voltage Rating | 300V |
| Temperature Range | -20C to 70C |
Standards & Certifications
ETL Listed (Intertek) to applicable Communication and Signal Control Systems standards. Cable marking: AUDIO CABLE 2 COND 16 AWG HI-STRAND OXYGEN FREE COPPER CMR/CL3R DIRECT BURIAL AUDIO CABLE SUN RES EXXXX C(ETL)US.
Applications
Ideal for direct burial outdoor speaker runs, commercial audio installations, distributed audio systems, and any application requiring a UV-rated, sunlight-resistant cable with CMR/CL3R riser rating.
Additional Info & Specs
| Conductor | Oxygen-Free Bare Copper |
| Number of Conductors | 2 |
| AWG | 16 |
| Stranding | 65 x 0.0063 inches |
| Insulation | PVC (0.0098 inch nominal wall) |
| Jacket | FR-PVC, UV Rated (0.0197 inch nominal thickness) |
| Overall Diameter | 0.2008 inches |
| Conductor Resistance | 15.8 ohms/1000m |
| Voltage Rating | 300V |
| Temperature Rating | -20C to 70C |
| Weight | 16 lbs |
